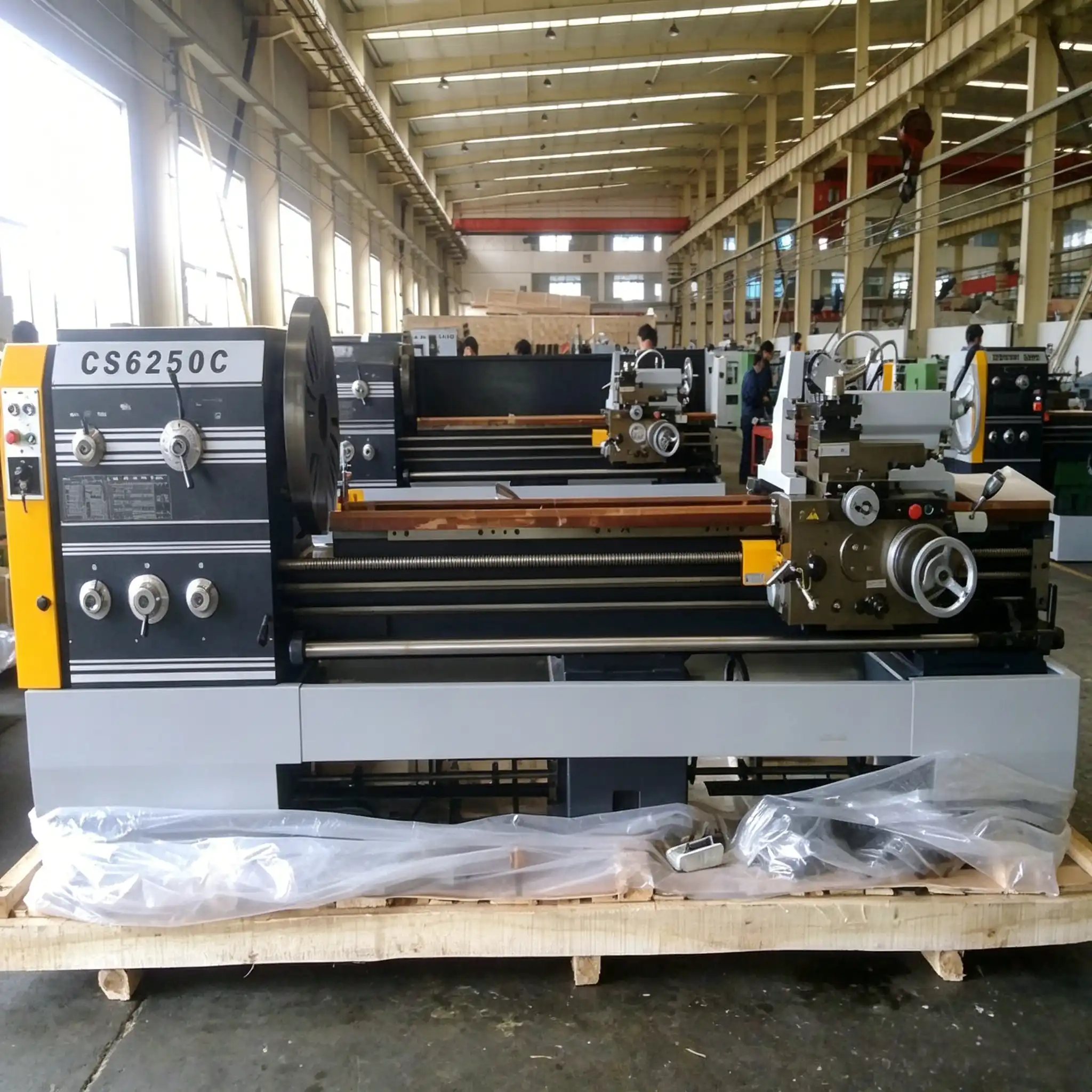

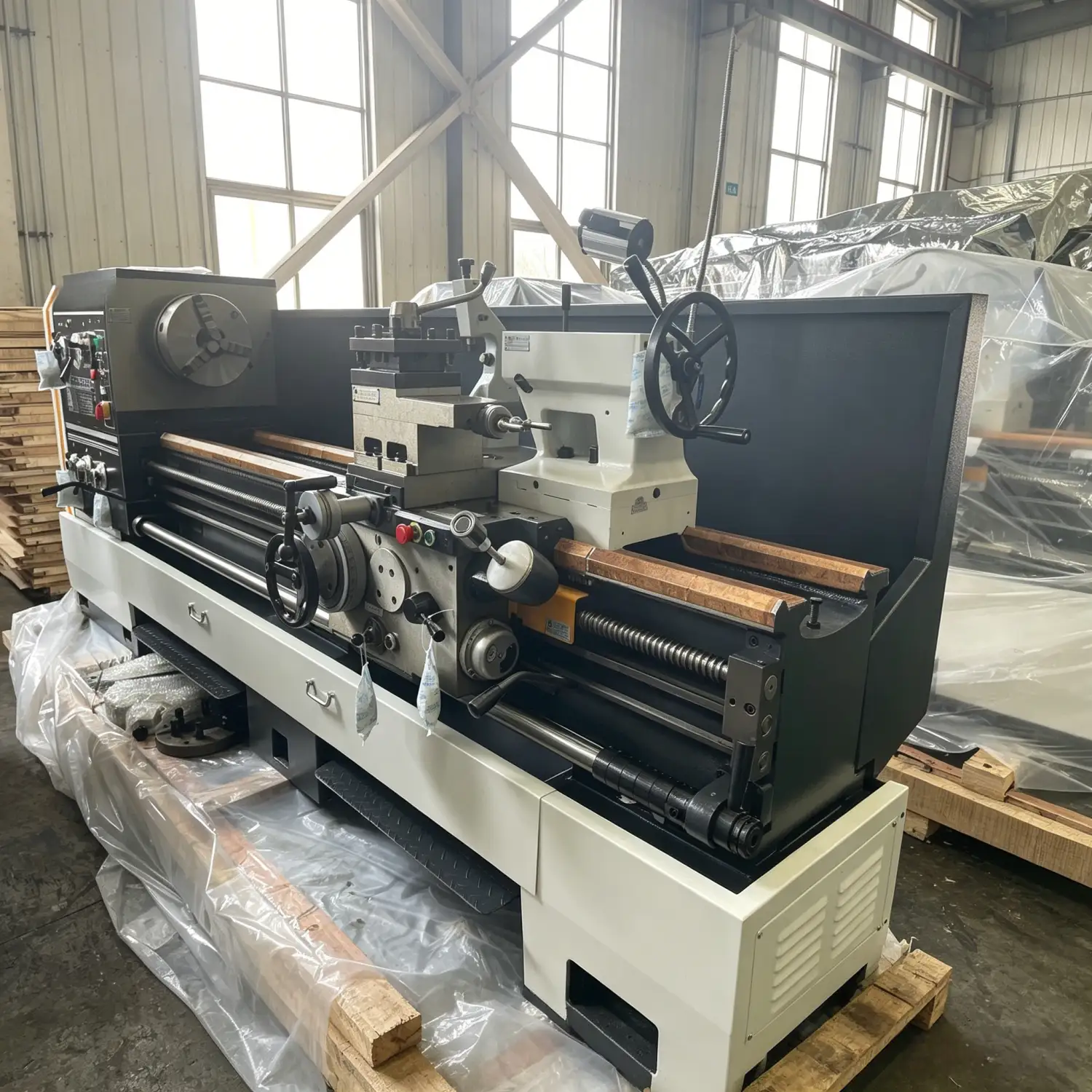

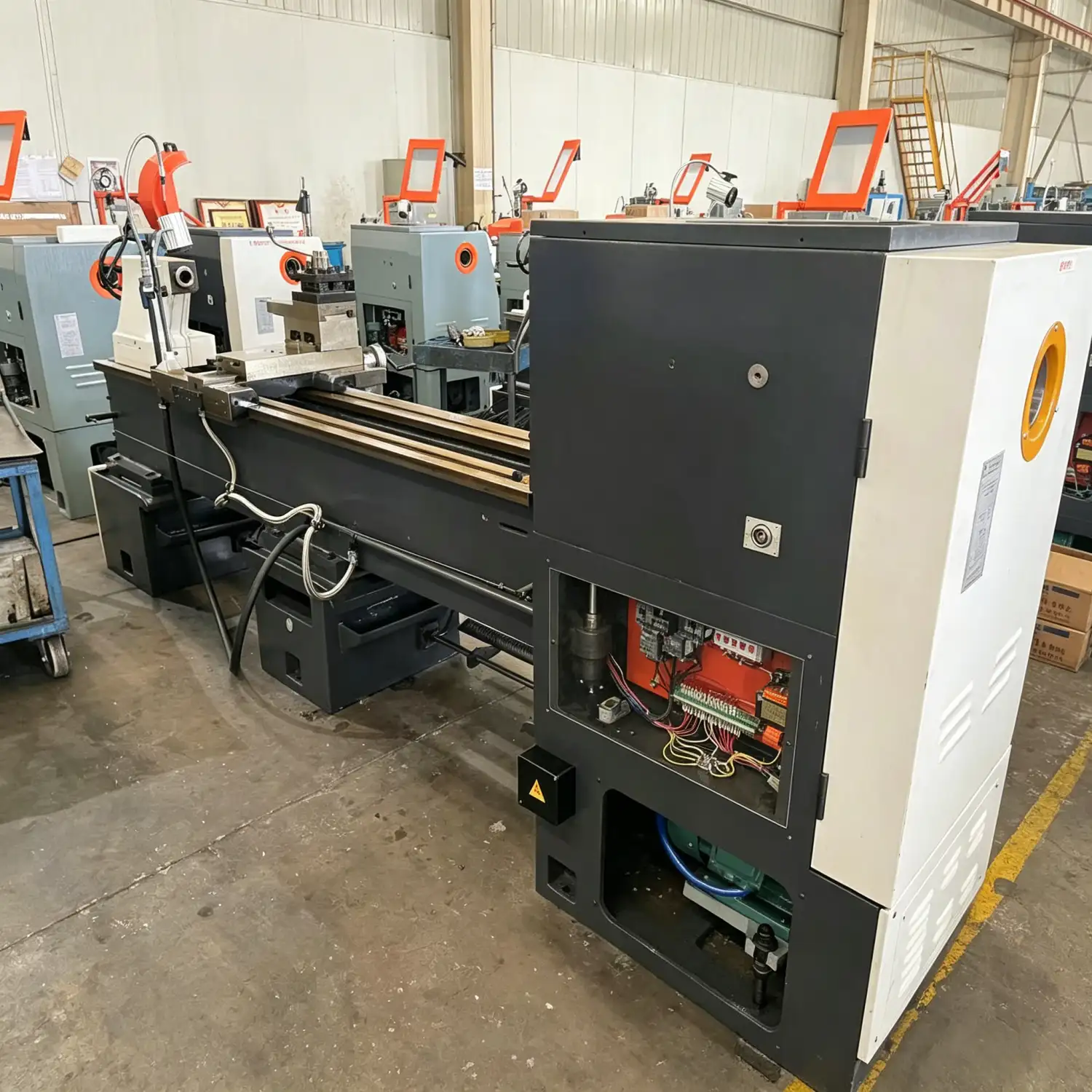

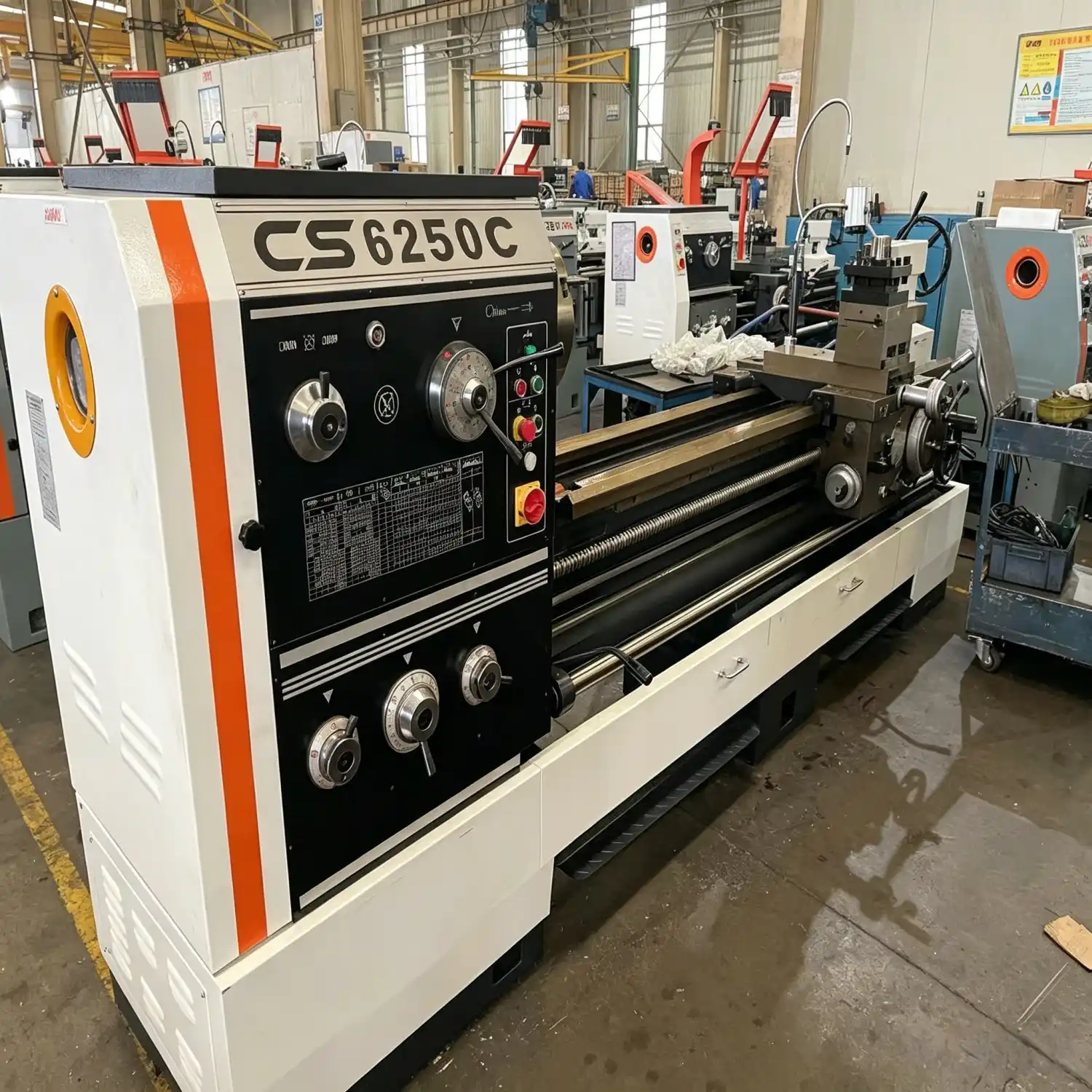

Advanced Large-Bore Manual Lathe for Industrial Fabrication
The CS6250C Conventional Lathe is a robust turning solution specifically engineered for workshops that handle oversized workpieces. It is exceptionally capable of performing internal and external turning, end facing, and taper turning on a wide range of rotary parts. Beyond standard turning, this series excels in precision drilling, boring, and groove broaching, offering a complete manual machining station for maintenance and production.
Key operational highlights of the CS6250C:
- Superior Bar Stock Capacity:The standout 105mm through-hole spindle bore is a mechanical necessity for holding and processing larger diameter bar stocks without additional adjustments.
- Versatile Threading Capabilities:Seamlessly supports high-precision threading in Metric, Inch, Module, and D.P. systems, ensuring compatibility with any technical project.
- User-Preferred Braking:For immediate operational control and operator safety, users can select between a manual hand brake or a foot brake system.
- Dual Measuring System:Both Metric and Inch systems are fully integrated, facilitating a smooth transition for operators from different countries and measuring standards.
Standard Accessory

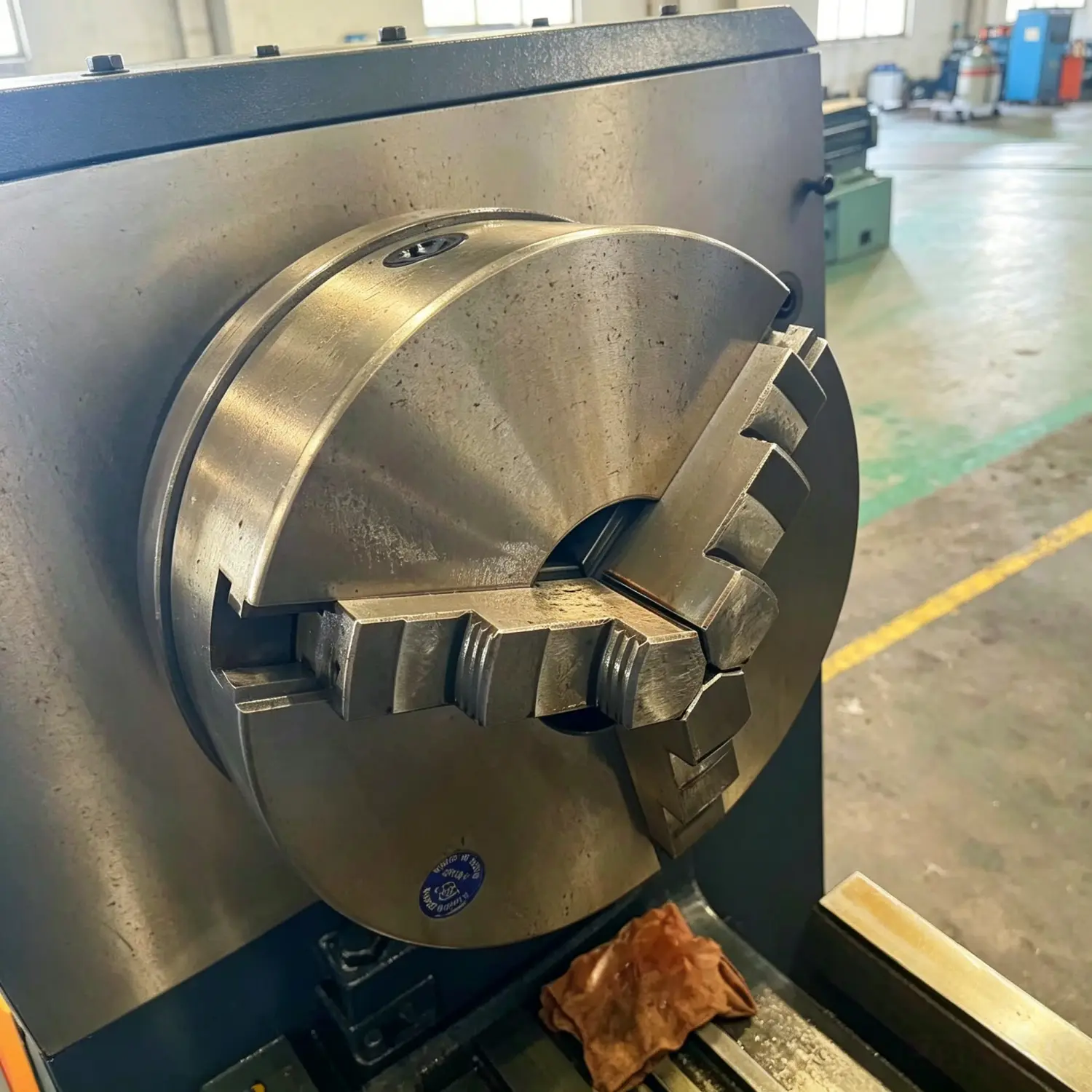

| v 3-jaw chuck and adapter |
| v 4-jaw chuck and adapter |
| v Drive plate |

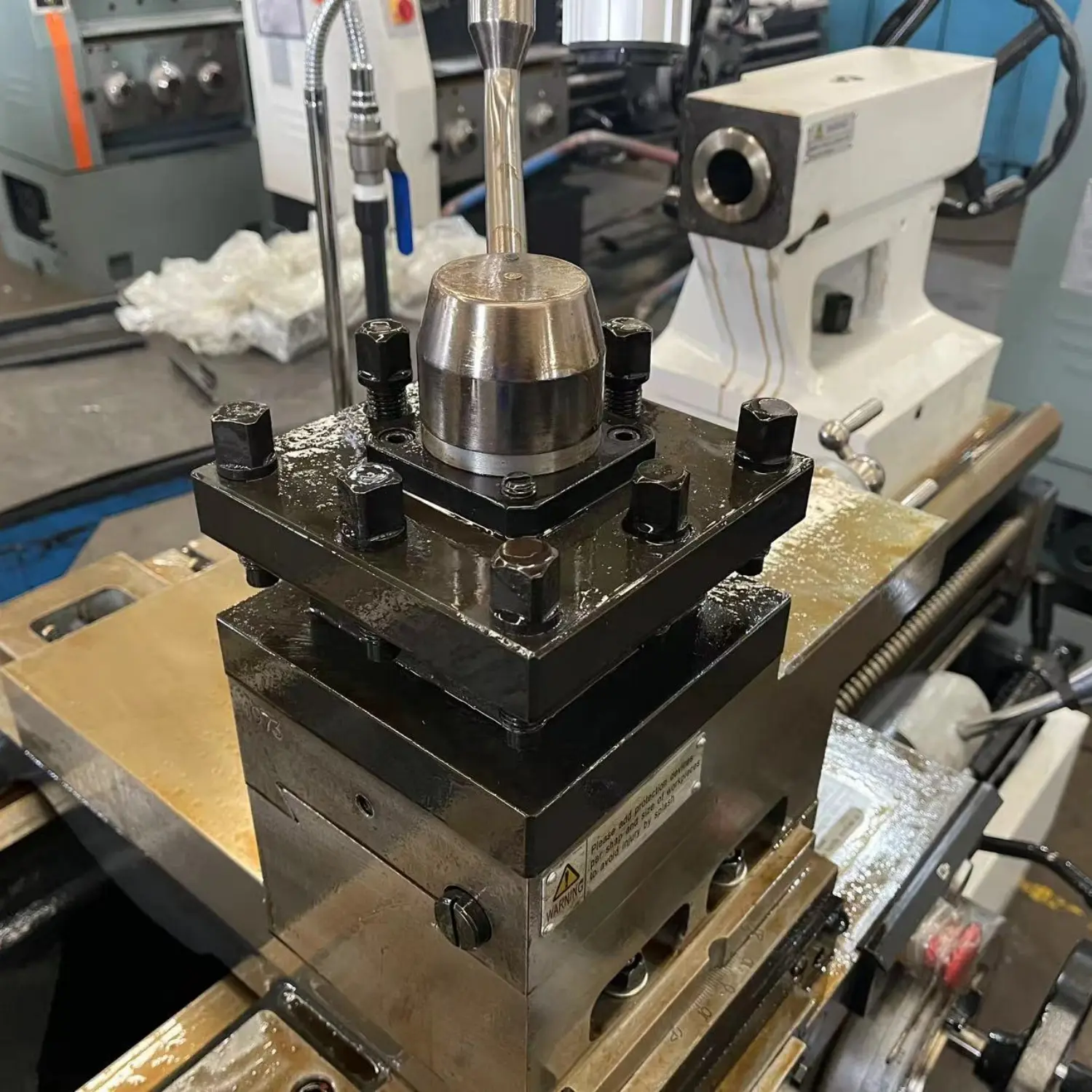

| v 4-station conventional tool post |
| v Mechanical feed stop |
| v Full splash guard |
| v Steady rest |
| v Follow rest |
| v Foot brake |
| v LED work lamp |
| v Tools |
Product Specification
| Item | Unit | CS6250C | |
| Capacity | Max swing over bed | mm | Φ500 |
| Max swing in gap | mm | Φ710 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ300 | |
| Max workpiece length | mm | 1000/1500/2000/3000 | |
| Spindle | Spindle thru-hole | mm | Φ105 |
| Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | ||
| Spindle speed | r/min | 12 step 32-1600 | |
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool section | 4/25X25 | |
| Feed | Max upper tool post travel | mm | 145 |
| Max lower tool post travel | mm | 320 | |
| X-axis feed | mm/r | 65 sorts 0.063-2.52 | |
| Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 | |
| Metric thread | mm | 22 sorts 1-14 | |
| Inch thread | t.p.i | 25 sorts 28-2 | |
| Module thread | πmm | 18 sorts 0.5-7 | |
| DP thread | t.p.i. π | 24 sorts 56-4 | |
| Others | Coolant pump motor | kW | 0.06 |
| Machine length | mm | 2632/3132/3632/4632 | |
| Machine width | mm | 975 | |
| Machine height | mm | 1270 | |
| Machine weight | kg | 2200/2400/2600/2900 | |
