Description
Multipurpose Heavy-Duty Lathe for Professional Engineering
The CS6266B Conventional Lathe is a high-rigidity manual machine designed for workshops that require maximum capacity and reliable power. This model is exceptionally versatile, capable of performing internal and external turning, taper turning, end facing, and complex rotary part processing. Beyond standard turning, it is highly efficient for drilling, boring, and groove broaching on a wide variety of materials.
Operational highlights of the CS6266B include:
- Advanced Machining Range:Capable of machining all kinds of flat stocks and irregular shapes, offering greater flexibility than standard manual lathes.
- High-Capacity Spindle:The generous through-hole spindle bore is a key feature, allowing the machine to hold and process bar stocks in significantly larger diameters.
- Universal Measurement Compatibility:Both Inch and Metric systems are fully integrated into these series lathes, ensuring ease of use for operators in any global market.
- Flexible Brake Systems:For enhanced safety and operational efficiency, users can choose between a specialized hand brake or a foot brake.
- Global Voltage Adaptability:Designed for international export, these series lathes operate across different power supplies (220V, 380V, 420V) and frequencies (50Hz/60Hz) to match your local industrial grid.
Standard Accessory

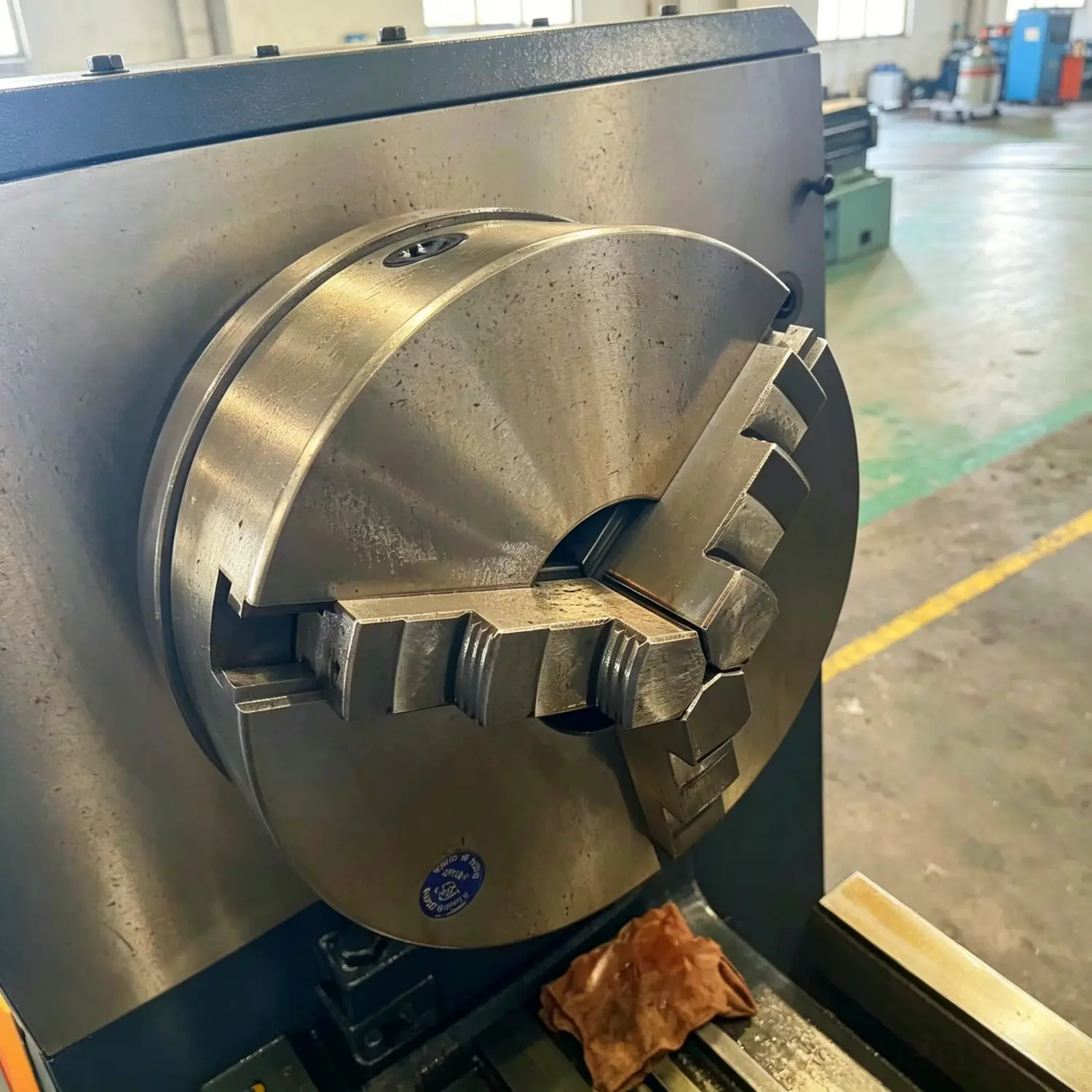

| v 3-jaw chuck and adapter |
| v 4-jaw chuck and adapter |
| v Drive plate |

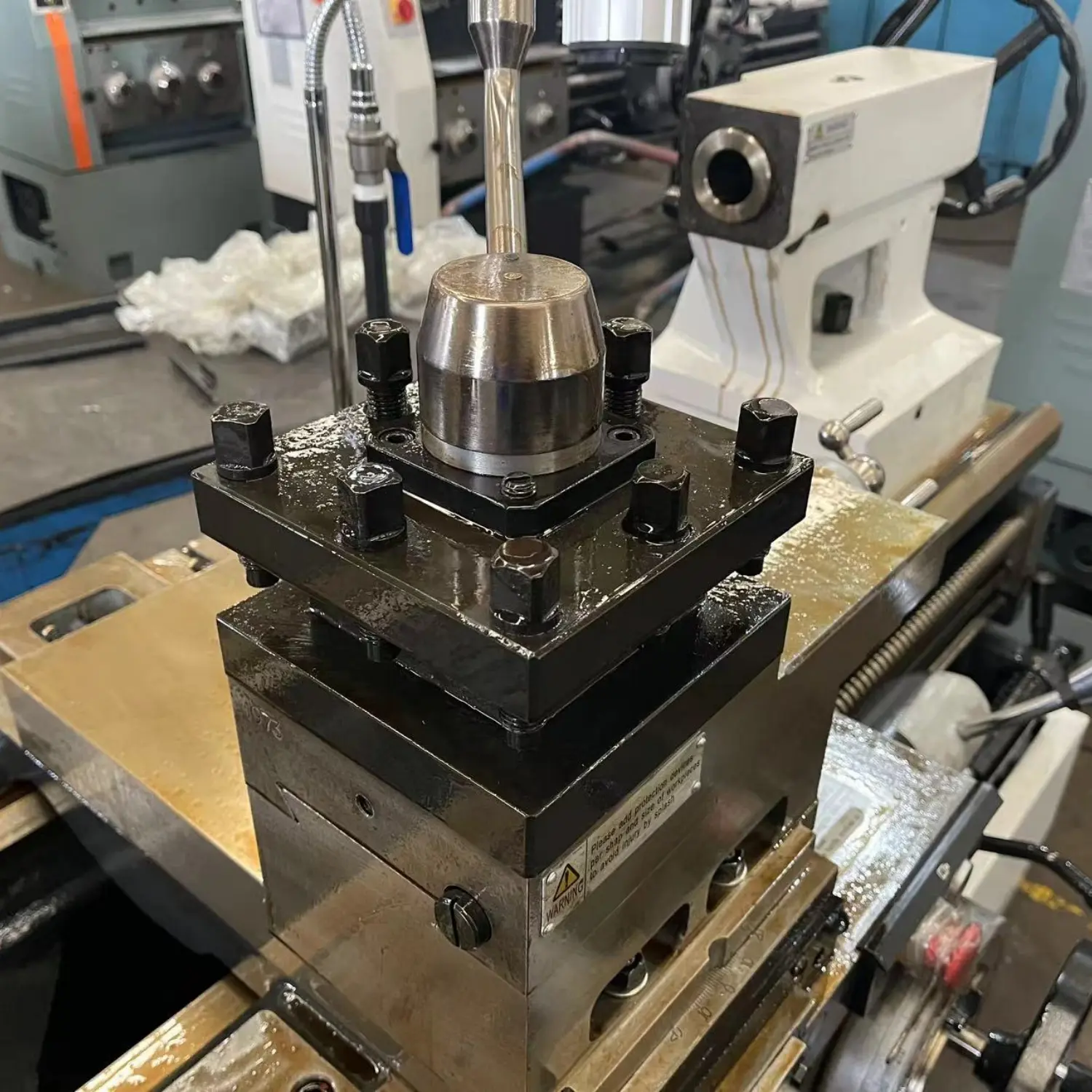

| v 4-station conventional tool post |
| v Steady rest |
| v Follow rest |
| v Foot brake |
| v Mechanical feed stop |
| v Full splash guard |
| v LED work lamp |
| v Tools |
| v Voltage/ Frequency 220V; 60Hz, 3 Phase |
Product Specification
| Item | Unit | Parameter | |
| CS6250B | |||
| Capacity | Max swing over bed | mm | Φ500 |
| Max swing in gap | mm | Φ710 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ300 | |
| Max workpiece length | mm | 1000/1500/2000/3000 | |
| Spindle | Spindle thru-hole | mm | Φ82 |
| Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | ||
| Spindle speed | r/min | 24 step 9-1600 | |
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool section | — | 4/25X25 |
| Feed | Max X-axis travel | mm | 145 |
| Max Z-axis travel | m/min | 320 | |
| X-axis feed | mm/r | 93 sorts 0.012-2.73 | |
| Z-axis feed Z-axis feed | mm/r | 93 sorts 0.028-6.43 | |
| Metric thread | mm | 48 sorts 0.5-224 | |
| Inch thread | t.p.i | 46 sorts 72-1/8 | |
| Module thread | πmm | 42 sorts 0.5-112 | |
| DP thread | t.p.i. π | 45 sorts 56-1/4 | |
| Others | Coolant pump motor | kW | 0.12 |
| Machine length | mm | 2632/3132/3632/4632 | |
| Machine width | mm | 975 | |
| Machine height | mm | 1270 | |
