Description
Professional Manual Lathe for Precision Engineering

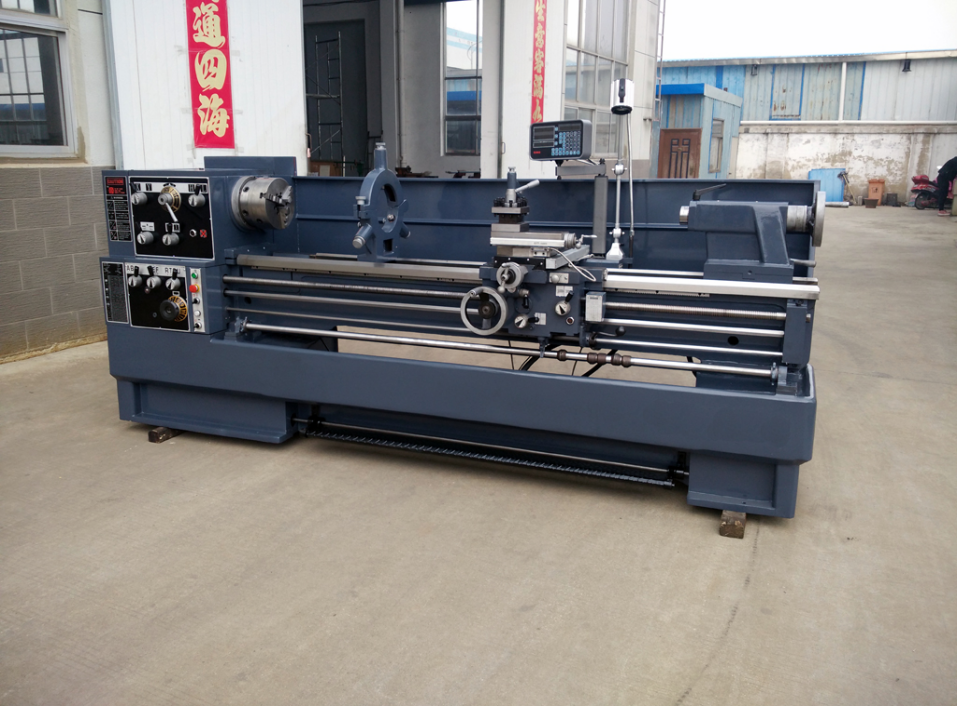

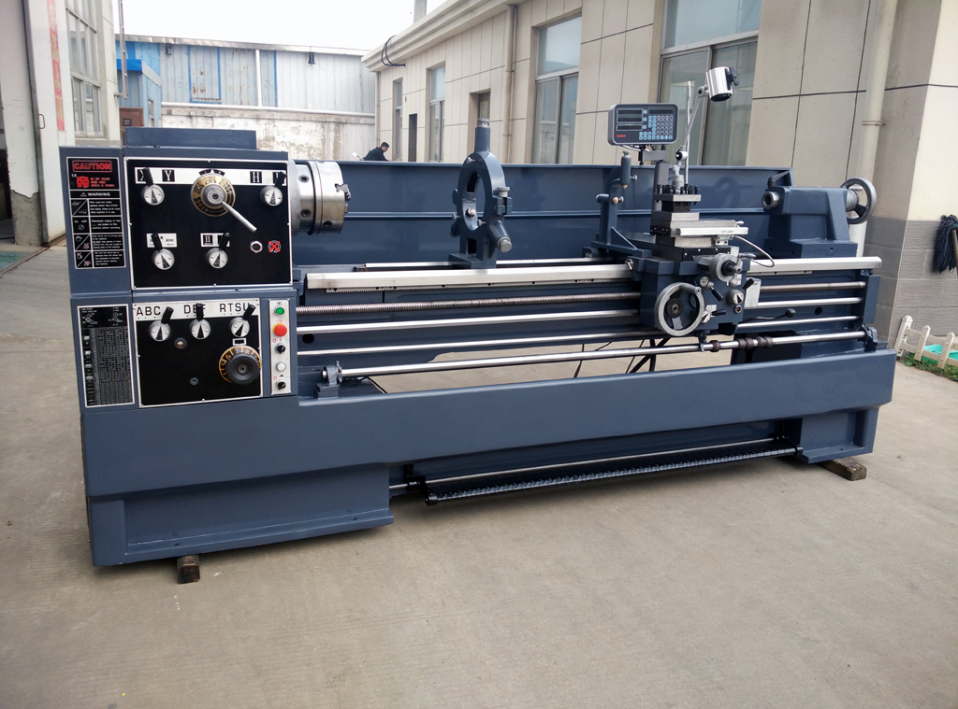

The C6266E x 3000mm Conventional Lathe Machine is a reliable and versatile turning solution designed for workshops that prioritize manual control and precision. With its high-rigidity spindle and supersonic frequency hardened bedways, this machine is built to handle a wide range of materials while maintaining long-term accuracy. The inclusion of a rapid feed structure on the apron enhances operational efficiency, making it an ideal choice for the batch and complex processing of shaft, disc, and sleeve parts in a traditional manufacturing environment.
- The surface of the bedways is supersonic frequency hardened.
- Gears precisely ground to reduce noise.
- Spindle system is of high rigidity and precision.
- Rapid feed structrue is available on apron.
- Integral casting base.
| STANDARD ACCESSORIES |
| PART:INSTALL ON THE LATHE |
| Work lamp |
| Rapid travel |
| Coolant system |
| Thread-cutting dial |
| 3-jaw chuck(Φ315mm) |
| Steady rest & follow rest |
| Full-length splash guard |
| Foot brake and brake ribbon |
| PART:INSIDE THE PACKAGE WITH THE LATHE |
| Oil gun |
| Paddings |
| Change gears |
| Face plate(450mm) |
| 4-jaw chuck(Φ400mm) |
| One whole set spanner |
| Z axis travel marking device |
| Dead centre and centre sleeve |
| Operation manual |
| OPTIONAL ACCESSORIES |
| Drive plate |
| Live centre(MT5) |
| Drill chuck set(MT5) |
| Taper cutting function |
| 2axis Digital readouts(SINO) |
| 3axis Digital readouts(SINO) |
| Italy type Quick change tool post |
| USA type Quick change tool post |
| Europe type Quick change tool post |
| CE-conformity(Chuck guard,Toolpost guard and leadscrew guard) |
| Cutting tool holders set(7pcs or 9pcs) |
Product Specification
| Model | C6266E/3000 | |
| CAPACITY | Max.swing over bed | 660mm |
| Max.swing over cross slide | 455mm | |
| Max.swing over gap | 885mm | |
| Effective length of gap | 200mm | |
| Center Distance | 3000mm | |
| Bed Width | 350mm | |
| HEADSTOCK | Spindle hole | 105mm |
| Spindle nose | ISO-D8 | |
| Spindle taper | Metric 113mm(1:20) | |
| Spindle speed(Number) | (12steps)25-1500rpm | |
| FEEDS AND THREADS | Max.travel of top slide | 130mm |
| Max.travel of cross slide | 341mm | |
| Max.size of toolshank | 25*25m2 | |
| Longitudinal metric feeds | 35kinds 0.059-1.646mm/rev | |
| Longitudinal inch feeds | 35kinds 0.0022-0.0612inch/rev | |
| Cross metric feeds | 35kinds 0.020-0.573mm/rev | |
| Cross inch feeds | 35kinds 0.00048-0.01354inch/rev | |
| Metric threads range | 47kinds 0.2-14mm | |
| Inch threads range | 60kinds 2-112T.P.I | |
| Moudle threads range | 39kinds 0.1-7M.P | |
| Diametral threads range | 50kinds 4-112D.P | |
| TAILSTOCK | Dia.of tailstock sleeve | 75mm |
| Taper of tailstock sleeve | MT5 | |
| Max.travel of tailstock | 180mm | |
| MOTOR | Main drive motor | 7.5KW |
| Coolant pump motor | 90W | |
| PACKING | L*W*H(3000mm) | 445*115*185cm |
| WEIGHT | N.W/G.W(3000mm) | 3100/3500kgs |
