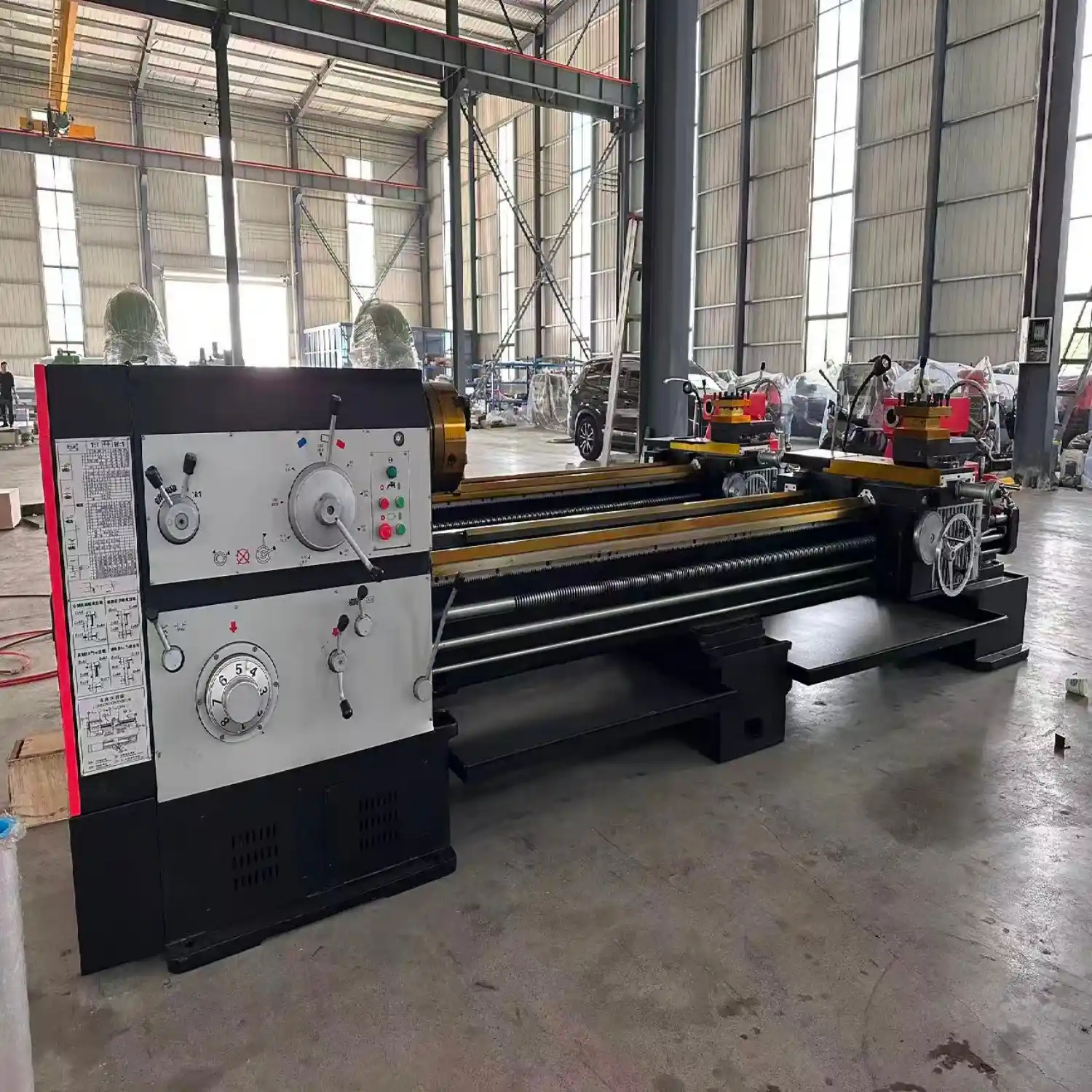

Professional Horizontal Manual Lathe for Large-Scale Engineering

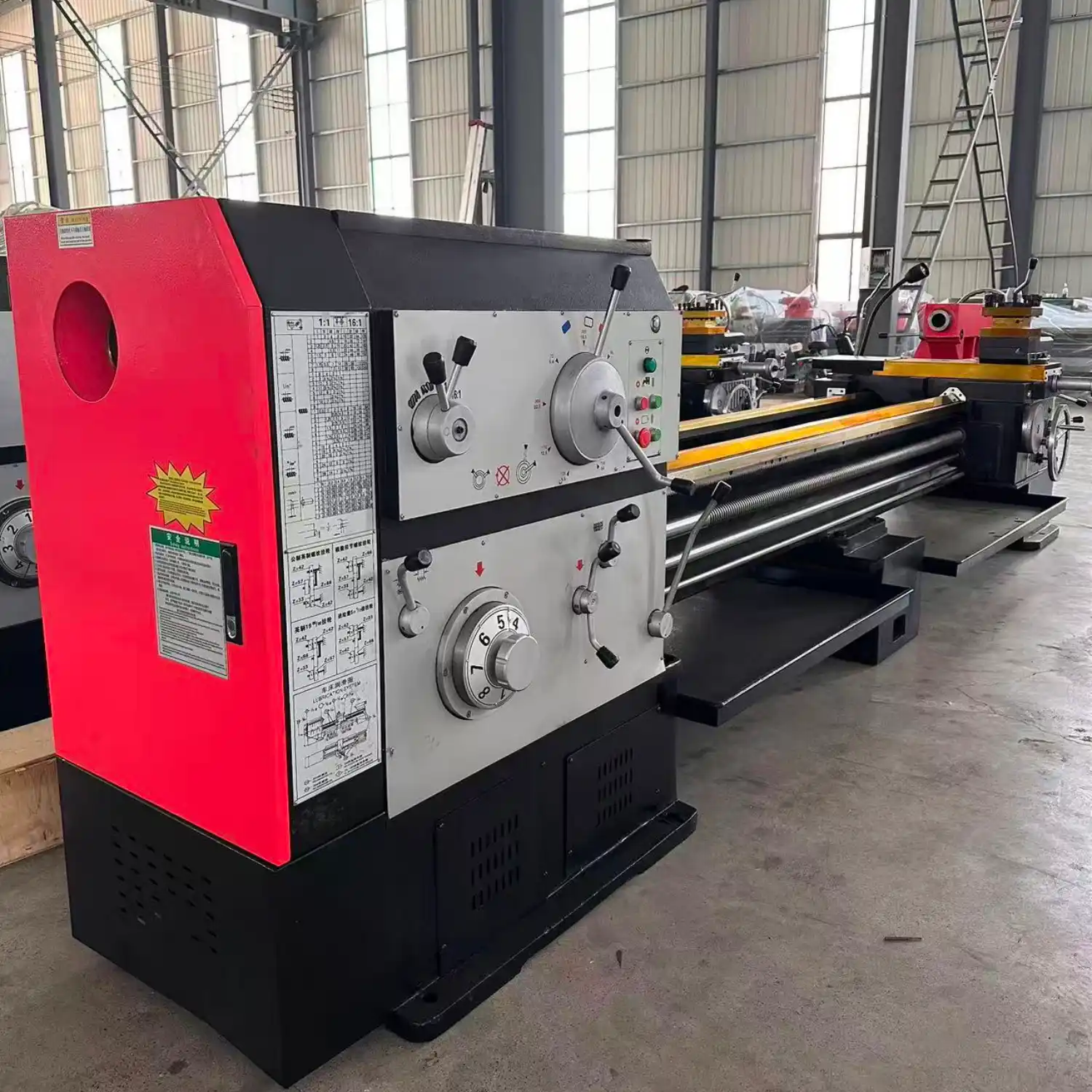

The CW6163B Conventional Lathe is a heavy-duty manual turning solution designed for high-intensity workshop environments that prioritize power and precision. This machine is exceptionally versatile, capable of performing internal and external turning, taper turning, and end facing on a wide variety of rotary components. Beyond basic turning, it excels at drilling, boring, and groove broaching, even on materials with irregular shapes or flat stocks.
Key technical and operational advantages of the CW6163B:

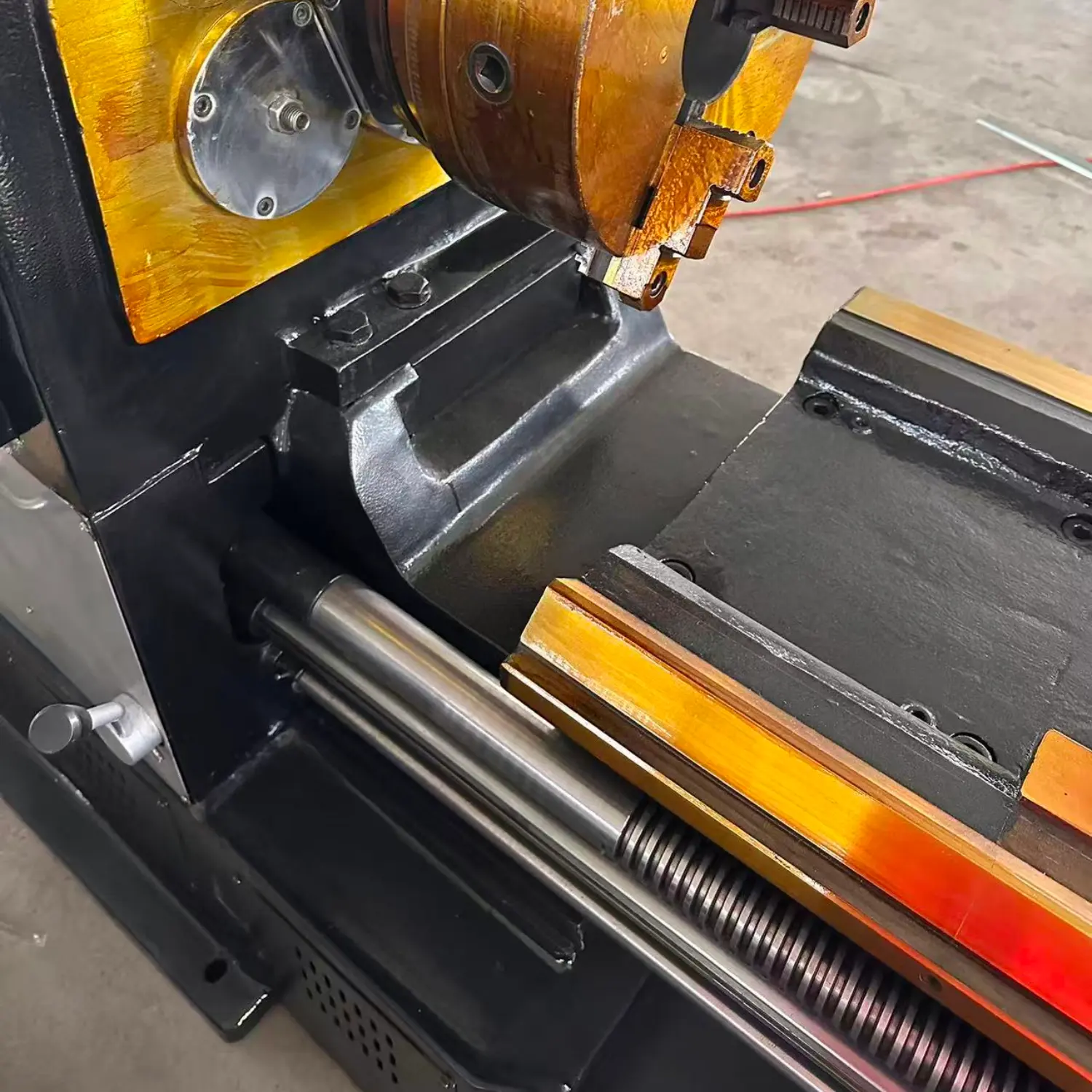

- High-Capacity Spindle System: The through-hole spindle bore is engineered to hold bar stocks in larger diameters, making it a mechanical necessity for heavy industrial piping work.

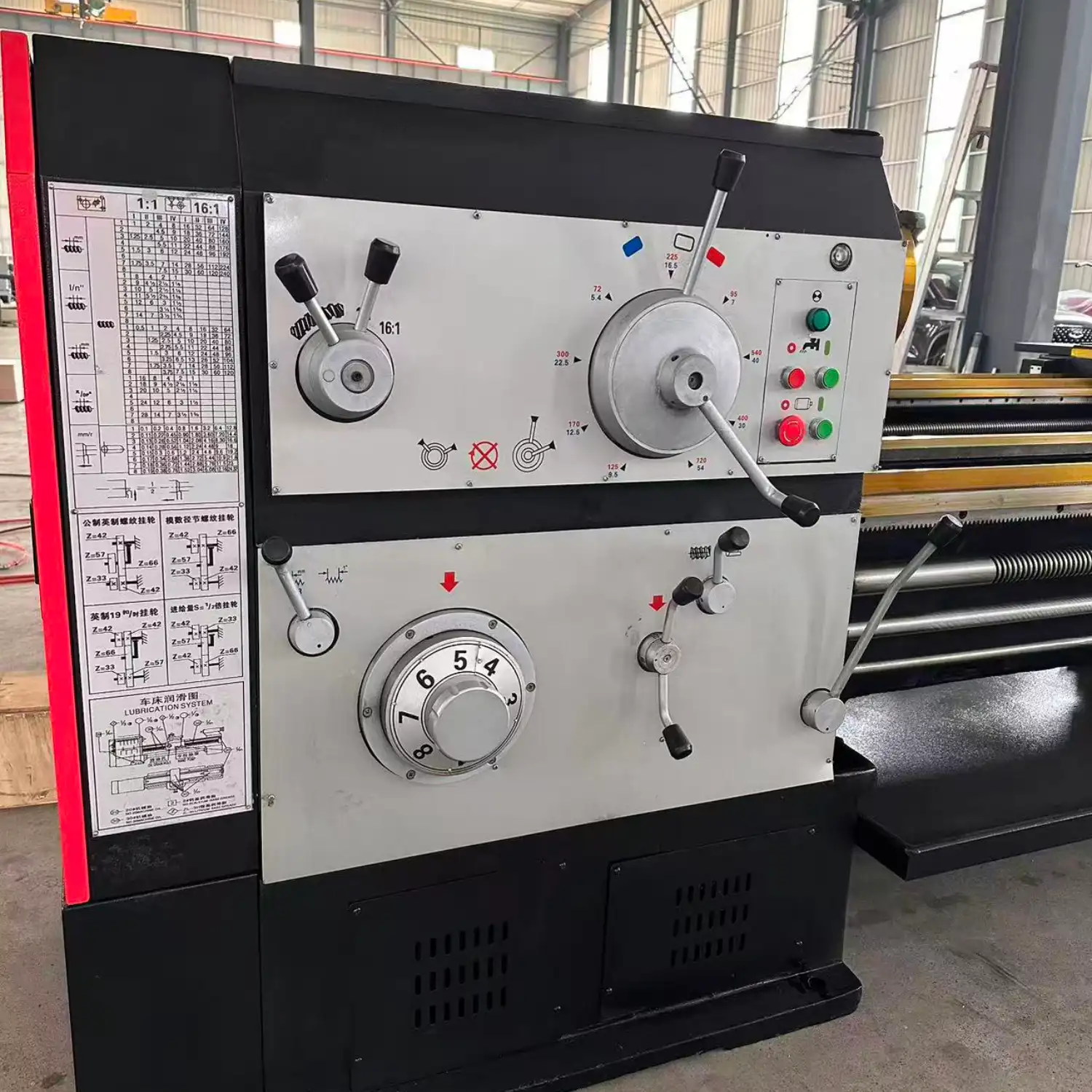

- Comprehensive Threading Suite: Seamlessly executes Metric, Inch, Module, and D.P. threading, supporting a vast range of international technical standards for fasteners and gears.

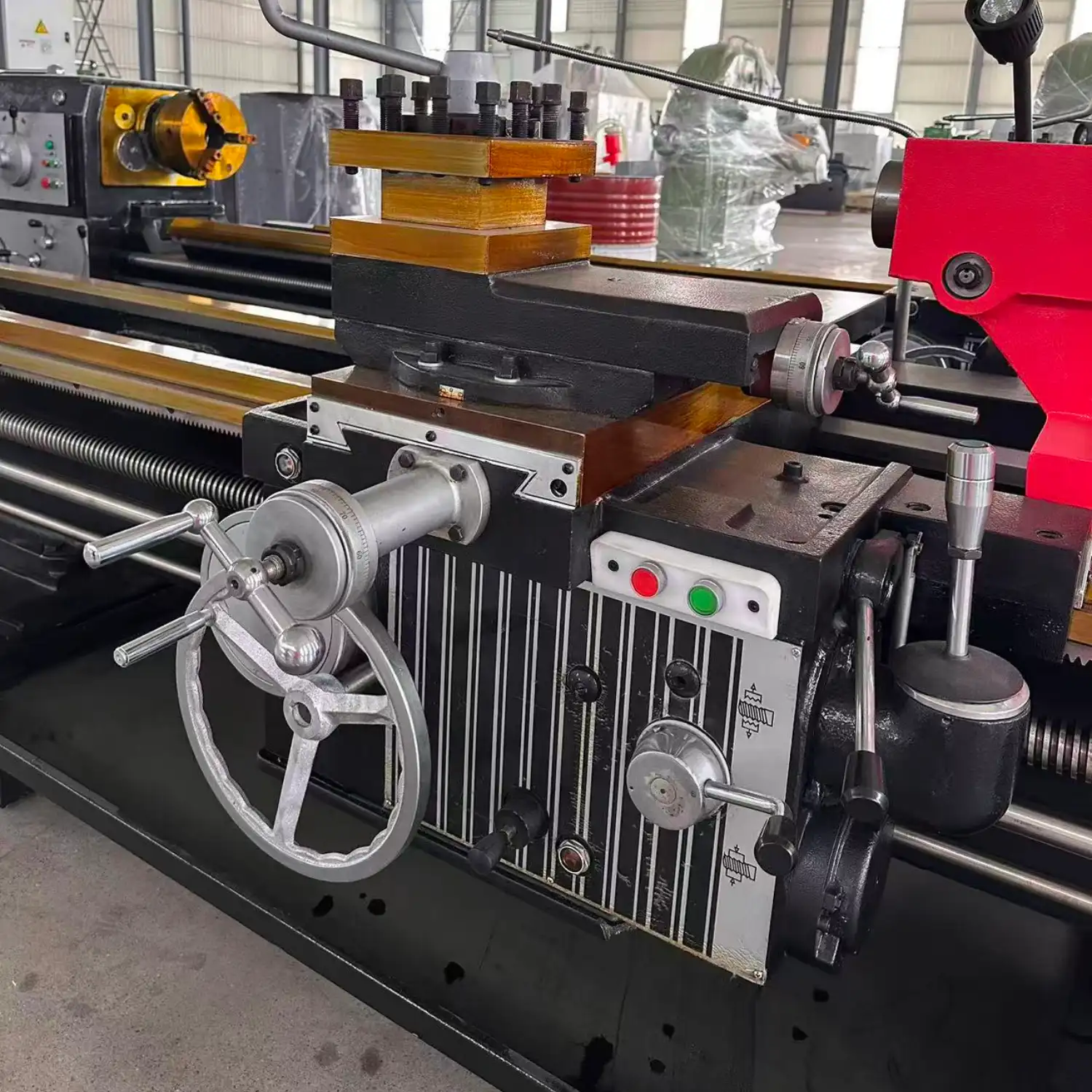

- Rapid Operational Efficiency: Features a rapid feed motor (1.1kW) capable of 4000mm/min rapid traverse, significantly reducing non-productive time during manual operation.
- Dual Measurement Standards: Fully compatible with both Inch and Metric systems, ensuring a smooth and intuitive experience for operators from any country.
- User-Selected Control: For enhanced safety and operational flexibility, this series provides both hand brake and foot brake options for immediate spindle stopping.
- Global Grid Compatibility: These series lathes operate on power supplies of different voltages (220V, 380V, 420V) and frequencies (50Hz or 60Hz), facilitating seamless integration into international facilities.
Standard Accessory
- Cooling system
- Work light / Lighting system
- Chuck

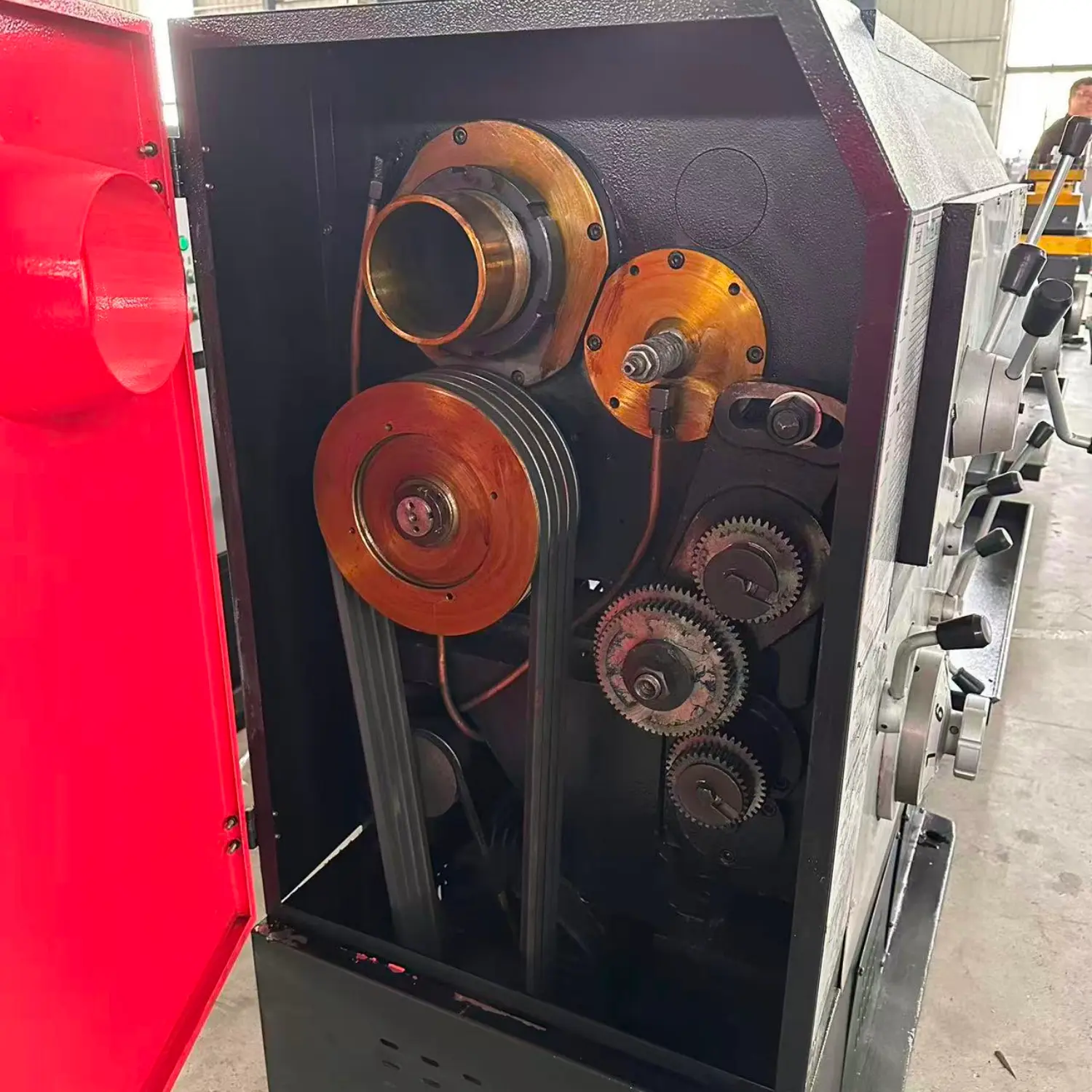

- Change gears
- Tool post wrench

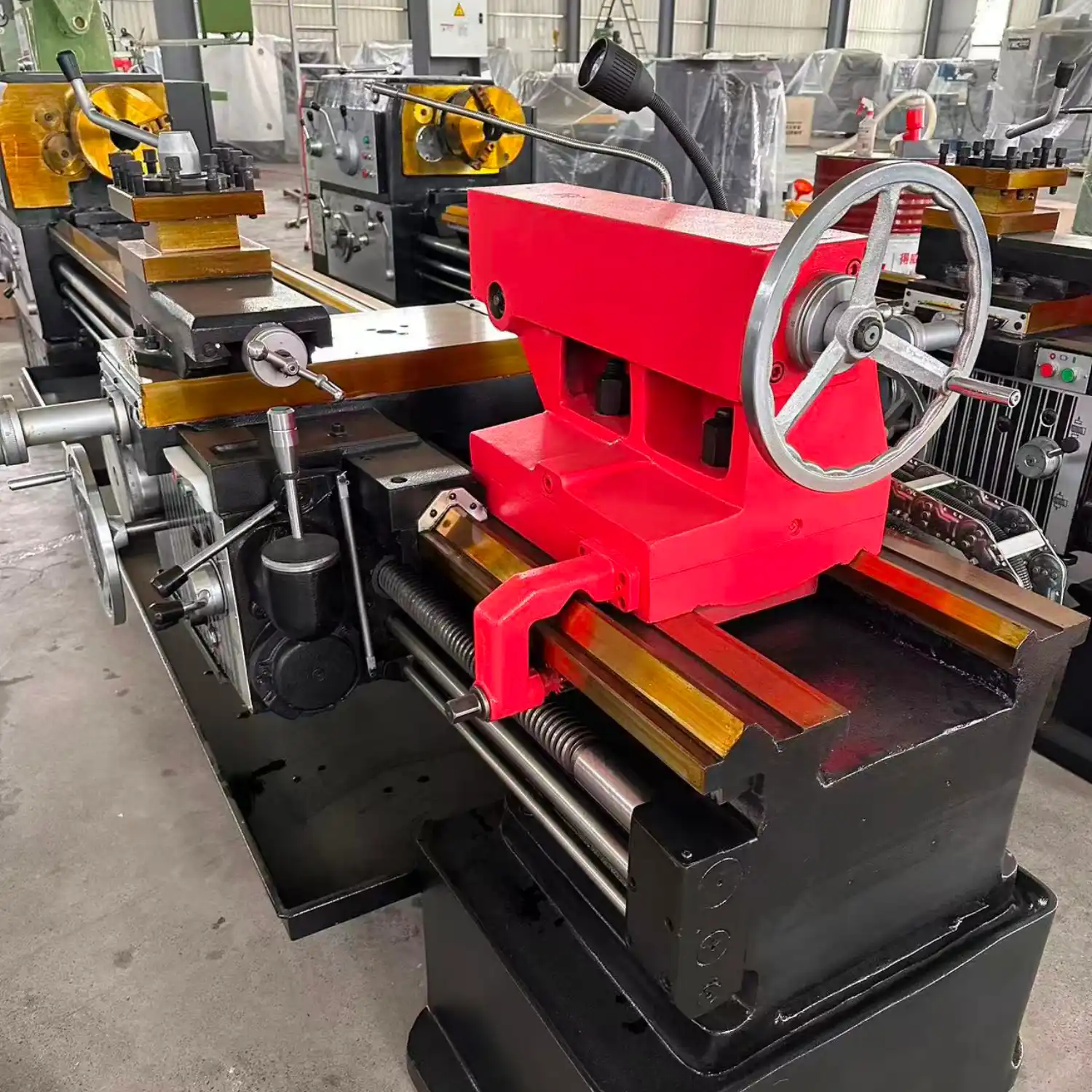

- Tailstock hand crank
- Chuck wrench
- Steady rest
- Follow rest
- Operation manual
- Certificate of conformity
- Packing list
Product Specification
| Item | CW6163B / CW6263B | CW6180B / CW6280B | CW61100B / CW62100B |
| Max. swing over bed | 630 mm | 800 mm | 1000 mm |
| Max. swing in gap (gap bed lathe only) | 800 mm | 1000 mm | 1200 mm |
| Max. swing over carriage | 350 mm | 480 mm | 680 mm |
| Distance between centers | 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10 / 12 m | 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10 / 12 m | 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10 / 12 m |
| Bed way width | 550 mm | 550 mm | 550 mm |
| Spindle bore | 105 mm | 105 mm | 105 mm |
| Spindle taper | Ø120 mm, taper 1:16 | Ø120 mm, taper 1:16 | Ø120 mm, taper 1:16 |
| Spindle speed range | 7.5–1000 r/min | 5.4–720 r/min | 5.4–720 r/min |
| Metric thread range | 1–240 mm (50 pitches) | 1–240 mm (50 pitches) | 1–240 mm (50 pitches) |
| Inch thread range (TPI) | 1–14 (26 pitches) | 1–14 (26 pitches) | 1–14 (26 pitches) |
| Modular thread range | 0.5–120 mm (53 pitches) | 0.5–120 mm (53 pitches) | 0.5–120 mm (53 pitches) |
| Diametral pitch thread range (DP) | 1–28 (24 pitches) | 1–28 (24 pitches) | 1–28 (24 pitches) |
| Longitudinal feed range / number of feeds | 64 kinds, 0.05–24.3 mm/r | 64 kinds, 0.05–24.3 mm/r | 64 kinds, 0.05–24.3 mm/r |
| Feed range 1:1 | 0.1–1.52 mm/r | 0.1–1.52 mm/r | 0.1–1.52 mm/r |
| Feed range 16:1 | 1.6–24.3 mm/r | 1.6–24.3 mm/r | 1.6–24.3 mm/r |
| Fine feed range with change gears | 0.05–0.912 mm/r | 0.05–0.912 mm/r | 0.05–0.912 mm/r |
| Ratio of cross feed to longitudinal feed | 1/2 | 1/2 | 1/2 |
| Carriage rapid traverse speed | 4000 mm/min | 4000 mm/min | 4000 mm/min |
| Tool shank size | 32×32 mm | 32×32 mm | 32×32 mm |
| Max. cross travel of carriage | 315 mm | 420 mm | 420 mm |
| Max. travel of compound rest | 200 mm | 200 mm | 200 mm |
| Tailstock quill diameter | 100 mm | 100 mm | 100 mm |
| Tailstock quill taper | MT6 (Morse Taper No.6) | MT6 (Morse Taper No.6) | MT6 (Morse Taper No.6) |
| Max. travel of tailstock quill | 240 mm | 240 mm | 240 mm |
| Main motor power | 11 kW | 11 kW | 11 kW |
| Rapid traverse motor power | 1.1 kW | 1.1 kW | 1.1 kW |
