Description
Advanced Manual Lathe for High-Precision Industrial Fabrication

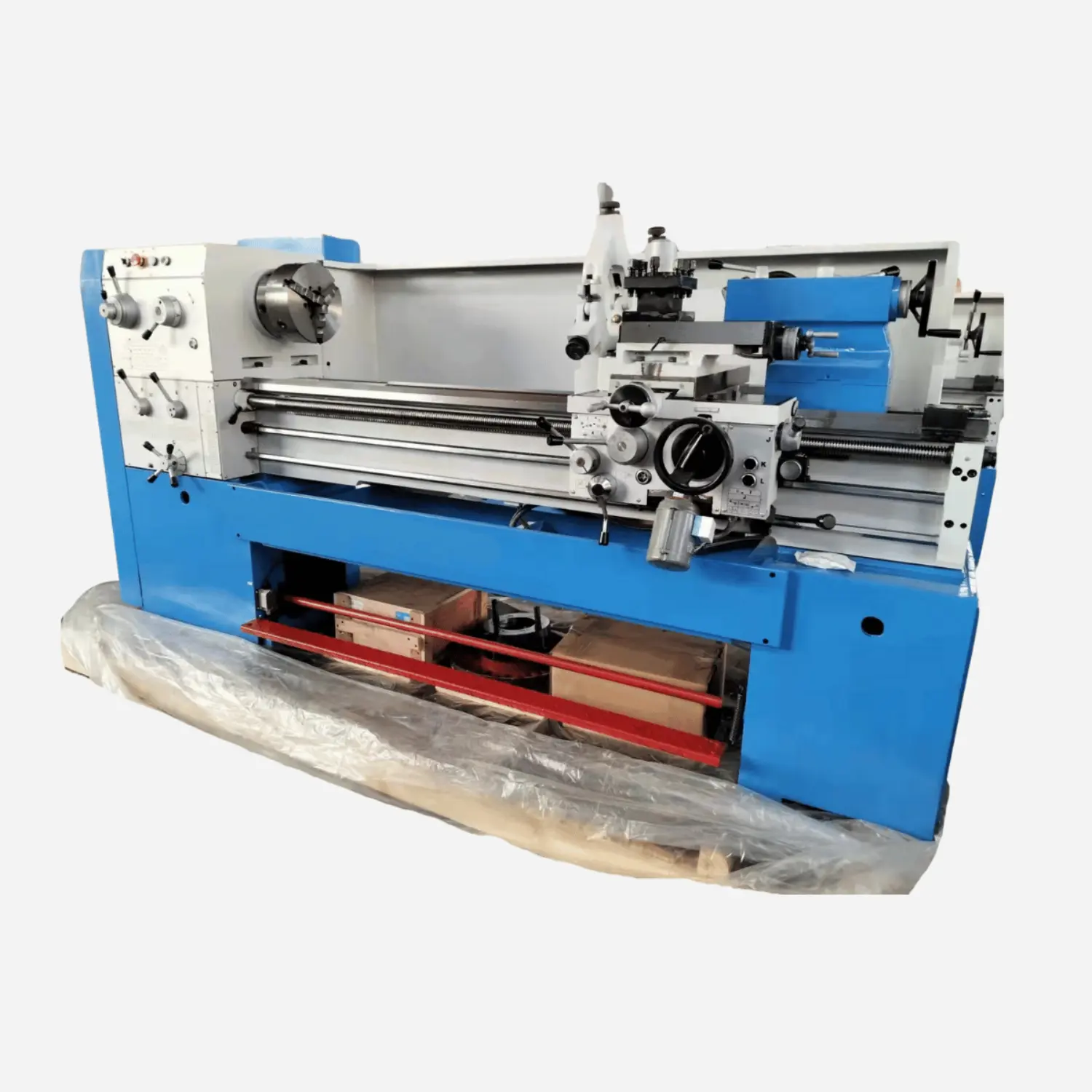

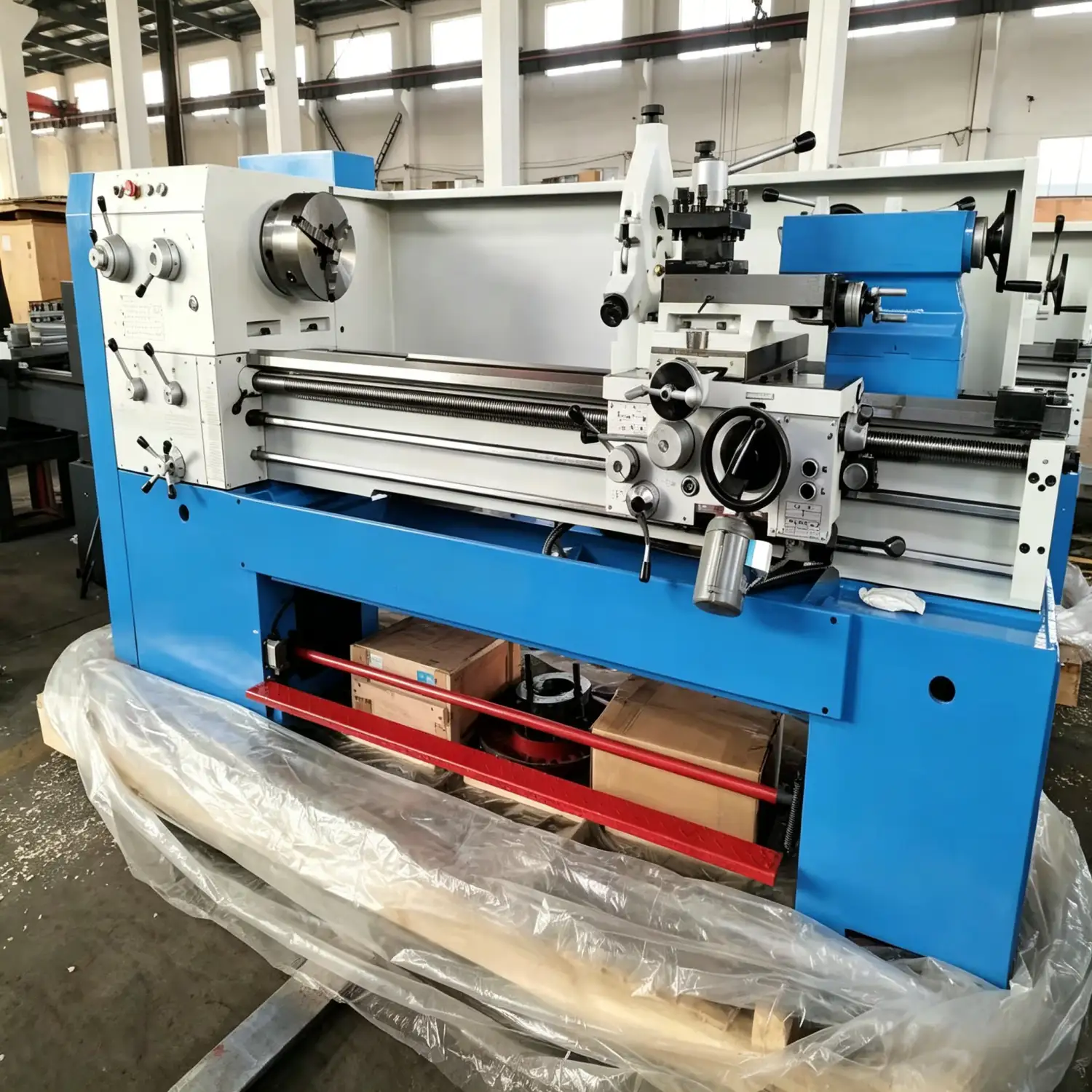

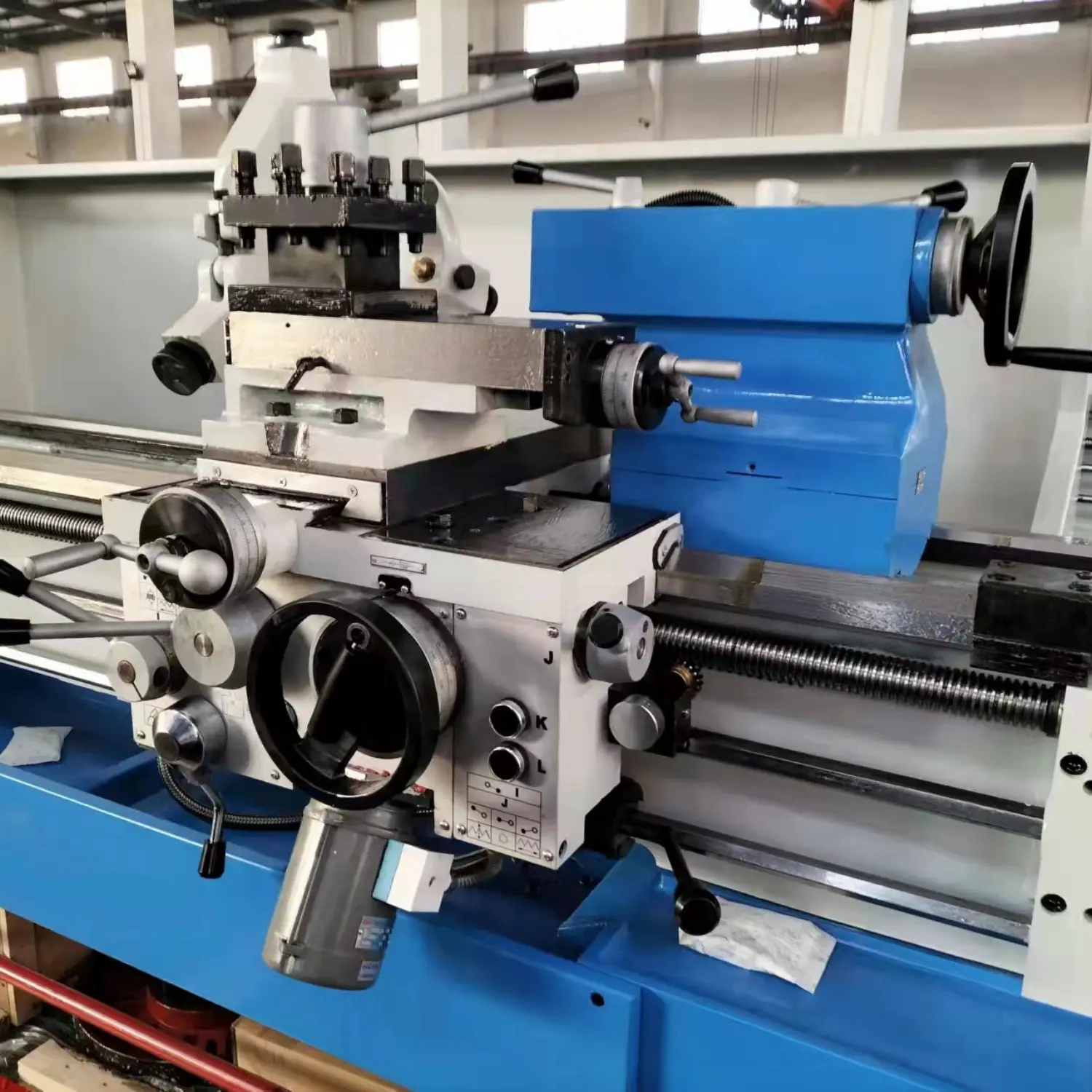

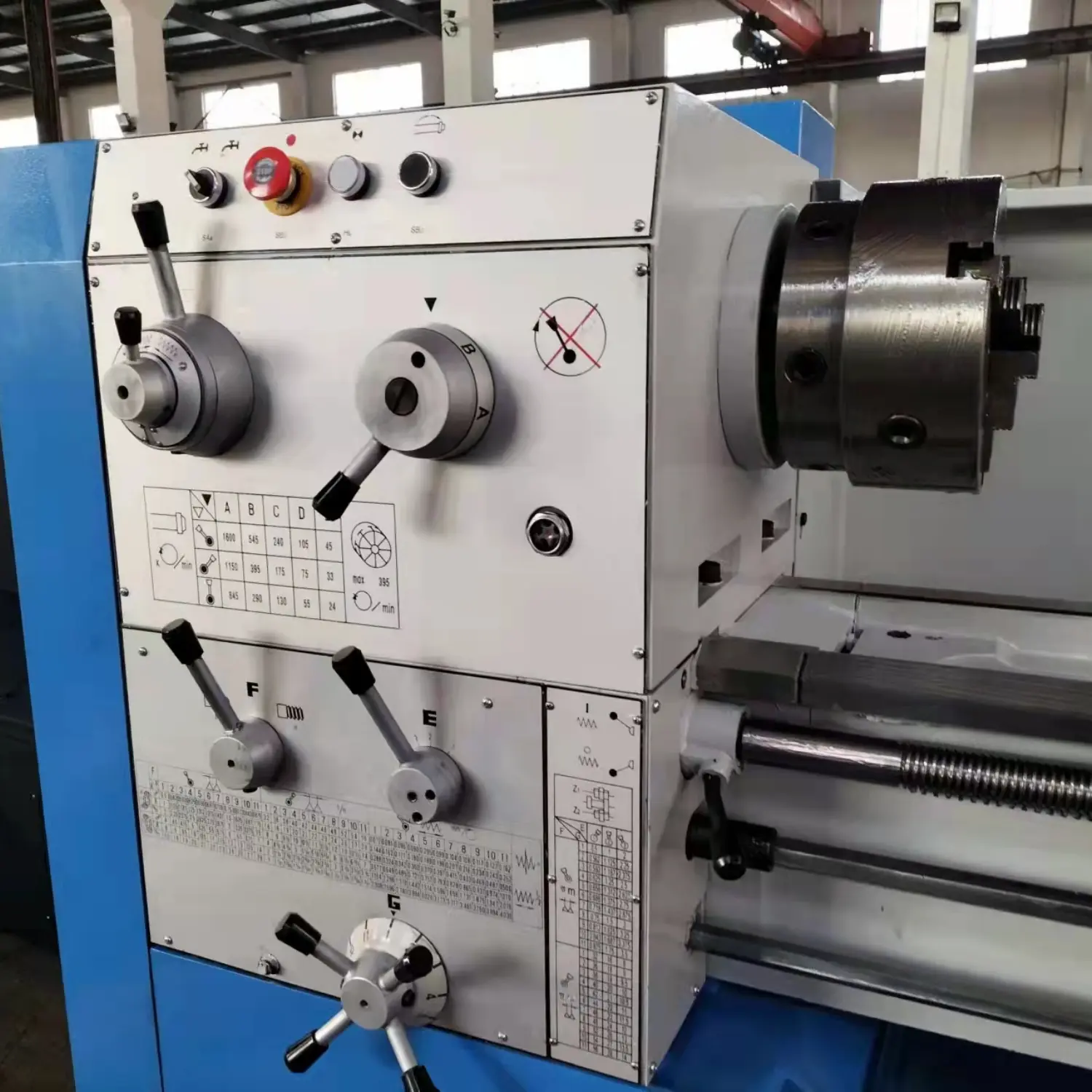

The CD6250C Conventional Lathe is a robust engineering solution designed for workshops that demand versatile manual control without sacrificing power. It is highly efficient for performing internal and external turning, end facing, and taper turning on a variety of rotary components. Beyond standard operations, this machine excels at drilling, boring, and groove broaching, making it a comprehensive tool for modern manufacturing.
Technical and operational highlights of the CD6250C series:
- Diverse Threading Capability:Seamlessly executes 66 kinds of Metric threads (0.5-28mm) and 66 kinds of Inch threads (1-56/inch), alongside Module and D.P. threading for specialized gear work.
- Heavy Bar Processing:The generous 80mm through-hole spindle bore is a standout feature, enabling the secure holding and machining of bar stocks in significantly larger diameters.
- Adaptability for Irregular Shapes:Engineered to machine all types of flat stocks and workpieces in irregular shapes, providing maximum flexibility for custom fabrication.
- Safety and Control Choice:To suit different operator preferences, this series offers both hand brake and foot brake options for immediate spindle stopping.
- International Power Compatibility:These series lathes are built to operate on multiple voltages (220V, 380V, 420V) and frequencies (50Hz or 60Hz), ensuring seamless integration into global factory grids.
- Precision Feed System:Features a wide range of longitudinal and cross feeds to ensure smooth surface finishes across a variety of metallic materials.
Standard Accessory
| l Wrenches |
| l Bolts |
| l Thread chasing dial |
| l Longitudinal stop |
| l Fast forward |
| l Right hand wheel |
| l Follow rest |
| l Steady rest |
| l 3-jaw chuck |

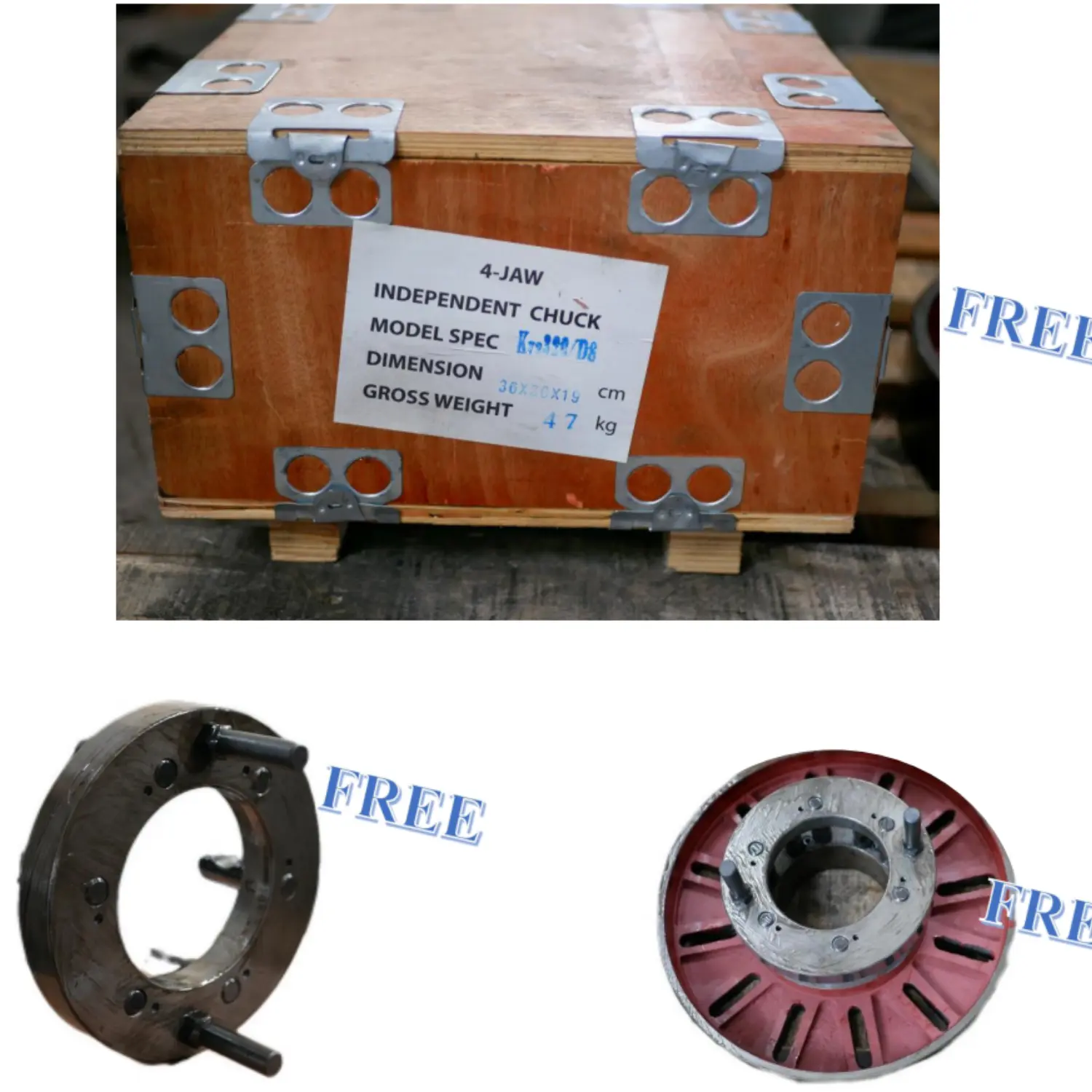

| l 4-jaw chuck |
| l Face plate |
| l Drive plate |
| l 3 axis DRO |
Product Specification
| Item | CD6250C |
| Max. swing diameter over bed | 500mm ( 19 3/5” ) |
| Distance between centers | 1000/ 1500/2000/3000mm |
| Max. swing over cross slide | 325mm ( 12 3/4”) |
| Max. swing over gap | 630mm(24 4/5”) |
| Effective length of gap | 260mm ( 10 1/4”) |
| Center height | 250mm(9 4/5”) |
| Bed Width | 330mm |
| Spindle hole | 80mm(3 1/7”) ISO D8 |
| Spindle taper | Metric 85mm ( 1:20) |
| Spindle speed | 24-1600( 15 steps) |
| Metric threads range | 0.5-28mm(66 kinds) |
| Inch threads range | 1-56/inch(66 kinds) |
| Module threads range | 0.5-3.5mm(33 kinds) |
| Diametral threads range | 8-56D.P(33 kinds) |
| Longitudinal feeds range | 0.072-4.038mm/rev
(0.0027-0.15 inch/rev)(66 kinds) |
| Cross feeds range | 0.036-2.019mm/rev
(0.0013-0.075 inch/rev)(66 kinds) |
| Cross slide travel | 300mm ( 12”) |
| Compound rest travel | 130mm(5”) |
| Cross-section size of toolshank | 25x25mm |
| Taper of tailstock sleeve | Morse No.5 |
| Travel of tailstock sleeve | 120 |
| Main drive motor | 4 kw or 5.5kw or 7.5kw |
| Main motor speed | 1440r/min |
| Max. Torque | 400 N·m |
| Max. Cutting Force | 4100N |
| Coolant pump motor | 0.125kw |
| Rapid traverse motor | 0.12kw |
