Description
Professional Manual Lathe for Precision Engineering

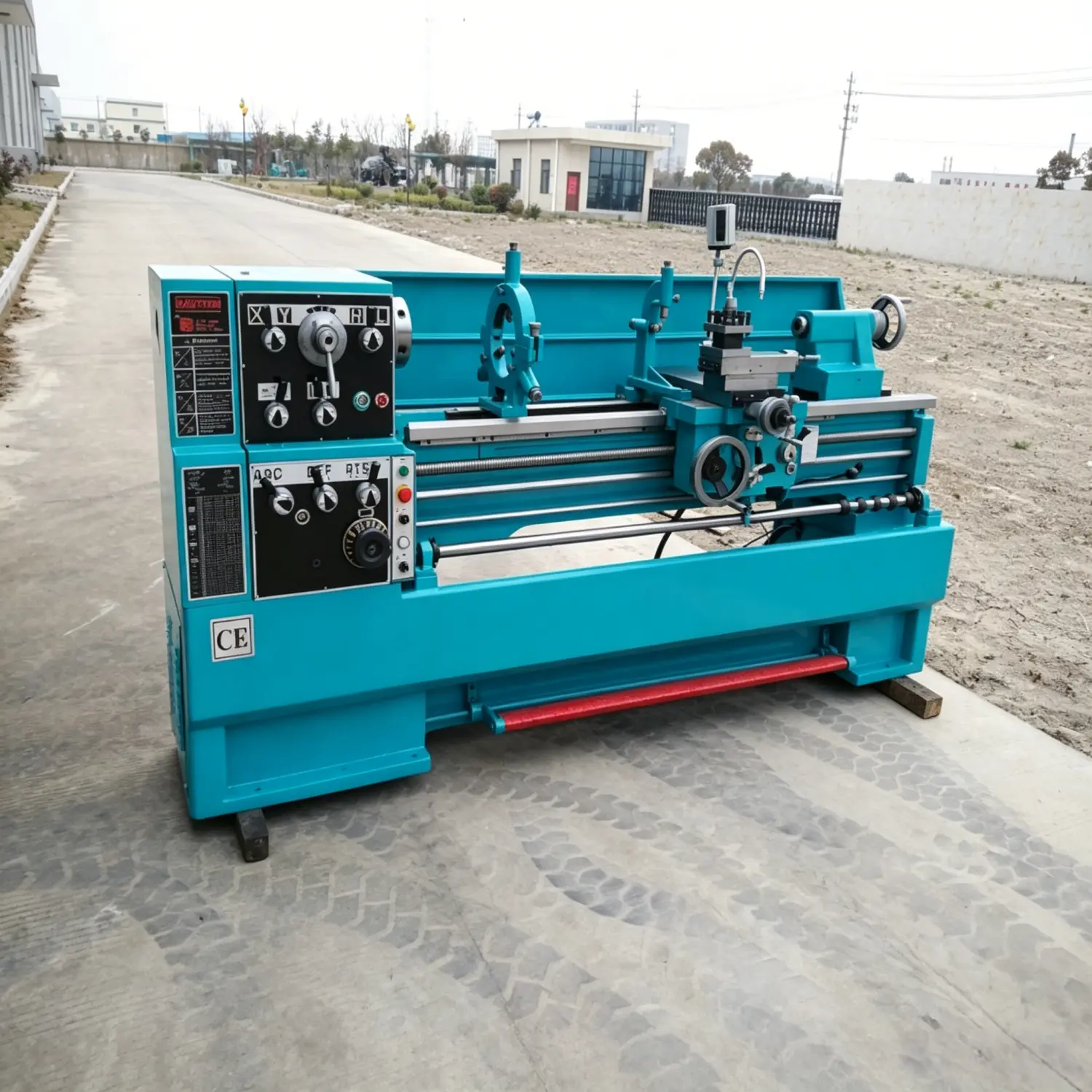

The C6246 x 1500mm Conventional Lathe Machine is a reliable and versatile turning solution designed for workshops that prioritize manual control and precision. With its high-rigidity spindle and supersonic frequency hardened bedways, this machine is built to handle a wide range of materials while maintaining long-term accuracy. The inclusion of a rapid feed structure on the apron enhances operational efficiency, making it an ideal choice for the batch and complex processing of shaft, disc, and sleeve parts in a traditional manufacturing environment.
- THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.
- GEARS PRECISELY GROUND TO REDUCE NOISE.
- SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.
- RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.
- INTEGRAL CASTING BASE.
| STANDARD ACCESSORIES |
| PART:INSTALL ON THE LATHE |
| Work lamp |
| Coolant system |
| Thread-cutting dial |
| 3-jaw chuck(Φ250mm) |
| Full-length splash guard |
| Steady rest & follow rest |
| Foot brake and brake ribbon |
| PART:INSIDE THE PACKAGE WITH THE LATHE |
| Oil gun |
| Paddings |
| Change gears |
| Face plate(350mm) |
| 4-jaw chuck(Φ250mm) |
| One whole set spanner |
| Z axis travel marking device |
| Dead centre and centre sleeve |
| Operation manual |
| OPTIONAL ACCESSORIES |
| Drive plate |
| Rapid travel |
| Live centre(MT4) |
| Drill chuck set(MT4) |
| Taper cutting function |
| 2axis Digital readouts(SINO) |
| 3axis Digital readouts(SINO) |
| Italy type Quick change tool post |
| USA type Quick change tool post |
| Europe type Quick change tool post |
| CE-conformity(Chuck guard,Toolpost guard and leadscrew guard) |
| Cutting tool holders set(7pcs or 9pcs) |
Product Specification
| Model | C6246/1500 | |
| CAPACITY | Max.swing over bed | 460mm |
| Max.swing over cross slide | 270mm | |
| Max.swing over gap | 690mm | |
| Effective length of gap | 165mm | |
| Center Distance | 1500mm | |
| Bed Width | 300mm | |
| HEADSTOCK | Spindle hole | 58mm |
| Spindle nose | ISO-D6 | |
| Spindle taper | MT6(1:20) | |
| Spindle speed(Number) | (12steps)25-2000rpm | |
| FEEDS AND THREADS | Max.travel of top slide | 128mm |
| Max.travel of cross slide | 285mm | |
| Max.size of toolshank | 25*25m2 | |
| Longitudinal metric feeds | 42kinds 0.031-1.7mm/rev | |
| Longitudinal inch feeds | 42kinds 0.0011-0.0633inch/rev | |
| Cross metric feeds | 42kinds 0.014-0.784mm/rev | |
| Cross inch feeds | 42kinds 0.00033-0.01837inch/rev | |
| Metric threads range | 41kinds 0.1-14mm | |
| Inch threads range | 60kinds 2-112T.P.I | |
| Moudle threads range | 34kinds 0.1-7M.P | |
| Diametral threads range | 50kinds 4-112D.P | |
| TAILSTOCK | Dia.of tailstock sleeve | 60mm |
| Taper of tailstock sleeve | MT4 | |
| Max.travel of tailstock | 130mm | |
| MOTOR | Main drive motor | 5.5KW |
| Coolant pump motor | 90W | |
| PACKING | L*W*H(1500mm) | 295*115*175cm |
| WEIGHT | N.W/G.W(1500mm) | 1800/2100kgs |
