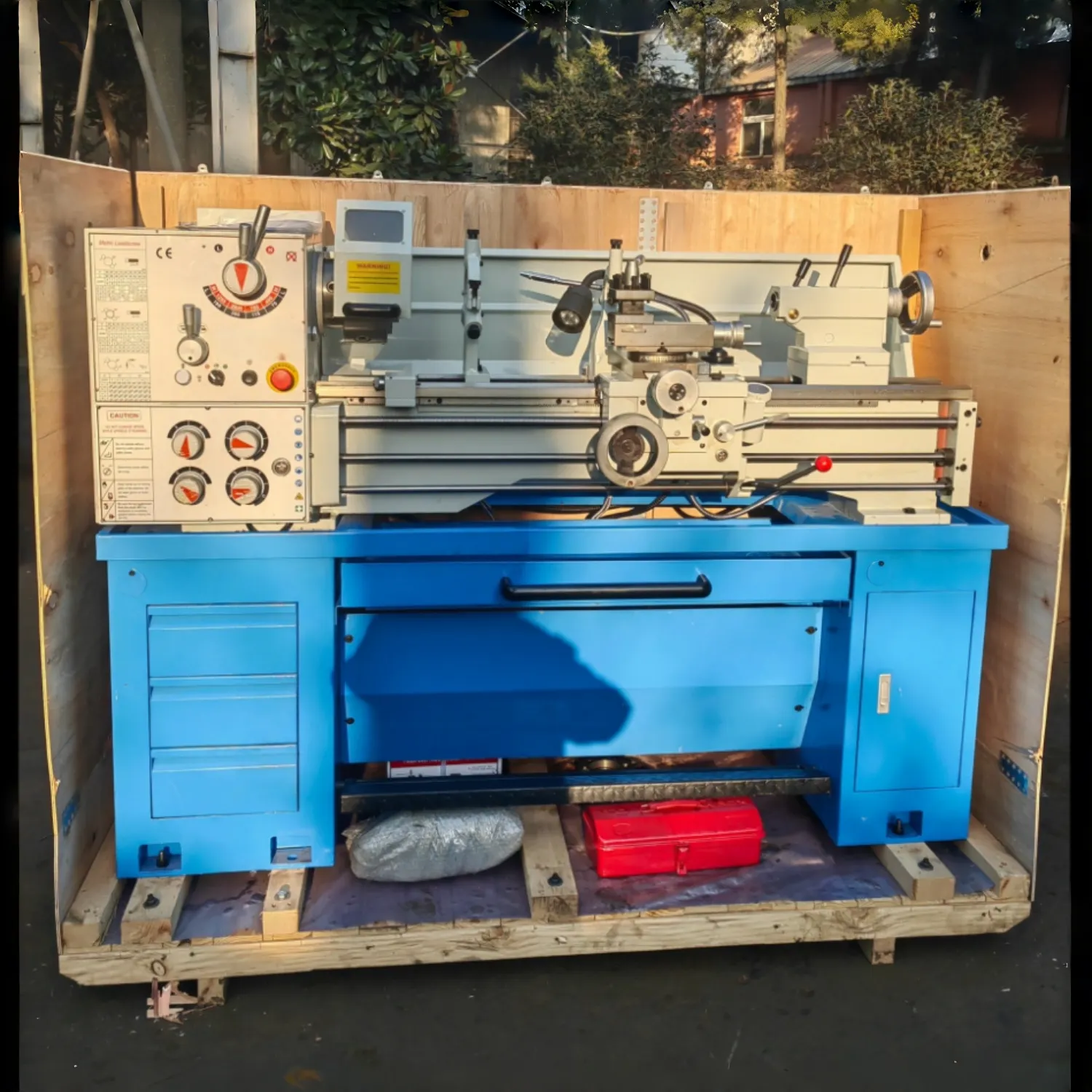

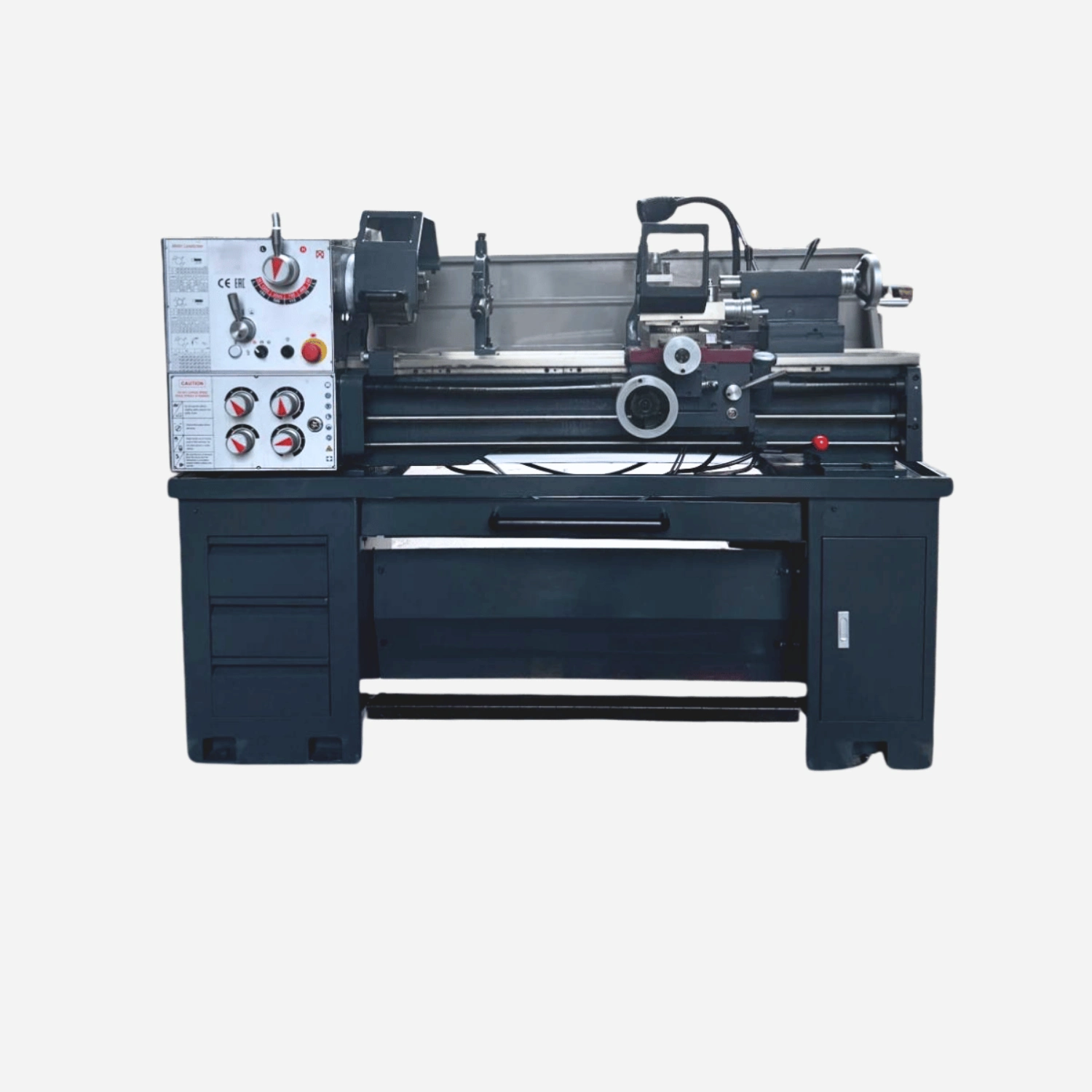

C0636Ax1000 Precision Metal Bench Lathe - 14" x 40" Gear Head Gap Bed Lathe for Professional Metalworking & Maintenance
C0636Ax1000 Precision Metal Bench Lathe - 14" x 40" Gear Head Gap Bed Lathe for Professional Metalworking & Maintenance

C0636Ax1000 Precision Metal Bench Lathe – 14″ x 40″ Gear Head Gap Bed Lathe for Professional Metalworking & Maintenance

The C0636AX1000 is a professional-grade 14″ x 40″ precision gear head bench lathe, featuring an induction-hardened bedway and an 8-speed spindle (70-2000 RPM). Designed for high-accuracy machining, it offers a 52mm large spindle bore and versatile threading capabilities for both metric and imperial pitches.

Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    Engineered for superior stability and long-term accuracy, the C0636Ax1000 Precision Bench Lathe features induction-hardened and ground bedways (HRC 45-52) alongside premium quenched spindle gears for vibration-free operation at speeds up to 2000 RPM. This versatile 1000mm center-distance machine utilizes precision tapered roller bearings for high-load spindle support and a fully enclosed quick-change gearbox, allowing seamless switching between 44 metric and 34 imperial thread pitches without manual gear swaps. The integrated D1-5 spindle nose, foot brake, and comprehensive coolant system ensure maximum safety and operational efficiency for complex turning, boring, and threading tasks.



    Product Features

    • 3-Jaw Chuck
    • Coolant System
    • Foot Brake
    • Work Light
    • Oil Tray
    • Steady Rest
    • Follow Rest
    • Rear Panel





    Product Specification

    ITEM C0636AX1000
    Swing over bed 360mm
    Swing over cross slide 224mm(8-13/16″)
    Swing in gap diameter 502mm(19-3/4″)
    Length in gap 210mm(8-1/4″)
    Center height 180mm(7″)
    Max. distance between centers 1000mm(40″)
    Spindle bore 52mm
    Spindle nose D1-5
    Taper in nose MT#5
    Speeds number 8
    Speeds range 70-2000r/min
    Cross slide travel 170mm(6-11/16″)
    Compound rest travel 95mm(3-9/16″)
    Lead screw thread 8.T.P.I or 3mm pitch
    Feed rod diameter 19mm(3/4″)
    cutting tool max section 16mmx16mm(5/8″x5/8″)
    Threads imperial pitches 34Nos. 4-56T.P.I
    Threads metric pitches 44Nos.0.1-7mm
    Lead screw thread 8.T.P I or 3mm pitch
    Threads module pitches 26Nos.0.4-7MP
    Cutting tool max section 16mmx16mm (5/8”x5/8”)
    Threads imperial pitches 34Nos. 4-56T.P.I
    Threads metric pitches 26Nos.0.4-7M.P
    Longitudinal feeds imperial 32Nos.0.002-0.548″/rev
    Longitudinal feeds metric 32Nos.0.052-0.392mm/rev
    Cross feeds imperial 32Nos.0.007-0.0187″/rev
    Quill travel 100mm(3-15/16″)
    Quill taper MT3
    Main motor power 1.5KW(2HP)
    Coolant pump power 40W(1/16HP)
    Packing size 1930X760X1530mm
    NW/GW(kg) 540/645kg
