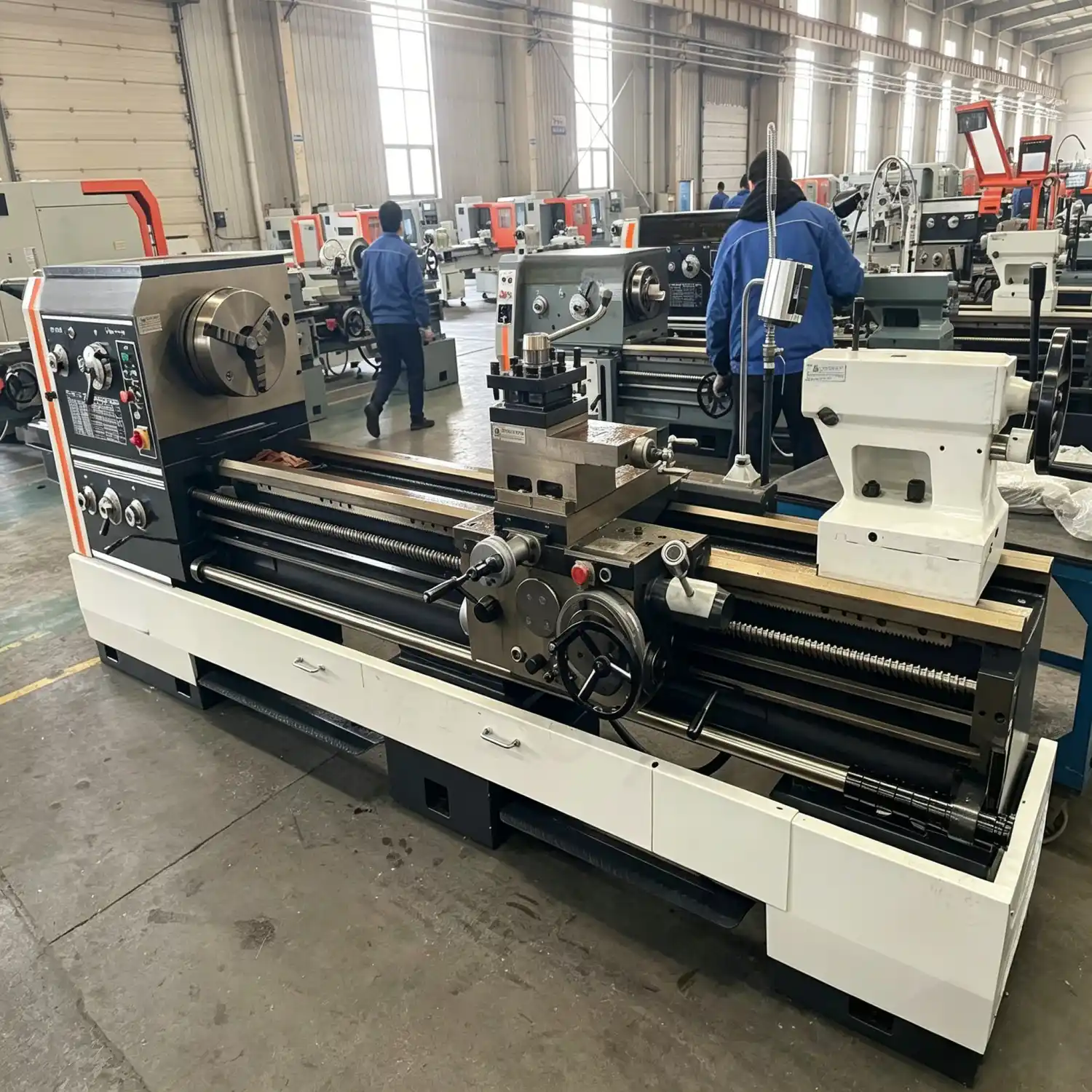

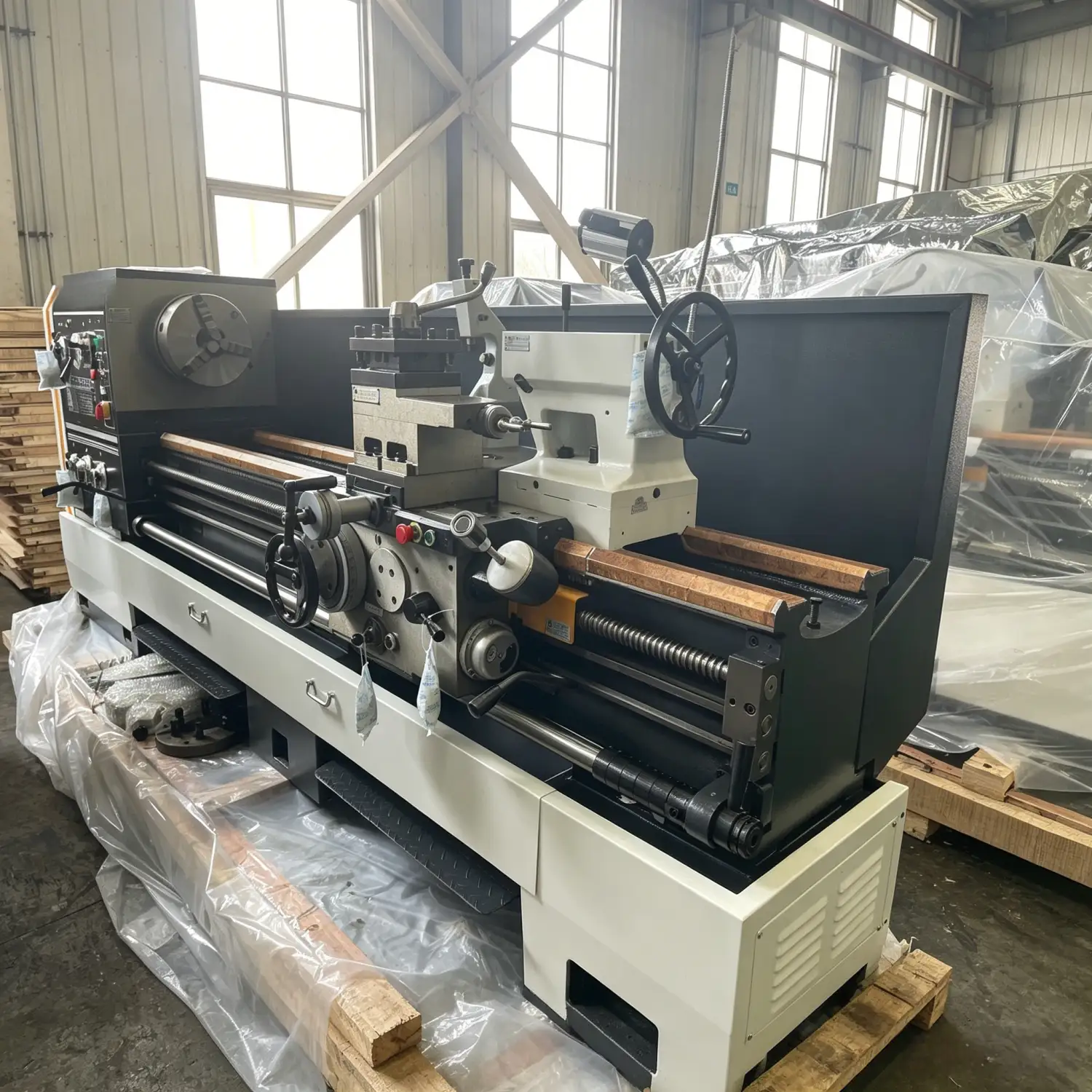

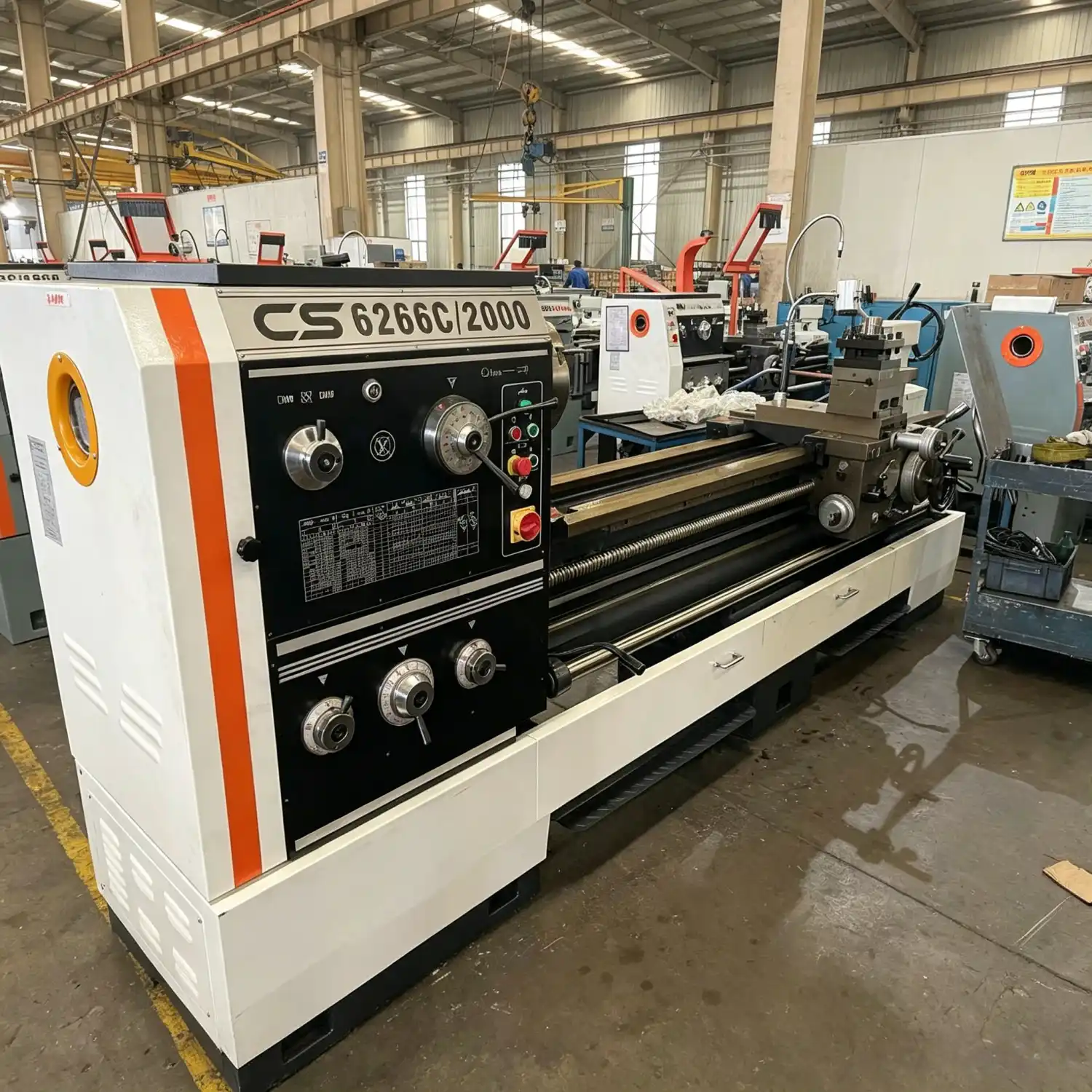

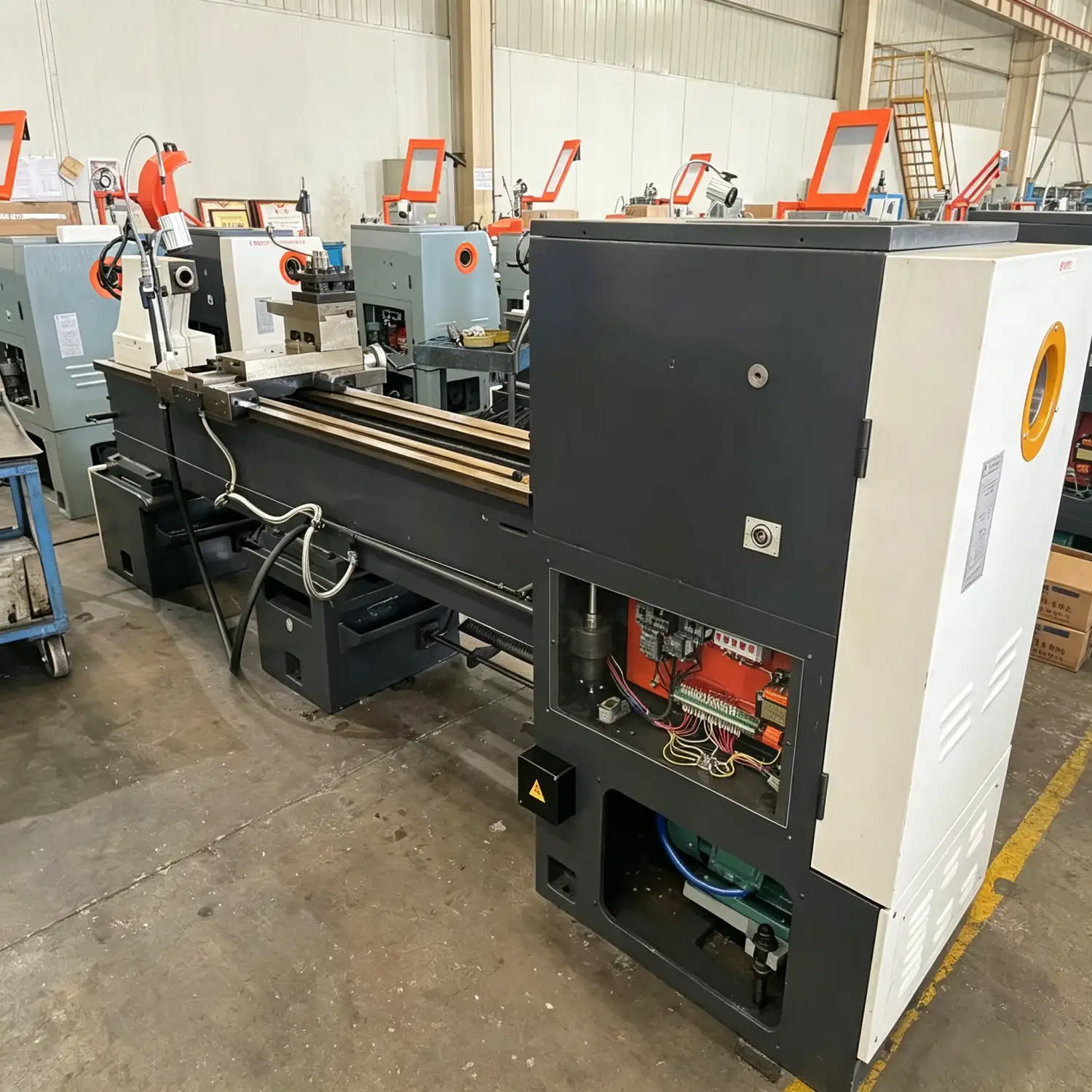

Precision Engineering Conventional Lathe for Large-Scale Fabrication
The CS6266C Manual Lathe is a professional turning solution designed for high-intensity industrial environments. This series is exceptionally versatile, allowing operators to perform internal and external turning, end facing, and taper turning on heavy-duty rotary parts. Beyond traditional lathe tasks, it is highly capable of executing drilling, boring, and groove broaching operations with consistent accuracy.
Performance and operational advantages of the CS6266C series:
- Superior Material Handling: The generous through-hole spindle bore is a critical advantage, enabling the machine to hold and process bar stocks in significantly larger diameters.
- Flexible Threading Options: Supports high-precision threading for Metric, Inch, Module, and D.P. systems, ensuring compatibility with various international technical standards.
- Irregular Workpiece Support: Specifically designed to machine all types of flat stocks and components with irregular shapes, offering maximum flexibility for custom repair work.
- Bilingual Measurement System: Both Inch and Metric systems are fully integrated into these series lathes, making it easy for personnel from different countries to operate without conversion errors.
- Safety Braking Choices: For immediate spindle control and enhanced operator safety, the machine can be equipped with either a hand brake or a foot brake system.
- Adaptable Power Supply: These series lathes operate on different voltages (220V, 380V, 420V) and different frequencies (50Hz or 60Hz), ensuring a seamless setup in global industrial markets.
Standard Accessory

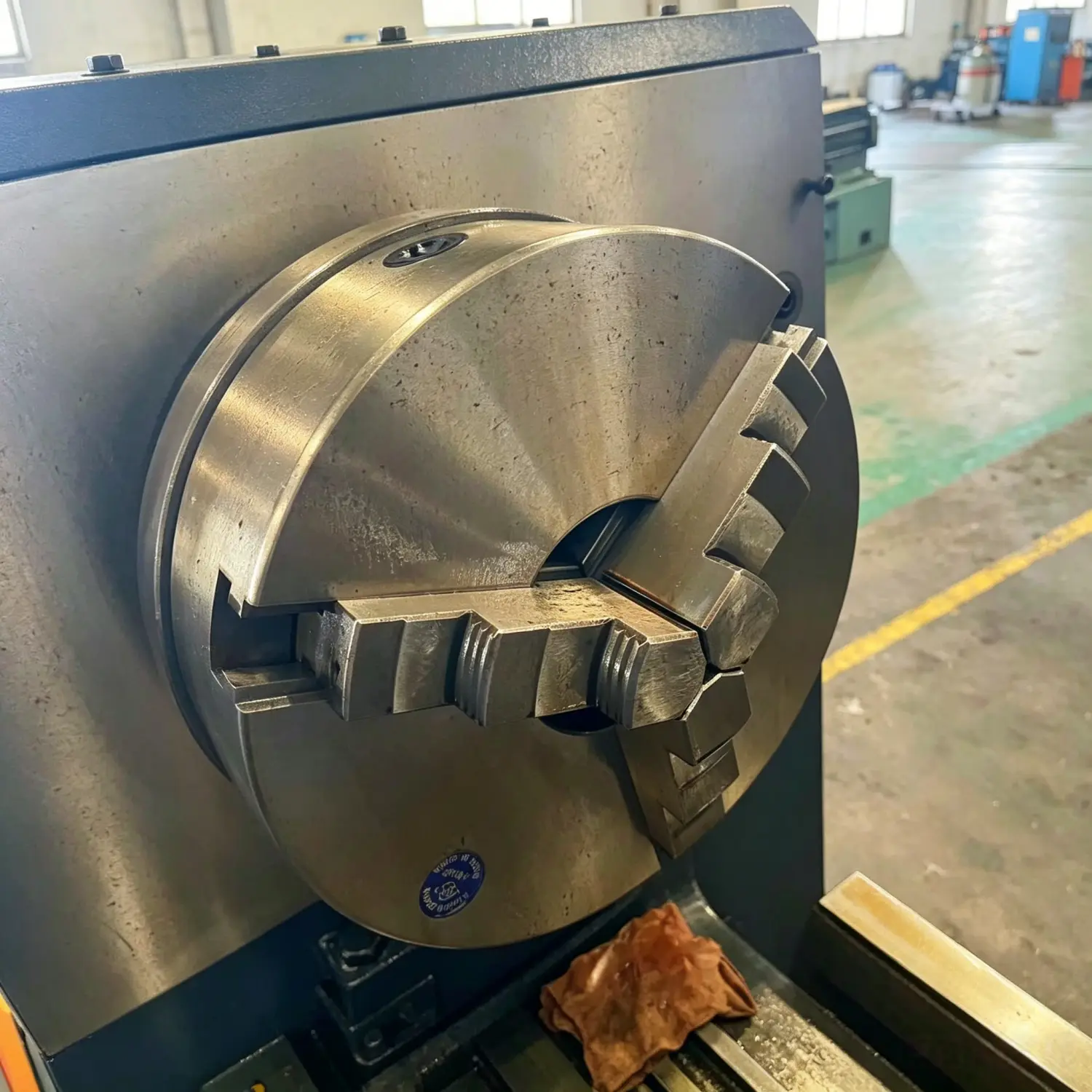

| v 3-jaw chuck and adapter |
| v 4-jaw chuck and adapter |
| v Drive plate |

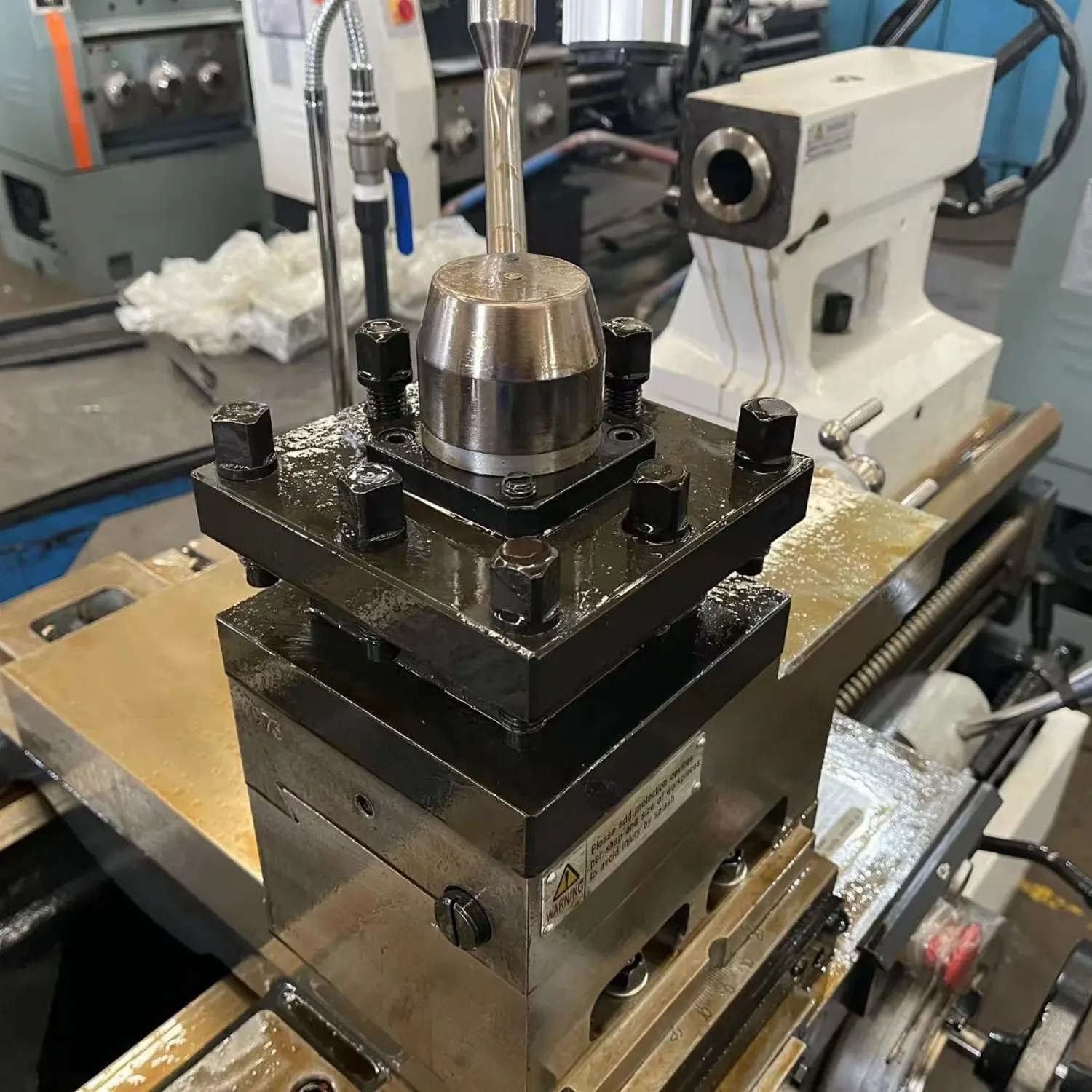

| v 4-station conventional tool post |
| v Steady rest |
| v Follow rest |
| v Foot brake |
| v Mechanical feed stop |
| v Full splash guard |
| v LED work lamp |
| v Tools |
Product Specification
| Item | Unit | Parameter | |
| CS6266C | |||
| Capacity | Max swing over bed | mm | Φ660 |
| Max swing in gap | mm | Φ870 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ420 | |
| Max workpiece length | mm | 1000/1500/2000/3000 | |
| Spindle | Spindle thru-hole | mm | Φ105 |
| Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | ||
| Spindle speed | r/min | 12 step 32-1600 | |
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool section | 4/25X25 | |
| Feed | Max X-axis travel | mm | 310 |
| Max Z-axis travel | m/min | 145 | |
| X-axis feed | mm/r | 65 sorts 0.063-2.52 | |
| Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 | |
| Metric thread | mm | 22 sorts 1-14 | |
| Inch thread | t.p.i | 25 sorts 28-2 | |
| Module thread | πmm | 18 sorts 0.5-7 | |
| DP thread | t.p.i. π | 24 sorts 56-4 | |
| Others | Coolant pump motor | kW | 0.06 |
| Machine length | mm | 2632/3132/3632/4632 | |
| Machine width | mm | 975 | |
| Machine height | mm | 1270 | |
| Machine weight | kg | 2200/2400/2600/3000 | |
