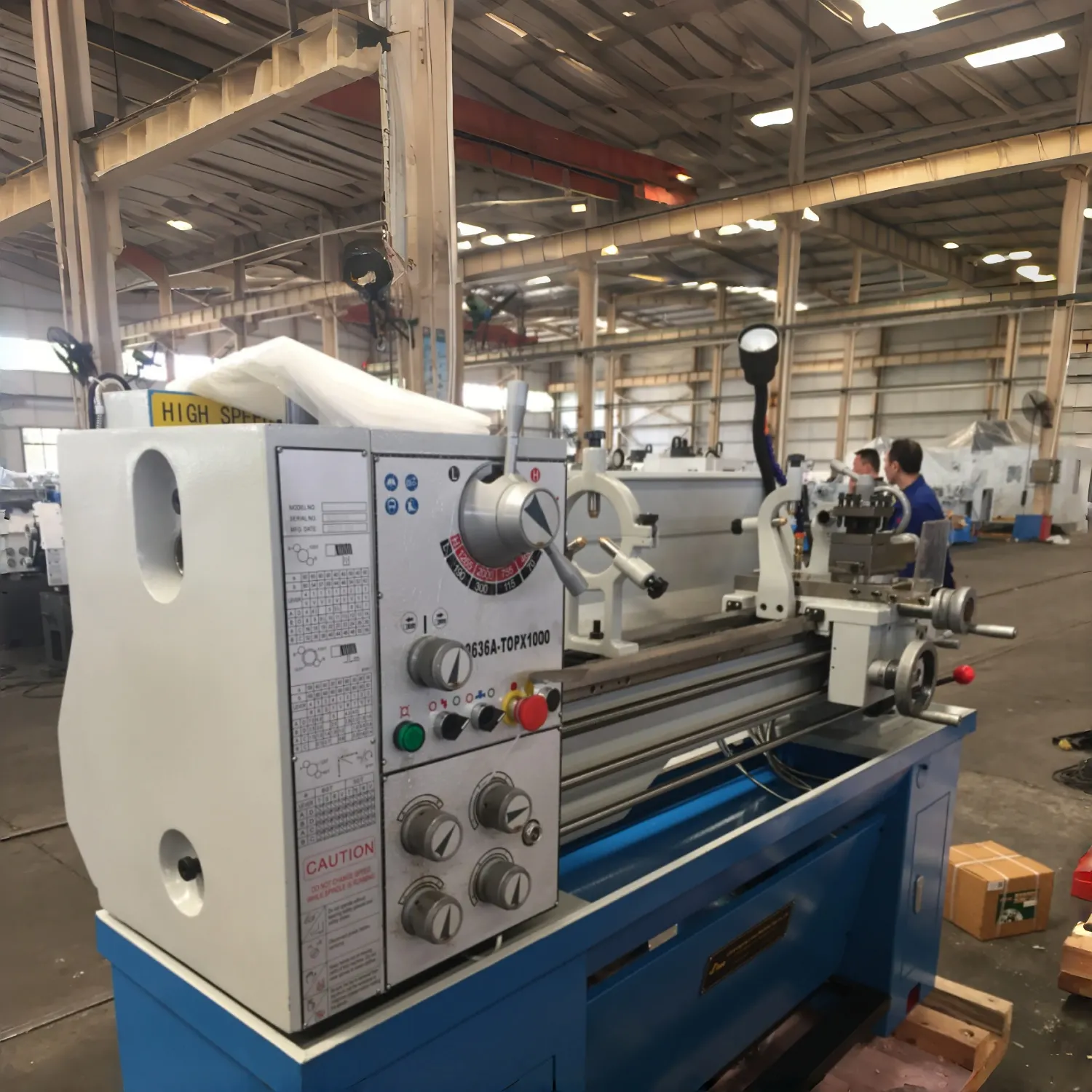

C0632Ax1000 Precision Compact Metal Lathe - 13" x 40" Gear Head Manual Lathe for Repair Shops & Vocational Training

C0632Ax1000 Precision Compact Metal Lathe – 13″ x 40″ Gear Head Manual Lathe for Repair Shops & Vocational Training

A versatile and space-efficient 13″ x 40″ manual lathe, the C0632Ax1000 features a 38mm (1-1/2″) spindle bore and 8-speed gear head, specifically engineered for precision maintenance, light machining, and technical education.

Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    The C0632Ax1000 Conventional Lathe is the ultimate solution for precision repair and small-batch production, featuring induction-hardened bedways and precision tapered roller bearings for lasting accuracy. This 1000mm center-distance machine offers a flexible 70-2000 RPM speed range and a fully enclosed gearbox that supports 34 imperial and 26 metric threading pitches without tedious gear changes. Designed with a D1-4 spindle nose and a robust 1.5KW motor, it comes standard with a foot brake, coolant system, and steady rests, making it a safe, turnkey workstation for shafts, bushings, and custom metalwork in any professional workshop.



    Product Features

    • 3-Jaw Chuck
    • Coolant System
    • Foot Brake
    • Work Light
    • Oil Tray
    • Steady Rest
    • Follow Rest
    • Rear Panel

    Product Specification

    ITEM C0632A
    Swing Over Slide 330mm(13″)
    Center Height 166mm(6-1/2″)
    Distance Between Centers 1000mm(40″)
    Width of Bed 187mm(7-3/8″)
    lenght of lathe 1655mm(65-1/8″)
    Heigjt of lathe 290mm（11- 13/32″）
    Spindle Bore 38mm(1-1/2″)
    Spindle nose D1-4″
    Spindle Nose MT NO.5
    Quill taper MT NO.3
    Spindle Speed Number 8
    Range of Spindle Speed 70-2000 r/min
    Width of Cross Slide 130mm（5-3/32″）
    Max. Travel of Cross Slide 170mm(6-11/16″)
    Double-sided knife holder slide plate width 80mm(3-1/8″)
    Max. Travel of Compound Rest 95mm(3-9/16″)
    Outer diameter of saddle guide rod 22mm(7/8″)
    Leadscrew Pitch 8T.P.I. or 3mm
    Outer diameter of feed rod 19mm(3/4″)
    Max. Section of Tool 16mm×16mm(5/8″×5/8″)
    Inch Threads Range 34 Nos.4-56 T.P.I
    Metric Threads Range 26 Nos.0.4-7 M.P
    Longitudinal Feeds Range in Inch Lead Screw 32 Nos.0.002-0.548″/Rev
    Longitudinal Feeds Range in Metric Lead Screw 32 Nos.0.052-0.392mm/Rev
    Cross Feeds Range in Inch Lead Screw 32 Nos.0.007-0.0187″/Rev)
    Cross Feeds Range in Metric Lead Screw 32 Nos.0.014-0.380mm/Rev
    Quill diameter 32mm(1-1/4″)
    Quill travel 100mm(3-15/16″)
    Quill taper MT NO.3
    Main motor power 1.5Kw(2HP)
