Professional Conventional Lathe | China Direct Factory Manufacture

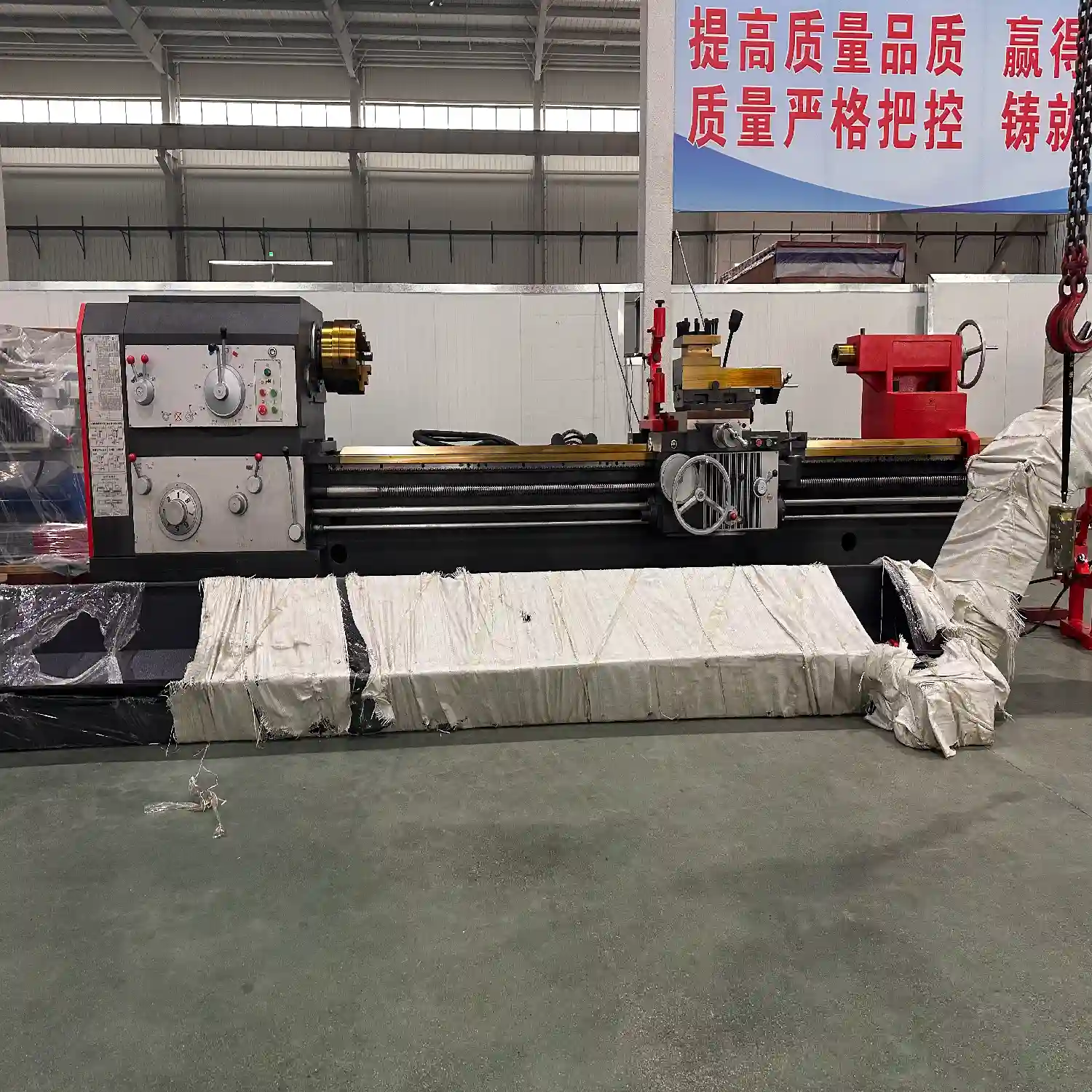

The CW61100 Conventional Lathe is a high-performance turning solution designed for heavy-intensity industrial facilities. As a leading manufacturer in China, we provide this model at factory-direct prices, ensuring maximum cost-efficiency for large-scale production. This series is exceptionally multi-functional, capable of performing internal and external turning, end facing, and taper turning for a wide variety of massive rotary components. It also excels at drilling, boring, and groove broaching, even when machining flat stocks or irregular shapes.
Technical and operational highlights of the CW61100 series:
- Enhanced Material Handling: The generous through-hole spindle bore is specifically designed to hold and process bar stocks in significantly larger diameters.

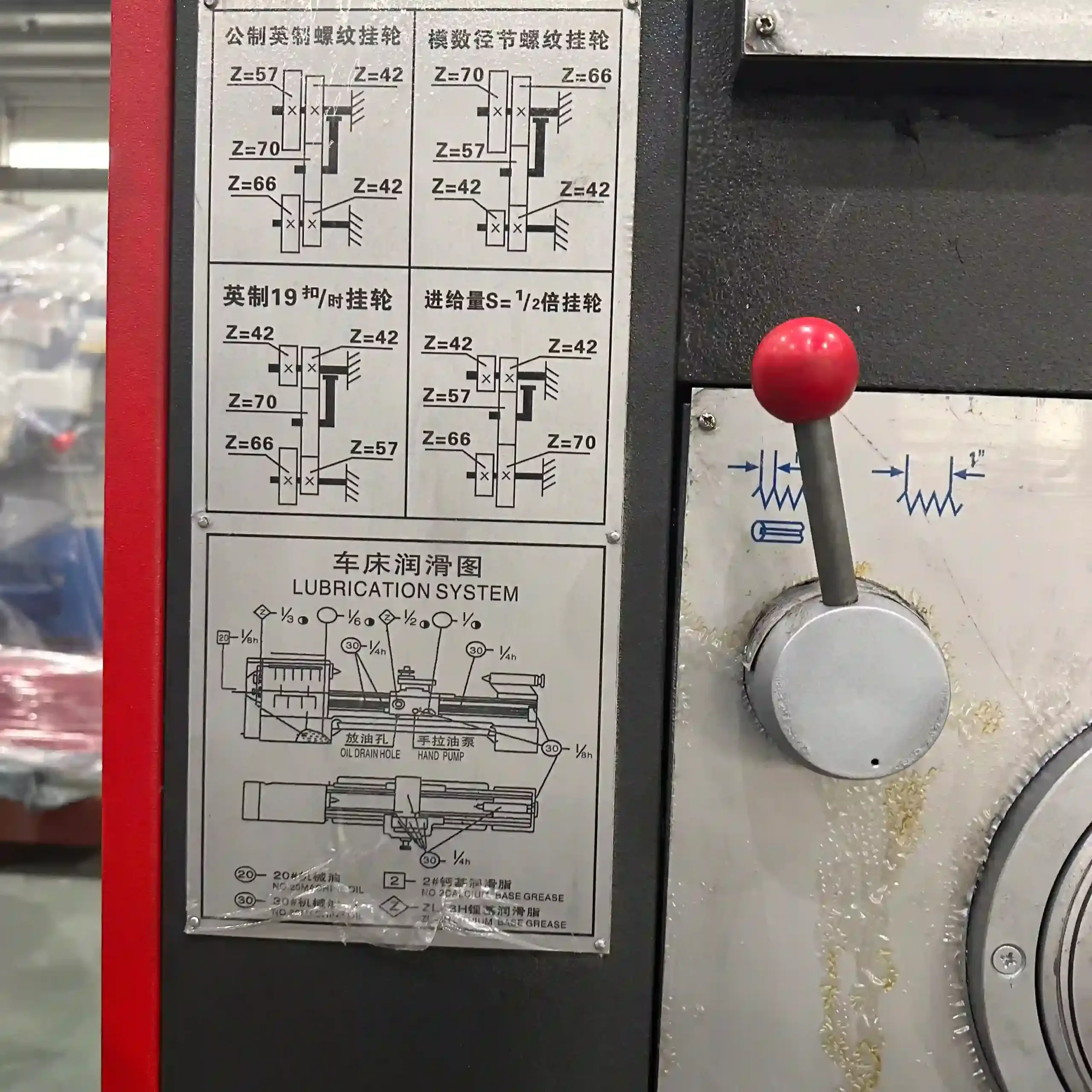

- Comprehensive Threading Suite: Seamlessly executes Metric, Inch, Module, and D.P. threads, supporting all major international technical standards for fasteners and heavy-duty gear components.

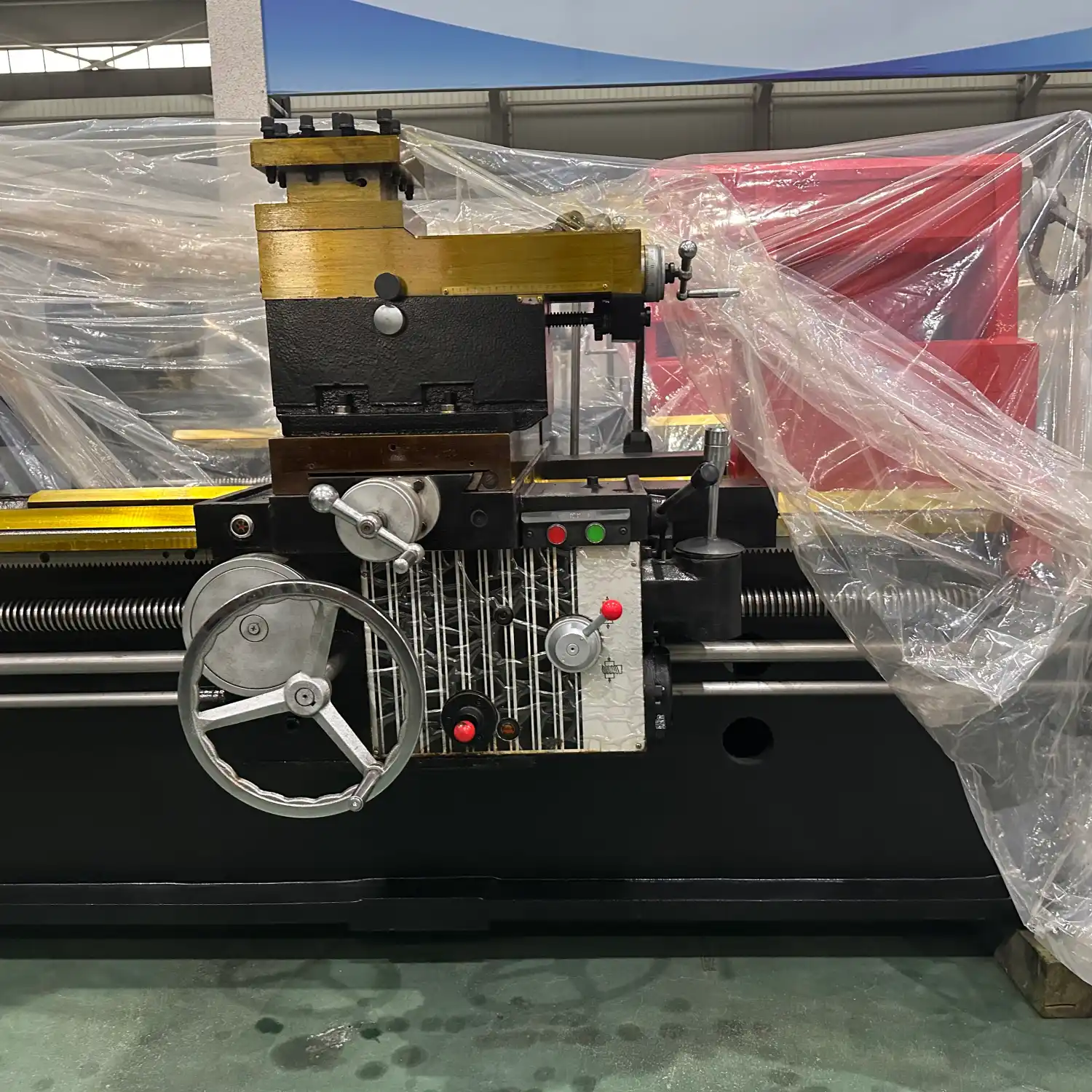

- Rapid Operational Traverse: Features a 1.1kW rapid feed motor that enables a 4000mm/min rapid traverse speed, minimizing non-cutting time and boosting workshop productivity.
- Dual Measuring Compatibility: Integrated with both Metric and Inch measuring systems, providing a seamless and intuitive experience for international operators.
- Customizable Braking Systems: For enhanced operator safety and immediate spindle control, users can choose between a specialized hand brake or a foot brake system.
- Global Grid Versatility:Engineered to operate on different power supply voltages (220V, 380V, 420V) and frequencies (50Hz or 60Hz), making it ideal for worldwide industrial application.
Product Specification
| Item | CW6180 / CW6280 | CW61100 / CW62100 | CW61125 / CW62125 |
| Machine Type | Standard / Gap-bed Lathe | Standard / Gap-bed Lathe | Standard / Gap-bed Lathe |
| Max. swing over bed (mm) | 800 | 1000 | 1250 |
| Max. swing over tool post (mm) | 480 | 680 | 930 |
| Max. workpiece length (mm) | 1500, 2000, 3000–12000 | 1500, 2000, 3000–12000 | 1500, 2000, 3000–12000 |
| Max. swing in gap / gap width (mm) | 1000 / 310 | 1200 / 310 | 1450 / 310 |
| Spindle bore diameter / spindle nose type | Φ105 mm; D11 | Φ105 mm; D11 | Φ105 mm; D11 |
| Spindle nose taper / center taper | Φ120 mm; Morse No.5 | Φ120 mm; Morse No.5 | Φ120 mm; Morse No.5 |
| Spindle speed range / number of steps (r/min) | 18 steps, 5.4–720 | 18 steps, 5.4–720 | 18 steps, 5.4–720 |
| Longitudinal feed / number of feeds (mm/r) | 64 types, 0.06–24.3 | 64 types, 0.06–24.3 | 64 types, 0.06–24.3 |
| Feed range 1:1 (mm/r) | 0.1–1.52 | 0.1–1.52 | 0.1–1.52 |
| Feed range 16:1 (mm/r) | 1.6–24.3 | 1.6–24.3 | 1.6–24.3 |
| Fine feed range with change gears (mm/r) | 0.06–0.912 | 0.06–0.912 | 0.06–0.912 |
| Cross feed / longitudinal feed ratio | 1/2 | 1/2 | 1/2 |
| Carriage rapid traverse speed (mm/min) | 4000 | 4000 | 4000 |
| Machine lead screw pitch | 12 mm (metric); 1/2″ (imperial) | 12 mm (metric); 1/2″ (imperial) | 12 mm (metric); 1/2″ (imperial) |

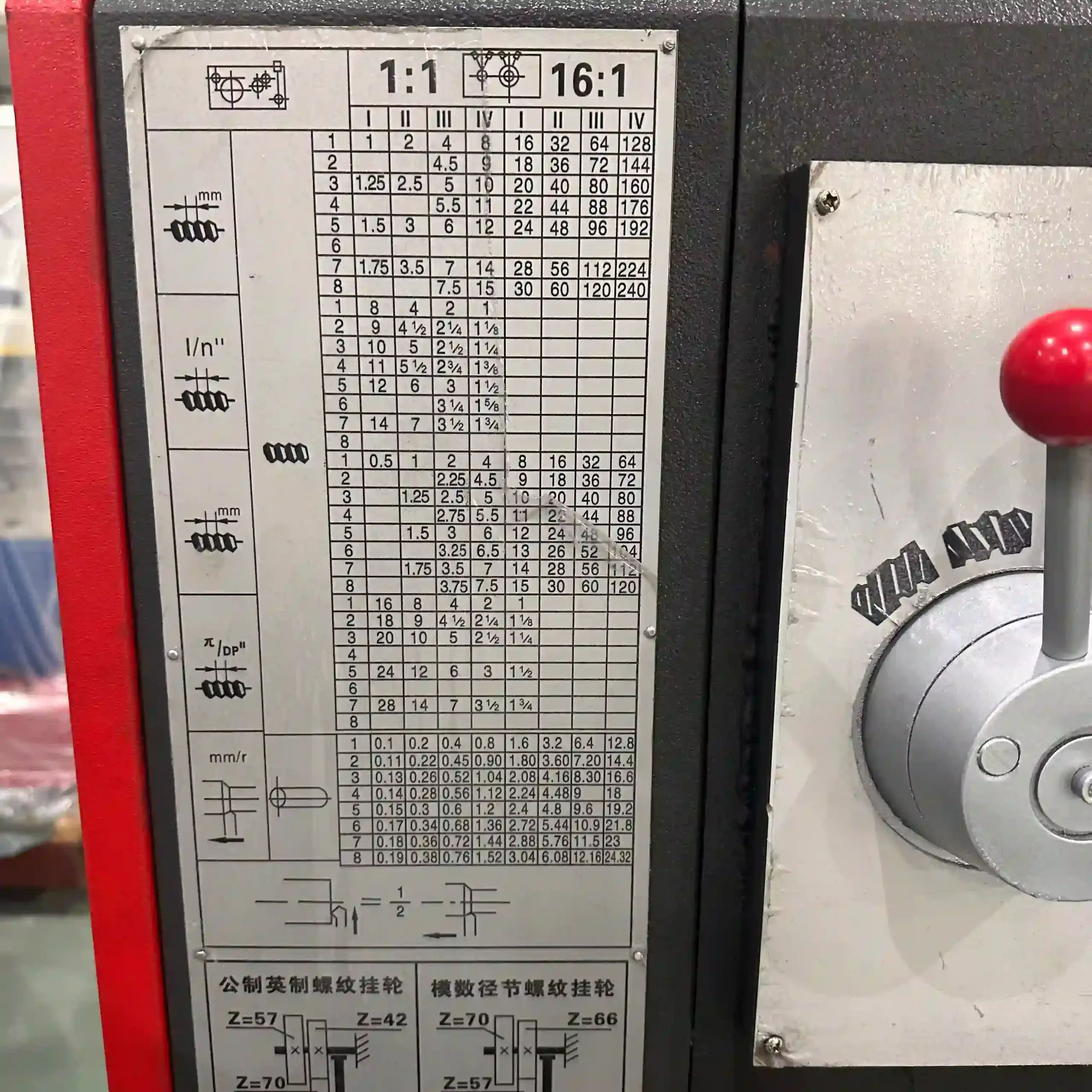

| Metric threads / range (mm) | 50 types, 1–240 (plus 14 non-standard threads) | 50 types, 1–240 (plus 14 non-standard threads) | 50 types, 1–240 (plus 14 non-standard threads) |
| Inch threads / range (TPI) | 26 types, 1–14 | 26 types, 1–14 | 26 types, 1–14 |
| Modular threads / range (mm) | 53 types, 0.5–120 | 53 types, 0.5–120 | 53 types, 0.5–120 |
| Diametral pitch threads / range (DP) | 24 types, 1–28 | 24 types, 1–28 | 24 types, 1–28 |
| Max. cross travel of lower slide (mm) | 450 | 500 | 500 |
| Max. travel of upper slide (mm) | 200 | 200 | 200 |

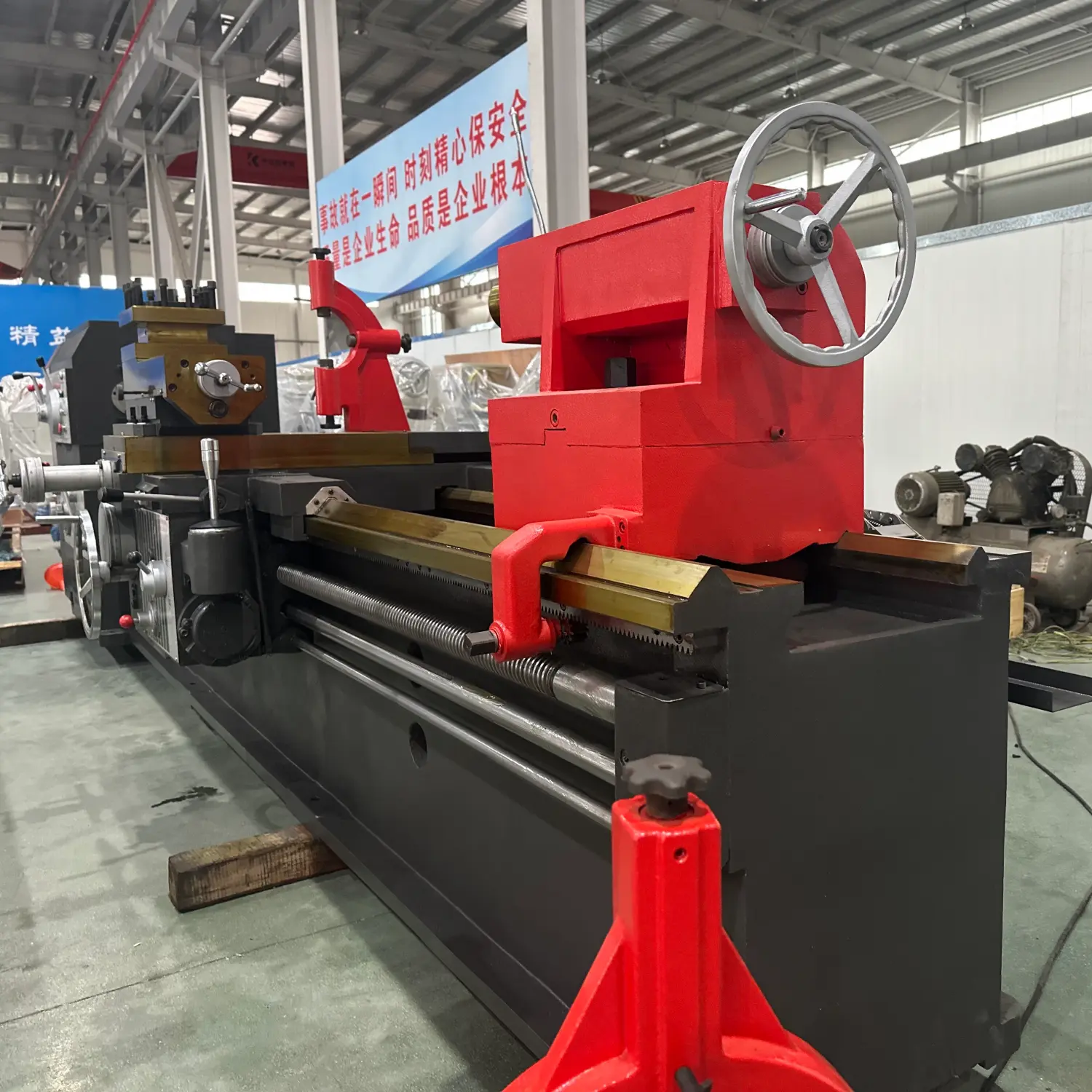

| Tailstock quill travel (mm) | 250 | 250 | 250 |
| Tailstock quill taper | Morse No.5 (MT5) | Morse No.5 (MT5) | Morse No.5 (MT5) |

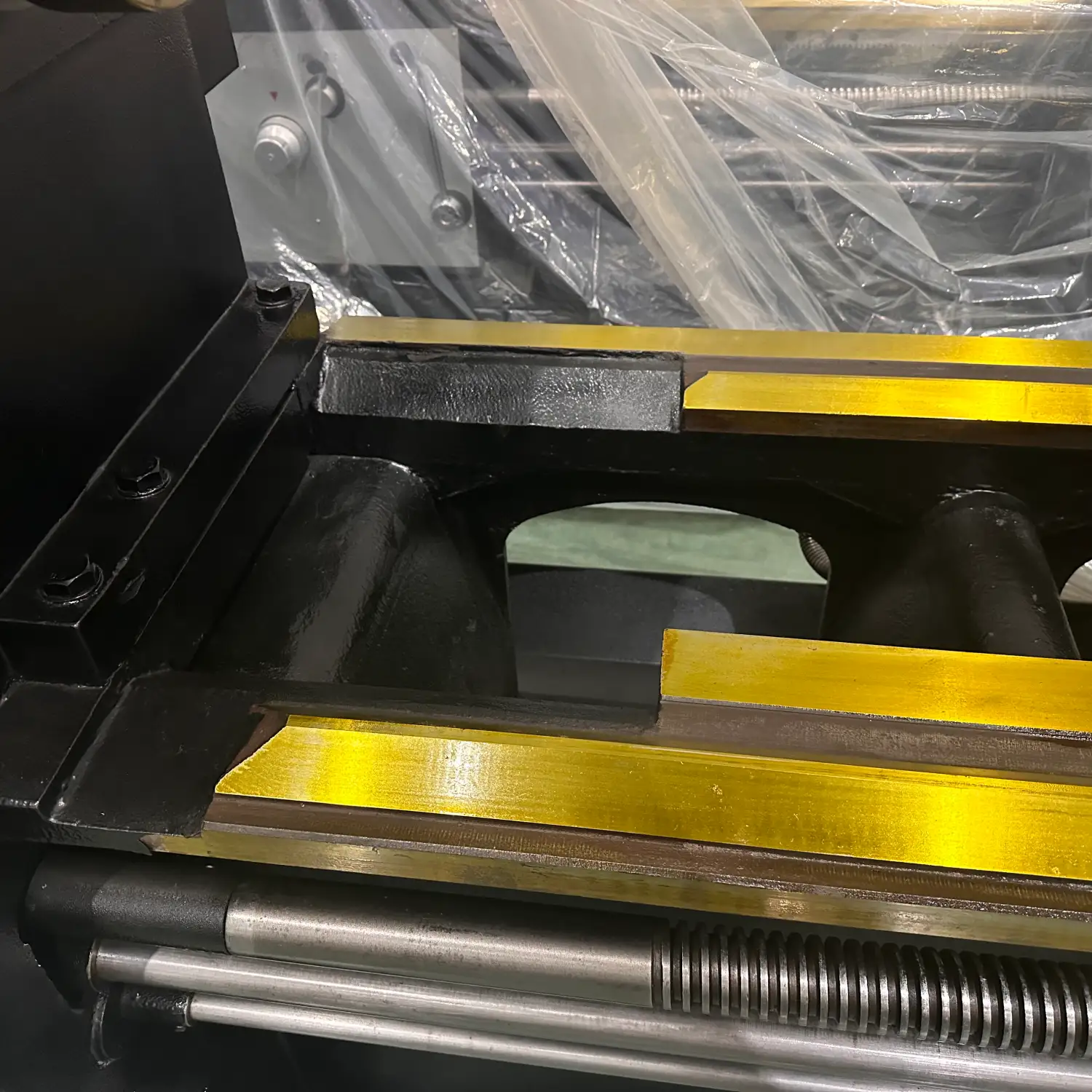

| Bed way width (mm) | 600 | 600 | 600 |
| Main motor power (kW) | 11 | 11 | 11 |
| Rapid traverse motor power (kW) | 1.1 | 1.1 | 1.1 |
| Coolant pump motor power (W) | 90 | 90 | 90 |
