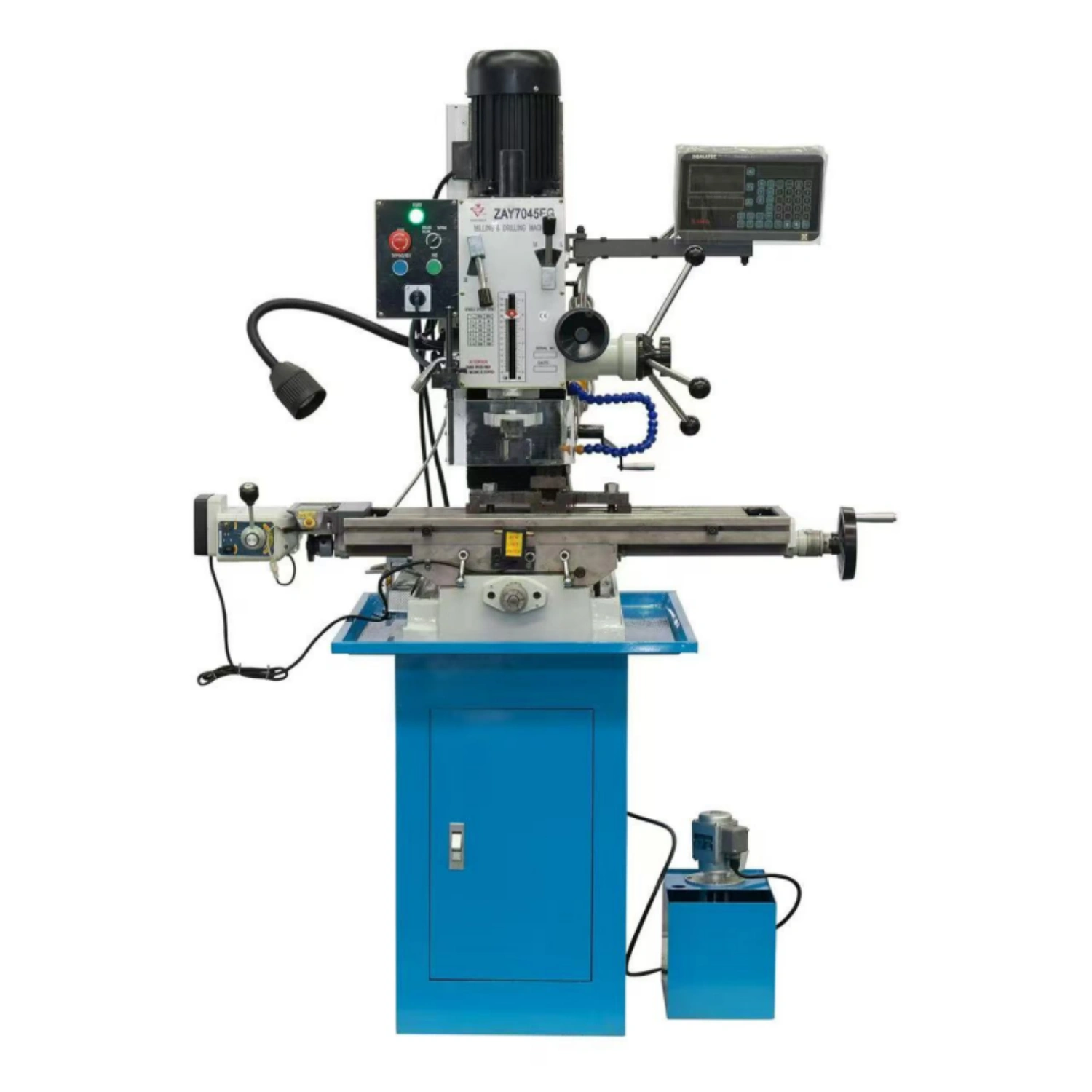

ZAY7045FG Industrial Drilling and Milling Machine | 1.5kW (2HP) Powerful Motor | 800x240mm Large Workbench | Precision Gear Drive Miller

ZAY7045FG Industrial Drilling and Milling Machine | 1.5kW (2HP) Powerful Motor | 800x240mm Large Workbench | Precision Gear Drive Miller

  • All-in-One Versatility: Engineered to perform a wide range of functions, including drilling, reaming, boring, milling, tapping, and chamfering within a single workstation.
  • Robust Square Pillar Design: Features a heavy-duty Square Pillar construction that provides superior rigidity and vibration damping for high-precision machining tasks.
  • Enhanced Drive Power: Equipped with a high-torque 1.5kW (2HP) motor, ensuring sufficient horsepower for aggressive metal removal and consistent industrial use.
  • Flexible Headstock Positioning: The spindle box can be adjusted vertically and rotates ±90° in a vertical plane, facilitating complex angular machining and multi-sided operations.
  • Precision Speed Regulation: Utilizes a sliding gear transmission system for convenient speed adjustments and highly accurate feed control across a wide range of RPMs.
Category
Get a Quote Now

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

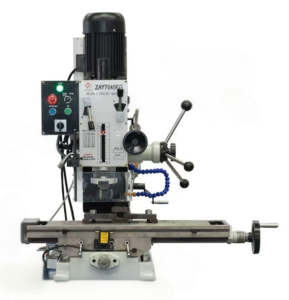

    Multipurpose Precision Gear-Head Miller for Professional Workshops

    The ZAY7045FG Drilling and Milling Machine is a versatile and robust solution designed for modern maintenance shops and industrial production lines. Its integrated gear-drive head ensures constant torque delivery, making it significantly more reliable than belt-driven alternatives. This machine excels at processing flat stocks and components with irregular shapes, offering the precision required for tight-tolerance engineering projects.

    Technical and operational highlights of the ZAY7045FG:

    • Large Working Envelope: Features an 800x240mm workbench with a 500mm longitudinal travel and 175mm cross travel, accommodating diverse industrial fixtures.





    • Standard-Compliant Spindle: Utilizes a high-rigidity M.T.4 or R8 spindle taper, compatible with a vast selection of professional industrial tooling.





    • Synchronized Measurement Systems: Both Metric and Inch systems are fully integrated into the dials and lead screws, ensuring a seamless experience for operators from different measuring countries.





    • Advanced Machining Capacity: Supports a 45mm drilling capacity and up to 80mm face milling capacity, making it a powerhouse for small to medium fabrication.





    • Global Grid Compatibility: These series drilling and milling machines operate on power supplies of different voltages (220V, 380V, 420V) and frequencies (50Hz or 60Hz), ideal for immediate global deployment.





    • Space-Efficient Design: With compact overall packaging dimensions (770x880x1160mm), it maximizes workshop floor space without sacrificing industrial-grade performance.



    Standard Accessory



    Optional Accessory

    Working Light
    Electric Feeder
    Chip Tray
    3 Axis DRO
    Rotary Table
    Machine Stand
    125mm flat pliers
    Drill chuck
    Milling cutter head
    MT4 milling chuck
    Variable diameter sleeve

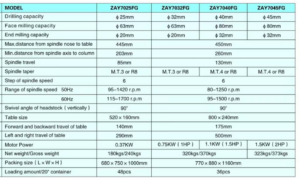

     Product Specification

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

    TypeNo.Gas cutting
    aperture(mm)    		Cutting
    Thickness(mm)    		Cutting speed
    (mm/min)    		Oxygen
    pressure(Mpa)    		Acetylene
    pressure(Mpa)
    Acetylene
    GO₂    		#000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
