Description
High-Efficiency Universal Radial Miller for Professional Toolrooms

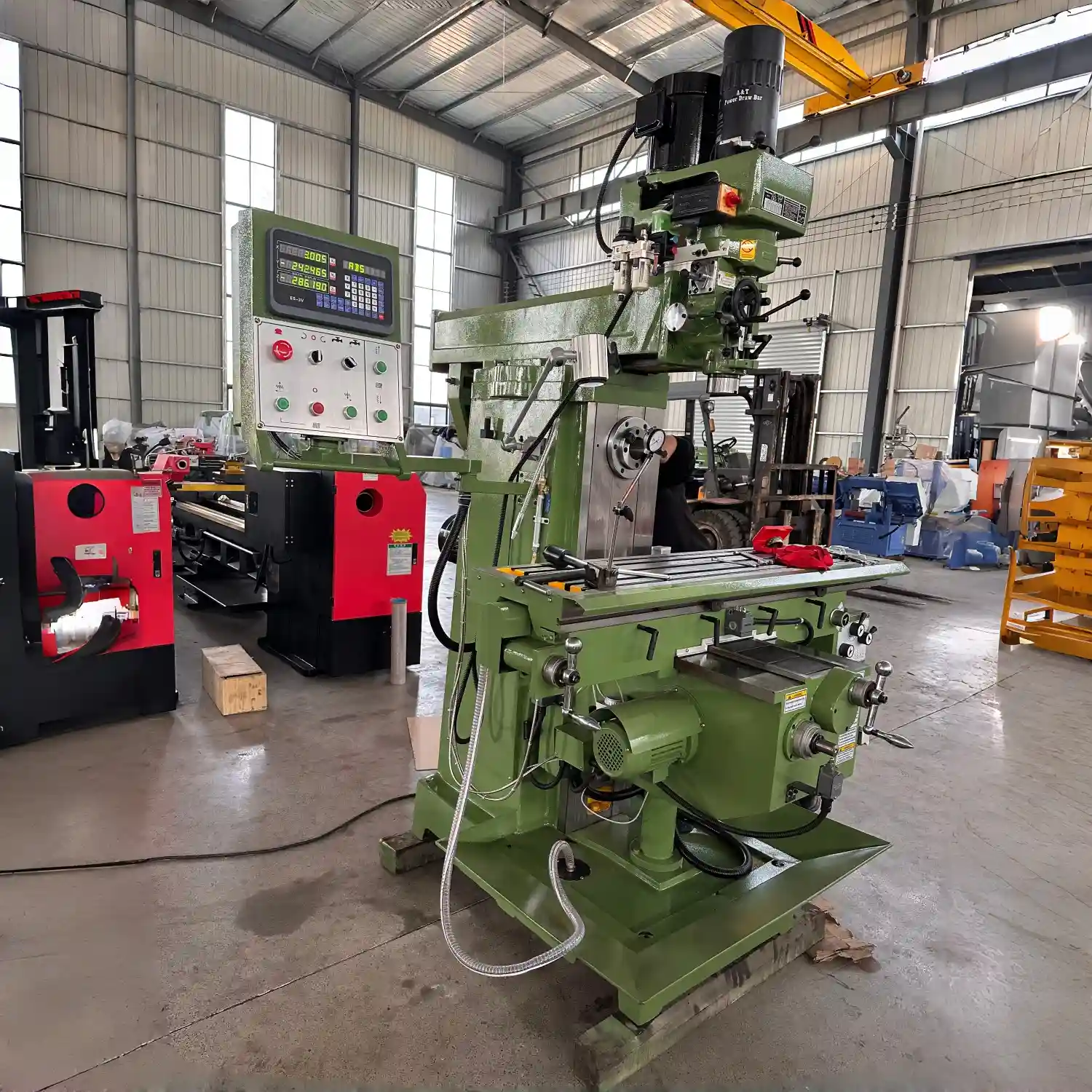

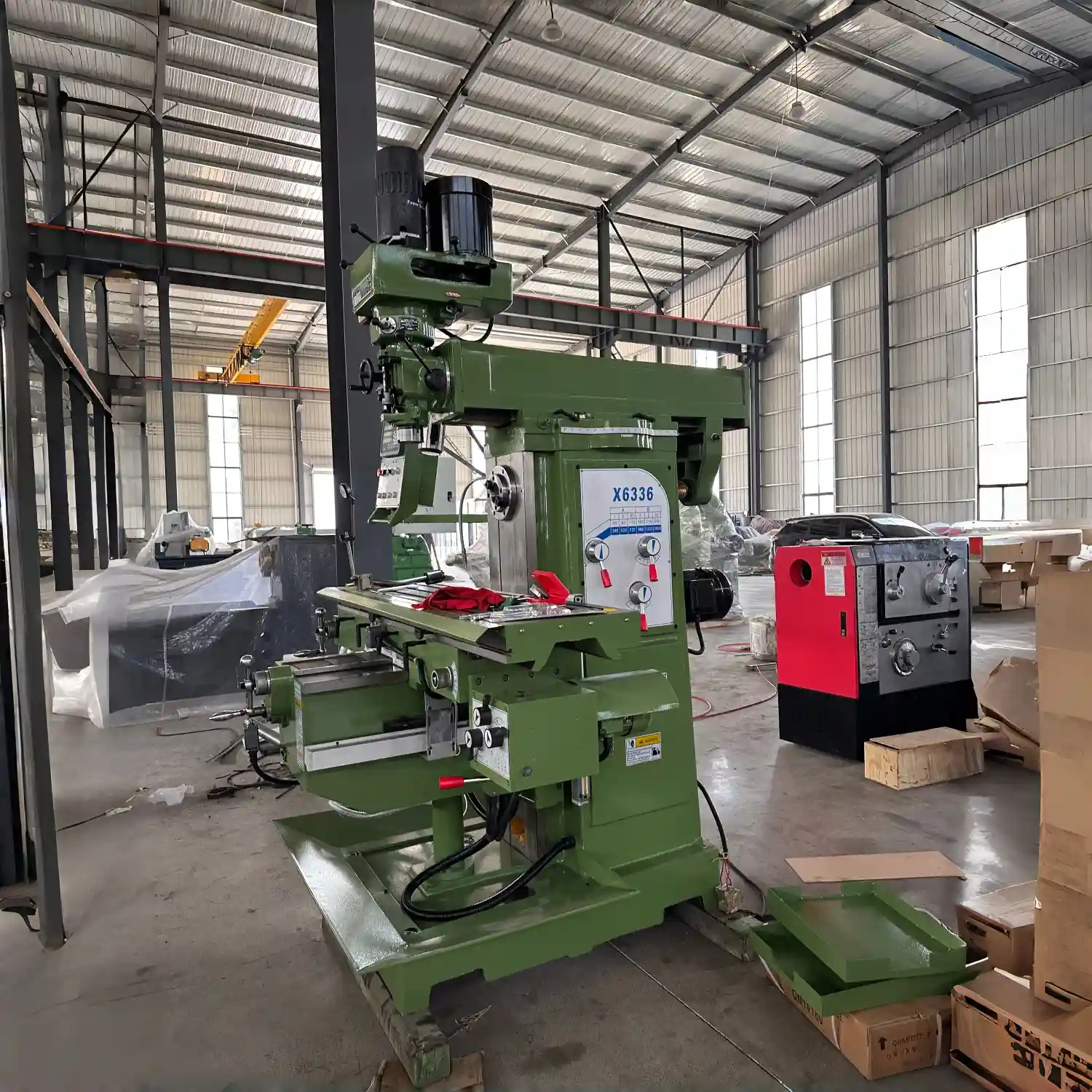

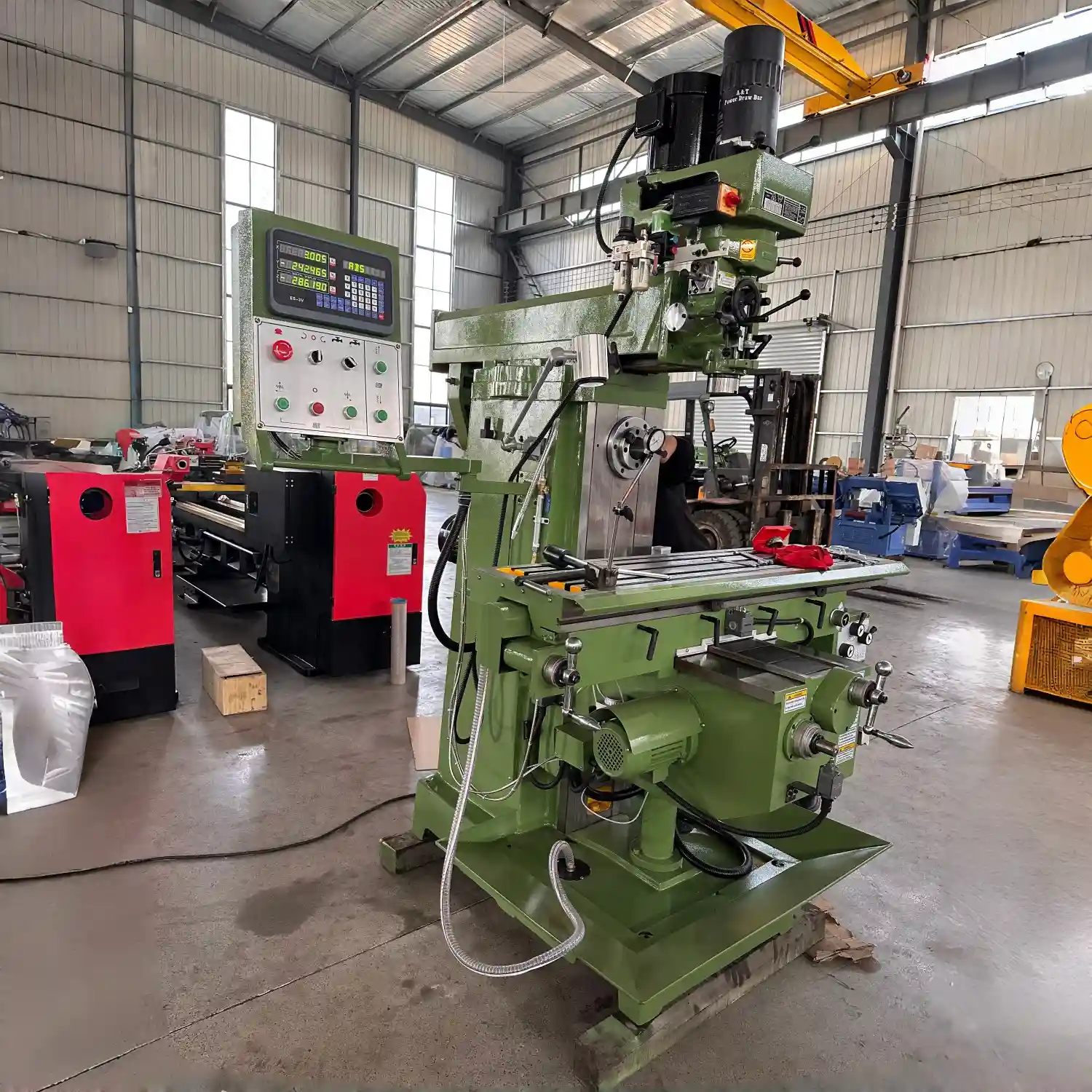

The X6336 Milling Machine is a heavy-duty, multi-functional powerhouse designed for modern engineering facilities that require both precision and high output. Its robust 2500kg casting structure ensures maximum vibration damping. This machine is exceptionally versatile, capable of vertical and horizontal milling, drilling, boring, and groove broaching in a single workstation. With an included indexing head, it is also perfectly suited for gear cutting and complex symmetrical machining.
Key operational and technical advantages:
- Automated Spindle Sleeve: Features a 3-level automatic sleeve feed (0.04/0.08/0.15mm/r), making precision boring and deep-hole drilling highly efficient.
- Flexible Measurement Systems: Fully integrated with both Metric and Inch systems, providing an intuitive experience for international operators from different measuring countries.
- Wide Machining Envelope: Offers a generous distance from the vertical spindle to the column (up to 550mm), accommodating bulky workpieces and irregular shapes.
- Independent Feed Power: Utilizes a 750W feed motor and a 1.1kW lifting motor, ensuring stable and powerful movement across all axes under heavy loads.
- Safety & Global Readiness: These series milling machines operate on power supplies of different voltages (220V, 380V, 420V) and frequencies (50Hz or 60Hz), ideal for immediate global export.
- Operator Comfort: Ergonomically designed with a manual spindle option and clearly marked controls for precise manual override during custom fabrication.
Standard Accessory
| l XYZ axis automatic |
| l NT40 spindle taper |
| l Indexing head |

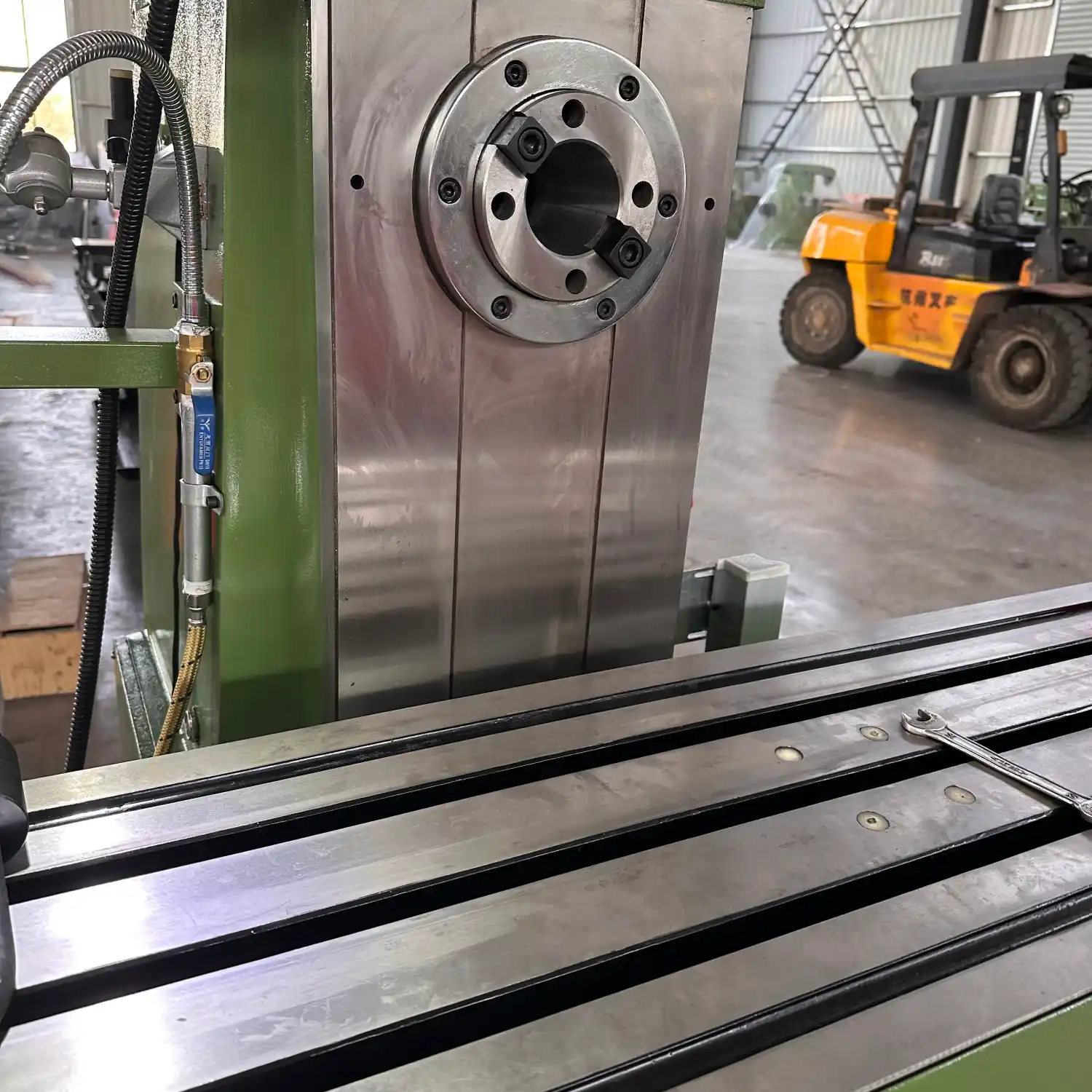

| l 4KW Horizontal spindle |

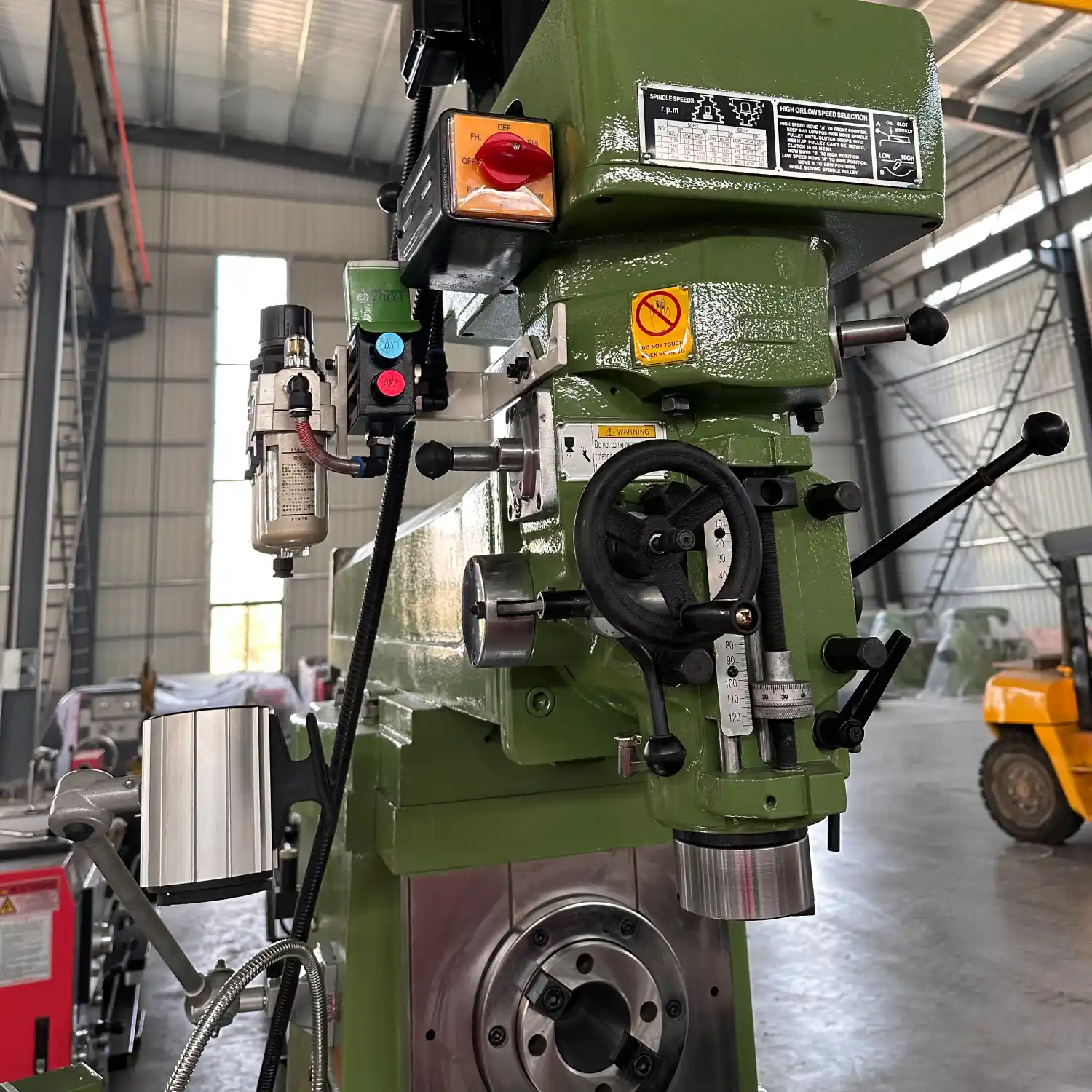

| l 5HP Vertical Milling Head |

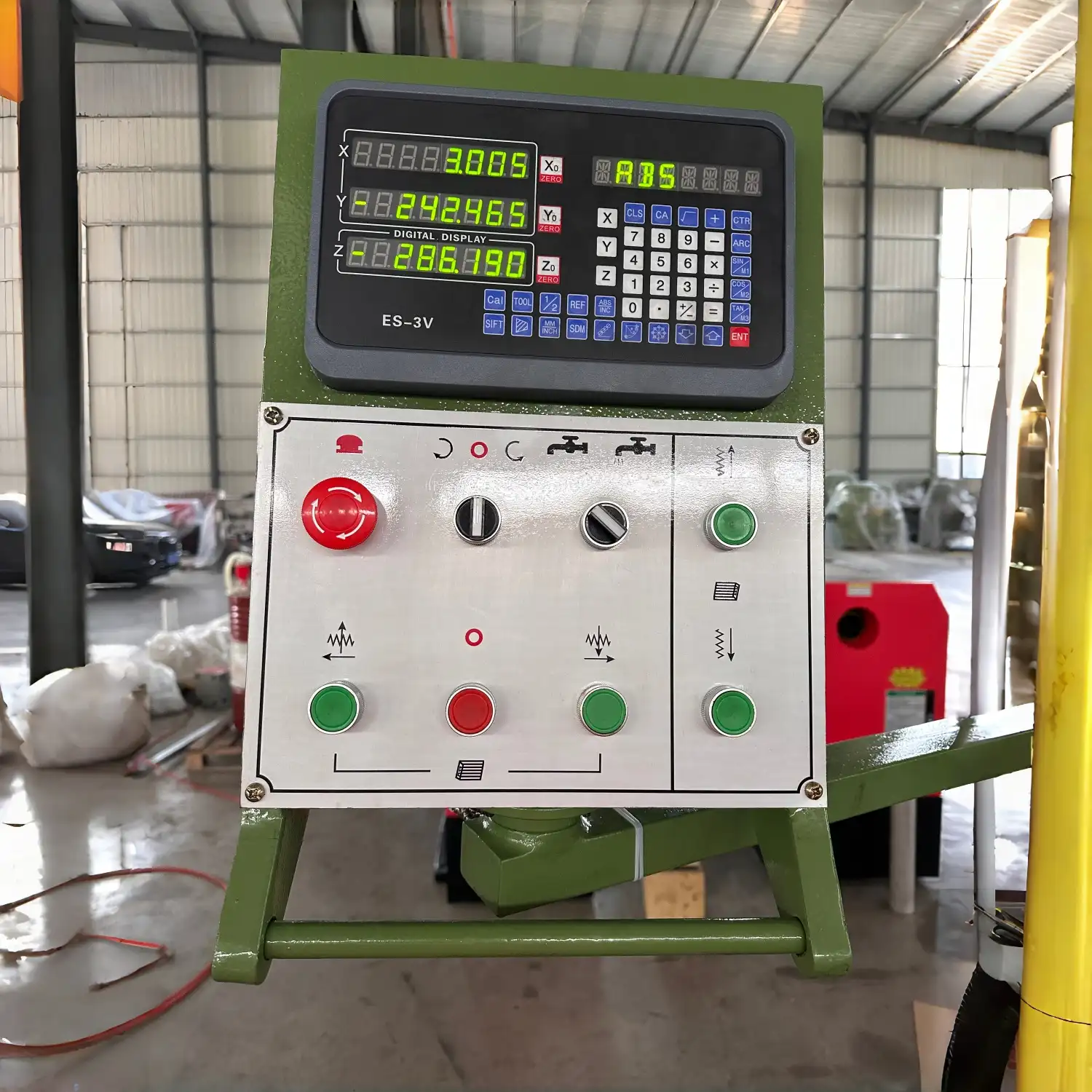

| l 3 axis- DRO |
| l Combination pressure plate |
| l Milling chuck |
| l Variable diameter sleeve |
| l Horizontal milling cutter bar |
| l Retreat iron |
| l Flat screwdriver |
| l Internal hexagonal wrench |
| l Double end wrench |
| l Tie rod |
| l Ordinary flat nose pliers |
| l Oil gun |
| l Big handle |
Product Specification
| Technical Parameters | |
| Spindle power | 5HP Vertical |
| 4KW Horizontal | |
| Spindle speed | Vertical 66-5440rpm (16 gear) |
| Horizontal 60-1800rpm, (12 gear) | |
| Spindle taper | NT40 Vertical |
| 7：24ISO50 Horizontal | |
| Spindle sleeve automatic feed stage | 3 levels/0.04/0.08/0.15mm/r |
| Workbench longitudinal and transverse motorized feed speed | level 8, 15~370mm/min
(fast forward 540mm/min optional) |
| Vertical lifting speed of workbench | 590mm/min |
| Workbench area | 1500 × 360mm |
| Workbench travel X/Y/Z axis | 1000/320/350mm |
| Workbench T-slot | 3/16/65 |
| Distance from the center of the vertical spindle to the surface of the column | 150-550mm |
| Distance from the end face of the vertical spindle to the workbench | 135-485mm |
| Distance from the center of the horizontal spindle to the workbench | 0-350mm |
| The distance from the center of the horizontal spindle to the lower plane of the ram | 30mm |
| Vertical spindle travel | 127mm |
| Workbench motorized feed motor power | 750W |
| Power of the mobile lifting motor of the lifting platform | 1.1KW |
| Cooling pump motor power | 90W |
| Machine size (L*W*H) | 2220x1790x2360mm |
| Machine weight | 2500kg |
