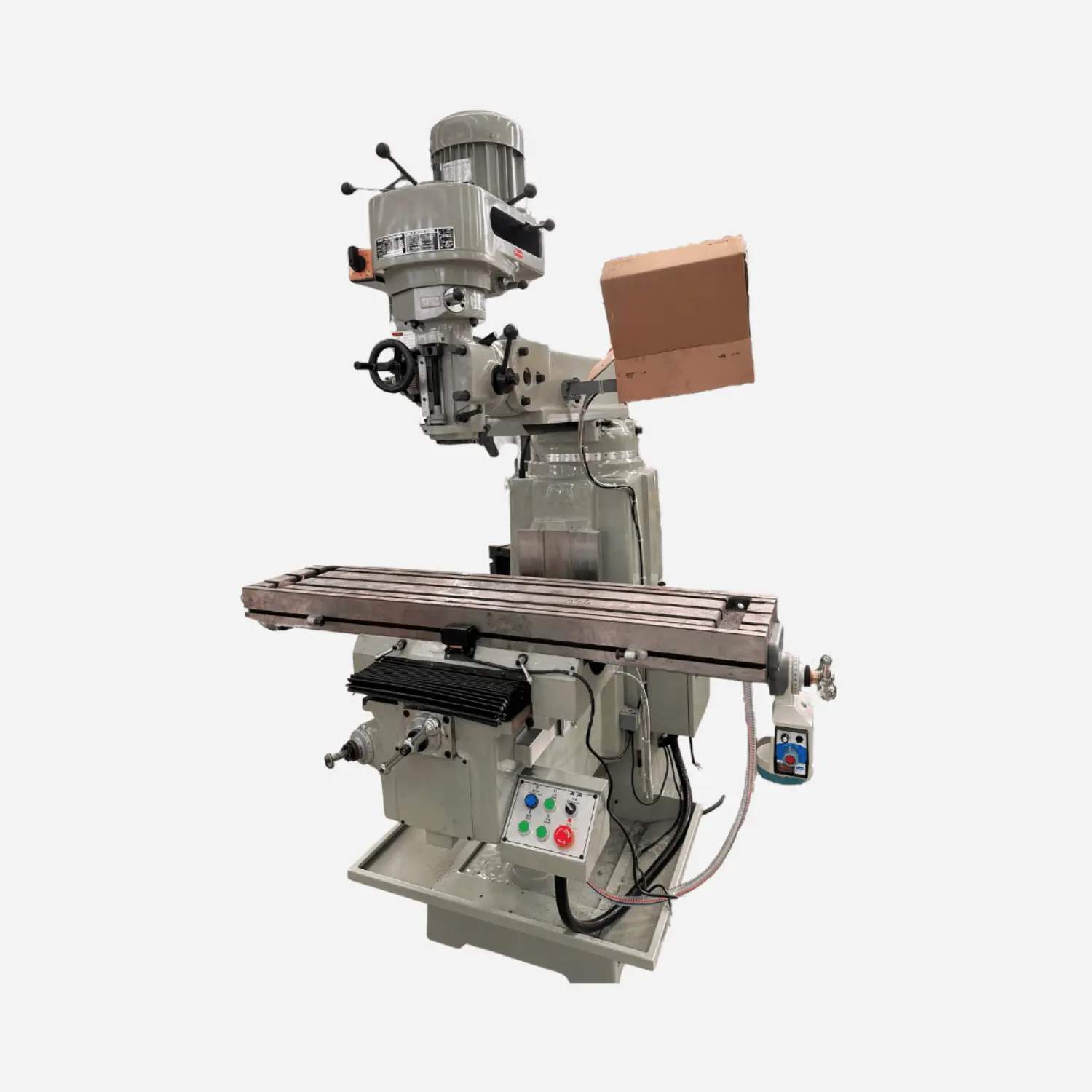

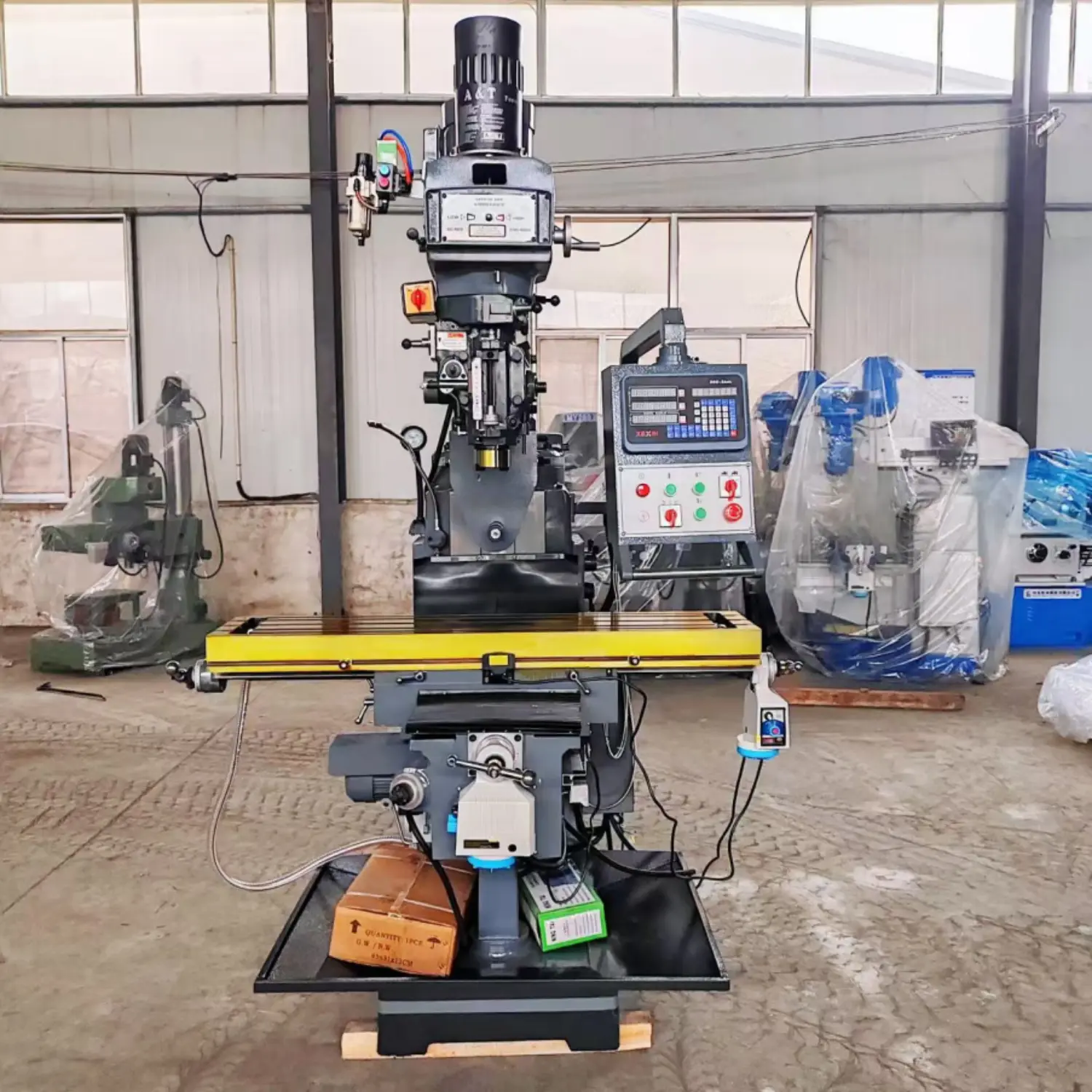

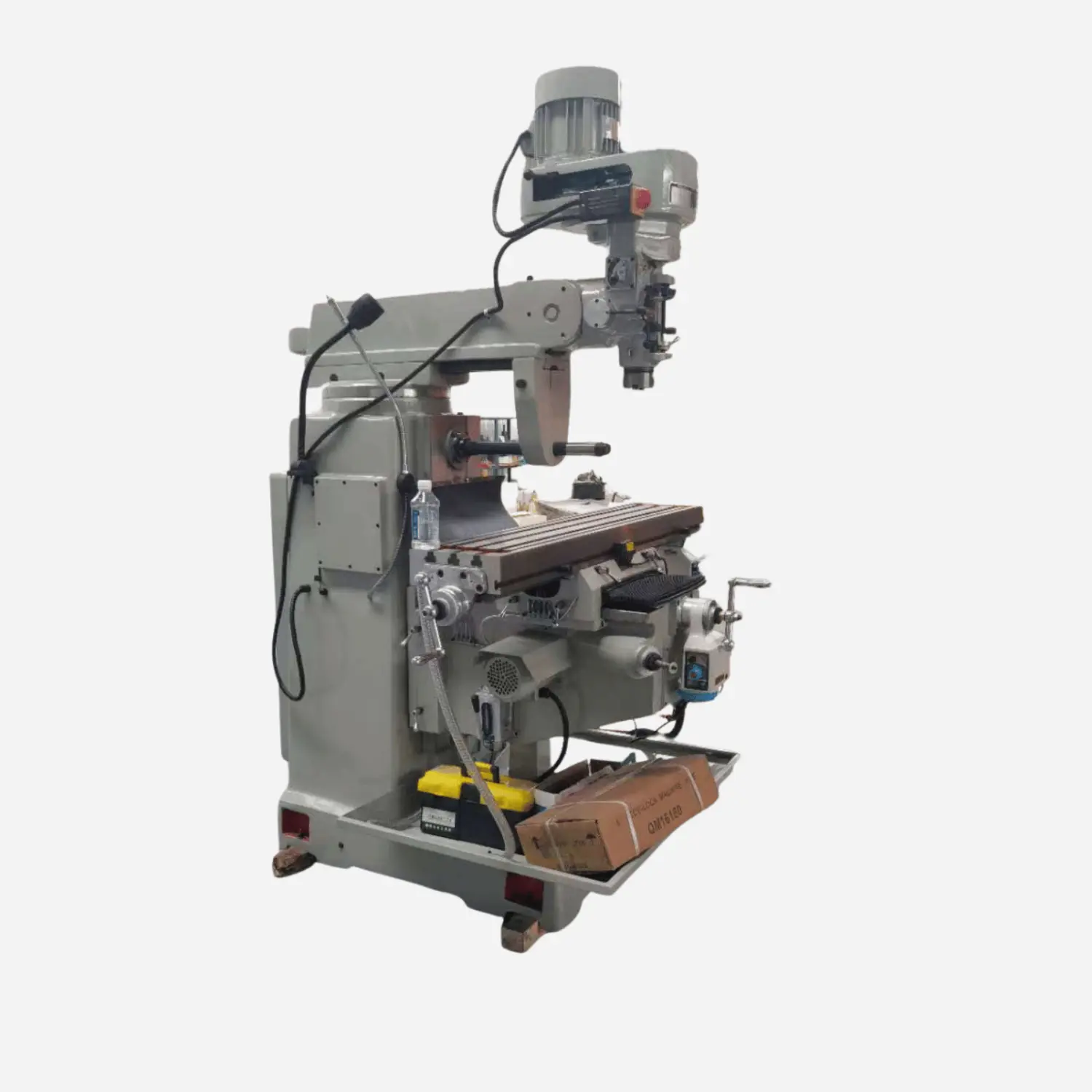

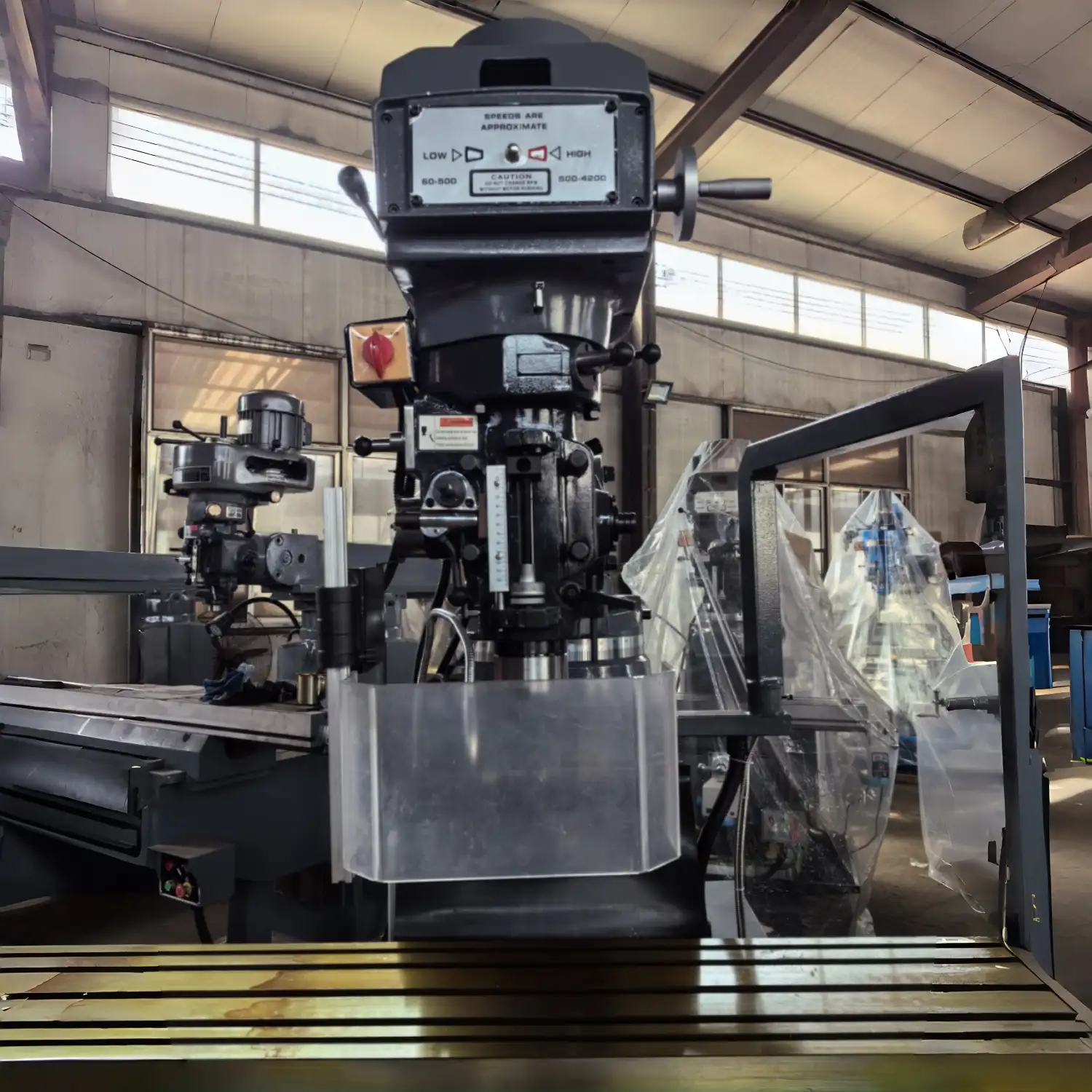

NO.5 High-Precision Turret Milling Machine | 1370x305mm Enlarged Workbench | Heavy-Duty NT40 Spindle | 3PH Industrial Miller
NO.5 High-Precision Turret Milling Machine | 1370x305mm Enlarged Workbench | Heavy-Duty NT40 Spindle | 3PH Industrial Miller
NO.5 High-Precision Turret Milling Machine | 1370x305mm Enlarged Workbench | Heavy-Duty NT40 Spindle | 3PH Industrial Miller
NO.5 High-Precision Turret Milling Machine | 1370x305mm Enlarged Workbench | Heavy-Duty NT40 Spindle | 3PH Industrial Miller
NO.5 High-Precision Turret Milling Machine | 1370x305mm Enlarged Workbench | Heavy-Duty NT40 Spindle | 3PH Industrial Miller
NO.5 High-Precision Turret Milling Machine | 1370x305mm Enlarged Workbench | Heavy-Duty NT40 Spindle | 3PH Industrial Miller

NO.5 High-Precision Turret Milling Machine | 1370x305mm Enlarged Workbench | Heavy-Duty NT40 Spindle | 3PH Industrial Miller

  • Heavy-Duty Work Platform: Features an oversized 1370x305mm workbench, providing superior support and stability for larger industrial workpieces.
  • Enhanced Cutting Power: Driven by a high-performance 3PHmain motor, delivering massive torque for aggressive milling and consistent precision.
  • Rigid Spindle Interface: Utilizes the robust NT40 spindle taper, specifically designed for higher rigidity and heavier tool loads compared to standard R8 systems.
  • Full-Angle Machining Flexibility: The milling head offers 90° left/right and 45° front/back tilting, allowing for complex multi-angle drilling and milling in a single setup.
  • Broad Speed Dynamics: Equipped with a 16-gear transmission providing speeds from 80 to 5440 rpm, ensuring optimal performance for everything from roughing to fine mirror finishing.
Category
Get a Quote Now

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

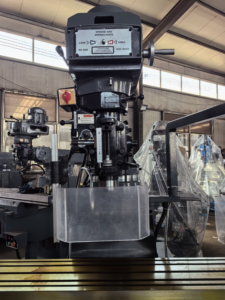

    High-Rigidity Vertical Turret Miller for Precision Engineering worktable 1370X305mm, NT40 3HP

    The No.5 turret milling machine is standard equipped with one vertical milling head.



    It can be replaced with a stepless speed regulation milling head (optional 1)

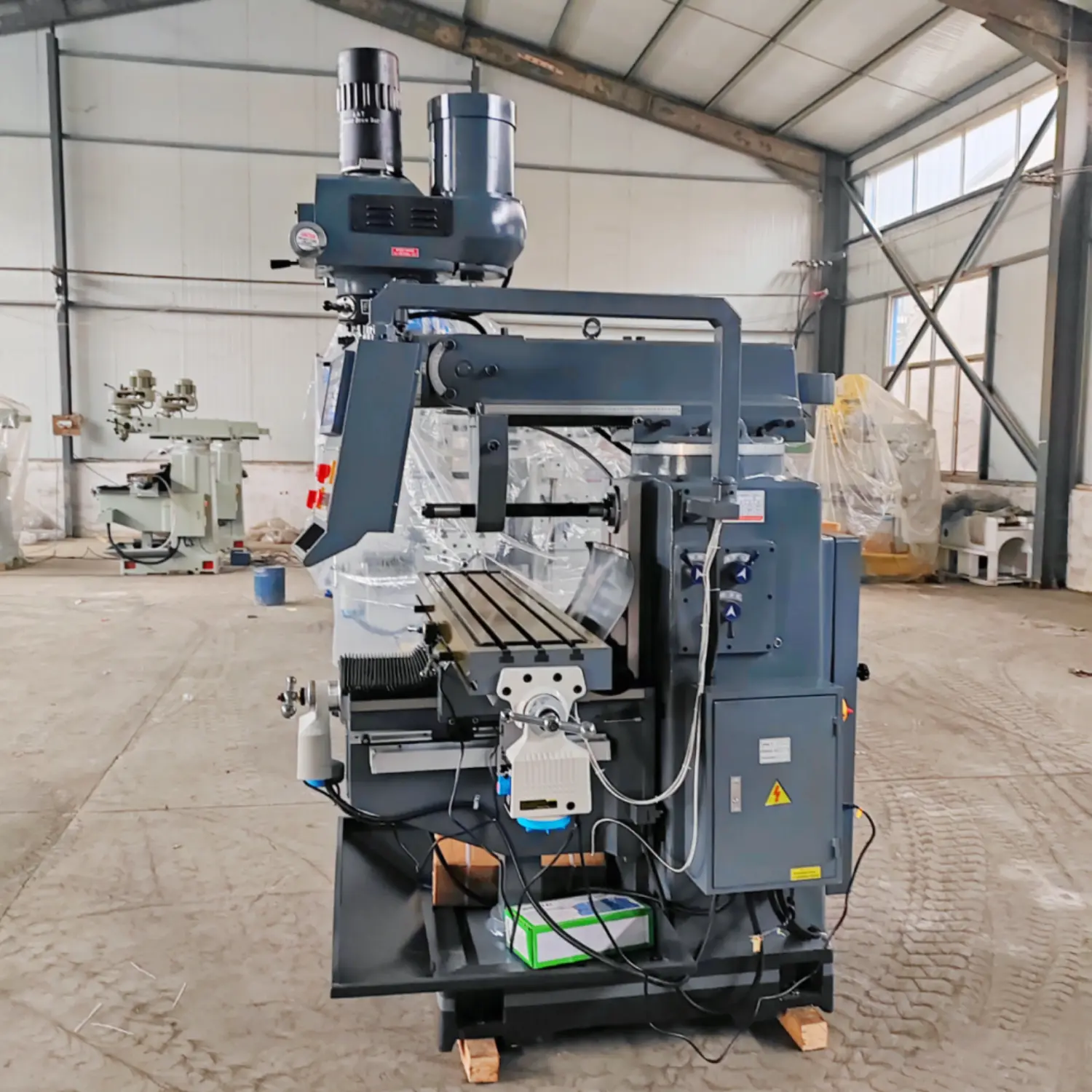

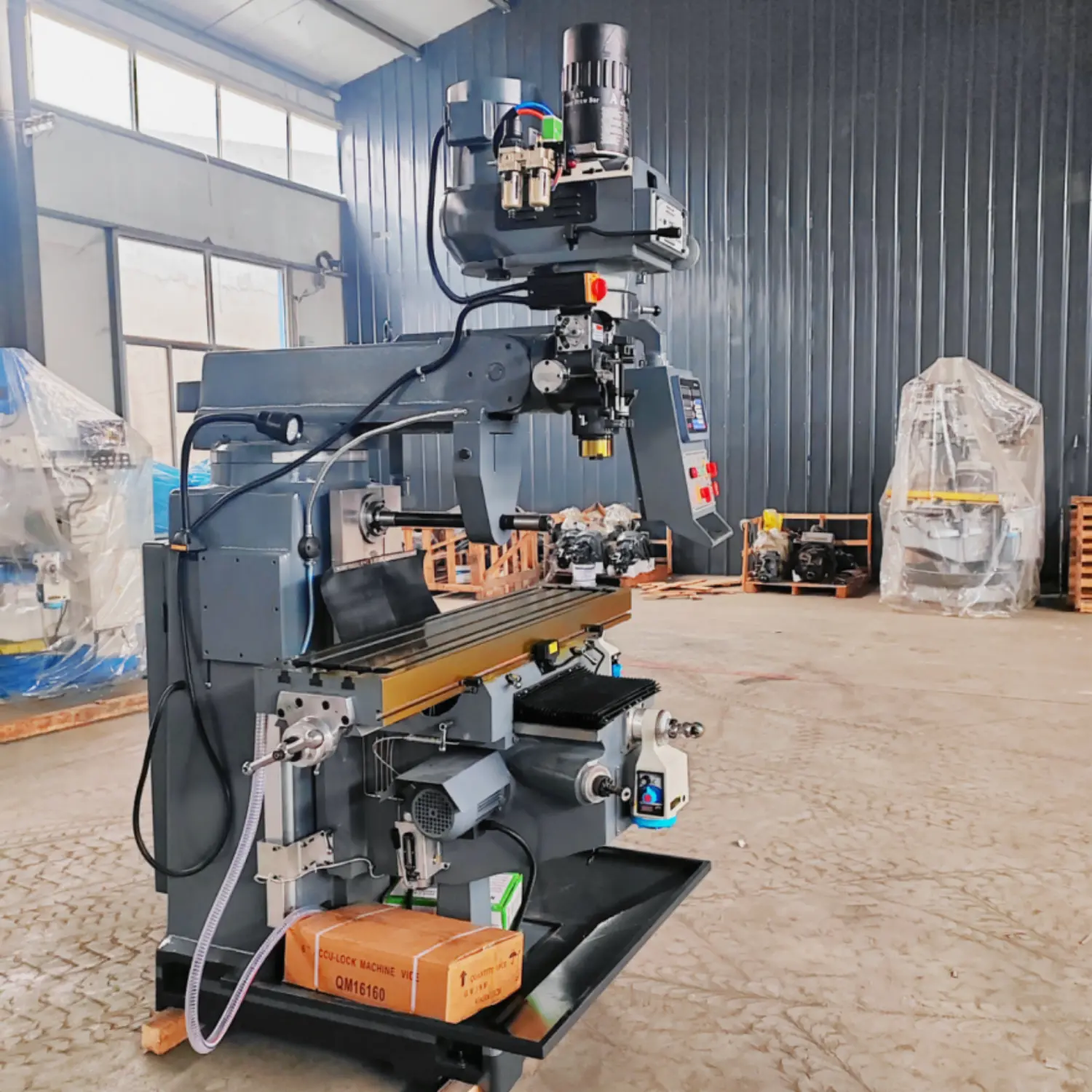

    Also a horizontal milling head can also be added( optional 2).

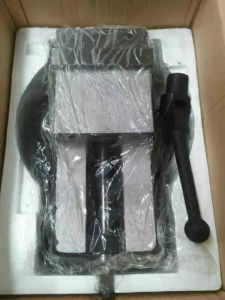

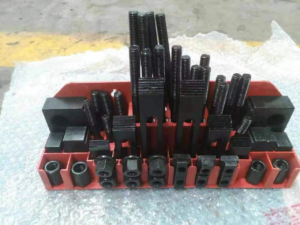

    Standard Accessory



    Product Specification

    Model NO.5 Turret Milling Machine
    Workbench 1370X305mm
    Left and right travel (X-axis) 810mm
    Front and rear travel (Y-axis) 420mm
    Up and down travel (Z-axis) 500mm
    Main spindle tube stroke 127mm
    Spindle speed 80-5440(16 steps) Vertical

    45-1350(12 steps) Horizontal
    Spindle taper hole ISO40
    spindle motor 2.25KW,3HP Vertical

    3KW Horizontal (optional）
    Milling head left and right degree 90°
    Milling head front and back degree 45°
    Large distance from spindle end face to worktable 500mm
    Machine tool dimensions (length x width x height) 1780*1650*2080mm
    Machine weight 1980kg

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

    TypeNo.Gas cutting
    aperture(mm)    		Cutting
    Thickness(mm)    		Cutting speed
    (mm/min)    		Oxygen
    pressure(Mpa)    		Acetylene
    pressure(Mpa)
    Acetylene
    GO₂    		#000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.
