High-Performance Universal Knee-Type Miller for Industrial Production

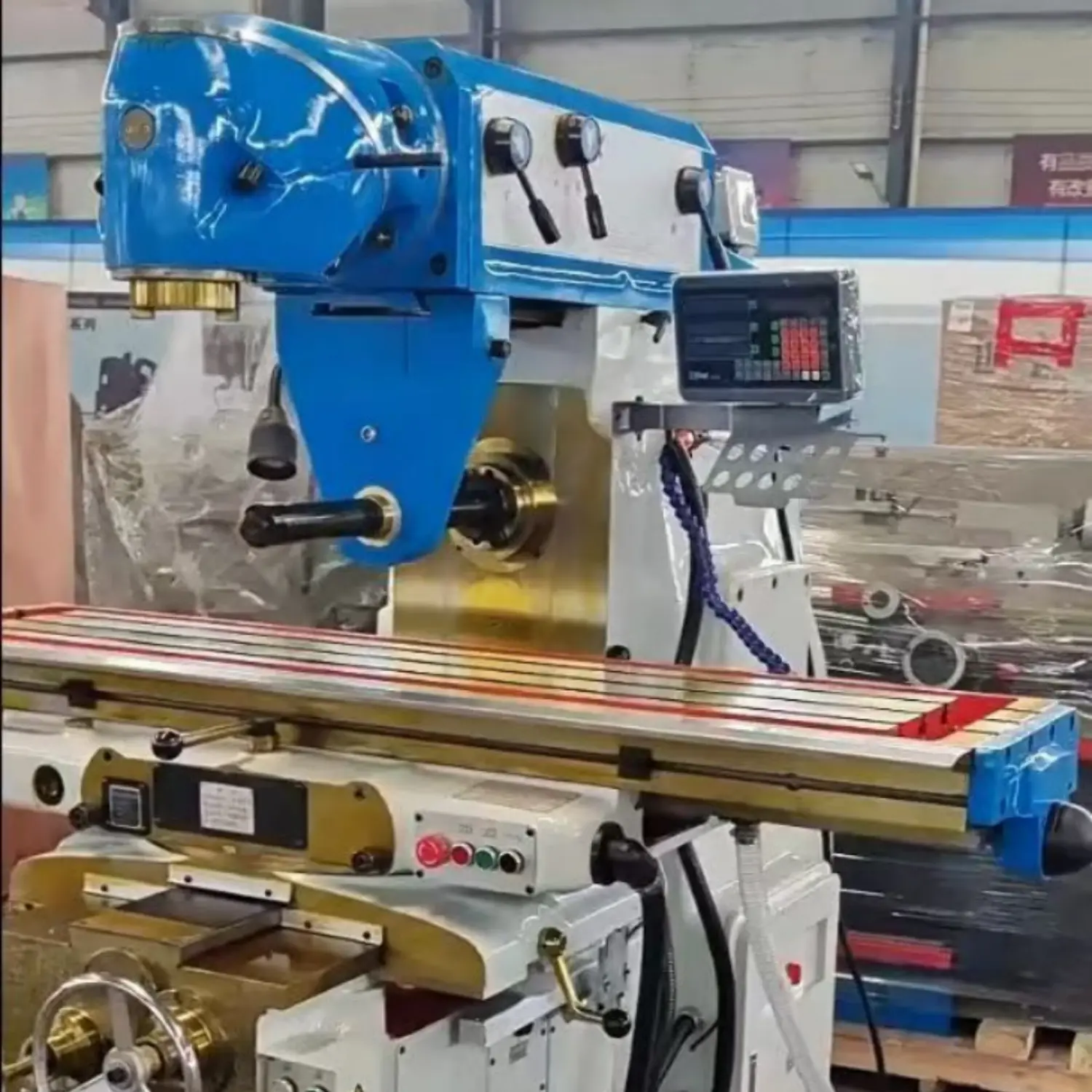

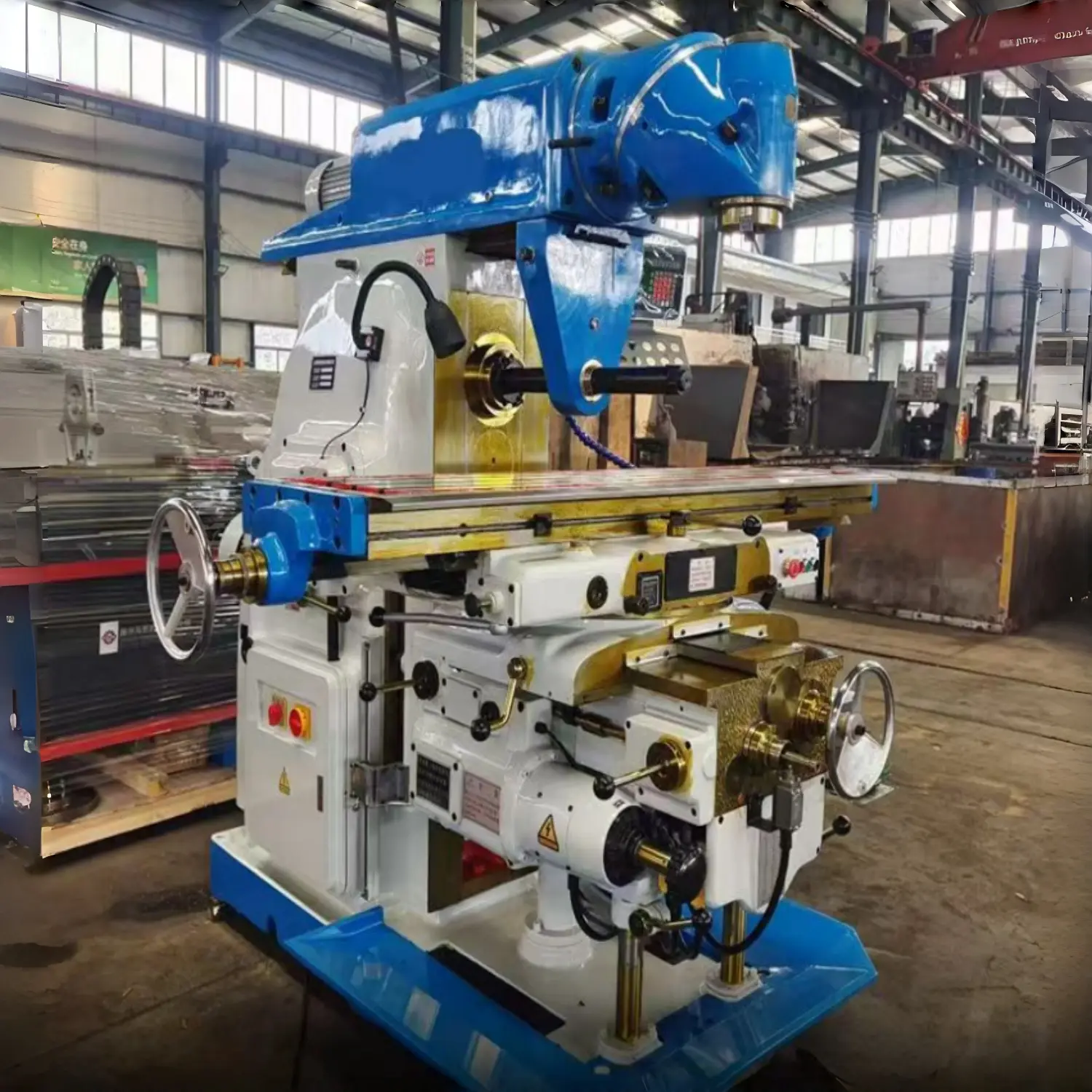

The X6240 Universal Milling Machine is a high-rigidity powerhouse designed for heavy-duty fabrication and toolroom applications. Its unique “Universal” design integrates a 360° rotating vertical milling head and a horizontal spindle, allowing the operator to switch between modes effortlessly. With a net weight of 4000kg, the machine’s heavy casting ensures vibration-free performance during aggressive milling of flat stocks, irregular shapes, and large rotary components.
Key technical and operational highlights:
- Versatile Angle Machining: The combination of a tilting vertical head and a rotating workbench makes it ideal for drilling, boring, and milling complex geometries in a single setup.
- Powerful Independent Drives: Utilizes a massive 11kW motor for horizontal milling and a 4kW motor for vertical operations, ensuring optimal power delivery for diverse technical requirements.
- Advanced Feed Control: Driven by a 2.2kW feed motor, the machine provides 18 levels of precise movement across all axes, ensuring superior surface finish quality.
- Bilingual Measurement Integration: Both Metric and Inch systems are fully integrated into the controls, allowing for intuitive operation by technicians from different measuring countries.
- Flexible Measurement Systems: The machine is engineered to hold and process workpieces in various dimensions, with a Z-axis travel of up to 380mm.
- Safety & Electrical Standards: These series lathes/millers operate on power supplies of different voltages (220V, 380V, 420V) and different frequencies (50Hz or 60Hz), designed for seamless global export.
Optional Accessory
| No. | Item |
| 1 | DRO (Digital Readout) |
| 2 | Dividing head 125mm |

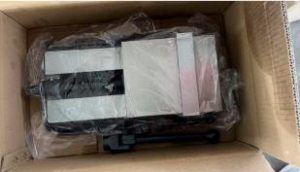

| 3 | 200mm precision parallel vice |

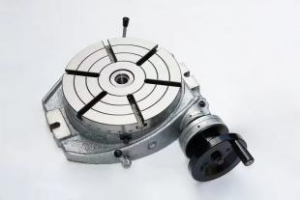

| 4 | Separate turntable around 300mm |
| 5 | Electronic oil pump |
| 6 | Clamping kit |
| 7 | Worktable rotary |
| 8 | Three axis automatic feeding |
Product Specification
| Specification Item | X6240 |
| Workbench size | 400×1700 mm / 400×2000 mm |
| Workbench longitudinal travel (manual / motorized) | 900 mm / 1200 mm |
| Workbench lateral travel (manual / motorized) | 315 mm / 300 mm |
| Workbench vertical travel (manual / motorized) | 380 mm / 360 mm |
| Workbench rotation angle | ±45° |
| Workbench X/Y feed rate range | 23.5–1180 mm/min |
| Worktable Z-direction feed rate range | 8–394 mm/min |
| Workbench X/Y/Z fast moving speed | 2300 / 2300 / 770 mm/min |
| Distance from spindle centerline to worktable | 30–350 mm |
| Distance from vertical shaft end face to worktable | 190–510 mm |
| Distance from bed vertical guide rail to worktable center | 215–470 mm |
| Distance from spindle centerline to suspension beam | 155 mm |
| Vertical milling head rotation angle | 360° |
| Spindle hole taper (Vertical / Horizontal) | 7:24 ISO50 |
| Spindle speed series | Vertical: 12 levels / Horizontal: 18 levels |
| Spindle speed range | Vertical: 60–1750 rpm / Horizontal: 30–1500 rpm |
| Workbench feed rate levels | 18 levels |
| Main drive motor power | Vertical: 4 kW / Horizontal: 11 kW |
| Feed motor power | 2.2 kW |
| Machine tool overall dimensions | 2294×2050×1610 mm |
| Machine tool net weight | 4000 KG |
