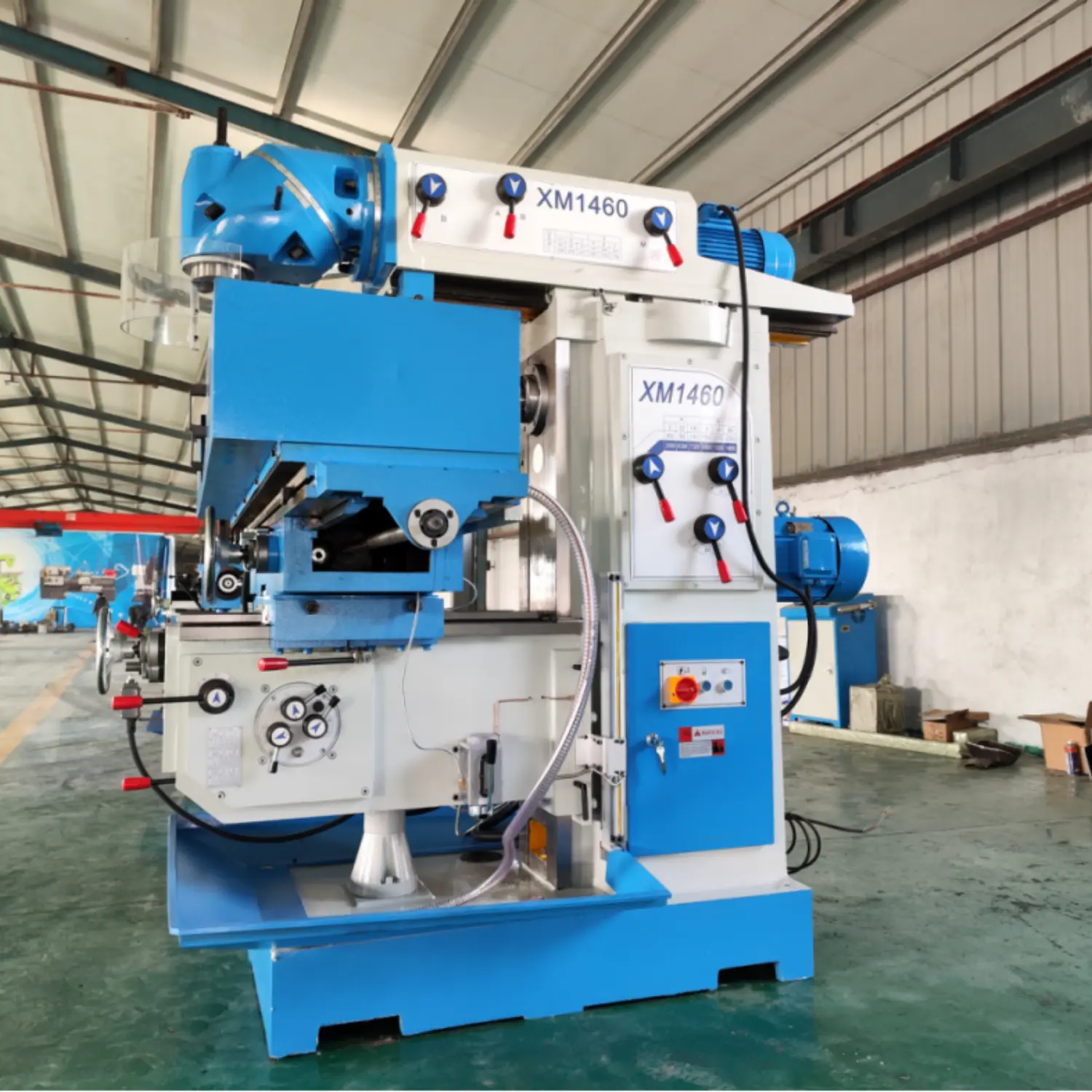

Advanced Universal Knee-Type Miller for High-Precision Engineering
The XM1460 Universal Milling Machine is a heavy-duty, multi-functional machining solution designed for demanding toolrooms and production facilities. Its heavy casting structure offers exceptional stability and vibration damping. This machine is a true “Universal” workstation, capable of executing vertical milling, horizontal milling, boring, drilling, and intricate groove broaching on large flat stocks and irregular shapes.
Technical and operational highlights of the XM1460:
- Enhanced Safety Features: Fully equipped with spindle protection and worktable protection guards to ensure a secure operating environment during high-speed cutting.
- Versatile Distance Capability: Offers a spindle-to-table distance of up to 650mm (Vertical), providing ample clearance for tall workpieces and specialized fixtures.
- Synchronized Measurement Systems: Both Metric and Inch systems are seamlessly integrated, allowing technicians from different measuring countries to operate with professional ease.
- Powerful Independent Drive: Features a dedicated 2.36kW/15N.m feeding motor, ensuring consistent power delivery across all 12 steps of the feed range.
- Global Grid Compatibility: These series milling machines operate on power supplies of different voltages (220V, 380V, 420V) and frequencies (50Hz or 60Hz), tailored for seamless international export.
- Precision Coolant System: Includes a high-flux coolant pump (25L/min) to maintain tool longevity and part accuracy during heavy-duty industrial processing.
Standard Accessory
| v Worktable 1800*400mm |
| v XYZ axis travel 1300/420/600 |
| v 7:24 IS050(Horizontal/Vertical) |
| v 3 axis DRO |
| v Ball screw on Y axis, X axis common screw |
| v Spindle protection |
| v Worktable protection |
Optional Accessory
- Machine vice 160mm
- Machine vice 200mm
- Universal Milling Head F11-160A
- Rotary table TSL300
- 58 pcs clamping kits
- Slotting head
Product Specification
| ITEM | XM1460 |
| Spindle taper | 7:24 IS050(Horizontal/Vertical) |
| Worktable | 1800X400 mm |
| Worktable swivel angle | 士45° |
| Number | 4 |
| T-slots of table Width | 18 mm |
| Distance | 100 mm |
| Spindle speeds range | 12steps 50-1520r.p.m(Vertical)
12steps 60-1850r.p.m(Horizontal) |
| Longitudinal travel | 1300 mm |
| Table travel Cross | 420mm |
| Vertical travel | 600 mm |
| main horizontal spindle | 0-440 mm |
| milling head horizontal(low position) | 150-590 mm |
| milling head horizontal (side position) | 340-780 mm |
| milling head horizontal (high position) | 530-970 mm |
| Distance from spindle nose to worktable | 50-650 mm(Vertical) |
| Distance from Vertical spindle centerto guideway surface | 0-1000 mm(Vertical milling spindle head) |
| Horizontal swivel angle of milling head | 360° |
| Vertical swivel angle of milling head | 360° |
| Main motor | Vertical Milling 7.5KW(V)
Horizontal Milling 5.5KW(H) |
| Feeding motor | 2.36 KW 15N.M |
| Coolant pump motor | 90W |
| Coolant pump flux | 25litres/minute |
| Overall dimensions | 2300X2300X2270mm |
