NO.4 Turret Milling Machine | 1270x254mm Worktable | High-Precision R8 Spindle | 3HP Professional Vertical Miller

  • Expansive Work Surface: Features a reinforced 1270x254mm workbench with a 780mm X-axis travel, providing a stable platform for versatile component milling.
  • Versatile Speed Range: Equipped with a 16-step spindle speed (80-5440 rpm), allowing for precise control across various materials from aluminum to hardened steel.
  • Powerful Drive System: Driven by a robust 3HP (2.25kW) motor, delivering the necessary torque for heavy-duty manual cutting and high-speed finishing.
  • Extended Vertical Capacity: Offers a generous 500mm distance from the spindle end to the worktable, accommodating large workpieces and complex tooling setups.
  • Precise Tool Interface: Utilizes the industry-standard R-8 spindle taper, ensuring wide compatibility with professional milling cutters and collets.

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    High-Rigidity Vertical Turret Miller for Precision Engineering worktable 1270X254mm, R8 , 3HP

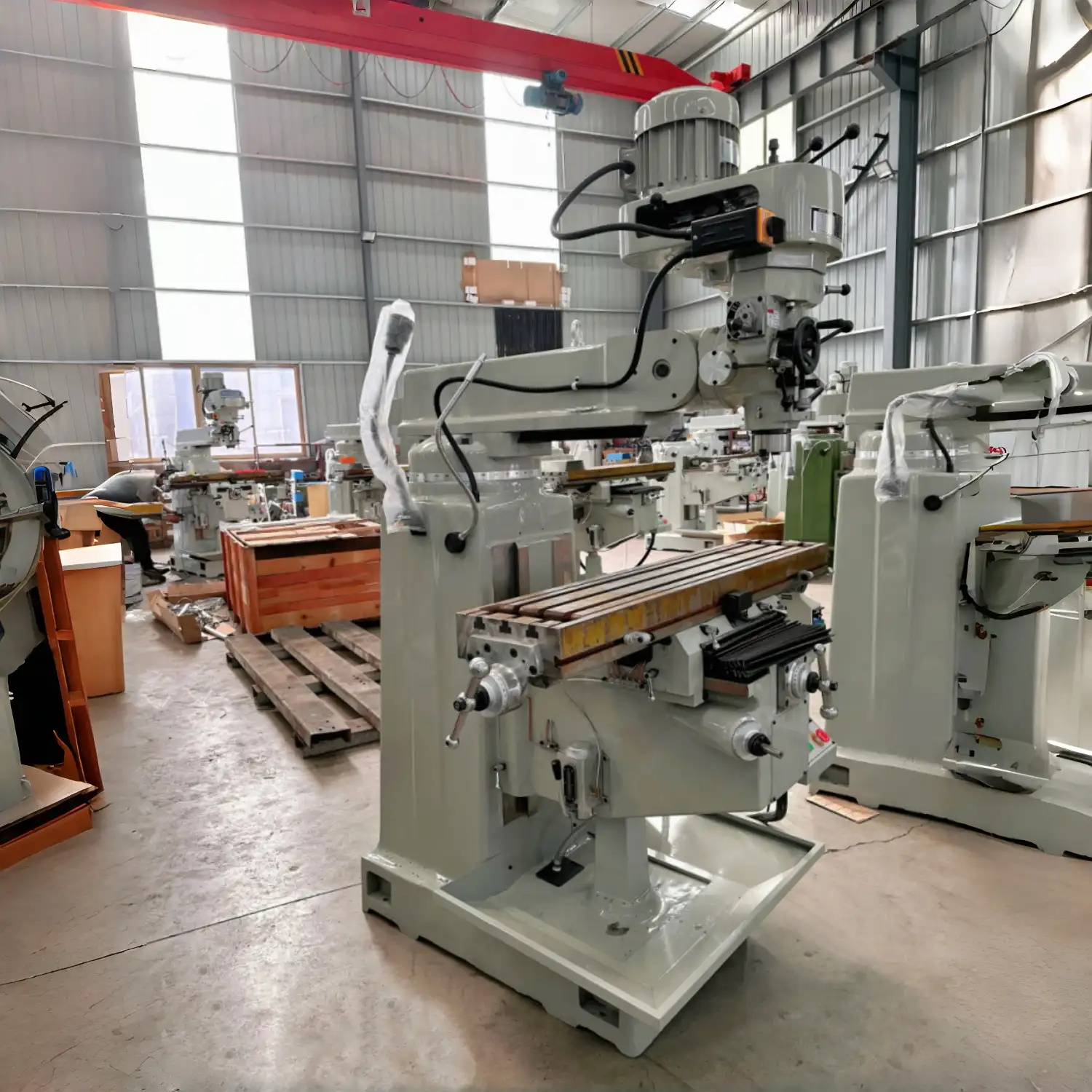

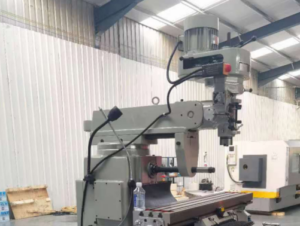

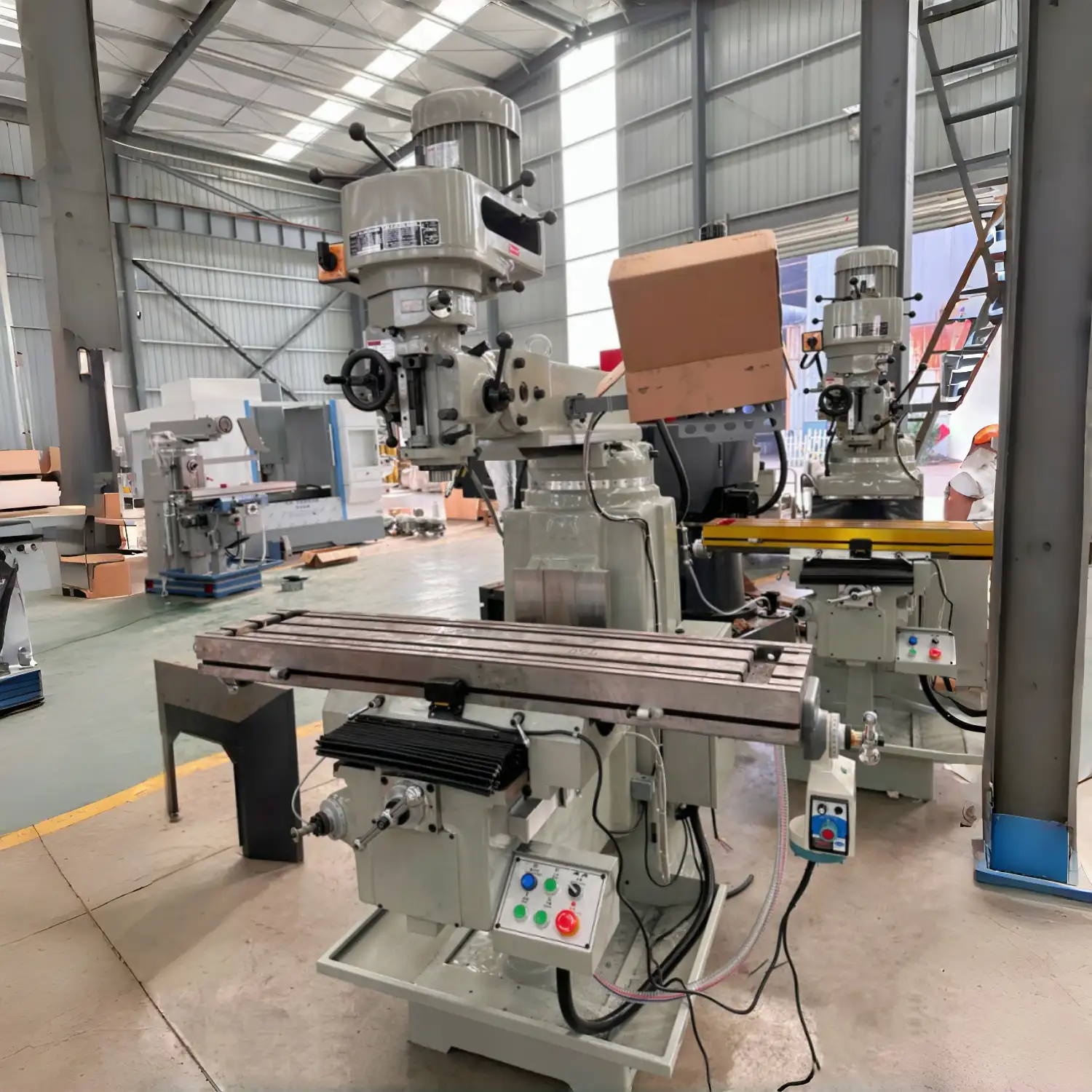

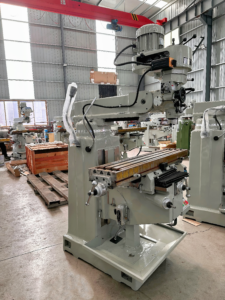

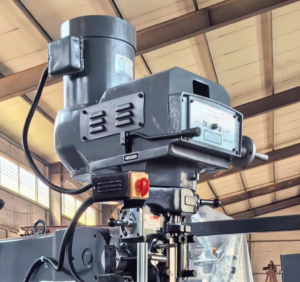

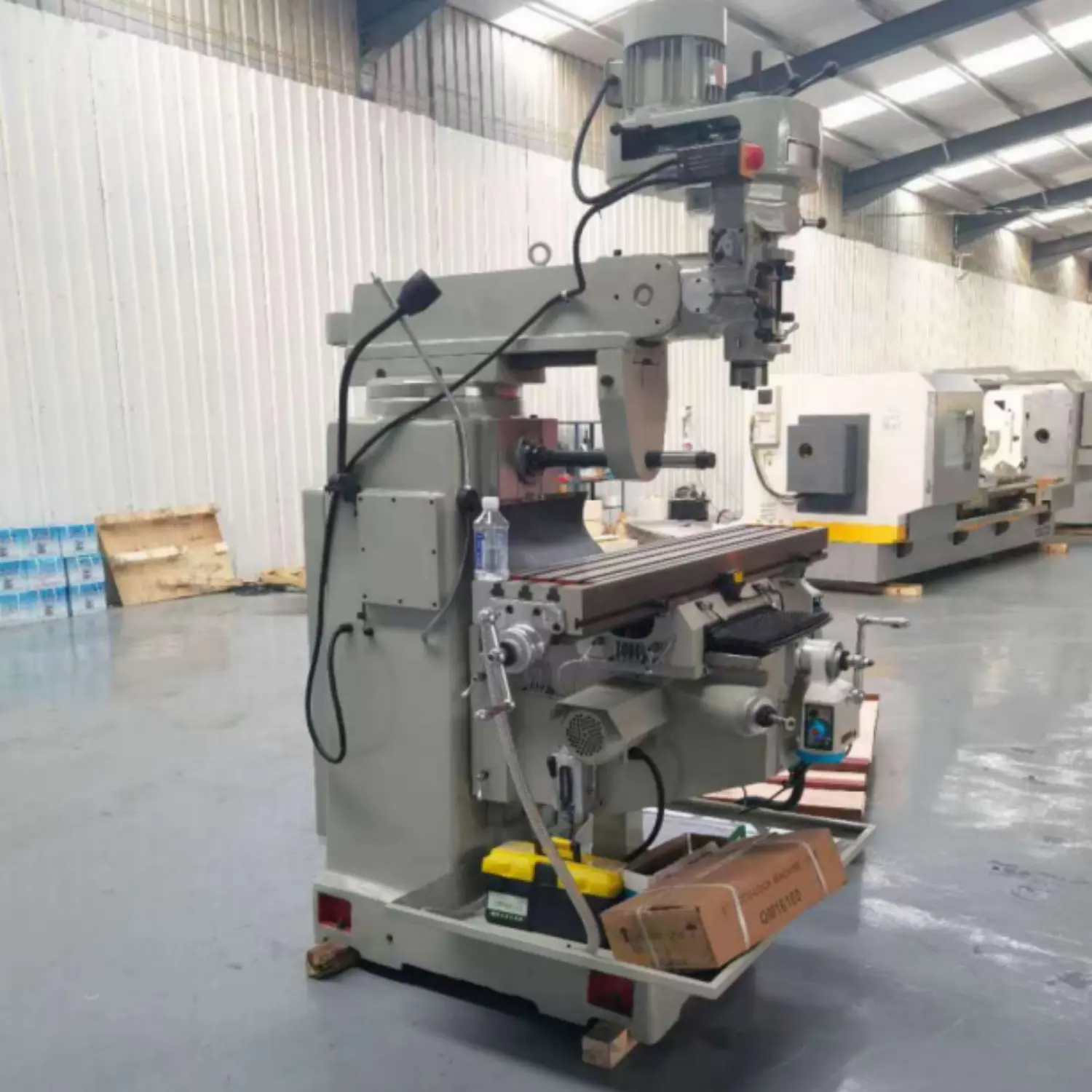

    The No.4 turret milling machine is standard equipped with one vertical milling head.

    It can be replaced with a stepless speed regulation milling head (optional 1)

    Also a horizontal milling head can also be added( optional 2).

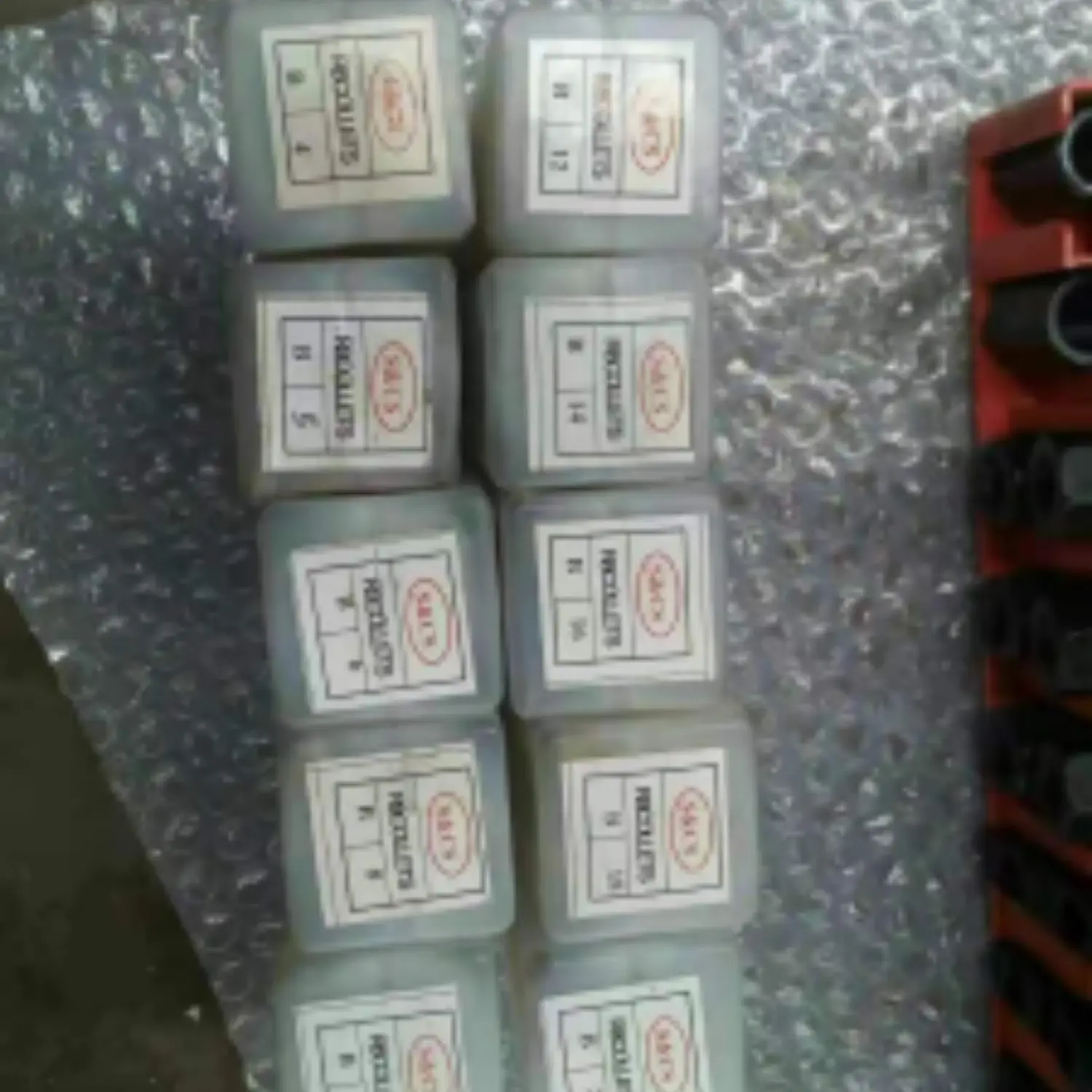

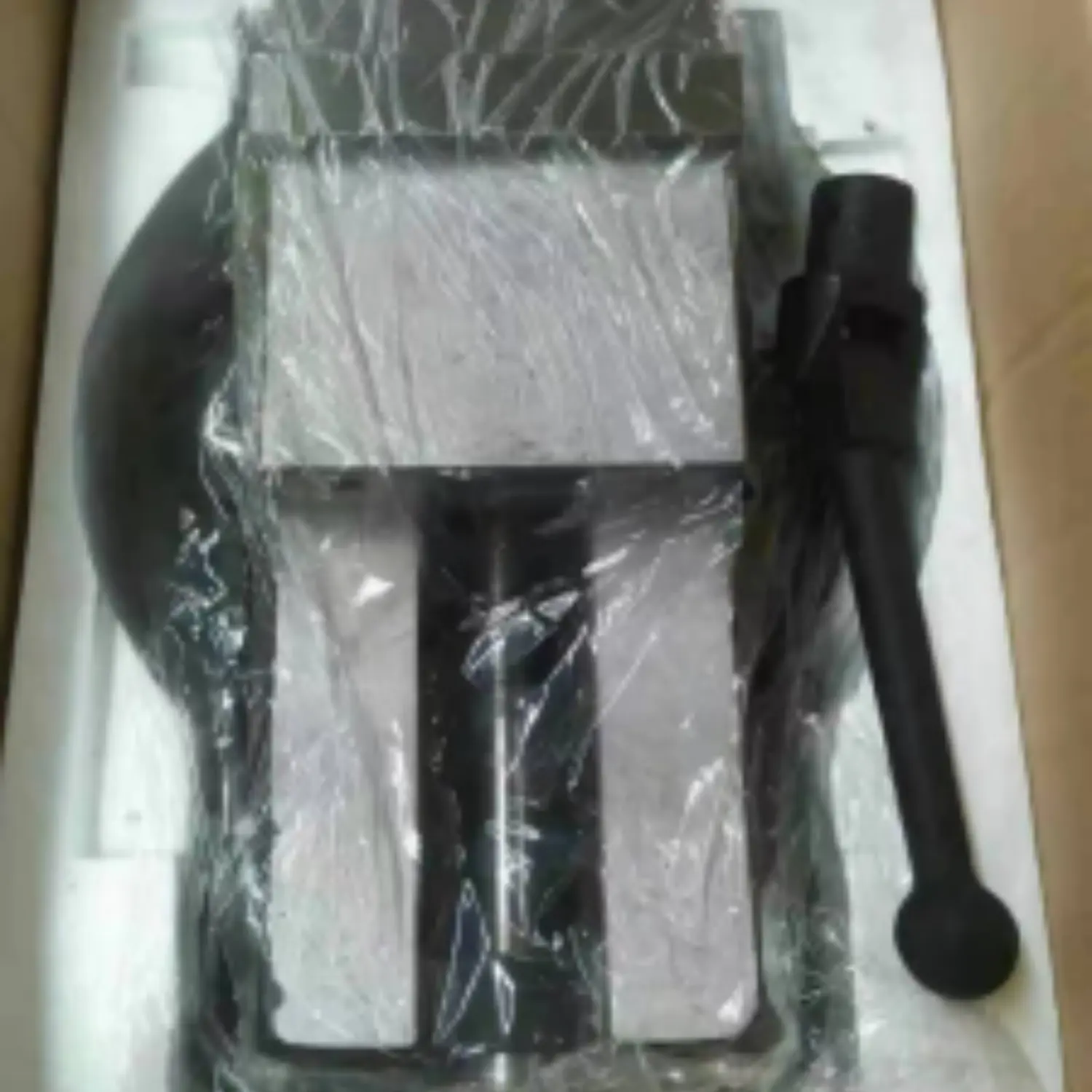

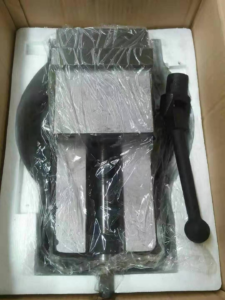

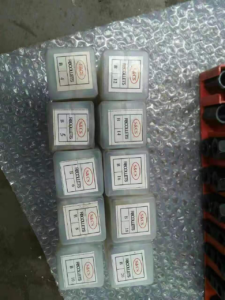

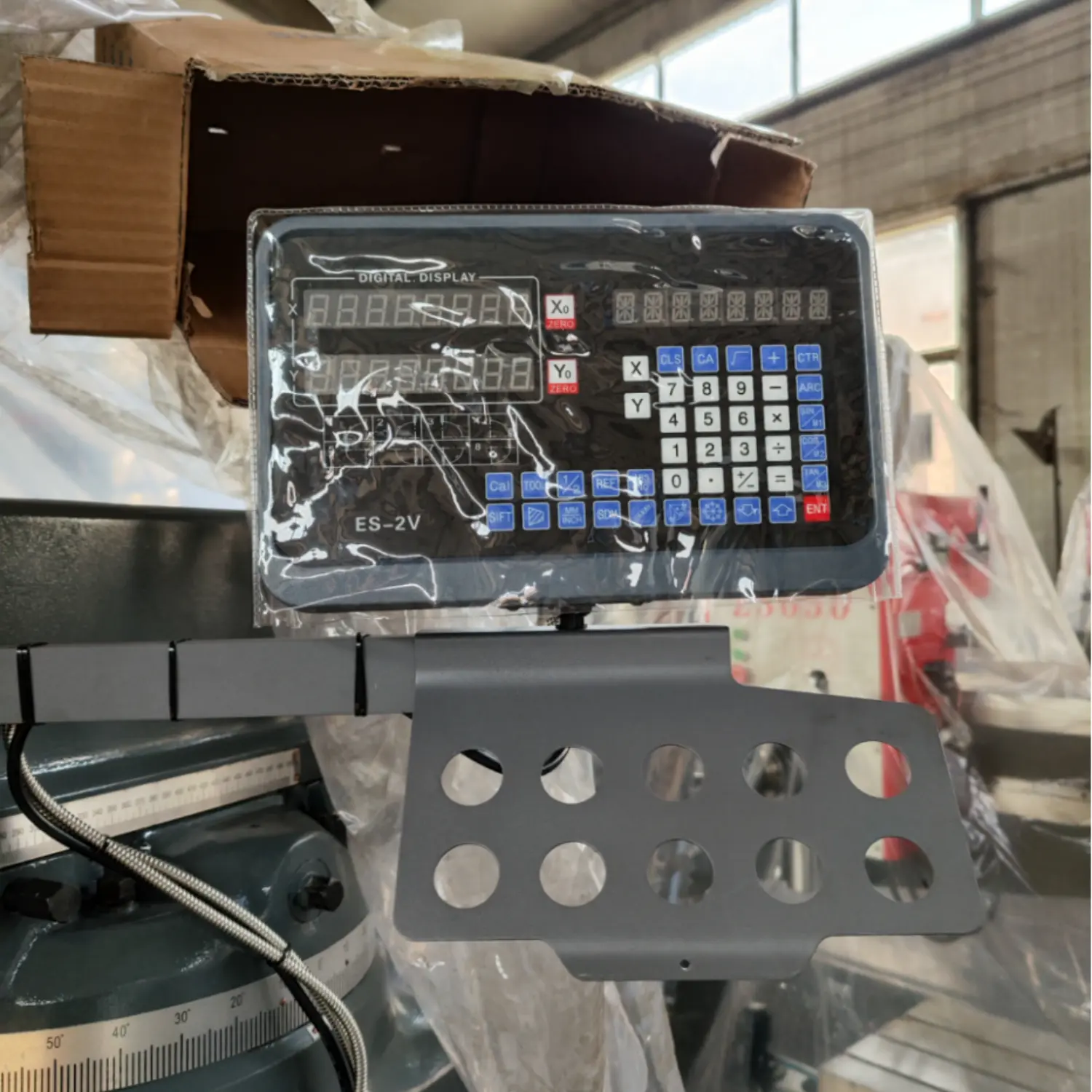

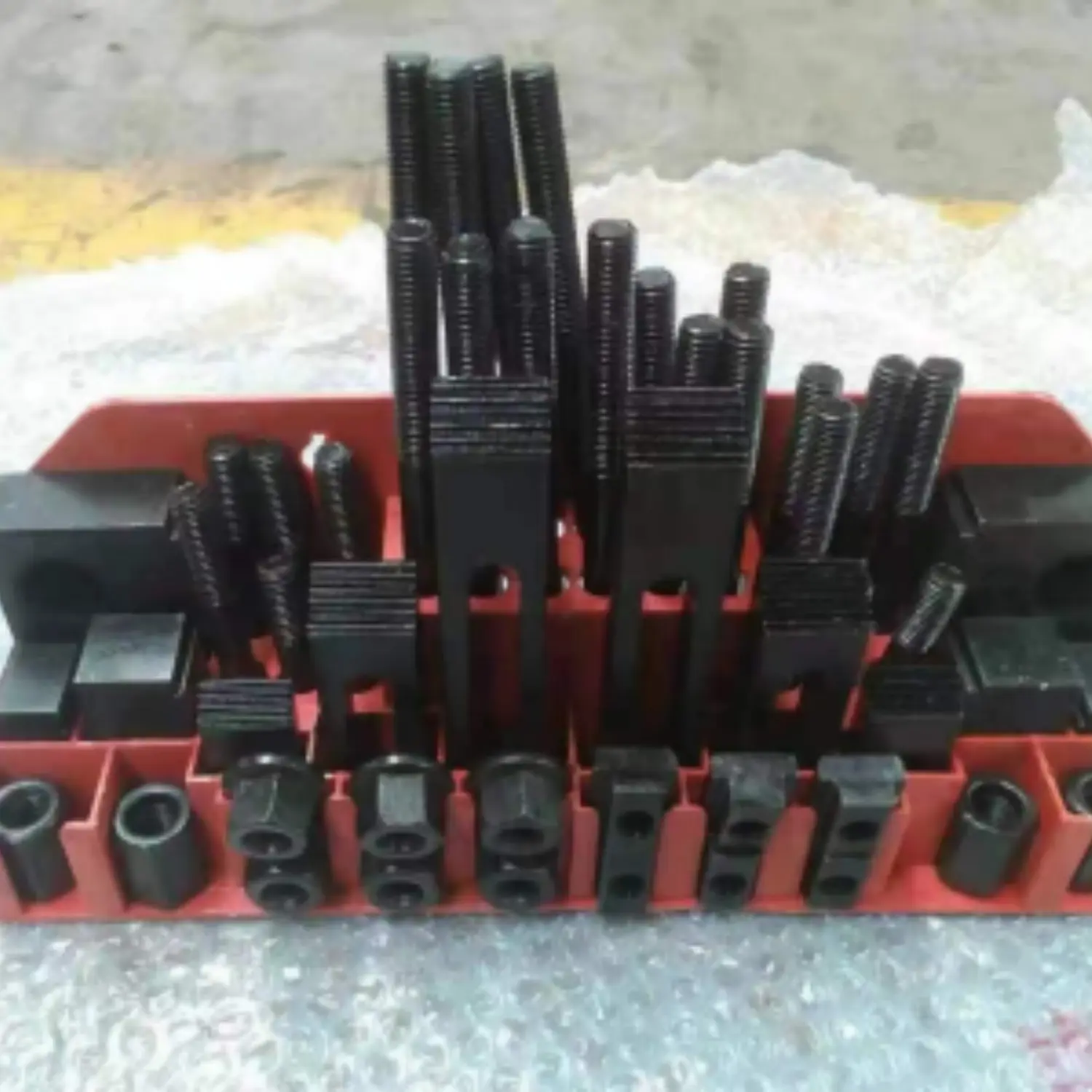

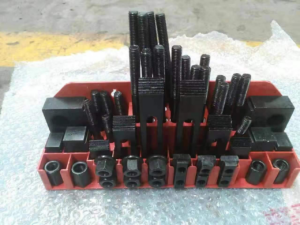

    Standard Accessory

    Product Specification

    Model NO.4
    Workbench 1270X254mm
    Left and right travel (X-axis) 780mm
    Front and rear travel (Y-axis) 400mm
    Up and down travel (Z-axis) 500mm
    Main spindle tube stroke 127mm
    Spindle speed 80-5440(16 steps)
    Spindle taper hole R-8
    spindle motor 2.25/3HP
    Large distance from spindle end face to worktable 500mm
    Machine tool dimensions (length x width x height) 1516*1550*2080mm
    Machine weight 1750kg
