Description

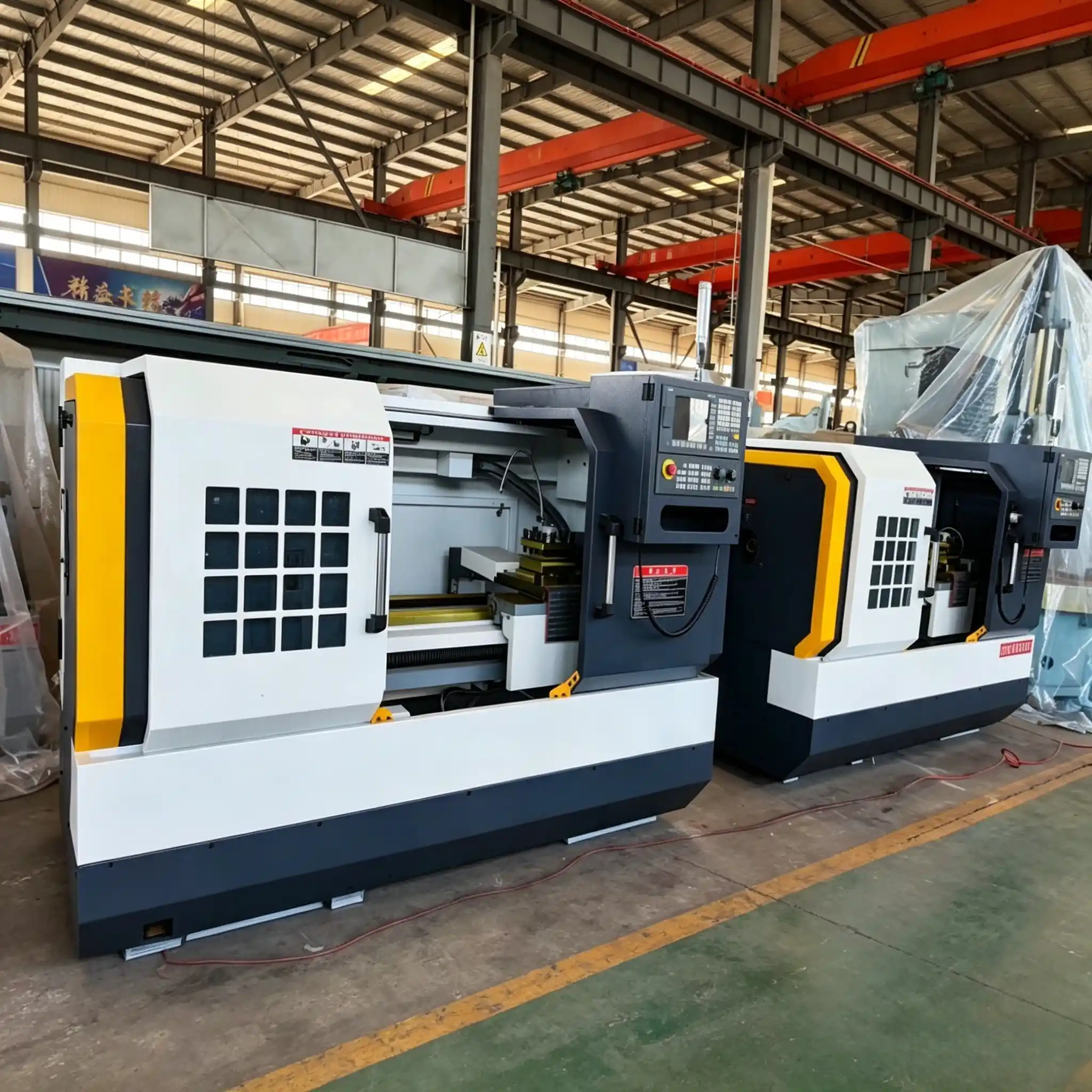

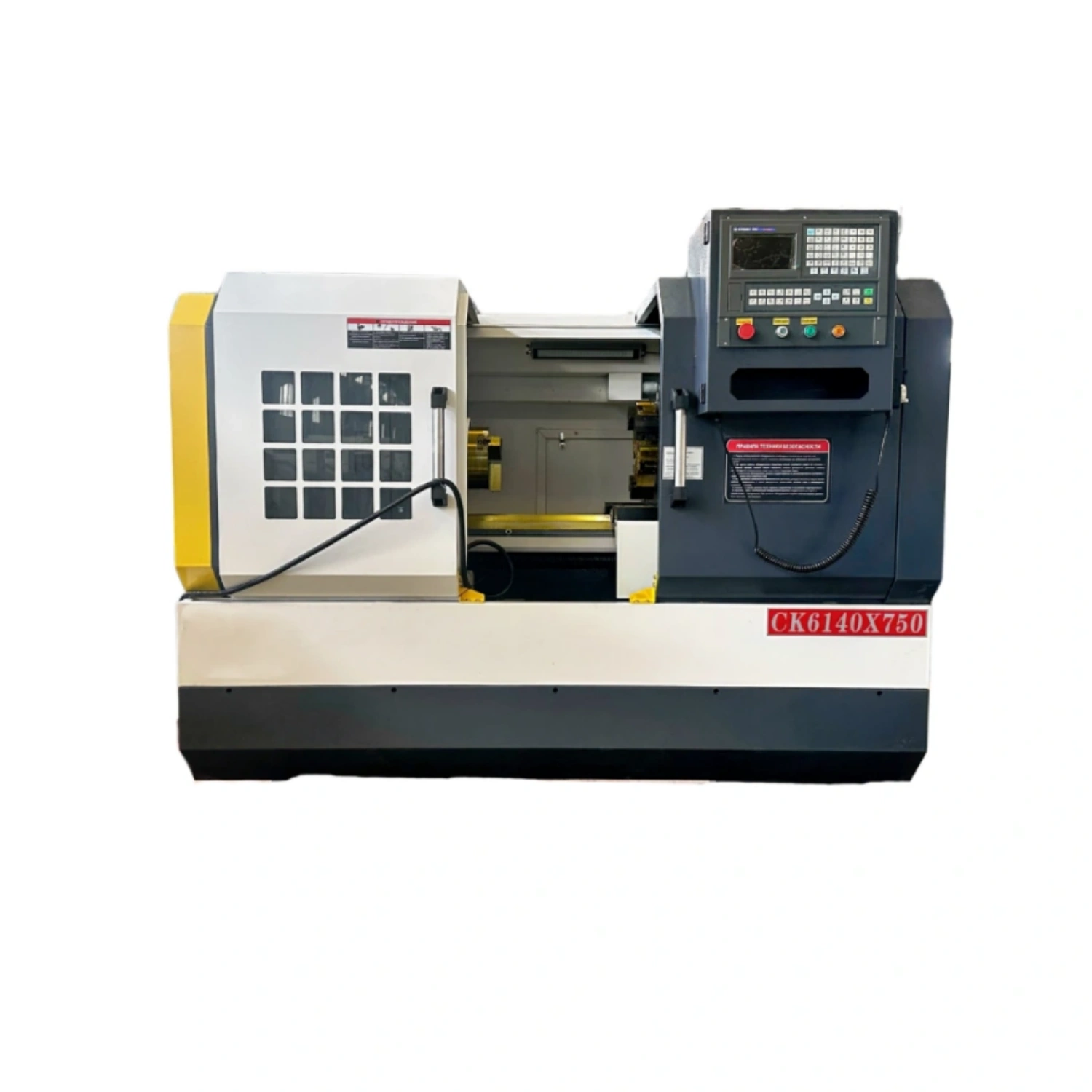

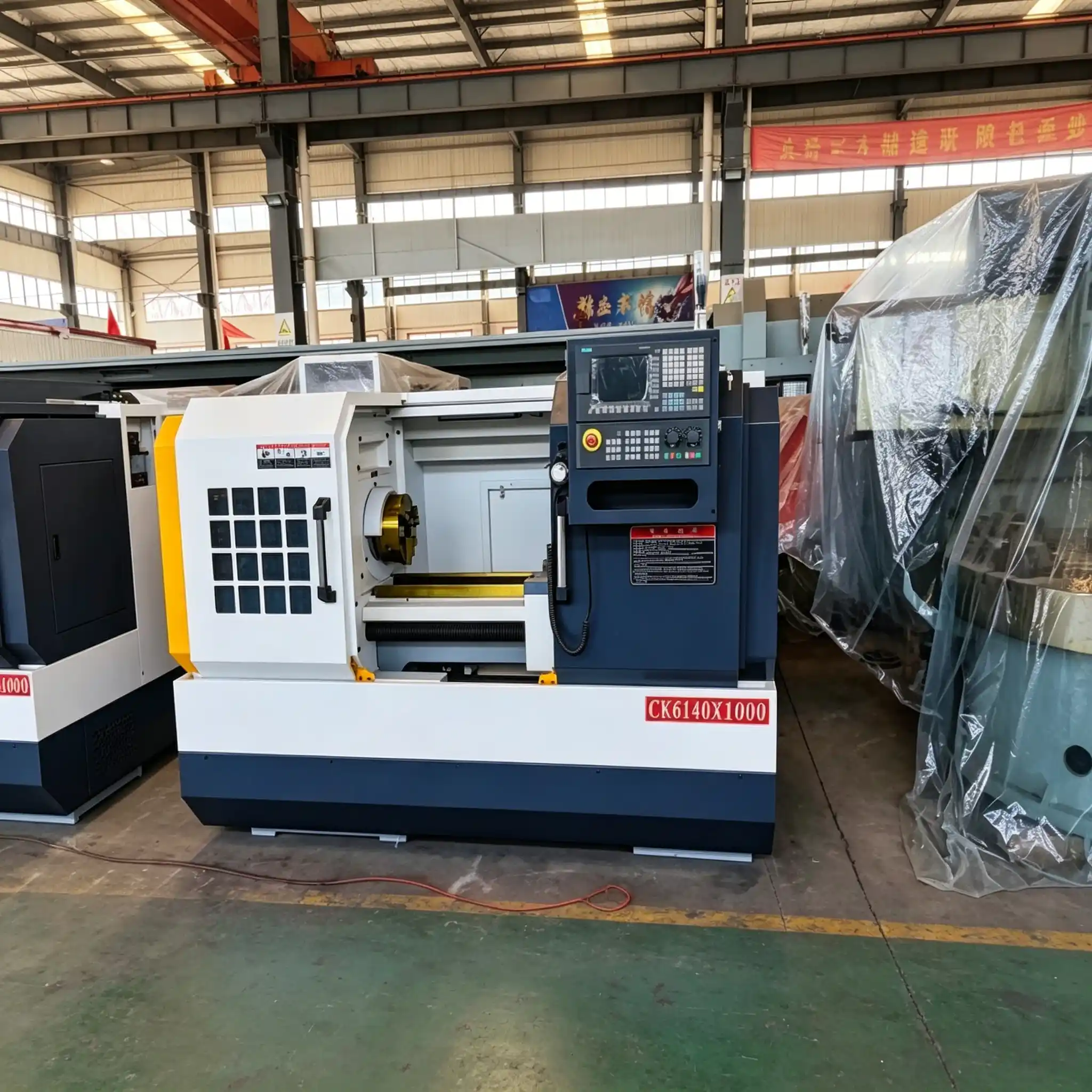

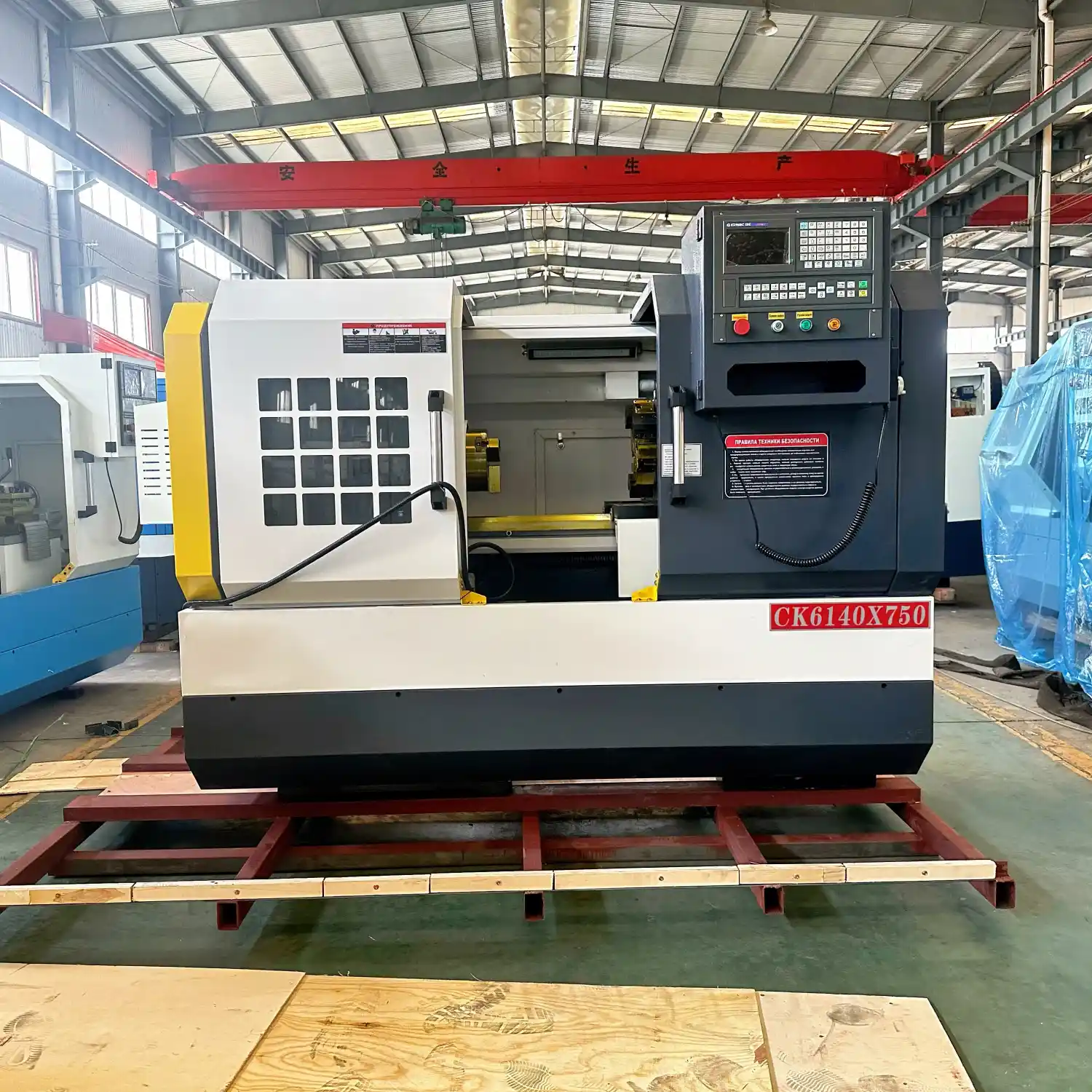

The CK6140 CNC Lathe Machine is engineered for precision-driven industries. With a Max Swing over bed of Φ400mm and a robust spindle system, it delivers exceptional stability. The machine is optimized for high-quality finishing, achieving a roundness of 0.005mm and diameter consistency of 0.01/150mm, making it a top choice for automotive and component manufacturing.
Product Features
- Spindle Performance: Features a Φ52mm through-hole and continuously variable speeds up to 2000 RPM, ensuring smooth axial movement (0.01mm) and minimal radial runout.
- Axis Accuracy: X/Z axis positioning accuracy at 0.016/0.02mm with a minimum displacement unit of 0.001mm.
- Threading Precision: Delivers a thread pitch product error of only 0.01/50mm, ideal for high-spec mechanical fasteners.
Product Specification
| ITEM | UNIT | CK6140 |
| Max.swing over bed | mm | Φ400 |
| Maximum cutting diameter on the tool holder | mm | Φ205 |
| Maximum processing length | mm | 750/1000/1500/2000 |
| Effective processing length | mm | 600/850/1350/1850 |
| Maximum travel of X/Z axis | mm | 225/750/1000/1500/2000 |
| Minimum displacement unit of X/Z axis | mm | 0.001 |
| Spindle through-hole diameter | mm | Ф52 |
| Taper of spindle inner hole | M6 | |
| Number of spindle stages | Continuously variable /two gears | |
| Maximum spindle speed | rpm | 50-2000/25-1800 |
| Workpiece clamping method | mm | Ф200 manual type |
| Main motor power | kW | 5.5KW |
| Frequency converter | kW | 5.5kw |
| X/Z axis | N.m | 4/6 |
| X/Z-axis fast movement speed | m/min | 5/6 |
| Tool holder | Vertical four station | |
| Tool bar size | mm | 20×20 |
| Repetitive positioning accuracy of knife holder | mm | ≤0.004 |
| CNC Control System | GSK/FANUC/SIEMENS | |
| Machine tool dimensions (length x width x height) | mm | 2350×1450mm×1680mm |
| Electricity demand (power/current) | kW/A | 11kW/20A |
