  • Exceptional Capacity:Features a massive Φ1000mm swing over bed and Φ630mm swing over carriage for oversized industrial parts.
  • Superior Power:Driven by an 5KW high-torque main motor, capable of handling heavy-duty material removal with ease.
  • Robust Spindle:Equipped with a Φ105mm spindle through-hole and D11 spindle nose, supported by manual 4-speed gearing for maximum torque.
  • Precision Engineering:High-standard positioning accuracy of 01mm and repetitive accuracy of 0.008mm despite its massive size.
  • Ultra-Rigid Build:Hardened guideways (HRC50+) and a 6500kg machine weight ensure absolute stability and vibration damping.
Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    The Ultimate Solution for Heavy-Duty Oversized Turning

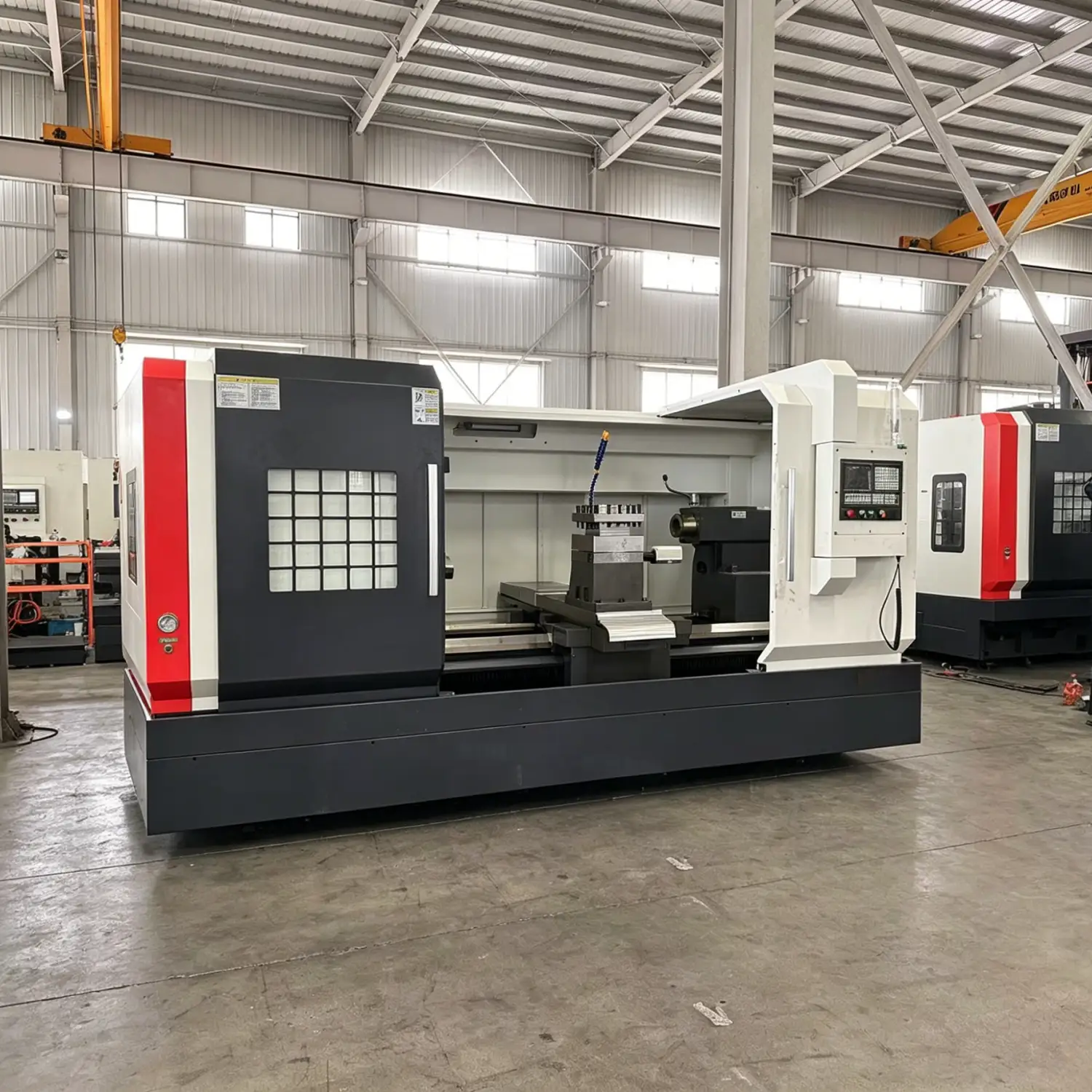

    The CK61100 CNC Lathe Machine is a powerhouse designed for the most demanding large-scale manufacturing environments. With a 1000mm maximum turning diameter and a heavy-duty flat-bed structure, this machine is purpose-built for industries such as energy, maritime, and large-scale hardware engineering. Its robust design allows for the precise machining of heavy shafts, large disks, and complex cylindrical components that exceed the capacity of standard lathes.

    Advanced Mechanical Strength & Reliability

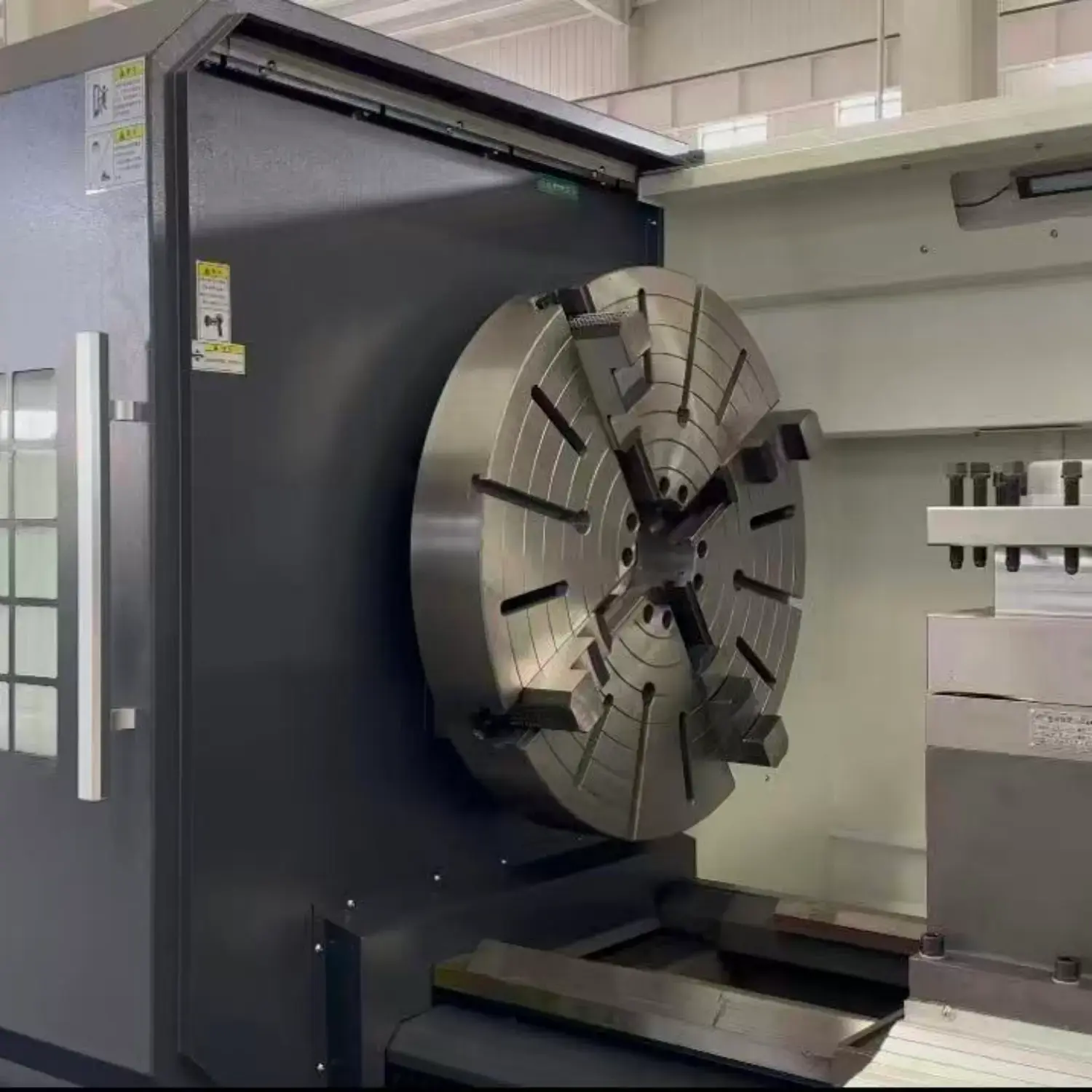

    • Spindle & Clamping:Features an 800mm four-jaw chuck as standard, providing secure clamping for irregular and heavy workpieces. The manual four-speed gearbox (30-835 RPM) allows operators to dial in the perfect torque-to-speed ratio for tough materials.
    • Industrial Durability:The bedways undergo specialized induction hardening to a hardness of above HRC50, significantly reducing wear and ensuring long-term geometry retention.

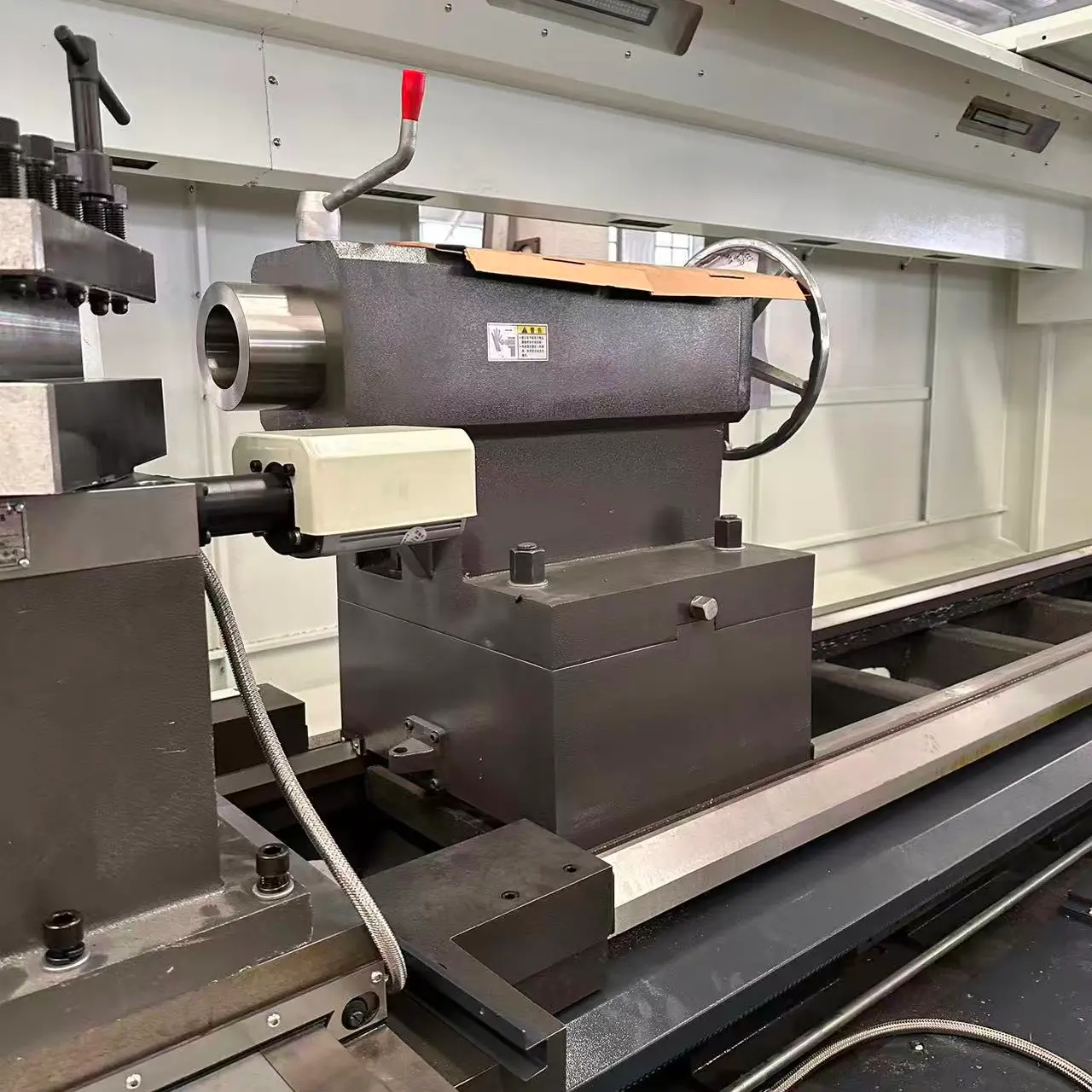

    • Support System:Equipped with an MT8 heavy-duty tailstock, providing maximum support for long-axis workpieces between centers, essential for maintaining accuracy over its 1500mm processing length.



    Standard Accessory

    • 600mm bed width
    • 4-jaw chuck 800mm

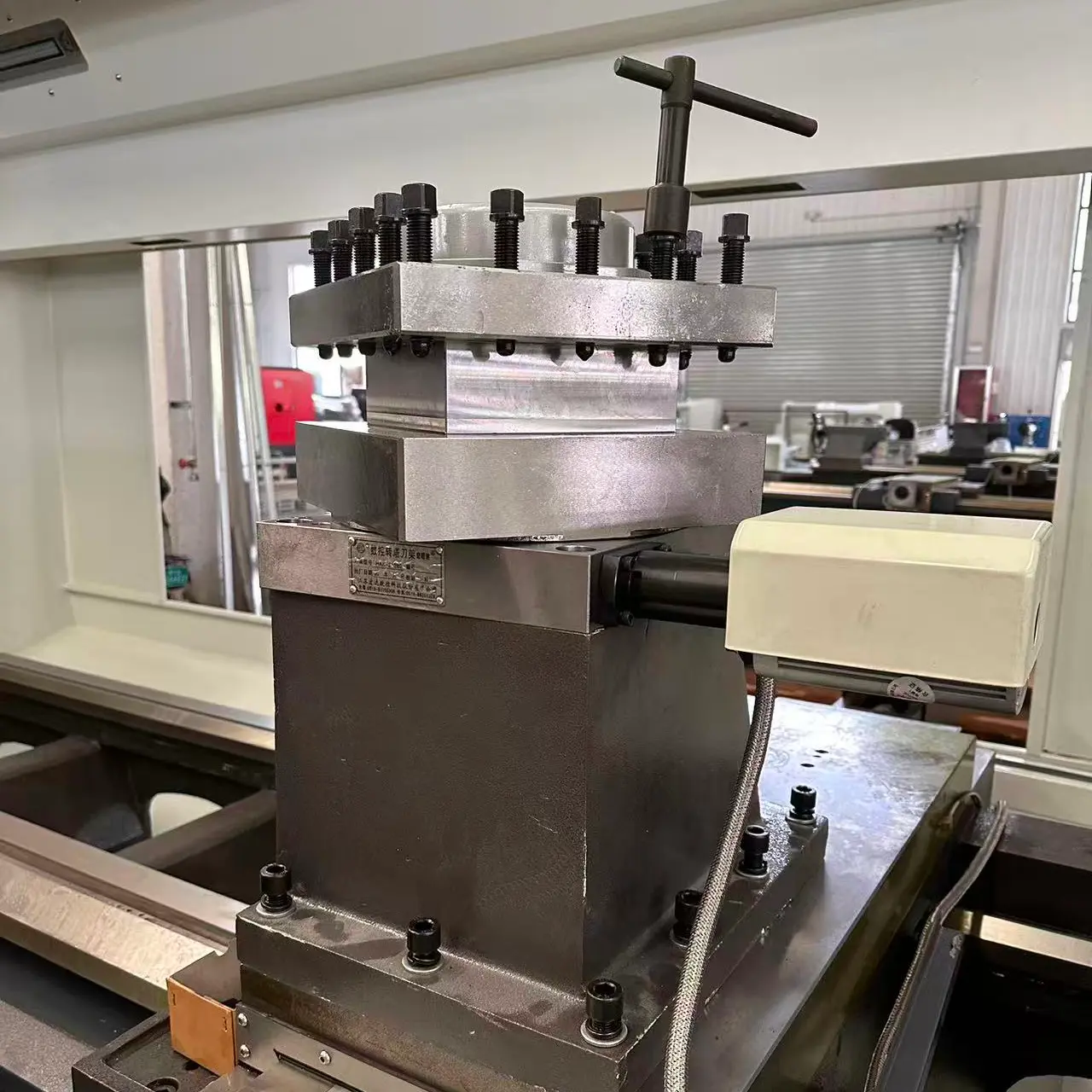

    • 4-station electric tool post (optional hydraulic)
    • Manual tailstock

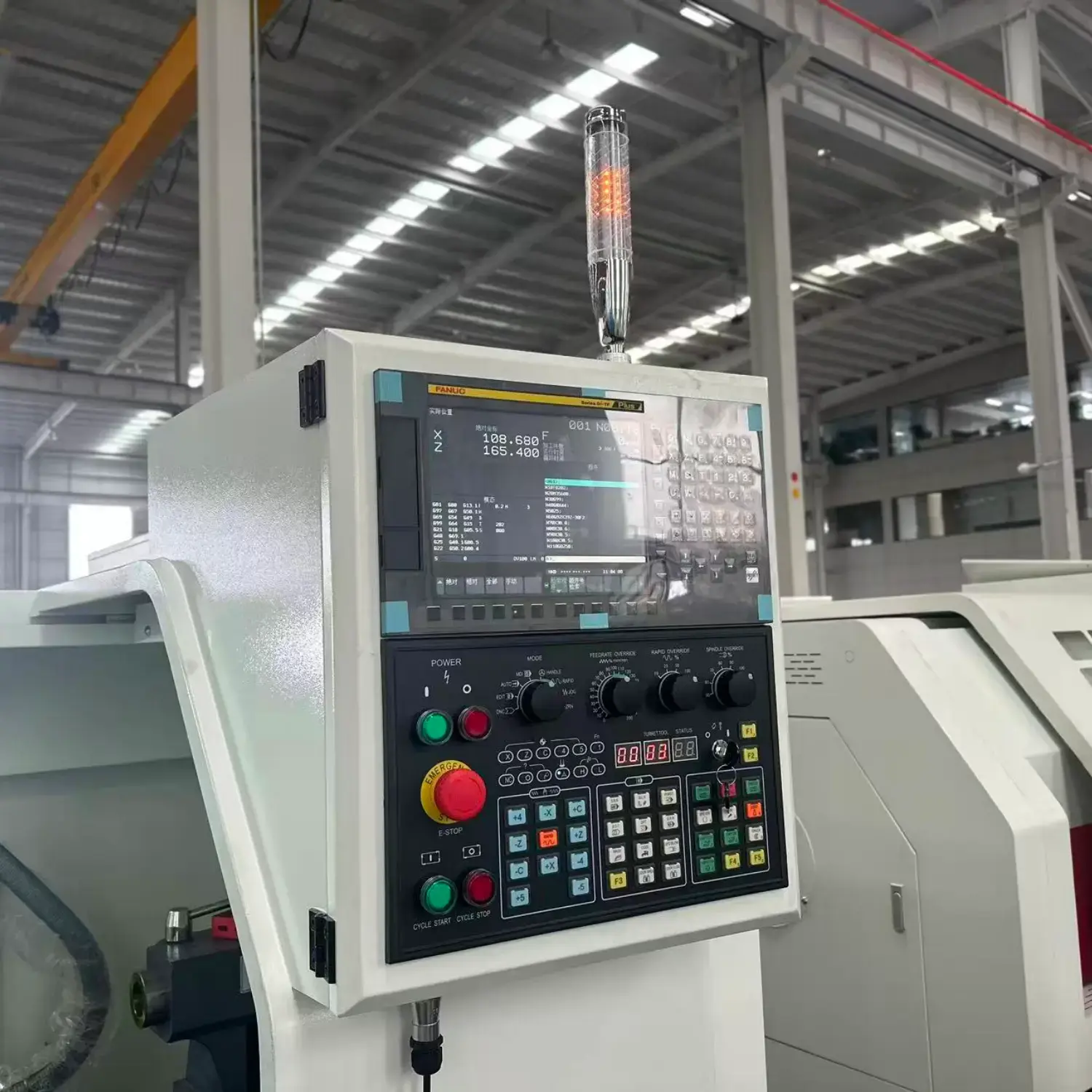

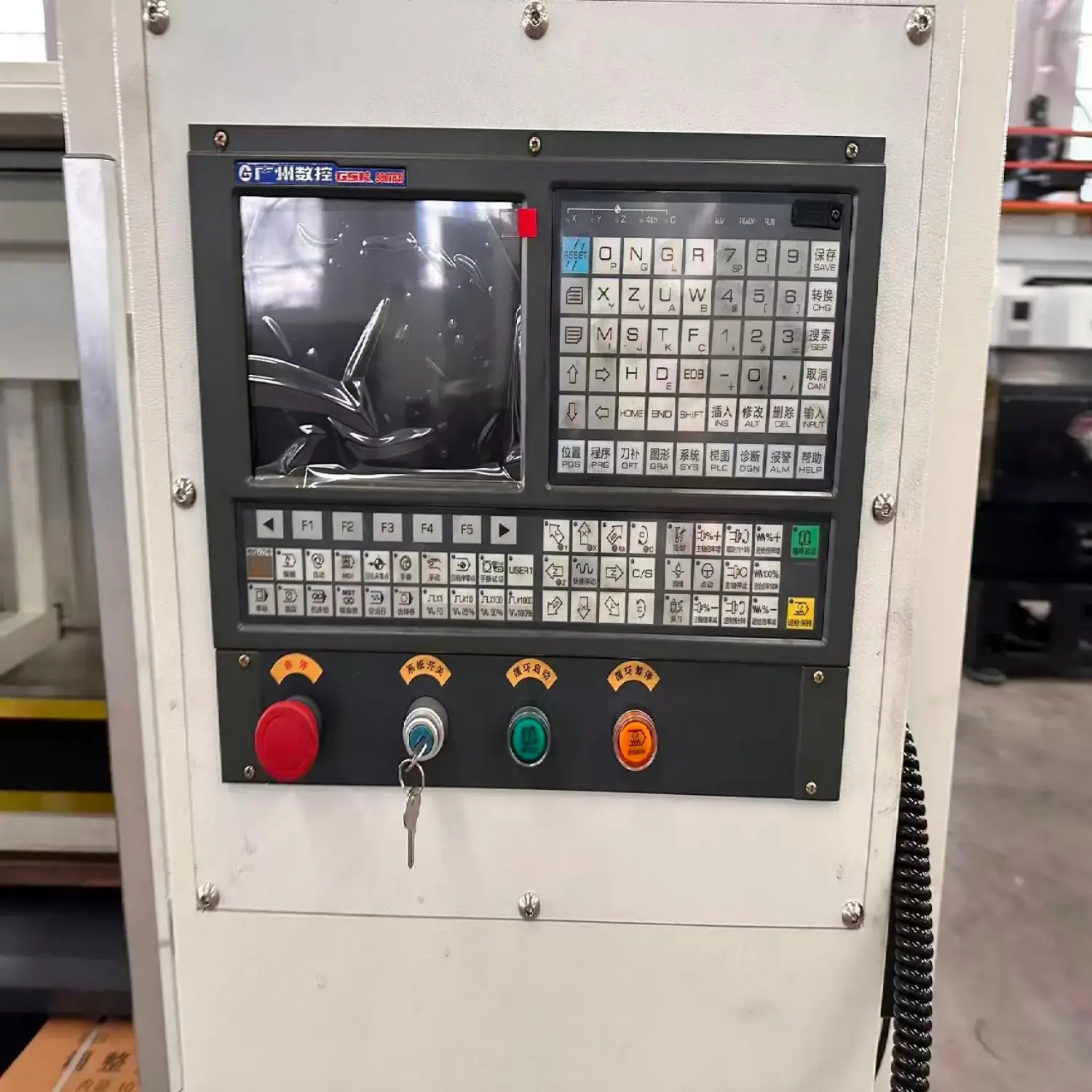

    • GSK CNC control system(optional SIEMENS/FANUC)
    • Centralized lubrication
    • Power supply 3PH,380v,50hz (optional 3PH, 220v 60hz)

    Product Features

    Inspection item   Factory Standard
    Positioning Accuracy X-axis 0.01
    Z-axis 0.015
    Repeat Positioning Accuracy X-axis 0.008
    Z-axis 0.012
    Backlash X-axis 0.008
    Z-axis 0.008

    Specification

    Item Description Unit CK61100
    Machining Range Swing over bed mm Φ1000
    Swing over carriage mm Φ630
    Max. machining length mm 1500
    Max. machining diameter mm Φ1000
    Max. bar diameter mm Φ630
    Spindle Chuck 800 4-jaw
    Spindle nose type D11
    Spindle bore mm Φ105
    Spindle taper bore 1:20
    Spindle gear stages Manual 4 gears
    Spindle speed range r/min 30-84 / 53-150 / 125-350 / 300-835
    Feed X/Z axis travel mm 350 / 1500
    X/Z ball screw dia. × pitch mm Φ32×8 / Φ50×10
    X/Z rapid traverse m/min 4 / 6
    Turret Turret type Electric vertical
    Number of stations 4
    Tool shank: turning/boring mm 32 / 40
    Tailstock Sleeve diameter / travel mm Φ100 / 250
    Sleeve taper MT8
    Sleeve drive type Manual
    Tailstock quill movement Manual
    Motor Spindle motor power kW 18.5
    Spindle motor torque Nm 48
    X/Z motor power kW 1.5 / 2.3
    X/Z motor torque Nm 15 / 18
    Coolant pump motor power W 125
    Other Power capacity kVA 15
    Bed layout Flat bed
    Guideway type Hardened way (>HRC50)
