Description

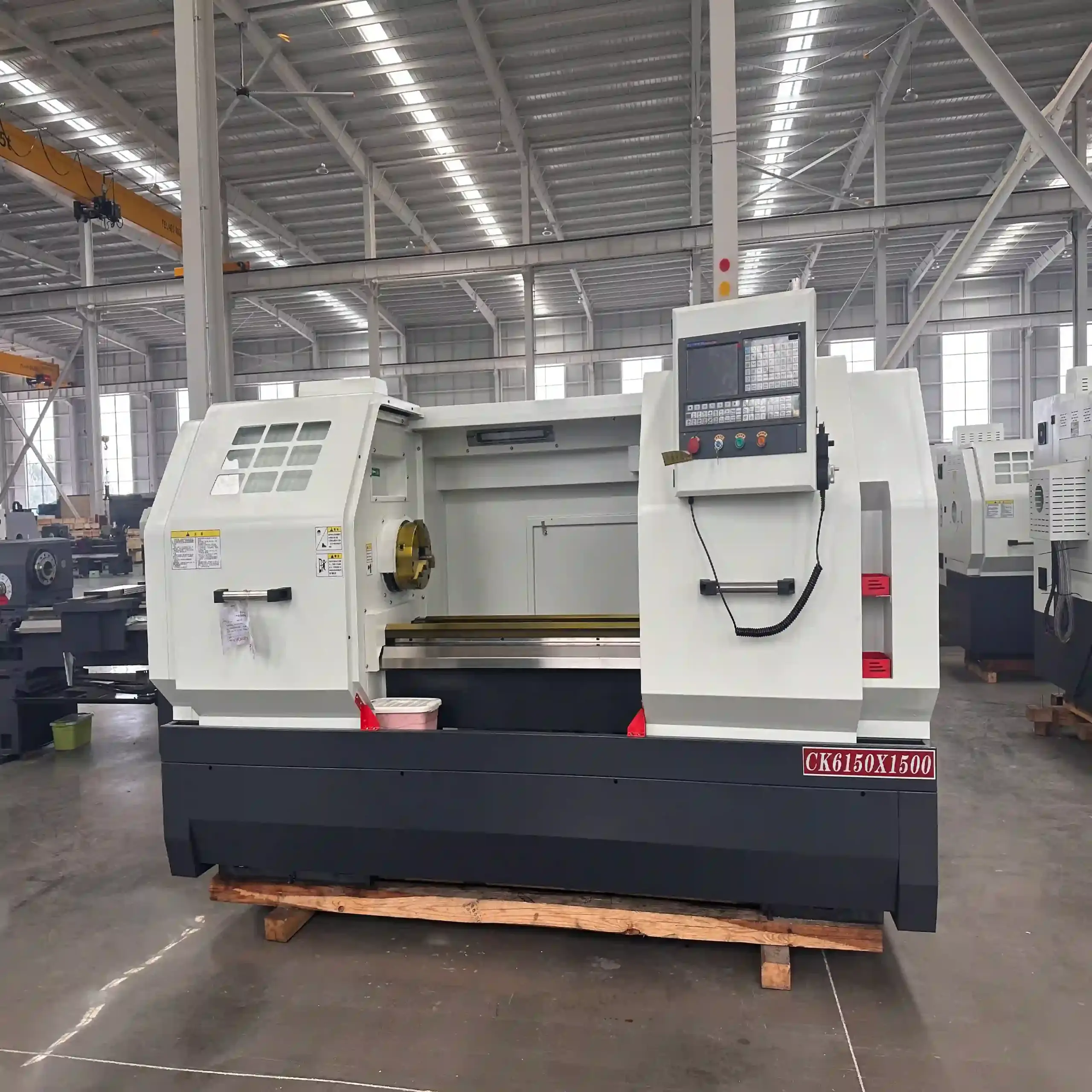

The CK6150 CNC lathe is designed specifically for machining workshops that pursue high efficiency and large load-bearing capacity. Its reinforced bed structure can smoothly handle workpieces with a maximum rotation diameter of 500mm. Thanks to its 11KW main motor power and carefully tuned frequency conversion system, this model performs well in both low-speed heavy cutting and high-speed precision machining, making it an ideal choice for the energy, mold, and general machinery industries.
Product Features
High Precision & Technical Excellence
This model has achieved industry-leading precision control:
Precision positioning: The X/Z axis positioning accuracy is as high as 0.015/0.015mm, and the repeated positioning accuracy is 0.01/0.01mm.

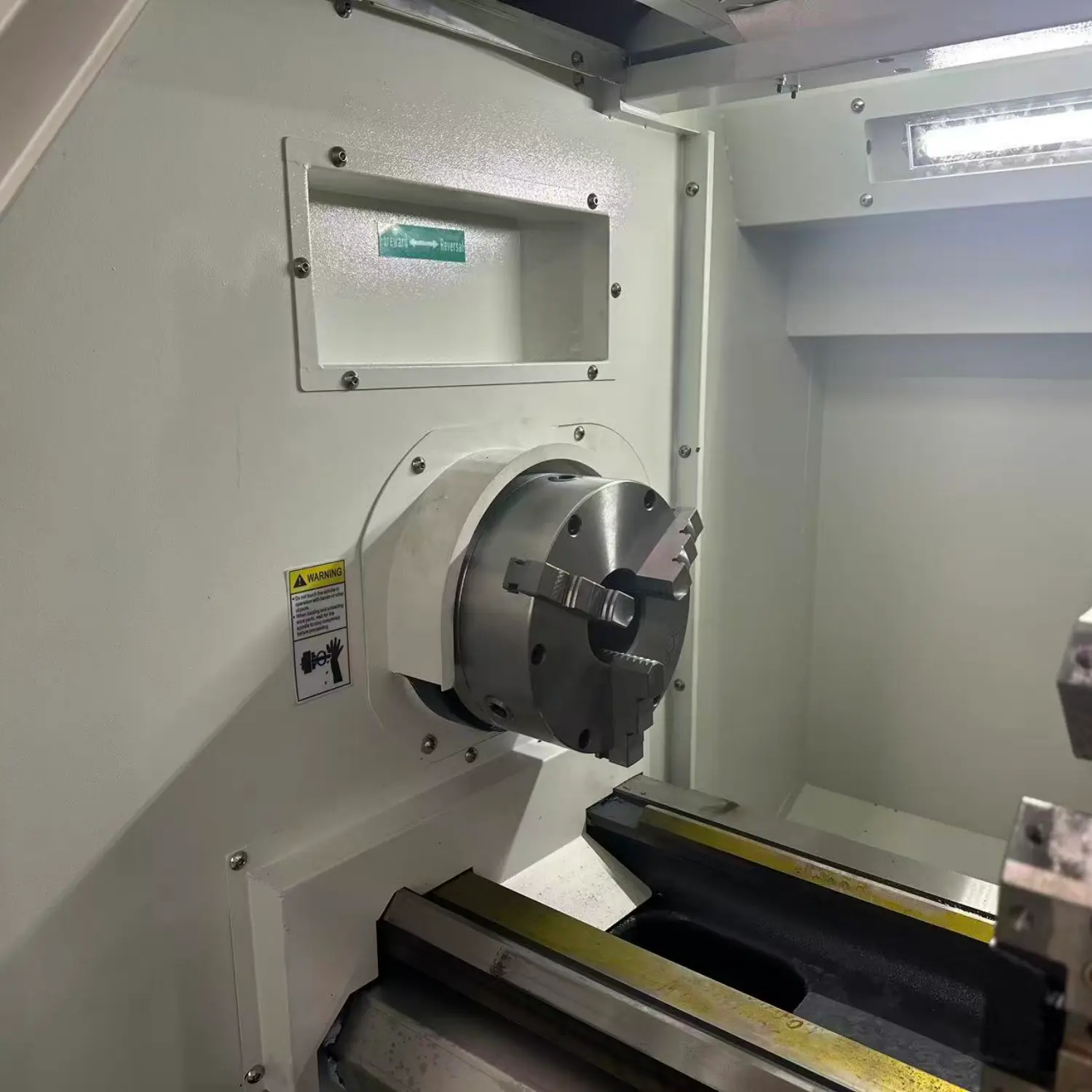

Spindle system: Adopting A2-8/C8 spindle end standard, the spindle runout control is excellent, ensuring roundness error within 0.005mm.

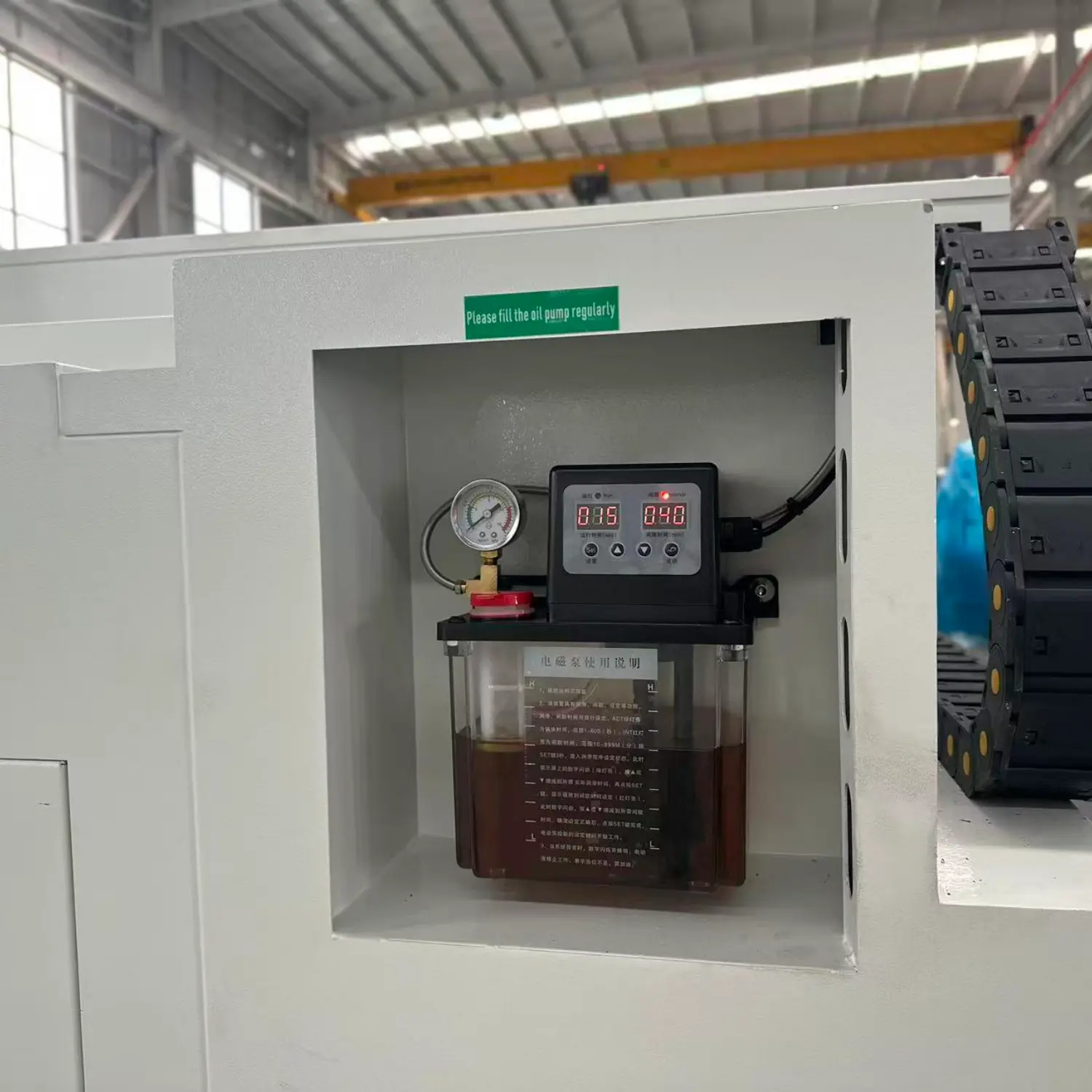

Lubrication and maintenance: Adopting a centralized lubrication system, it automatically provides appropriate lubrication for the guide rail and screw, extending the service life of the machine and maintaining long-term accuracy.

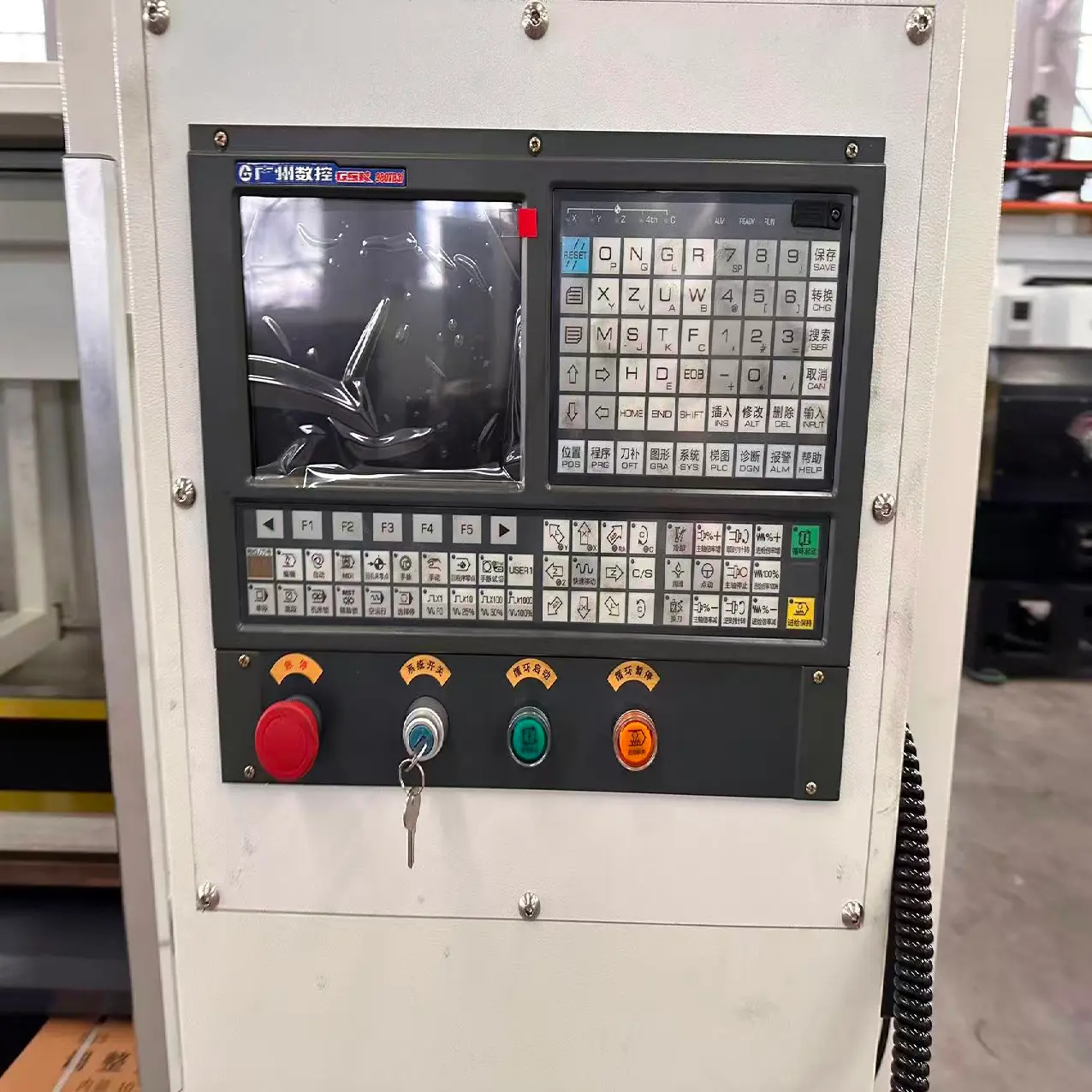

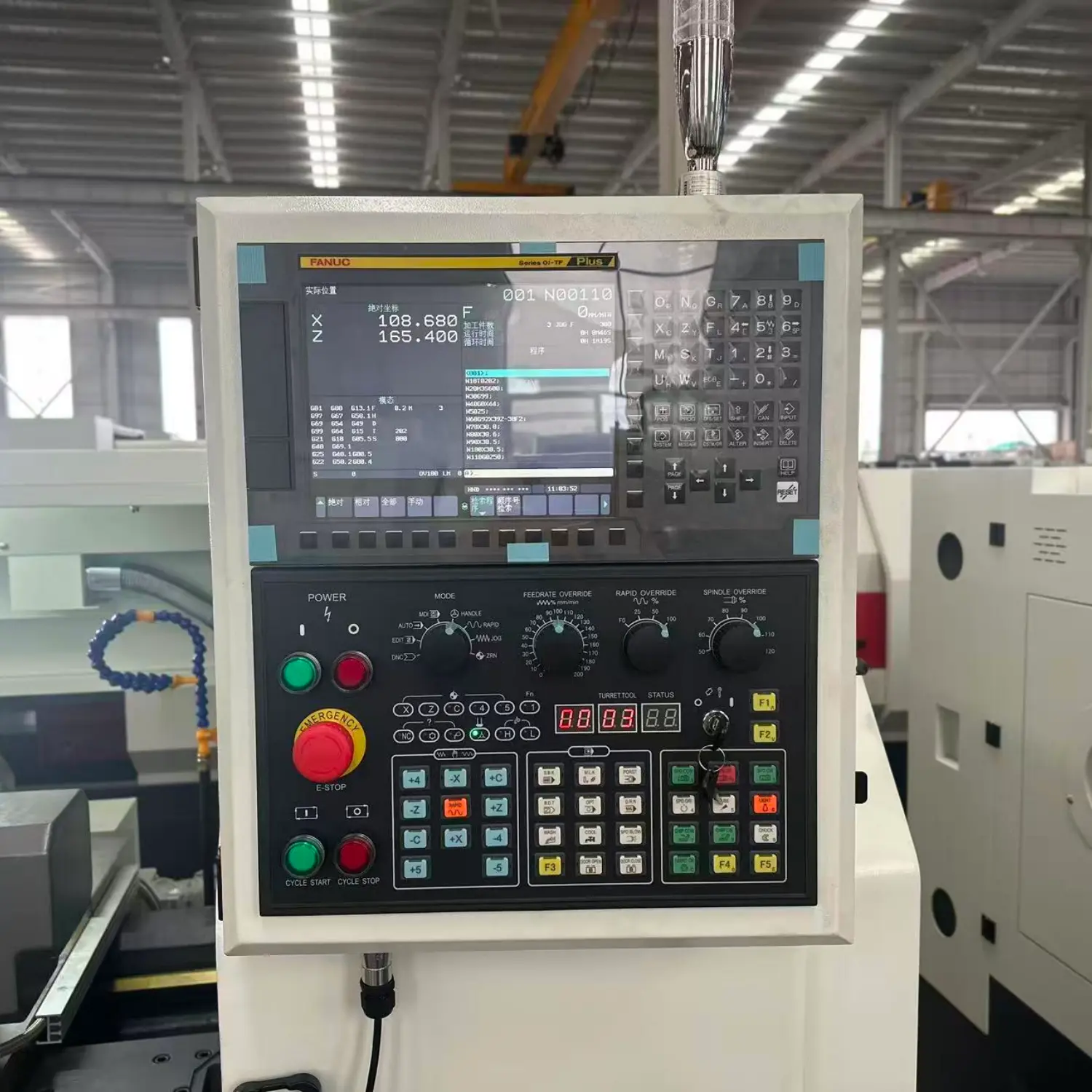

Automation control: Fully supports FANUC, SIEMENS, or GSK CNC systems, providing flexible operating interfaces and powerful programming capabilities.
Product Specification
| ITEM | MODEL | UNIT | CK6150 |
| Processing capability
|
swing over bed | mm | Φ500 |
| Maximum turning diameter of the drag plate | mm | Ф300 | |
| Maximum cutting diameter | mm | Φ500 | |
| Maximum processing length | mm | 750/1000/1500/2000/3000 | |
| Stroke
|
Maximum travel of X/Z axis | mm | 300/（750/1000/1500/2000/3000） |
| X/Z-axis minimum displacement unit | mm | 0.001 | |
| Spindle
|
Main spindle through-hole diameter | mm | Ф82 |
| Number of spindle stages | Unlimited/3rd gear (internal frequency conversion) | ||
| Maximum spindle speed | rpm | 150-2000/60-1600 | |
| Spindle end | A2-8/C8 | ||
| Main motor power (variable frequency) | kW | 7.5 | |
| inverter | kW | 7.5 | |
| X/Z axis | N.m | 5/7.5 | |
| X/Z-axis fast movement speed | m/min | 6/8 | |

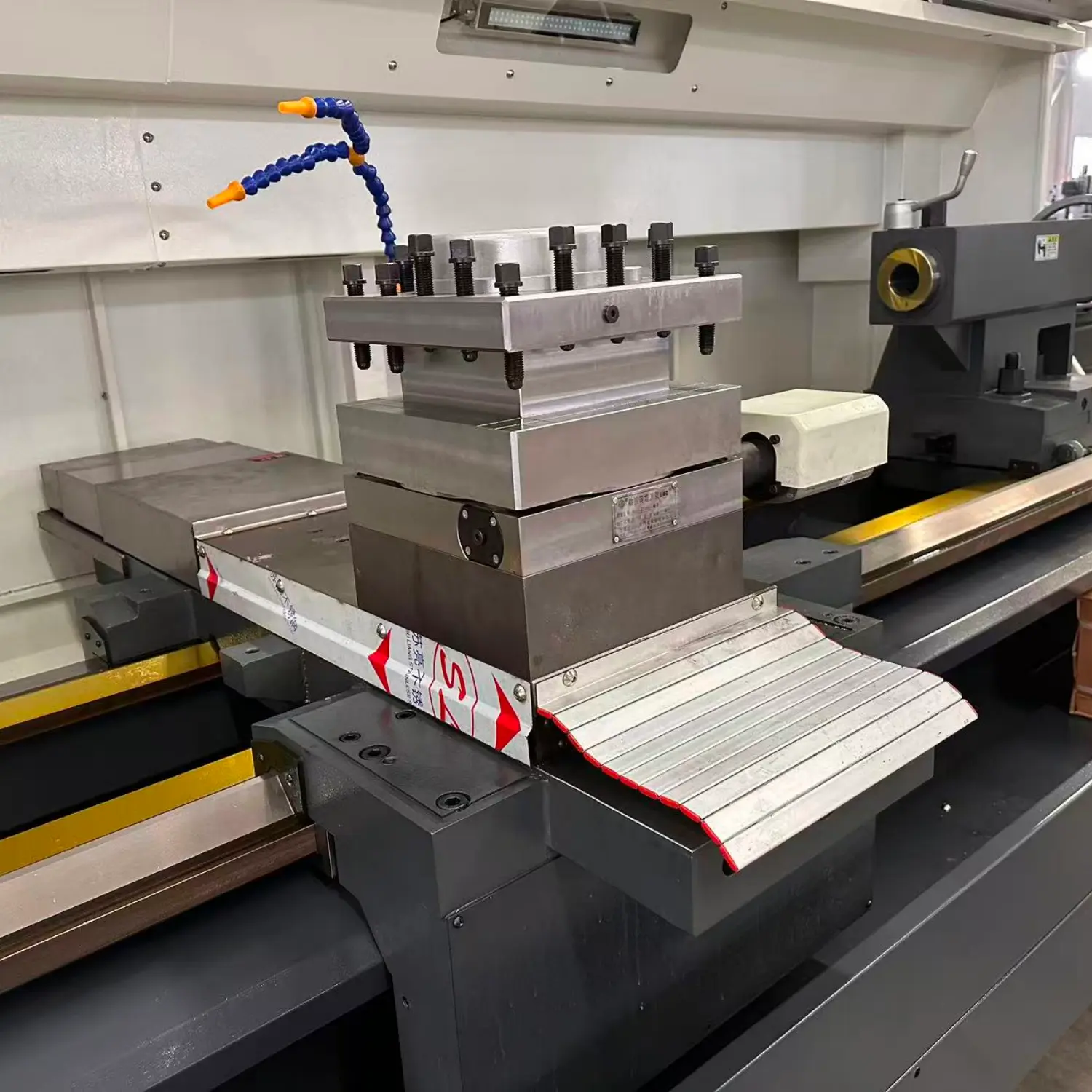

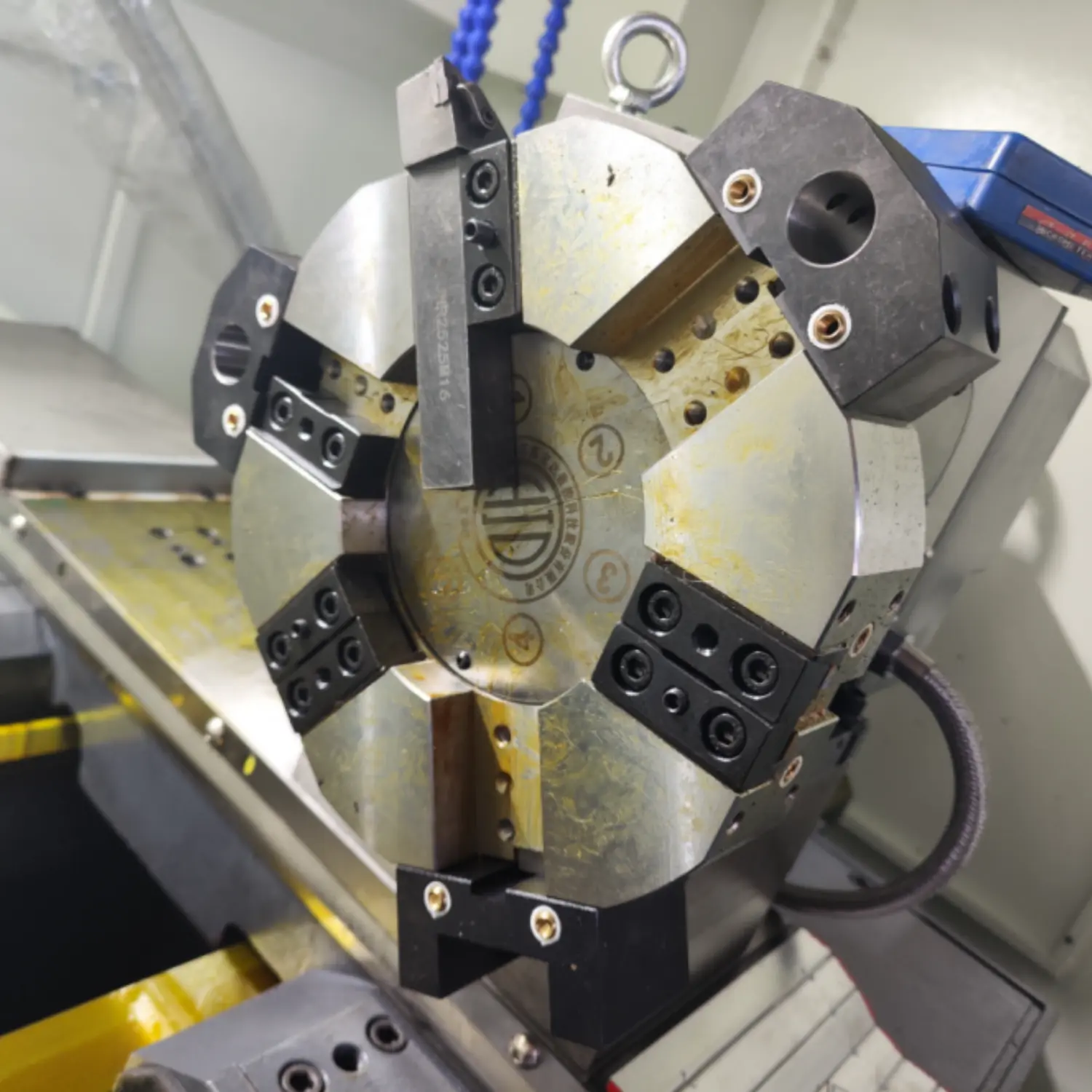

| Feed tool holder
|
Tool holder type | 4 standard/6 or 8 optional | |
| Blade size | mm | 25*25 | |
| Repeated positioning accuracy of tool holder | mm | ≤0.004 | |

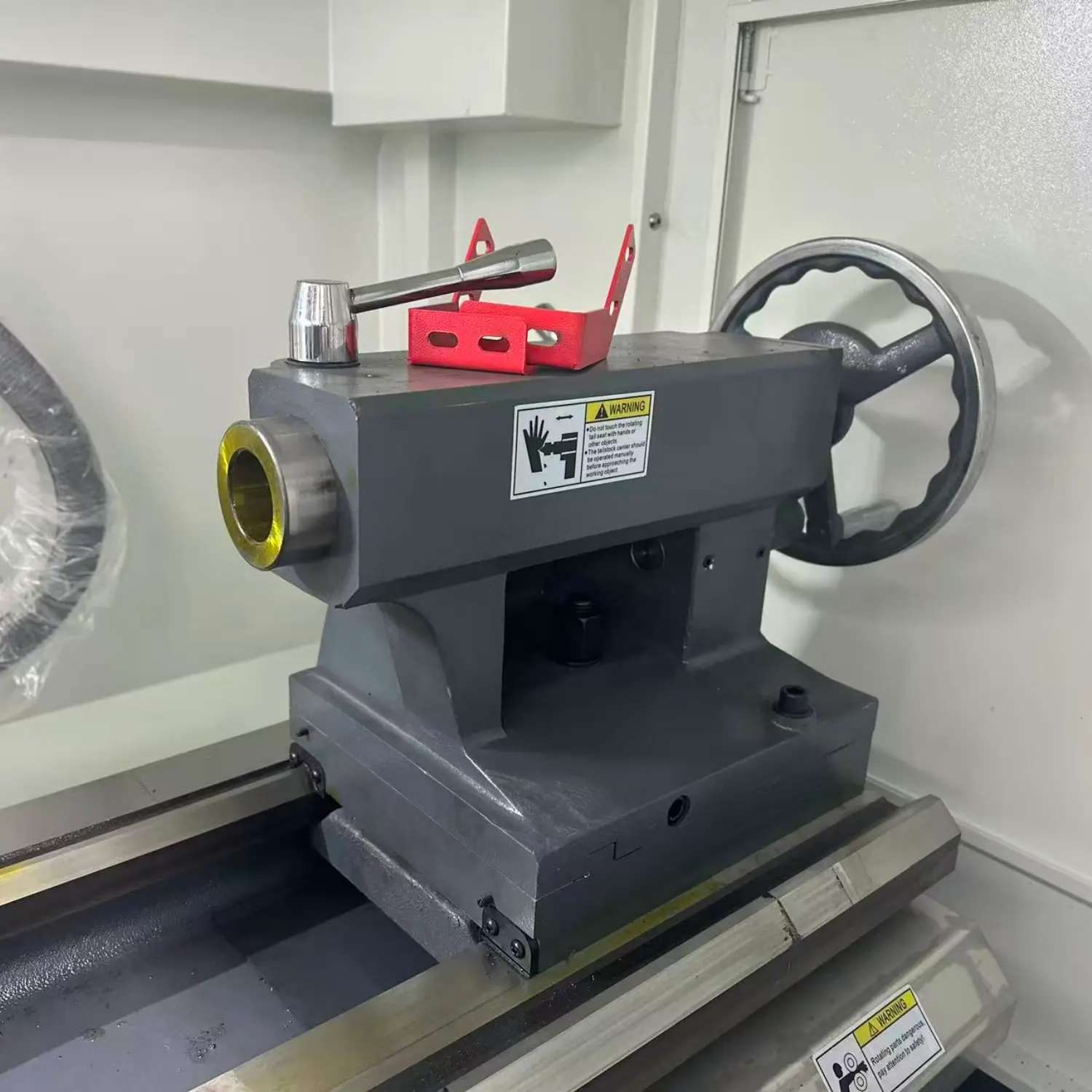

| Tail socket diameter | mm | Φ65 | |
| Tail seat sleeve stroke | mm | 130 | |
|
|
Tailstock tip cone hole | Mors 5# | |
| Net weight of machine tool | kg | 1800 | |
| External dimensions of machine tools
(length x width x height) |
mm | 2100/2400/2900/3400/4400*1300*1680 | |
| Other | Electricity demand (power/current) | kW/A | 15kW/20A |
