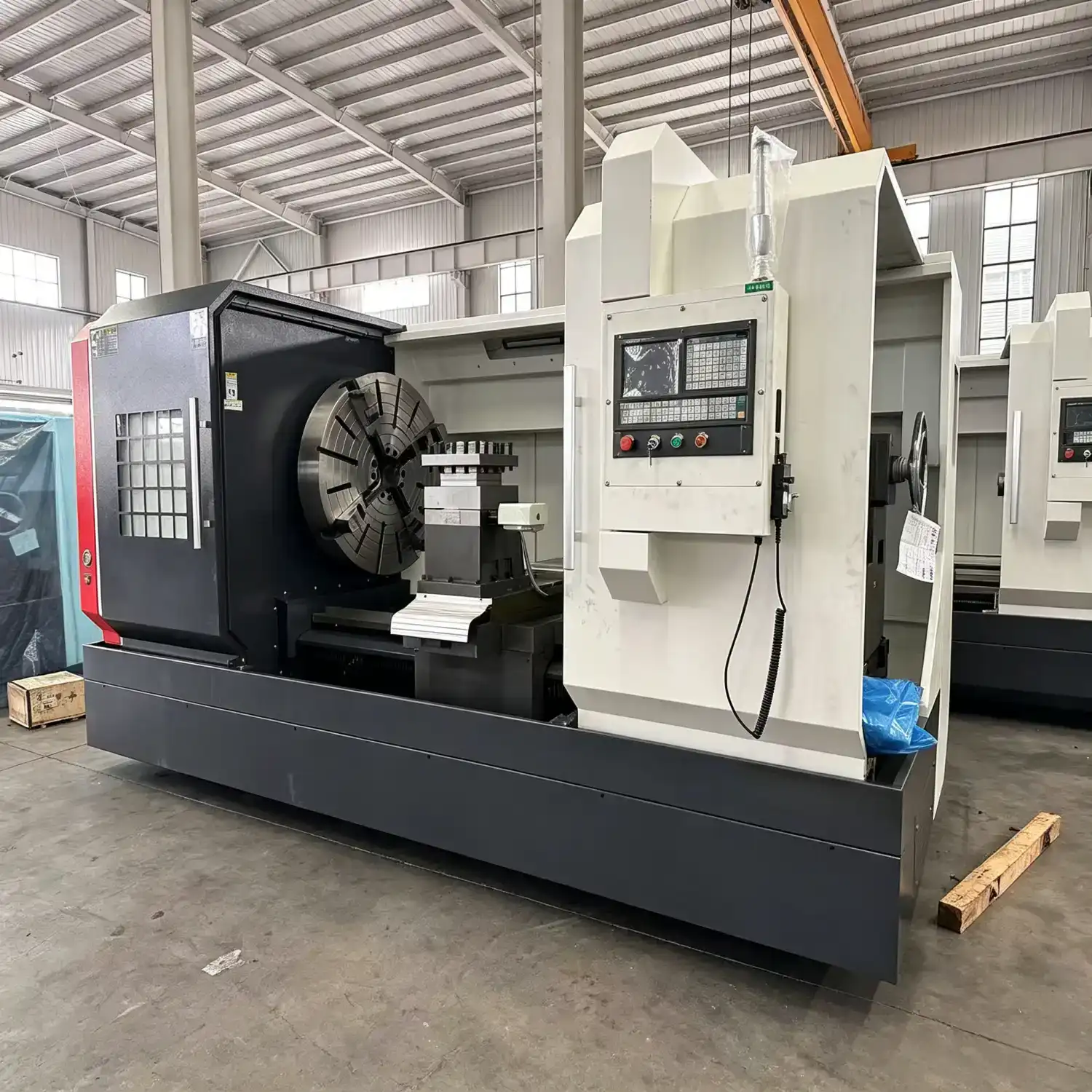

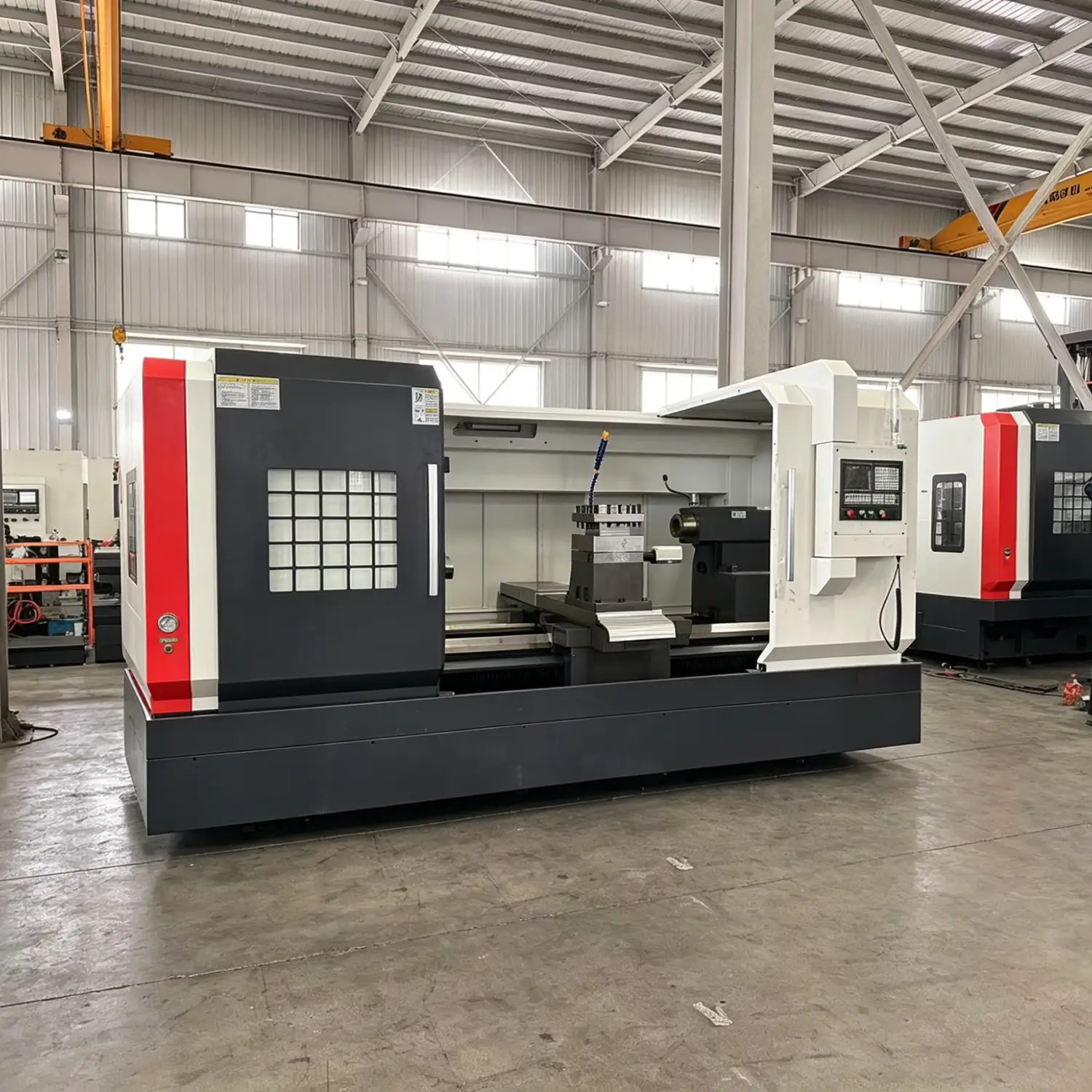

CK61125 Heavy-Duty CNC Lathe Machine | Φ1250mm Large Swing & 105mm Spindle Bore Turning Center

  • Ultra-Large Capacity:Features an exceptional Φ1250mm swing diameter over bed and Φ900mm swing over carriage for extra-large workpieces.
  • Superior Power System:Equipped with an 15KW main motor for heavy-duty industrial cutting.
  • 4-Speed Spindle:Utilizes a 4-speed continuously variable transmission (30-835 rpm) to deliver high torque across various speed ranges.
  • High Precision Standards:Maintains a positioning accuracy of 01mm and a tool holder repetitive positioning accuracy of 0.004mm.
  • Robust Spindle Design:Features a Φ105mm spindle through-hole for processing large-diameter shafts and heavy pipe materials.
Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    Advanced Engineering for Extra-Large Scale Machining

    The CK61125 CNC Lathe Machine is the definitive solution for manufacturing environments that require maximum swing capacity and extreme structural rigidity. With a 1250mm swing diameter, this heavy-duty flat-bed lathe is specifically engineered to handle oversized components such as large flanges, heavy-duty shafts, and maritime equipment parts. Its massive construction ensures superior stability, significantly reducing thermal deformation and vibration during aggressive material removal.

    Technical Excellence & Operational Flexibility

    Designed for the challenges of 2026 industrial standards, the CK61125 combines raw power with sophisticated control:

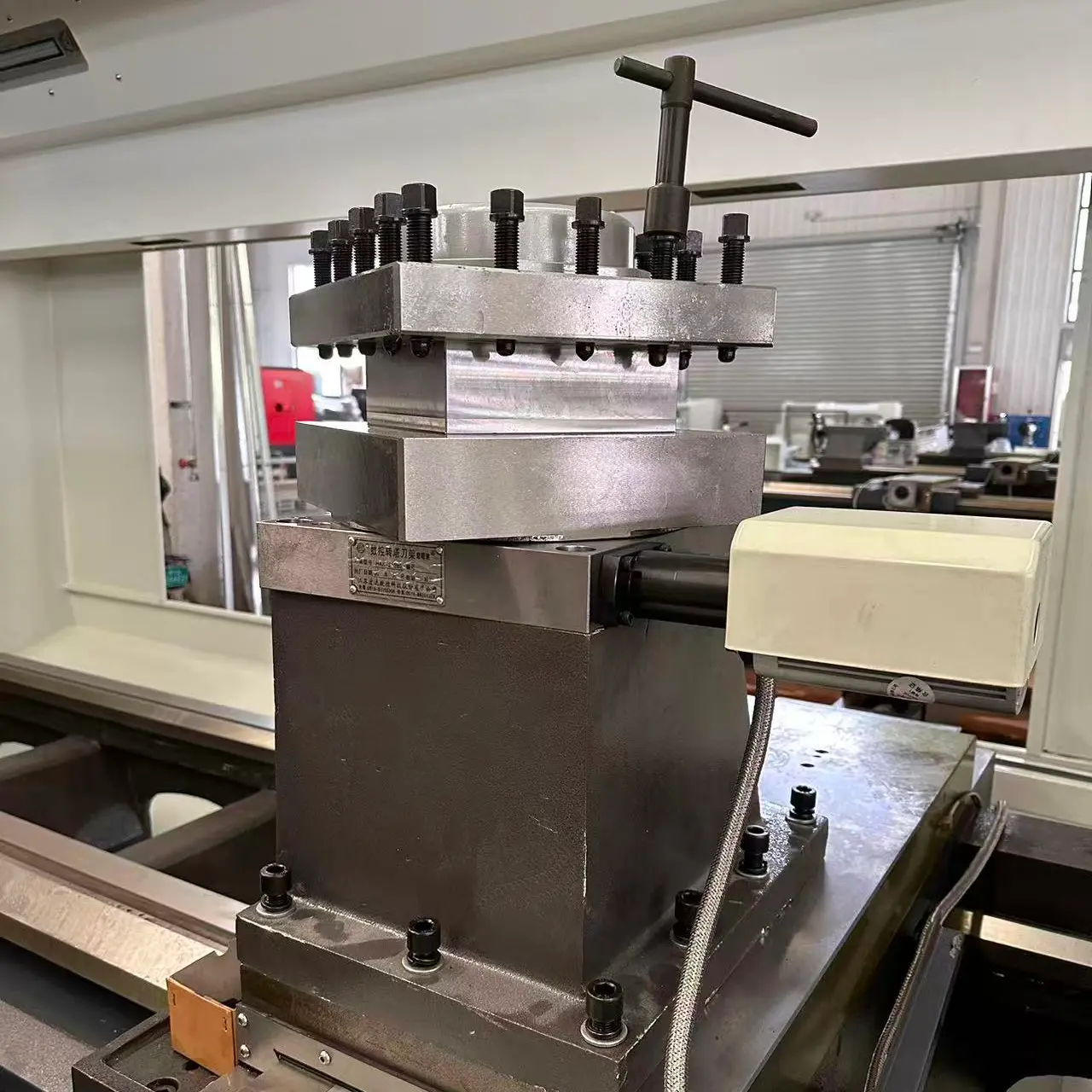

    Versatile Tooling: Supports 4, 6, or 8-position vertical tool posts to accommodate complex machining sequences with a large 25*25mm tool bar size.

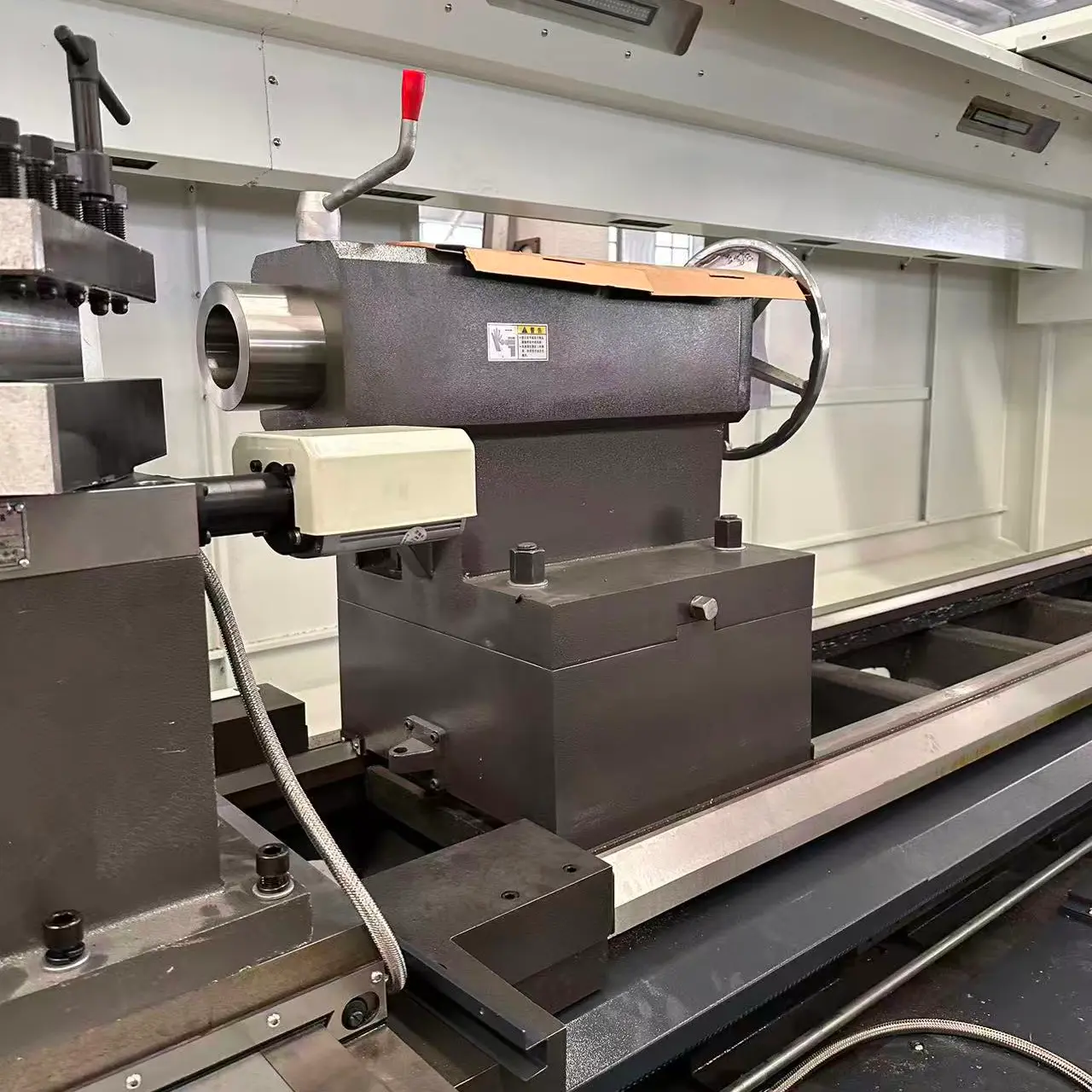

    Heavy Support: Equipped with an MT 6# tailstock with 250mm travel, providing rigid and secure support for long, heavy workpieces between centers.



    Durable Performance: The machine provides the necessary mass for high-precision finishing, achieving a surface roughness of Ra 1.6 μm and workpiece accuracy of IT6-IT7.



    Global Compatibility: Fully compatible with professional CNC systems, allowing for seamless integration into automated production lines and smart workshops.



    Standard Accessory

    • 600mm bed width

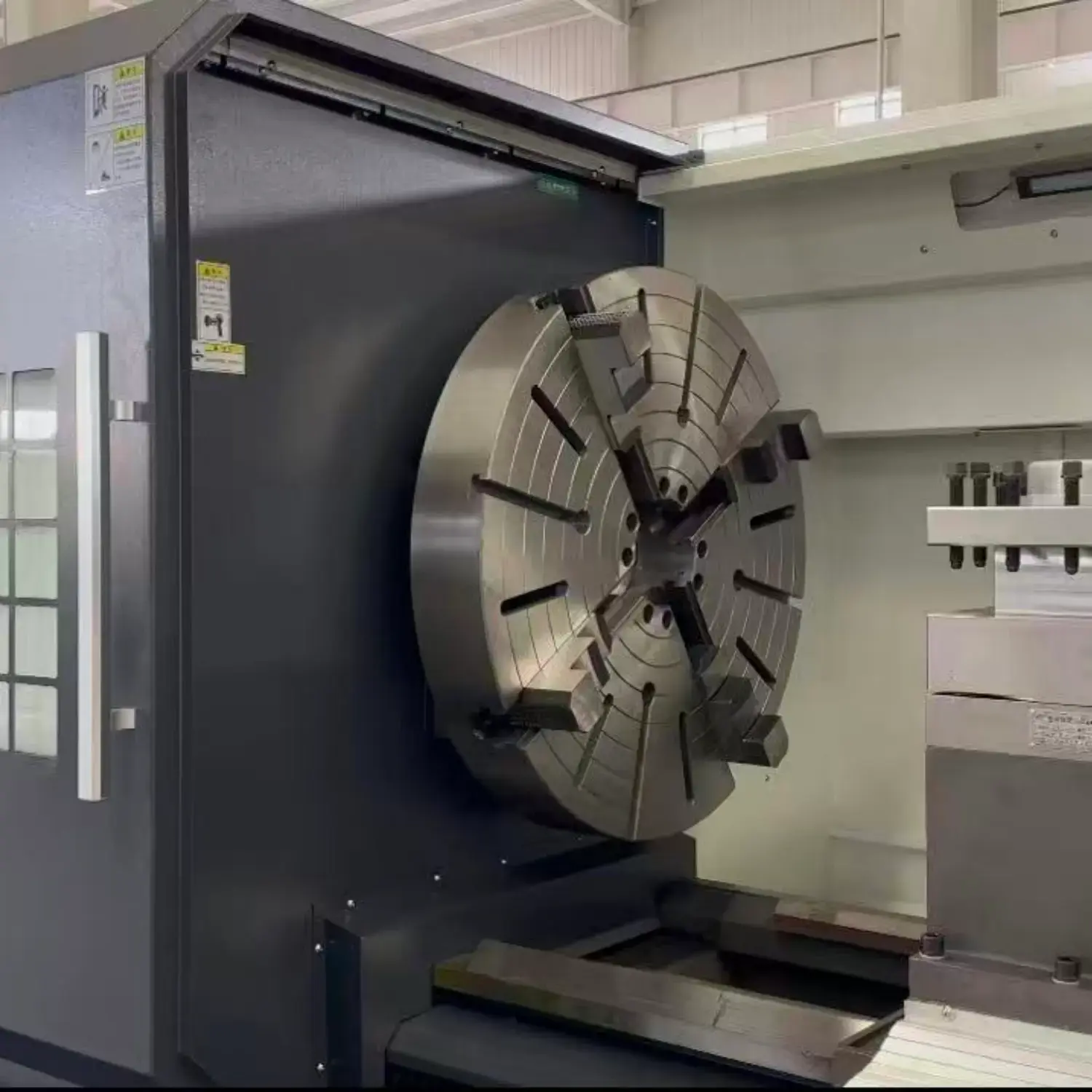

    • 4-jaw chuck 800mm
    • 4-station electric tool post (optional hydraulic)
    • Manual tailstock

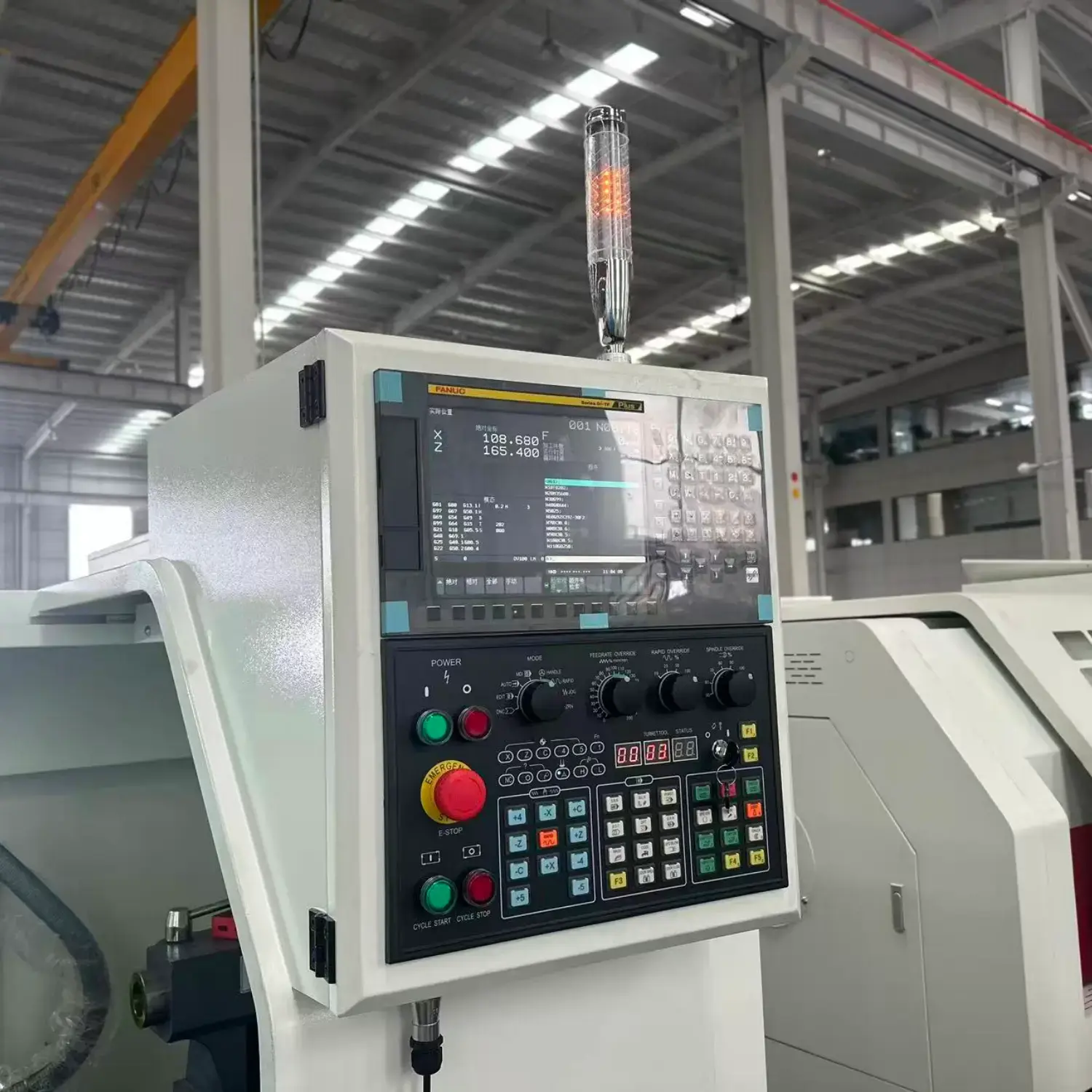

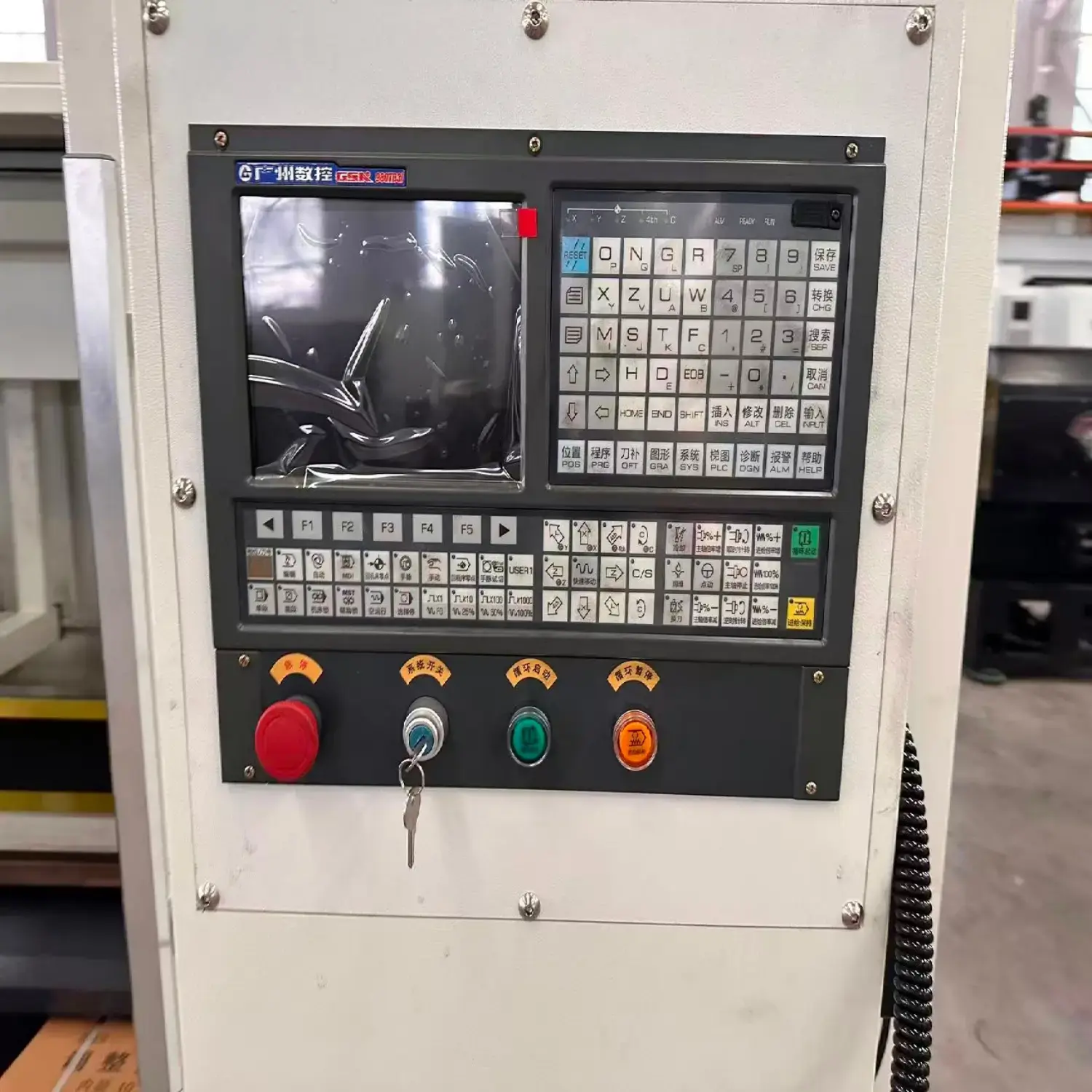

    • GSK CNC control system(optional SIEMENS/FANUC)
    • Centralized lubrication
    • Power supply 3PH,380v,50hz (optional 3PH, 220v 60hz)

    Specification

    Item Unit CK61125
    Max.swing diameter over bed mm 1250mm
    Maximum turning diameter of the trailer mm 900mm
    Maximum cutting diameter mm 1250mm
    Maximum processing length mm 1500mm
    Effective processing length mm 1850mm
    Maximum travel of X/Z axis mm 530/1500mm
    Minimum displacement unit of X/Z axis mm 0.001
    Spindle through-hole diameter mm 105mm
    Number of spindle stages — 4-speed continuously variable transmission
    Maximum spindle speed rpm 30-84/53-150/125-350/300-835
    Main motor power (frequency conversion) kw 18.5
    Frequency converter kw 15
    X/Z axis N.M 10/15
    X/Z-axis fast movement speed M/min 4/6
    Tool holder type — 4/6/8 position
    Tool holder bar size mm 25*25
    Repetitive positioning accuracy of knife holder mm 0.004
    Diameter of tailstock sleeve mm 100
    Tail socket travel mm 250
    Top taper hole of tailstock — Mo’s 6#
