CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center
CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center
CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center
CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center
CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center
CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center
CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center

CK61140 Heavy-Duty Large Swing CNC Lathe | Φ1400mm Max Swing & High-Torque Turning Center

  • Massive Machining Envelope:Features an extraordinary Φ1400mm maximum swing over bed and Φ1000mm swing over carriage for ultra-large industrial components.
  • Powerful Performance:Equipped with a high-capacity main motor (available in 5kW/22kW configurations) to handle extreme cutting loads with ease.
  • Multi-Gear Spindle System:Utilizes a 4-gear manual shift with infinite variable speed within each gear, optimized for high torque at low speeds.
  • Heavy-Duty Spindle:Designed with a D11 spindle nose and a Φ105mm/Φ140mm spindle through-hole (optional) to accommodate large-diameter workpieces.
  • Precision and Surface Quality:Achieves IT6-IT7 workpiece accuracy and a surface roughness of Ra 1.6 μm, ensuring high-spec finishing on massive parts.
  • Robust Structural Support:Features a heavy-duty MT6 tailstock and a machine weight of up to 11,000kg for maximum stability.
Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    The Heavy-Industry Standard for Large-Scale Turning

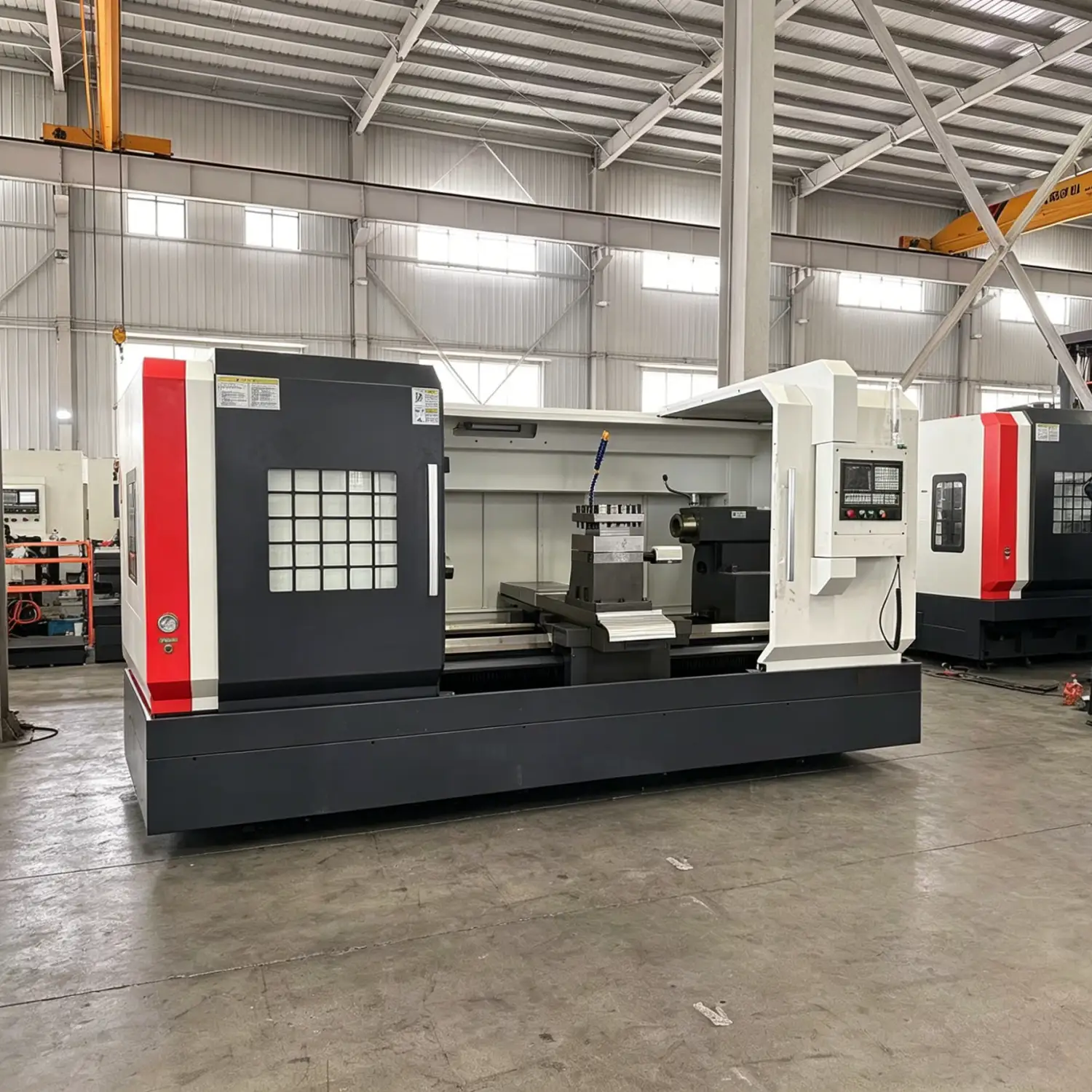

    The CK61140 CNC Lathe Machine represents the pinnacle of heavy-duty horizontal turning technology. Engineered specifically for the world’s most demanding sectors—including energy, shipbuilding, and large-scale mechanical engineering—this machine offers a monumental 1400mm swing capacity. Its reinforced flat-bed architecture is built to withstand the immense forces generated during the machining of oversized flanges, heavy shafts, and large-diameter pipe fittings, providing a vibration-free environment for consistent accuracy.

    Unmatched Stability & Industrial Precision

    Designed for the rigors of 2026’s manufacturing landscape, the CK61140 integrates immense physical strength with refined CNC control:



    Advanced Tooling System: Standard equipped with a Vertical 4-Station Electric Tool Holder (with 6/8 station options) and a large 40×40mm tool bar size, allowing for heavy material removal in fewer passes.



    High-Load Spindle Architecture: The spindle features a Metric 140 1:20 taper and is supported by precision bearings to maintain a roundness of 0.01mm even under significant radial and axial loads.



    Dynamic Response: Despite its size, the machine offers rapid traverse speeds of 4000/6000 mm/min (X/Z axes), driven by high-torque servo motors for responsive and efficient movement.



    Long-Term Reliability: The induction-hardened bedways and centralized automatic lubrication system protect the machine from wear, ensuring that your investment maintains its precision over decades of heavy use.



    Standard Accessory

    • 600mm bed width

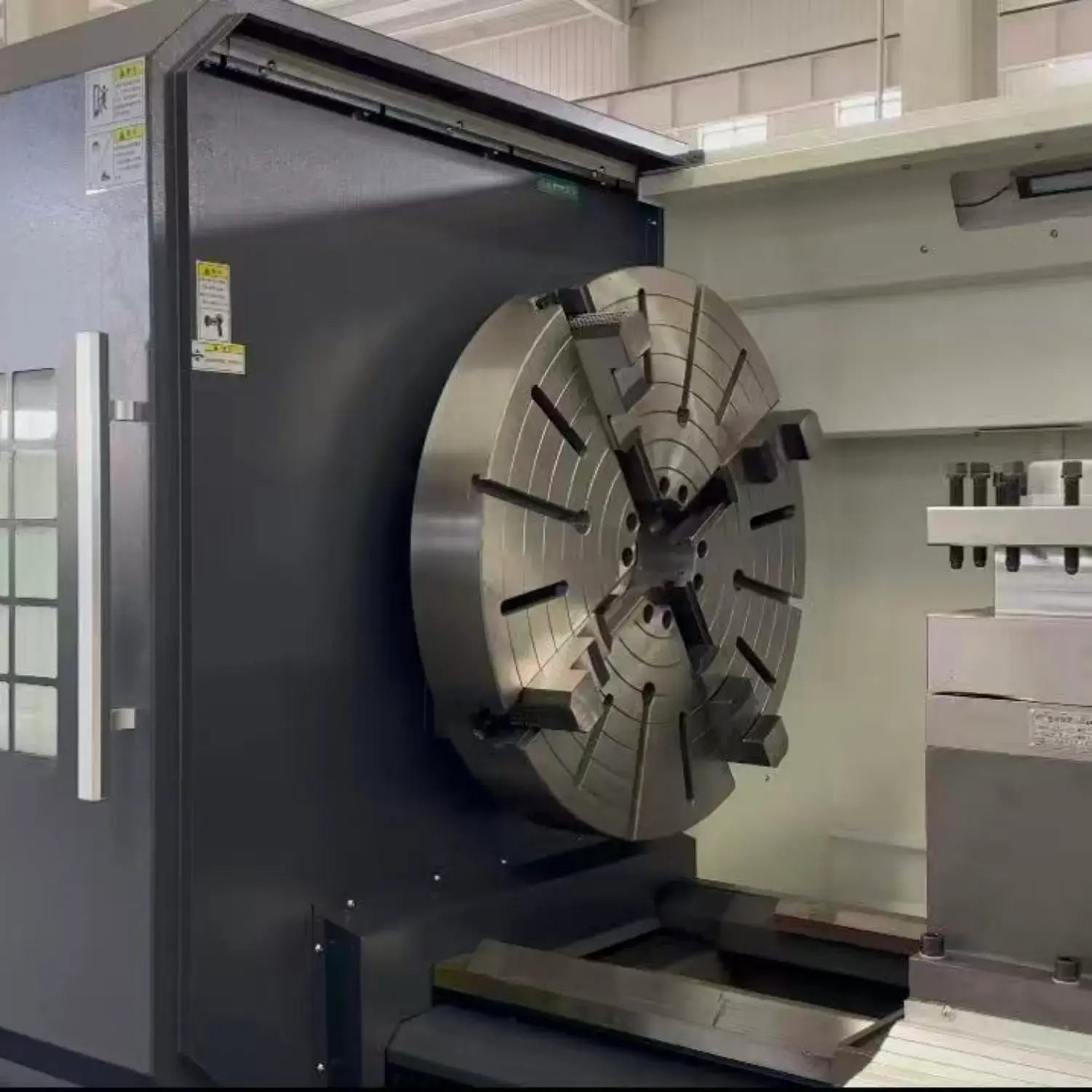

    • 4-jaw chuck 1000mm

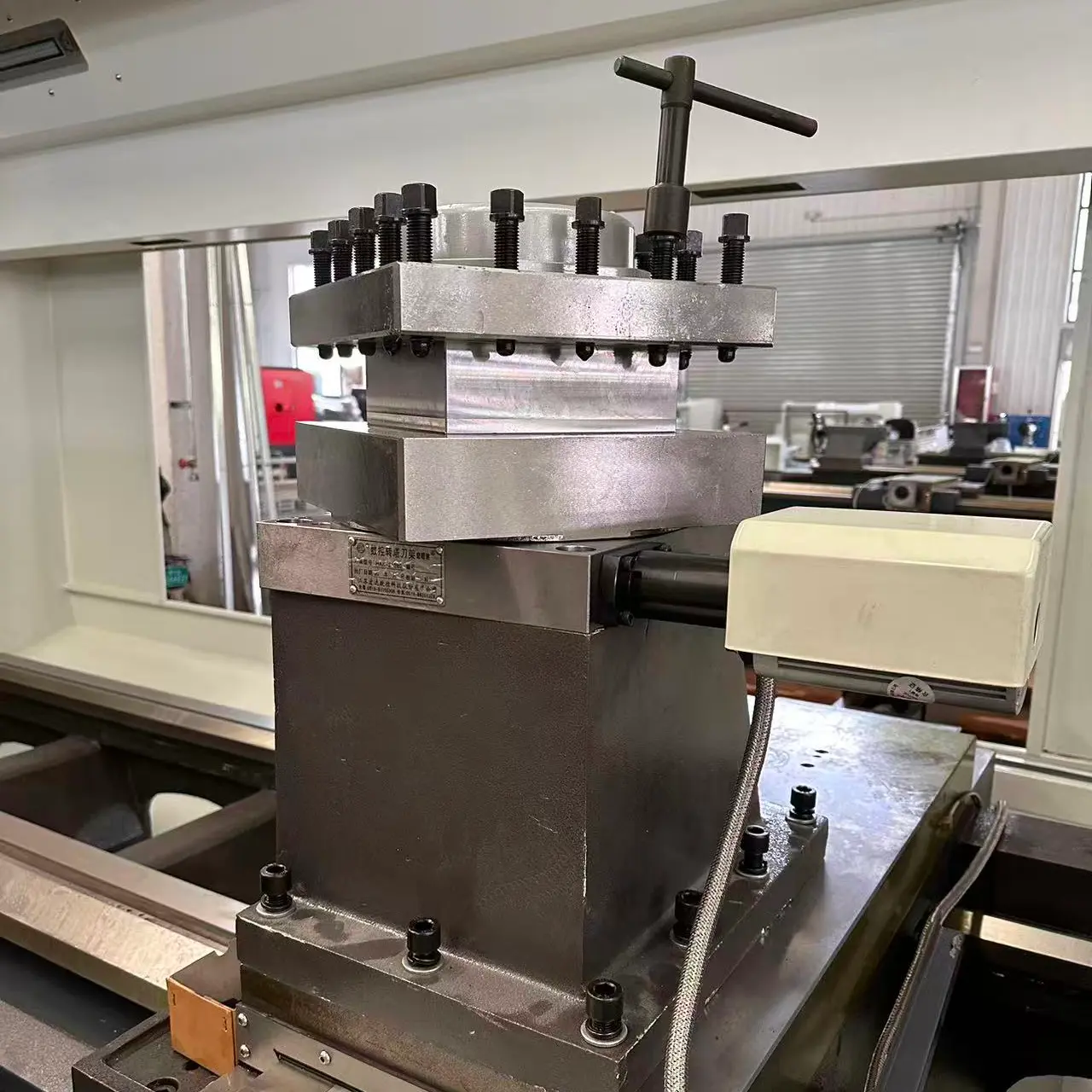

    • 4-station electric tool post (optional hydraulic)

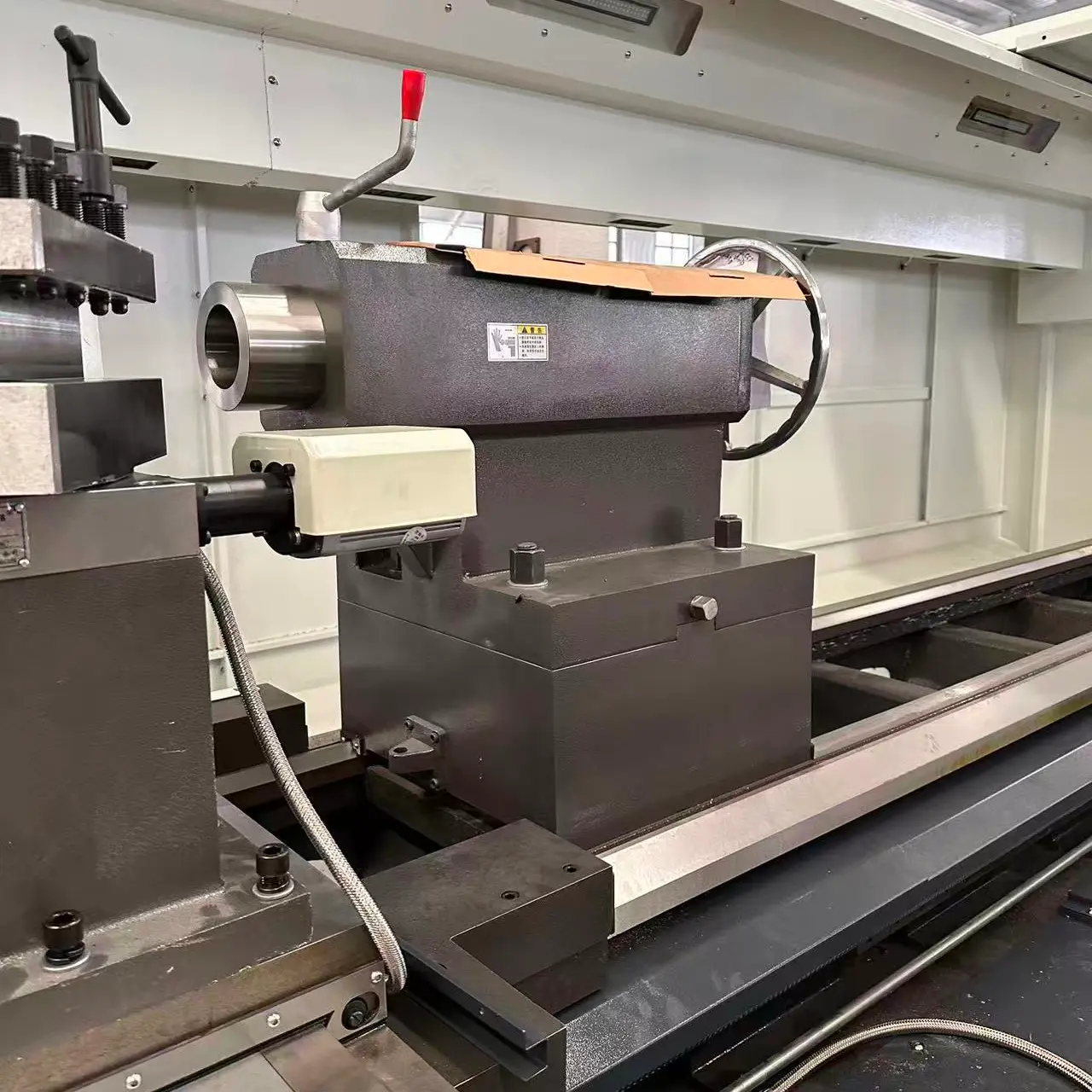

    • Manual tailstock

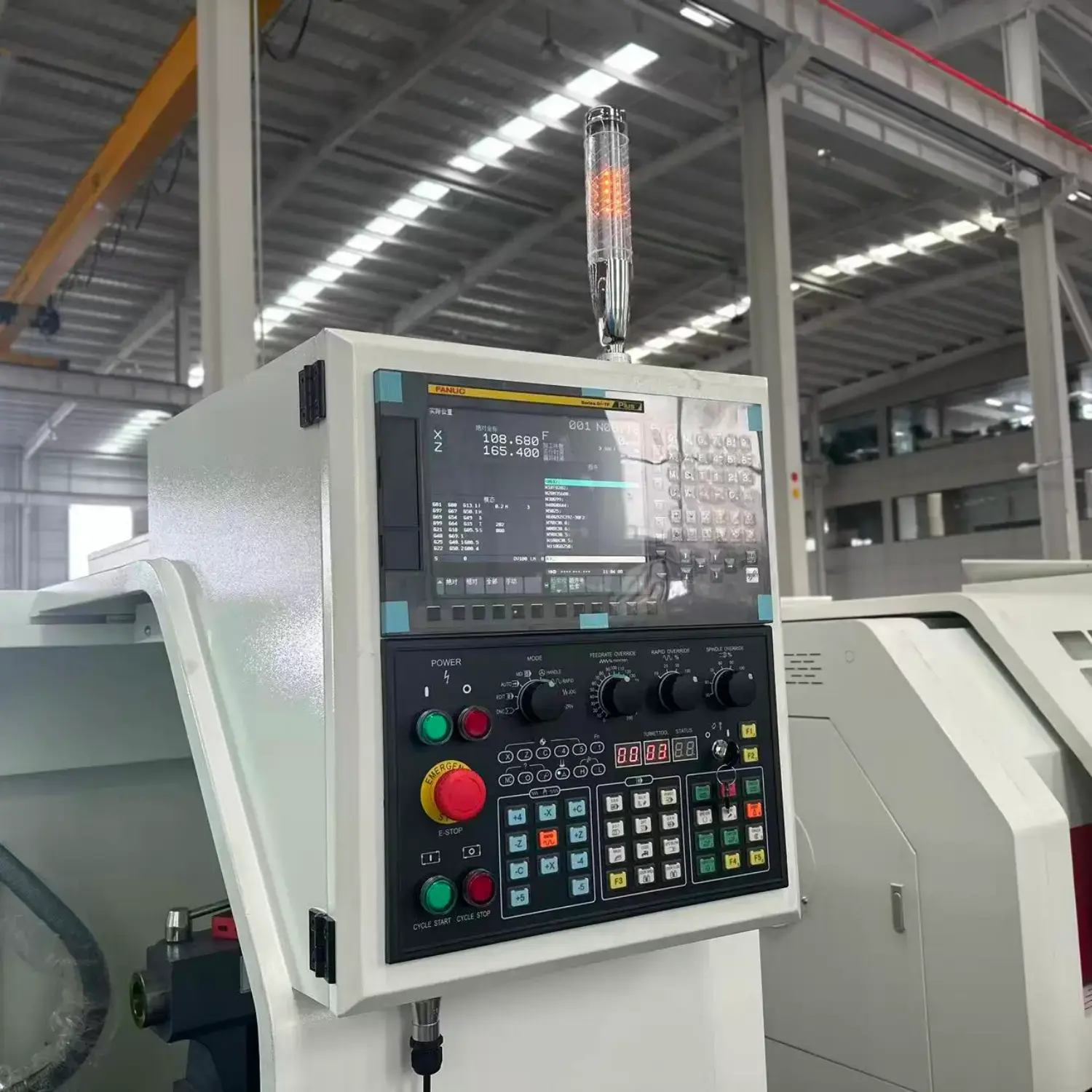

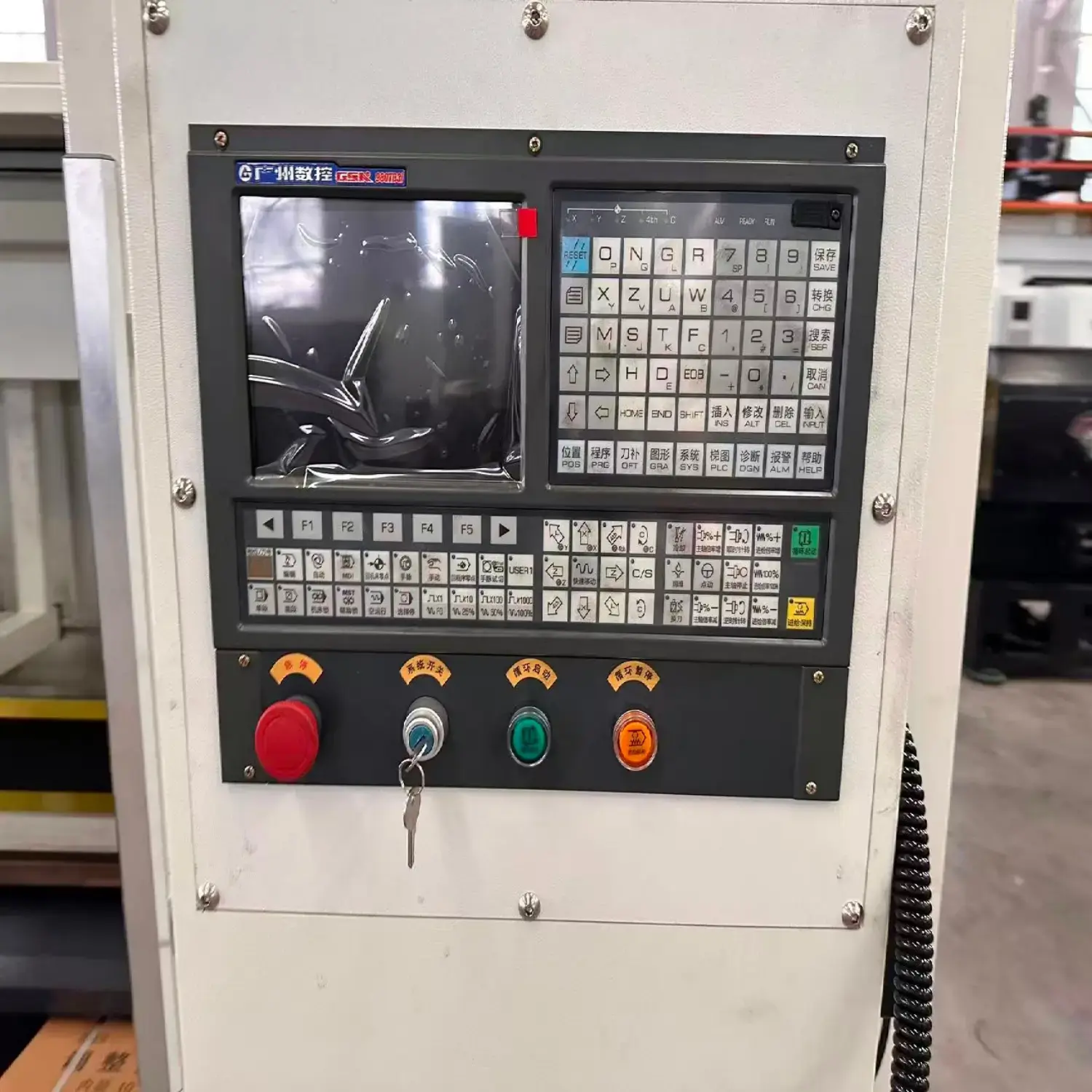

    • GSK CNC control system(optional SIEMENS/FANUC)
    • Centralized lubrication
    • Power supply 3PH,380v,50hz (optional 3PH, 220v 60hz)



    Specification

    MAIN TECHNICAL DATA Unit CK61140
    Maximum turning diameter of bed mm 1400
    Maximum tuming diameter on the palletMaximum processing length mm 1000
    Spindle drive form mm 1500/2000/3000
    Spindle speed series gears 4
    Spinde speed rpm Infinite within the file
    Spindle head form   4-300
    Spindle hole front taper   D11
    Spindle through hole diameter mm Metric 140 1:20
    Main motor power kw 105/130
    X1Z axis positioning accuracy   18/22
    Repeated positioning accuracy of X/Z axis   0.025/0.03
    Workpiece machining accuracy   0.01/0.015
    Workpiece surface roughness   IT6-1T7
    X fast moving speed mm/min Ra1.6
    Z rapid traverse speed mm/min 4000
    Tailstock sleeve diameter mm 6000
    Tailstock sleeve inner hole taper   160
    Tailstock sleeve movement amount mm MT6
    Tool holder form   300
    Tool hoider maximum travel X/Z mm Electric 4 station
    Machine tool dimensions mm 40×40
    Machine weight kg 4250/4750/5250x2300x2500
