Description

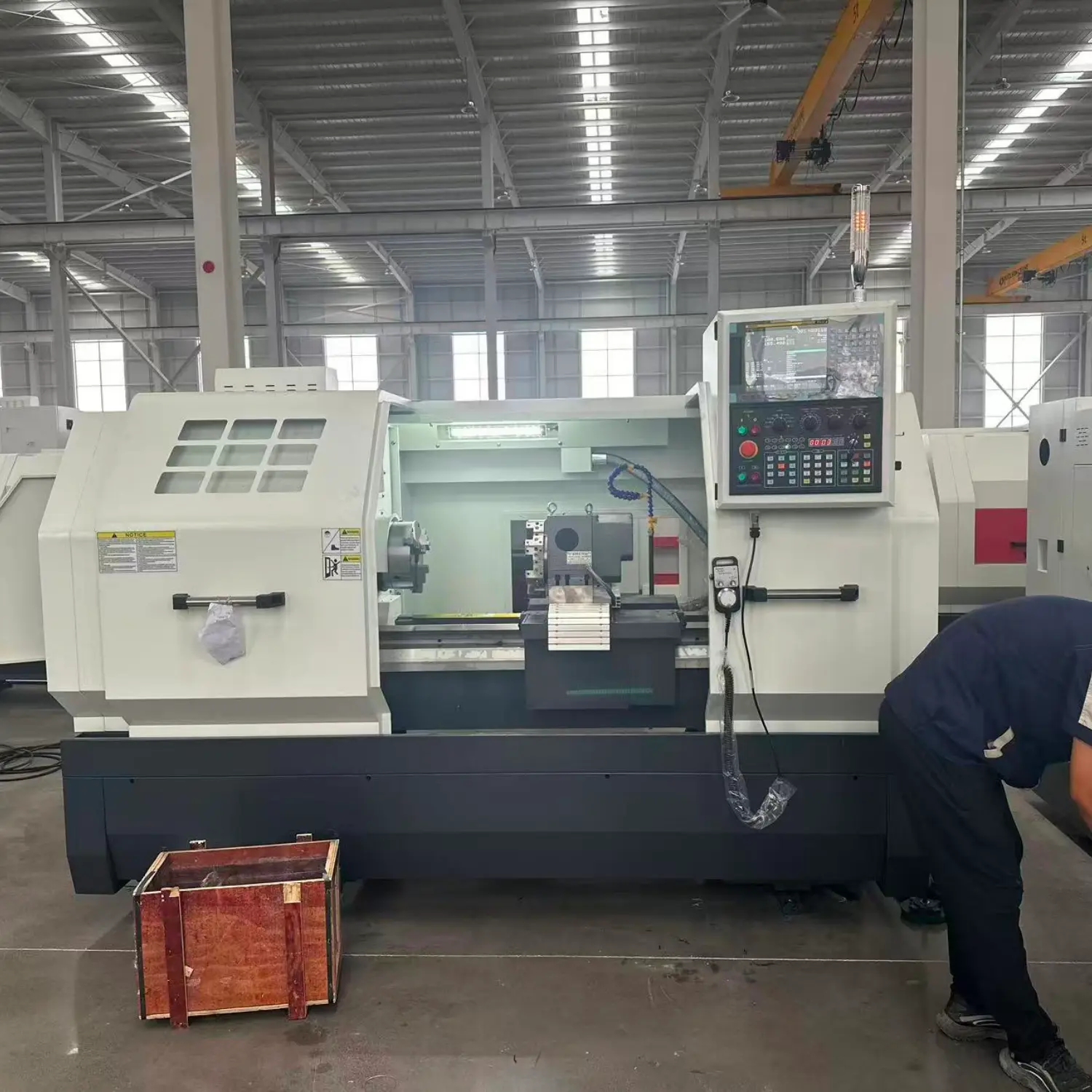

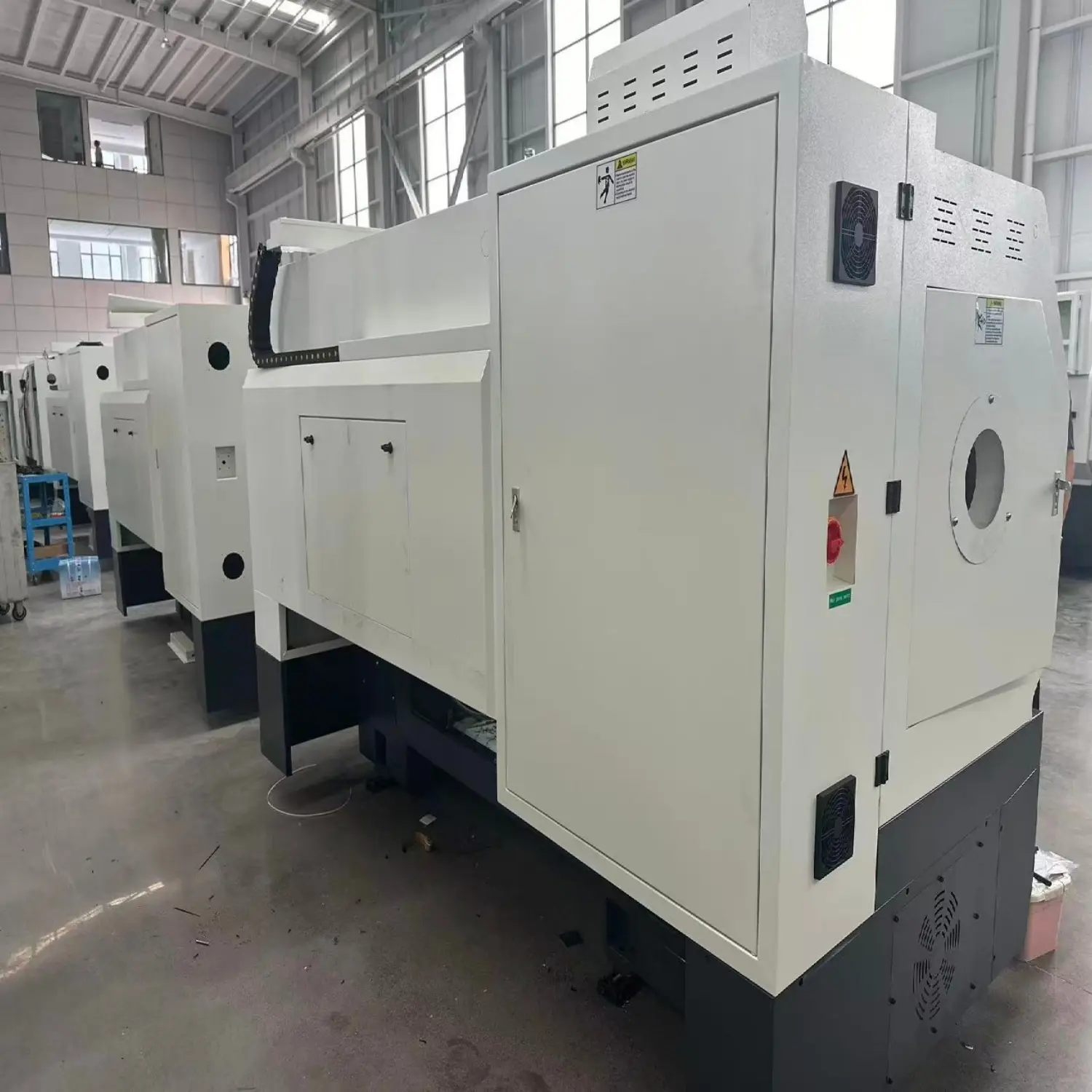

The CK6163 CNC Lathe Machine is a horizontal flat-bed turning center designed for manufacturers seeking a balance between high rigidity and economical operation. Engineered for strong cutting and complex processing, it is the ideal choice for batch production of medium-sized shafts, discs, and sleeve components. Its robust construction minimizes vibration, ensuring consistent quality during heavy-duty material removal.

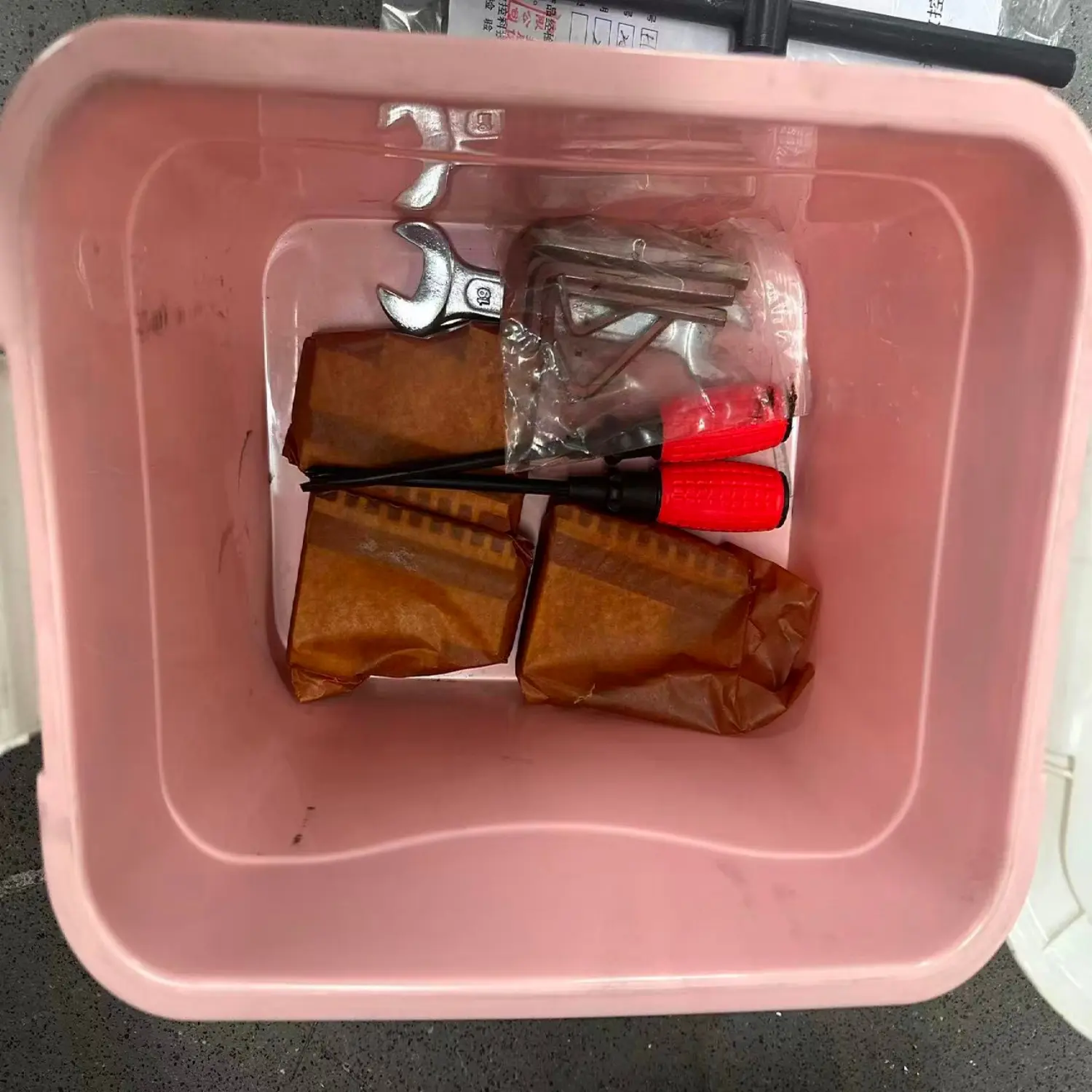

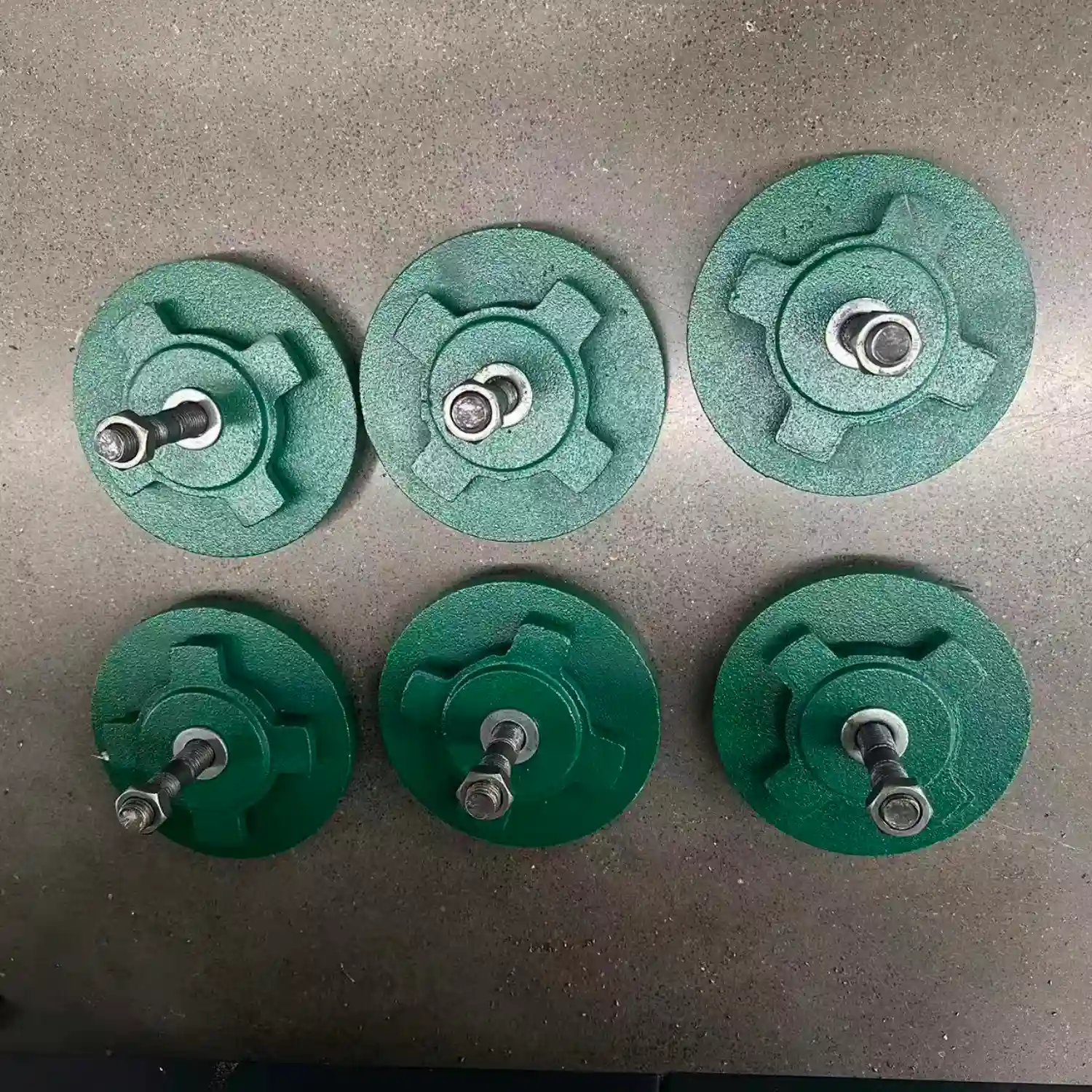

Standard Accessory

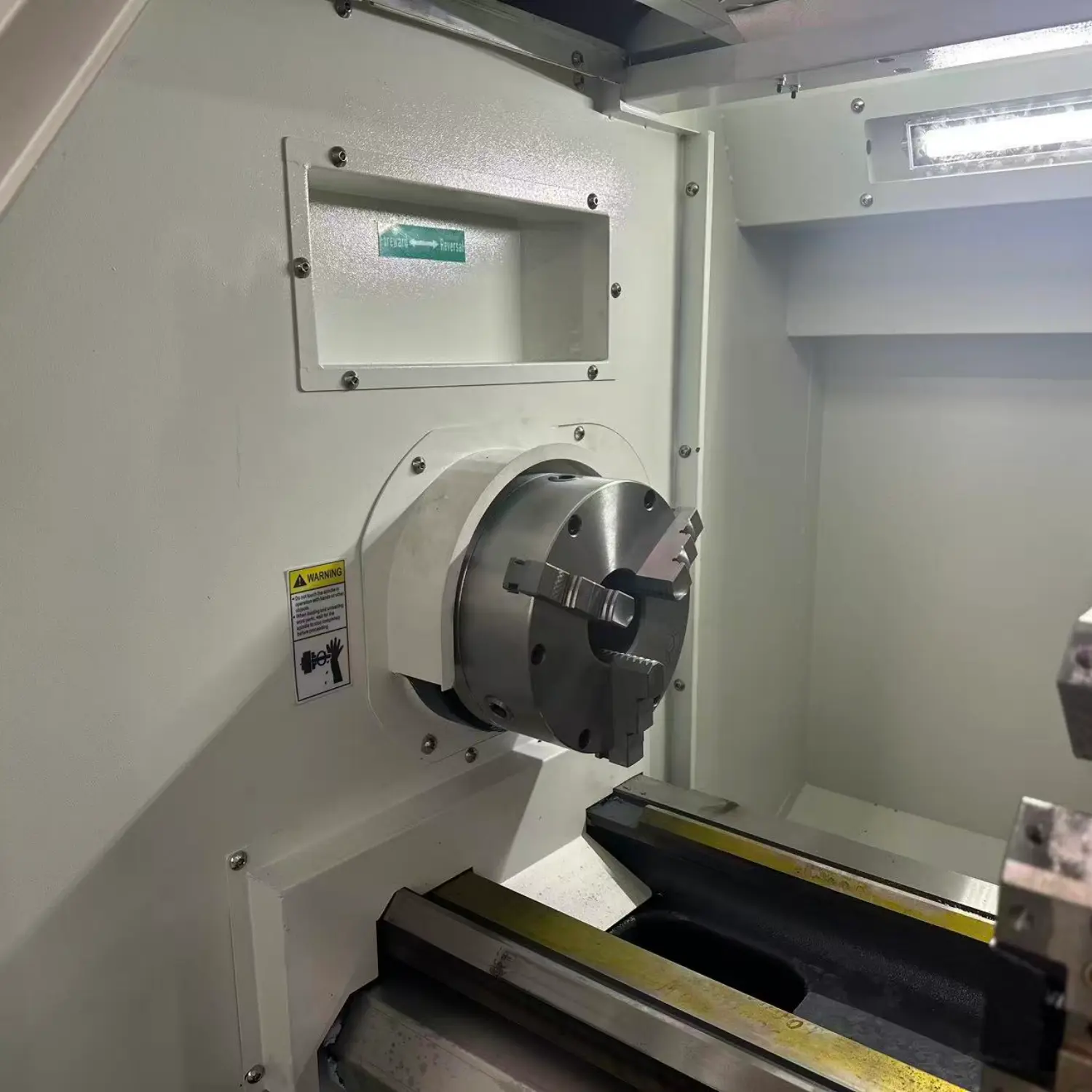

- 3-jaw Manual chuck

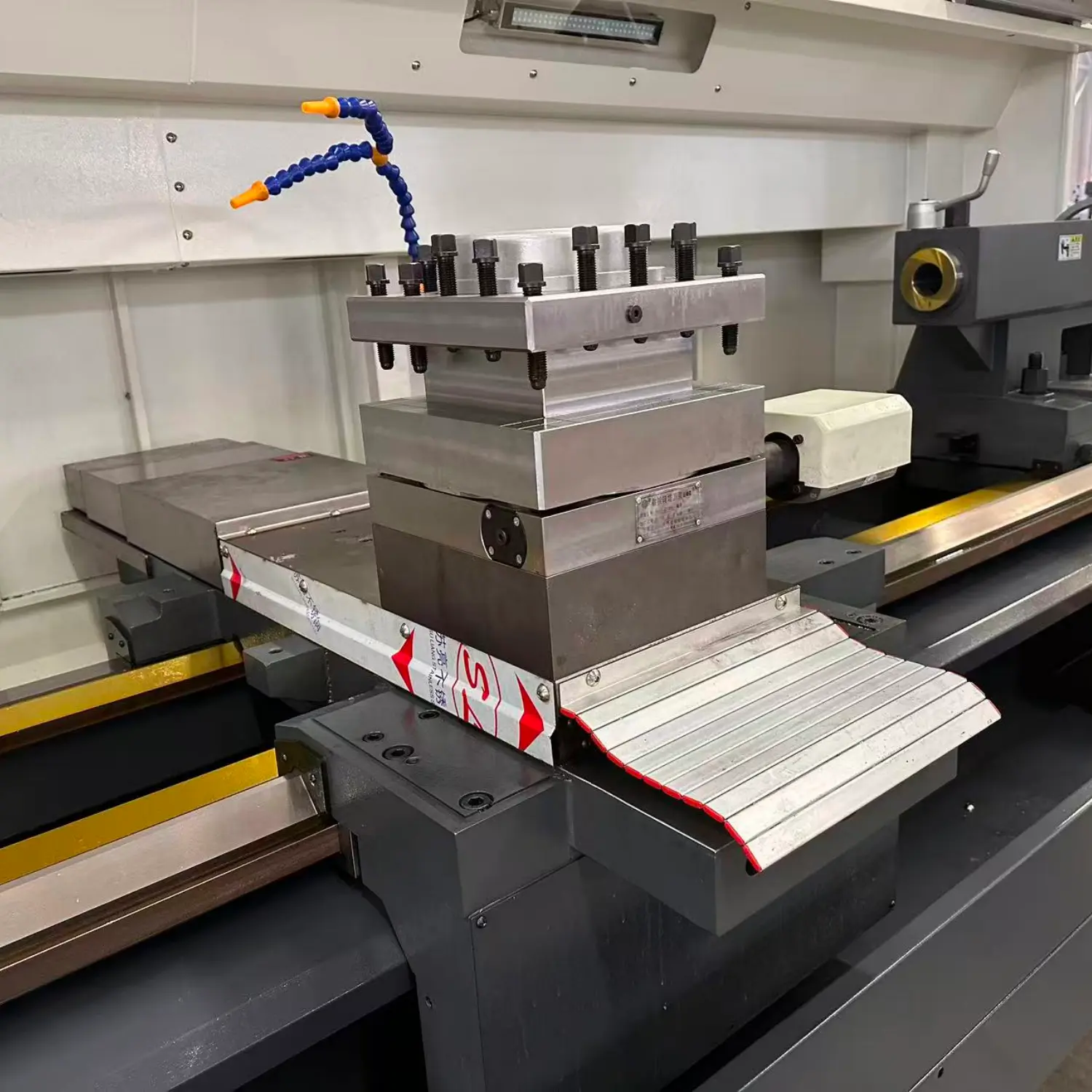

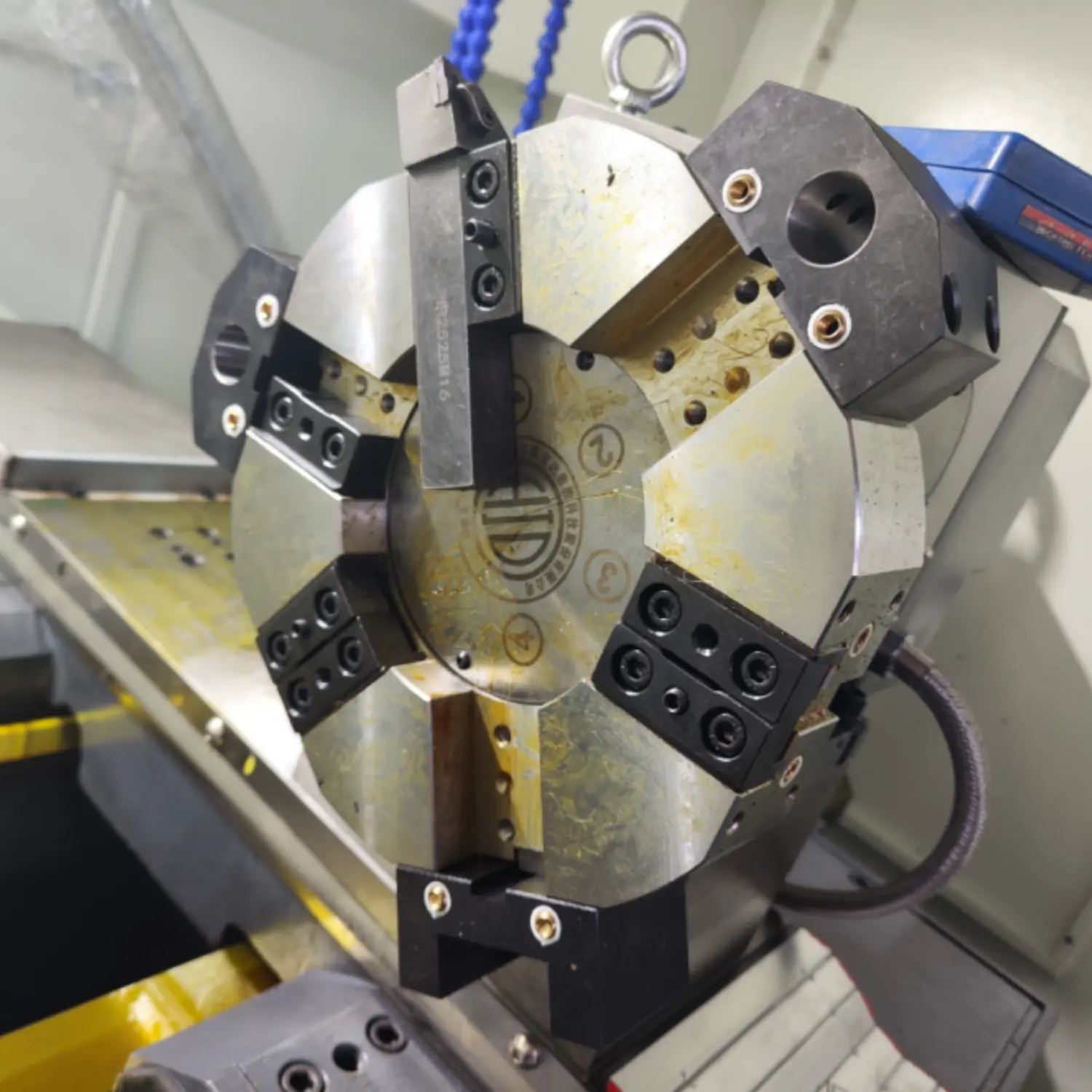

- 4-station electric tool post ( optional 6/8/12 station, electric/ hydraulic)

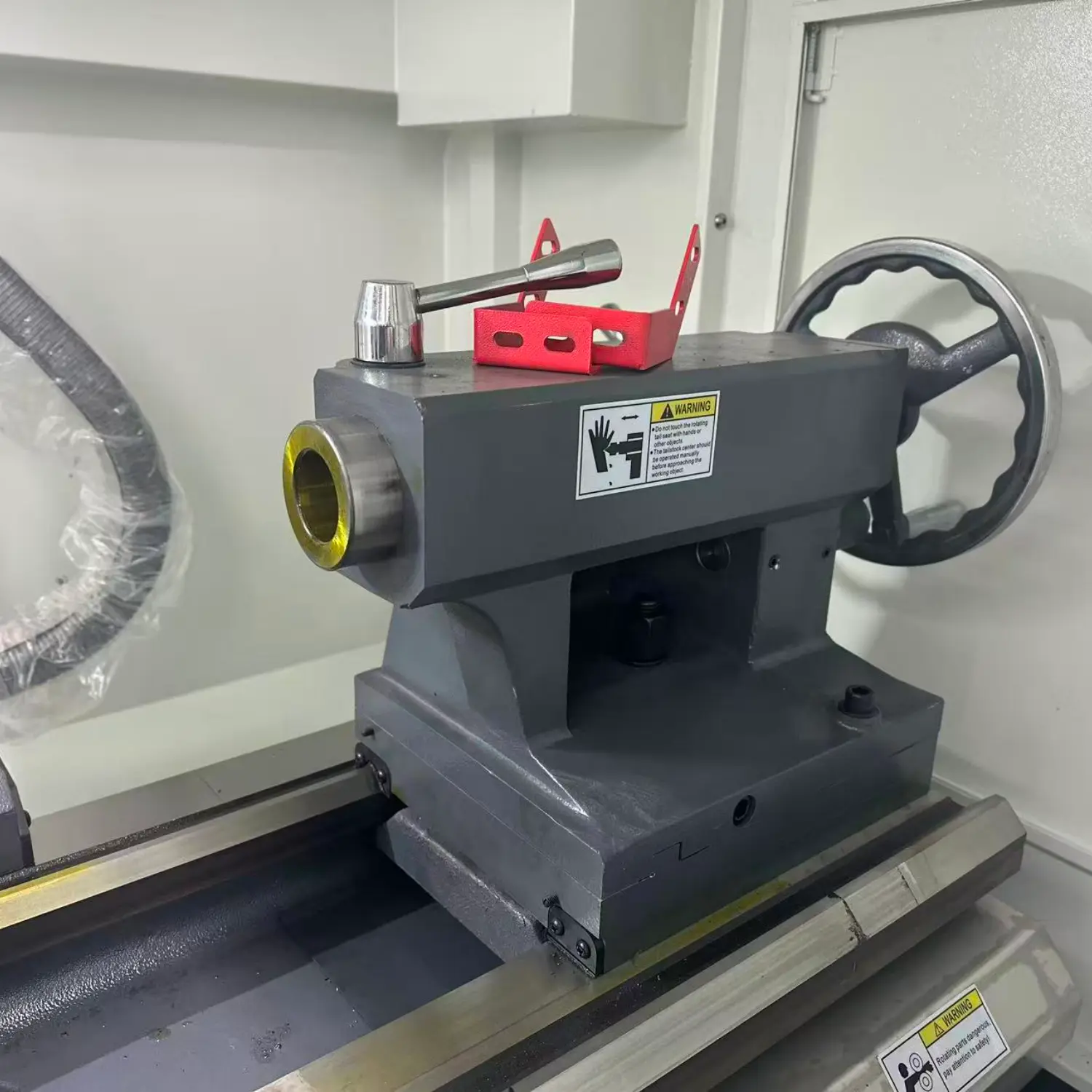

- Manual tailstock

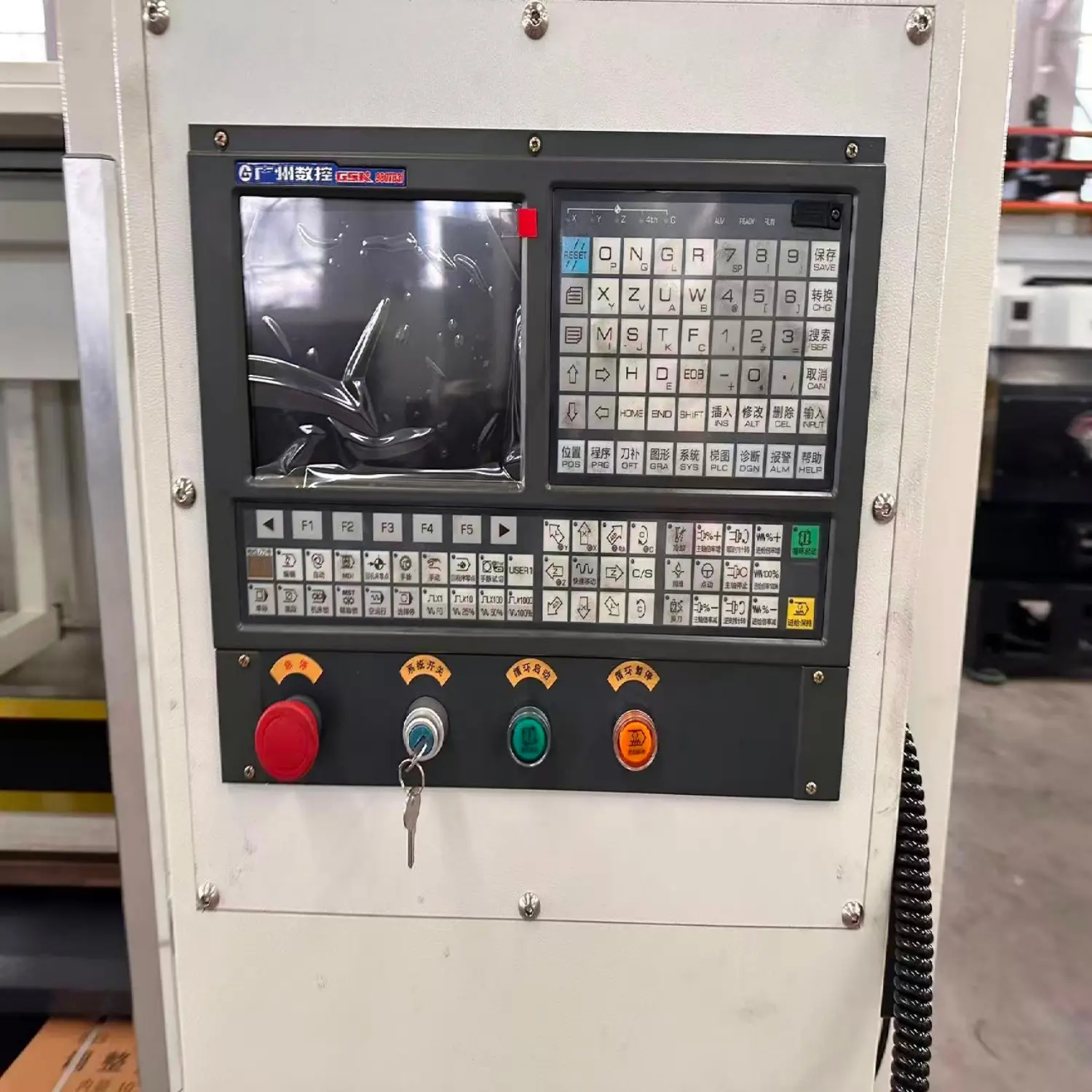

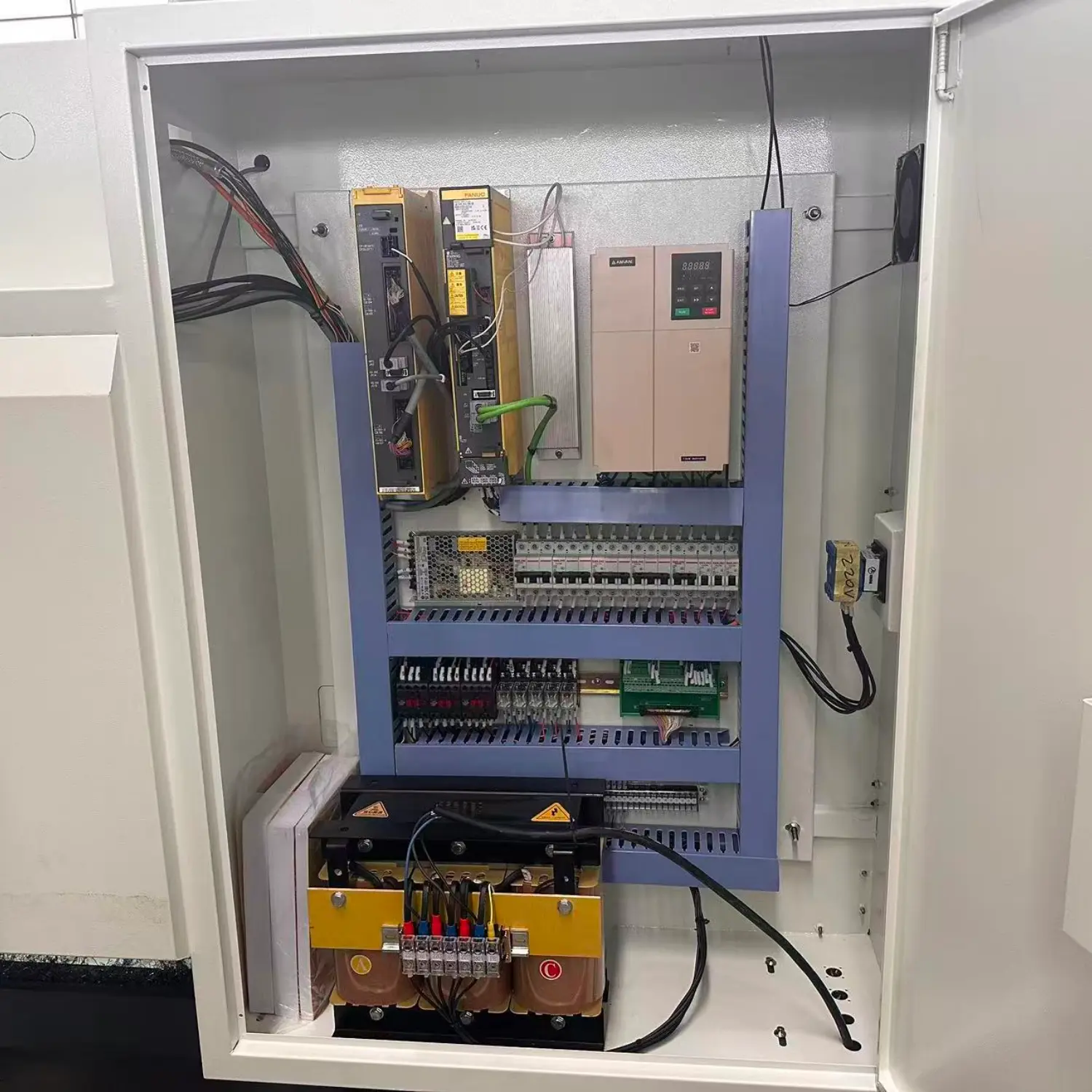

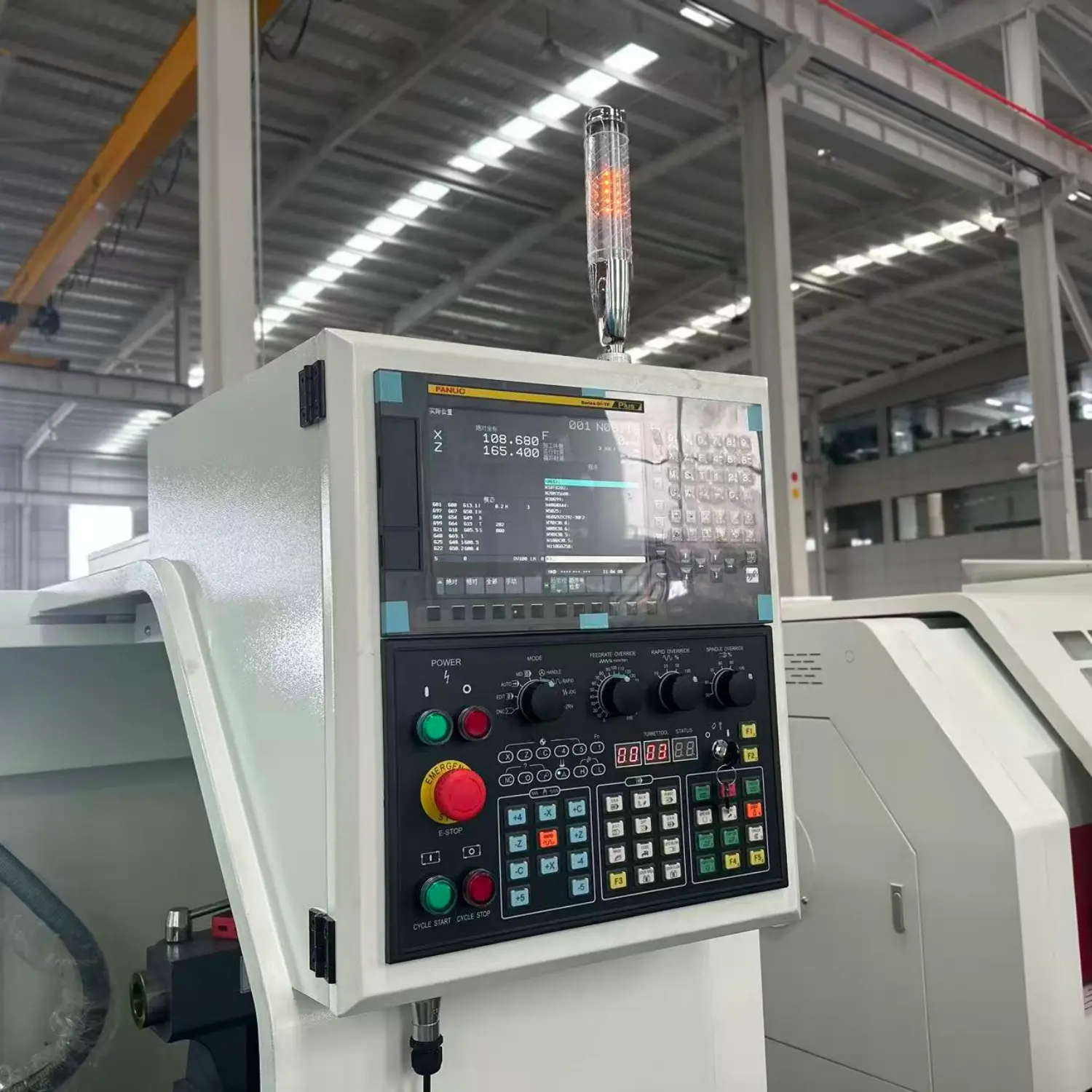

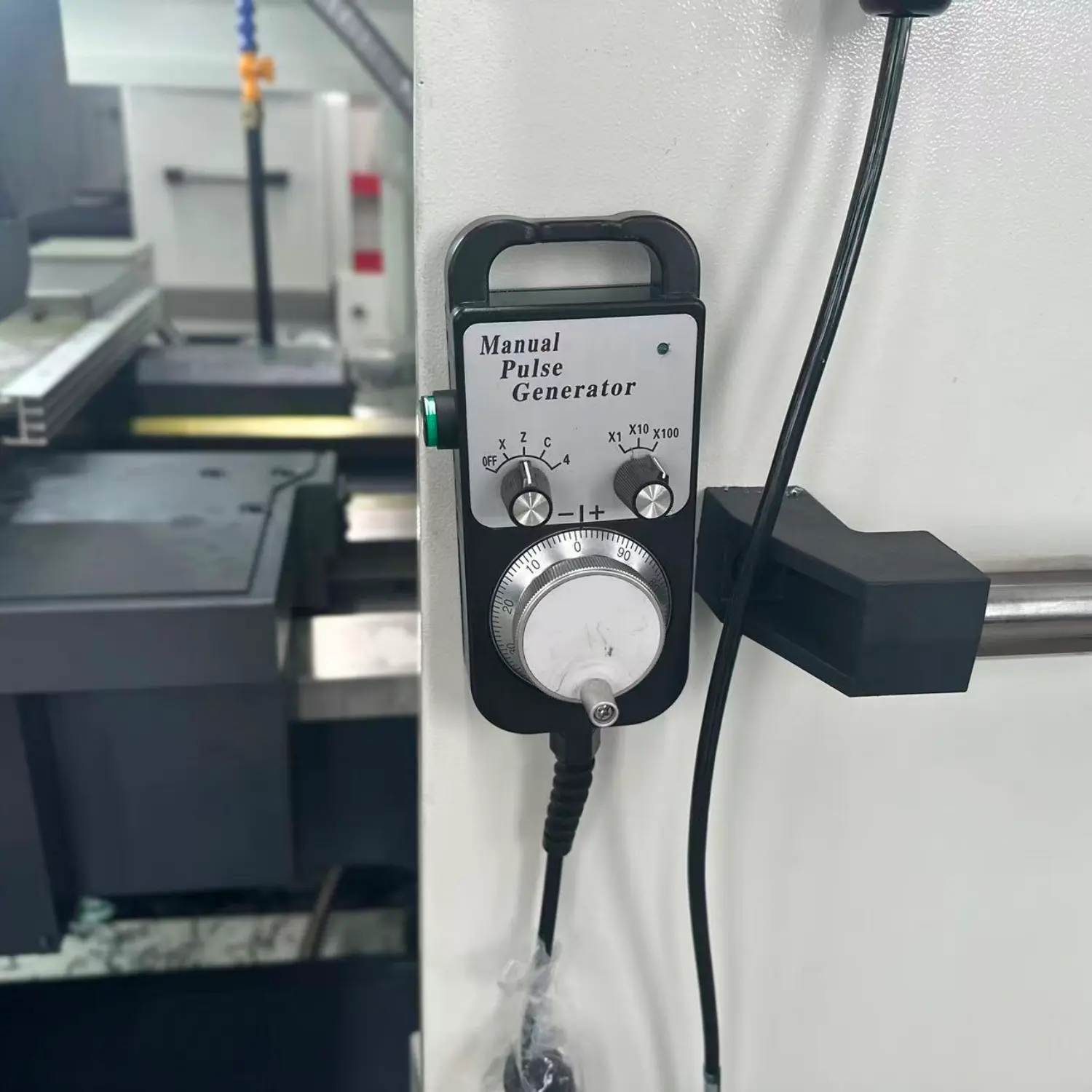

- GSK CNC control system(optional SIEMENS/FANUC)

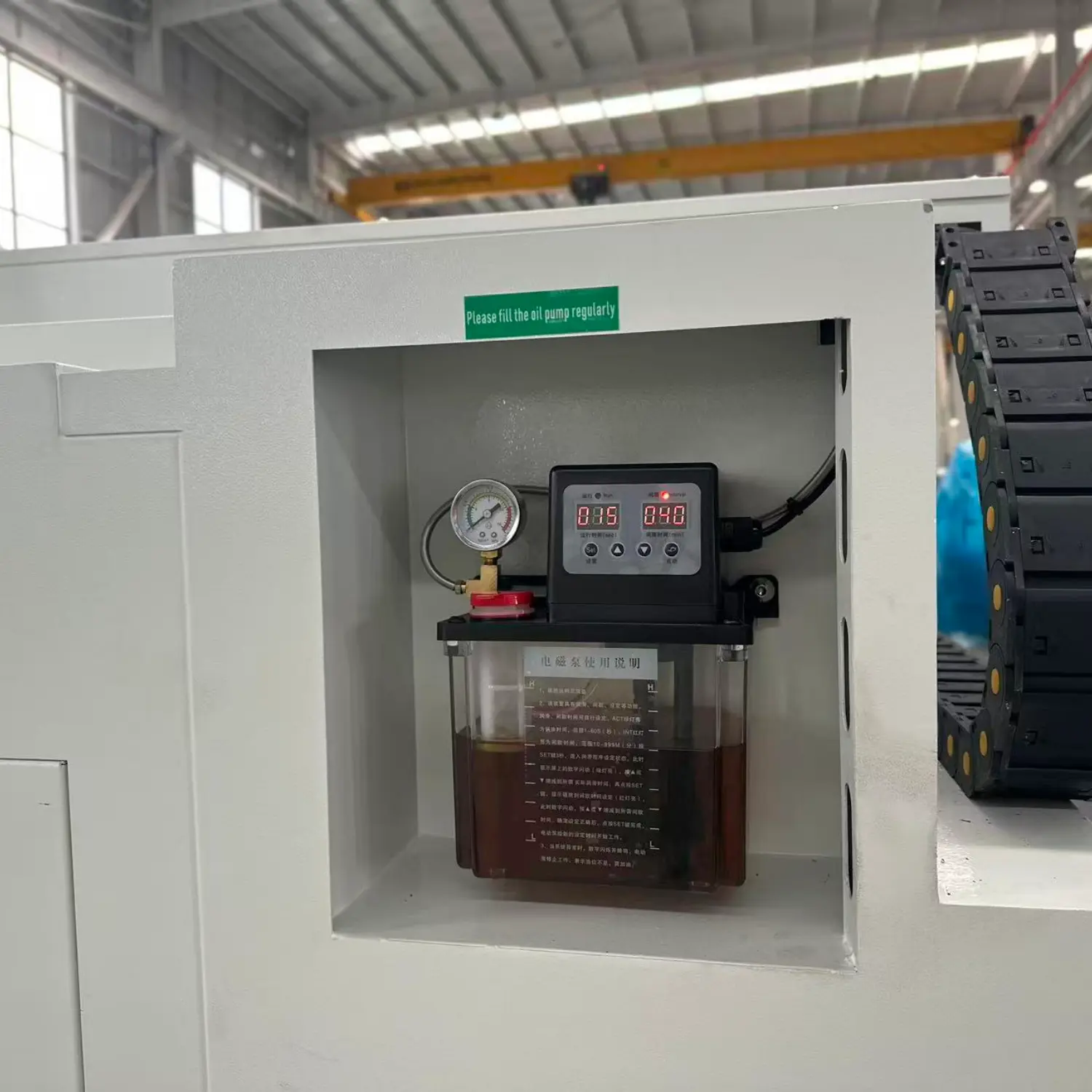

- Centralized lubrication
- Power supply 3PH,380v,50hz (optional 3PH, 220v 60hz)
Product Features
- Workpiece accuracy: IT6-IT7
- Surface roughness of workpiece: Ra1.6 μ M
- Positioning accuracy (X/Z) 0.015/0.015mm
- Repetitive positioning accuracy (X/Z) 0.01/0.01 mm
- Roundness: 0.005mm
- Flatness: 0.025/300mm
Product Specification
| ITEM | MODEL | UNIT | CK6163 |
| Processing capability
|
swing over bed | mm | Φ630 |
| Maximum turning diameter of the drag plate | mm | Ф380 | |
| Maximum cutting diameter | mm | Φ630 | |
| Maximum processing length | mm | 1000/1500/2000 | |
| Stroke
|
Maximum travel of X/Z axis | mm | 315/（1000/1500/2000） |
| X/Z-axis minimum displacement unit | mm | 0.001 | |
| Spindle
|
Main spindle through-hole diameter | mm | Ф82 |
| Number of spindle stages | Unlimited/3rd gear (internal frequency conversion) | ||
| Maximum spindle speed | rpm | 60-1600/50-2000 | |
| Spindle end | A2-8 | ||
| Main motor power (variable frequency) | kW | 7.5 | |
| inverter | kW | 11 | |
| X/Z axis | N.m | 5/7.5 | |
| X/Z-axis fast movement speed | m/min | 6/8 | |
| Feed tool holder
|
Tool holder type | 4 standard/6 or 8 optional | |
| Blade size | mm | 25*25 | |
| Repeated positioning accuracy of tool holder | mm | ≤0.004 | |
| Tail socket diameter | mm | Φ85 | |
| Tail seat sleeve stroke | mm | 130 | |
|
Tailstock
|
Tailstock tip cone hole | Mors 5# | |
| Other | Electricity demand (power/current) | kW/A | 15kW/20A |
