Description

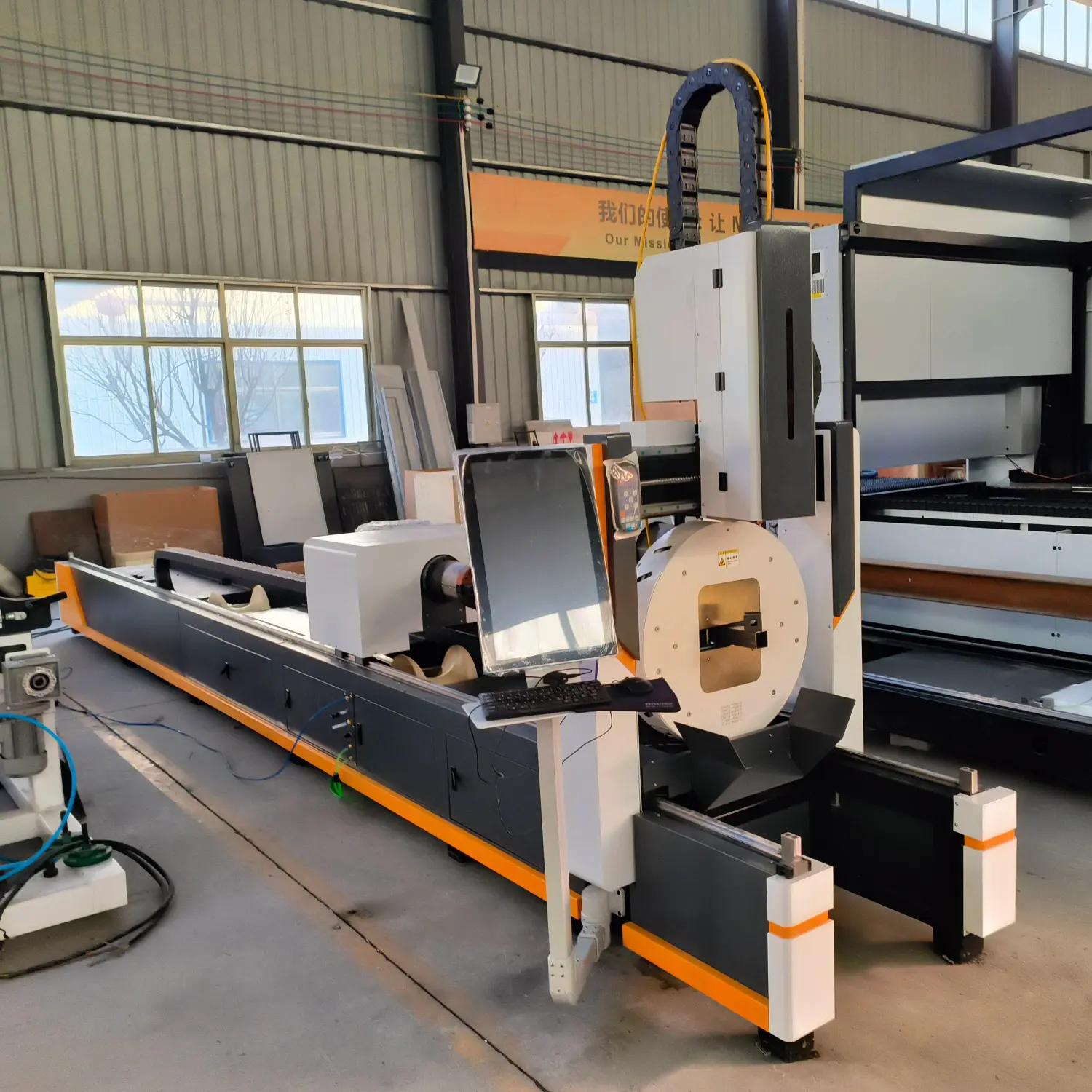

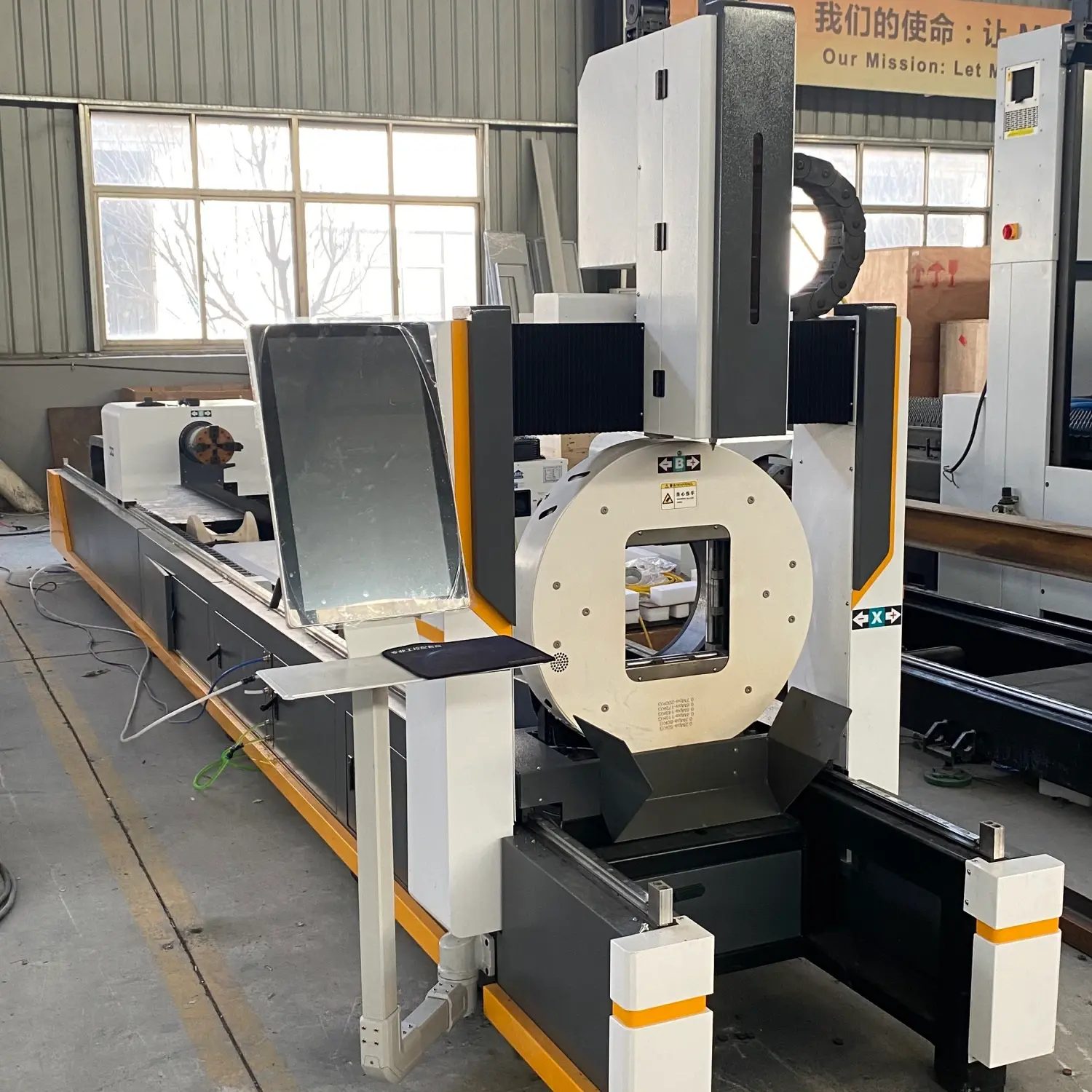

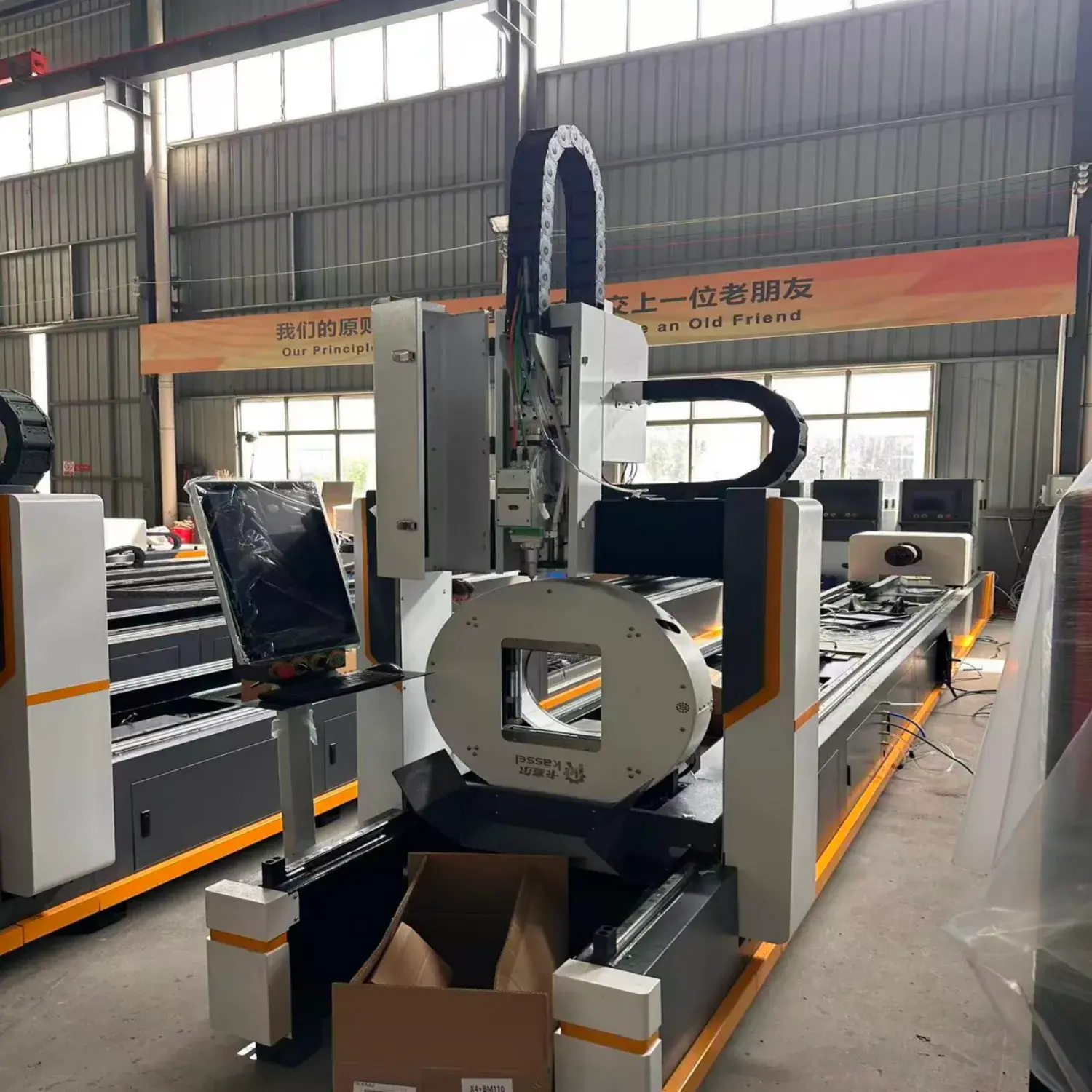

The T6024 CNC Fiber Laser Tube Cutting Machine is an industrial-grade solution engineered for high-precision fabrication of carbon steel, stainless steel, aluminum, and copper pipes. Powered by a MAX 3000W laser resonator, it handles round tubes up to Φ240mm and square, angle, or channel steel with side lengths up to 240mm. This 6-meter capacity system features advanced CNC control and precise clamping technology to ensure burr-free edges and exceptional stability during high-speed rotation. Integrating a high-performance fiber laser, industrial chiller, and specialized machine engine, the LT60240 maximizes production efficiency for structural steelwork, automotive parts, and furniture manufacturing through its versatile multi-profile processing capabilities.
Product Features
- Pipe processing sizefor circular tube Φ20mm-φ240mm，
- Pipe processing sizefor square tube angle steel groove≤240mm
- Pipe processing sizefor steel side length of L≤6000mm；
Product Specification
| NO. | Item | T6024 | unit |
| 1 | Pipe processing size | circular tube Φ20mm-φ240mm，Steel side length of square tube angle steel groove≤240mm，L≤6000mm； | mm |
| 2 | X axis itinerary | 300 | mm |
| 3 | Y axis itinerary | 6300 | mm |
| 4 | Z axis itinerary | 120 | mm |
| 5 | X, Y-axis positioning accuracy | ±0.05/1000mm | mm |
| 6 | X and Y axes | ±0.03/1000mm | mm |
| 7 | Tailor length | ≤30With the guaranteed cutting accuracy, the minimum tail length cannot be guaranteed | mm |
| 8 | laser power | The MAX3000 | w |
| 9 | control system | EOE | |
| 10 | Power supply requirements | 380V/50Hz | V |
