Description

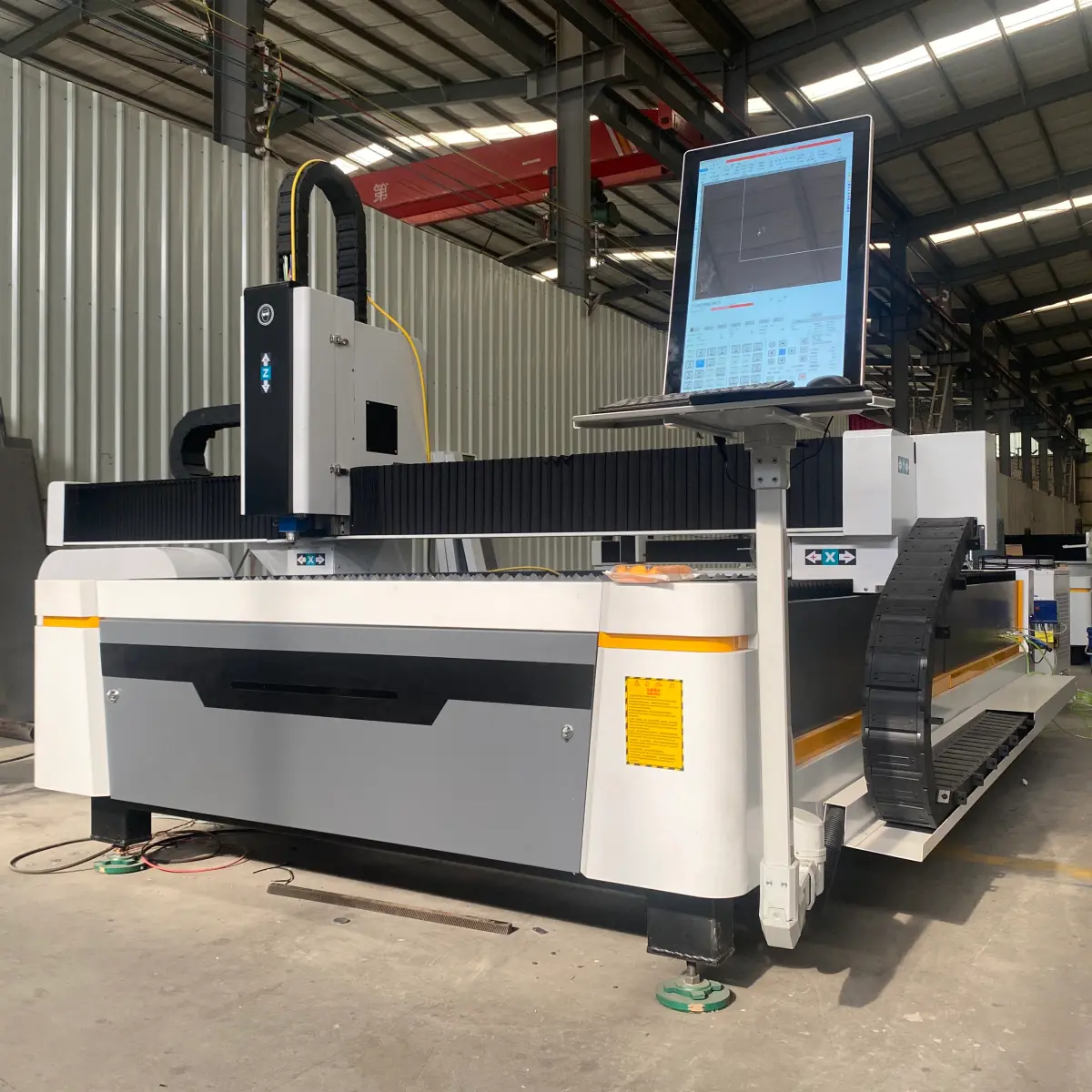

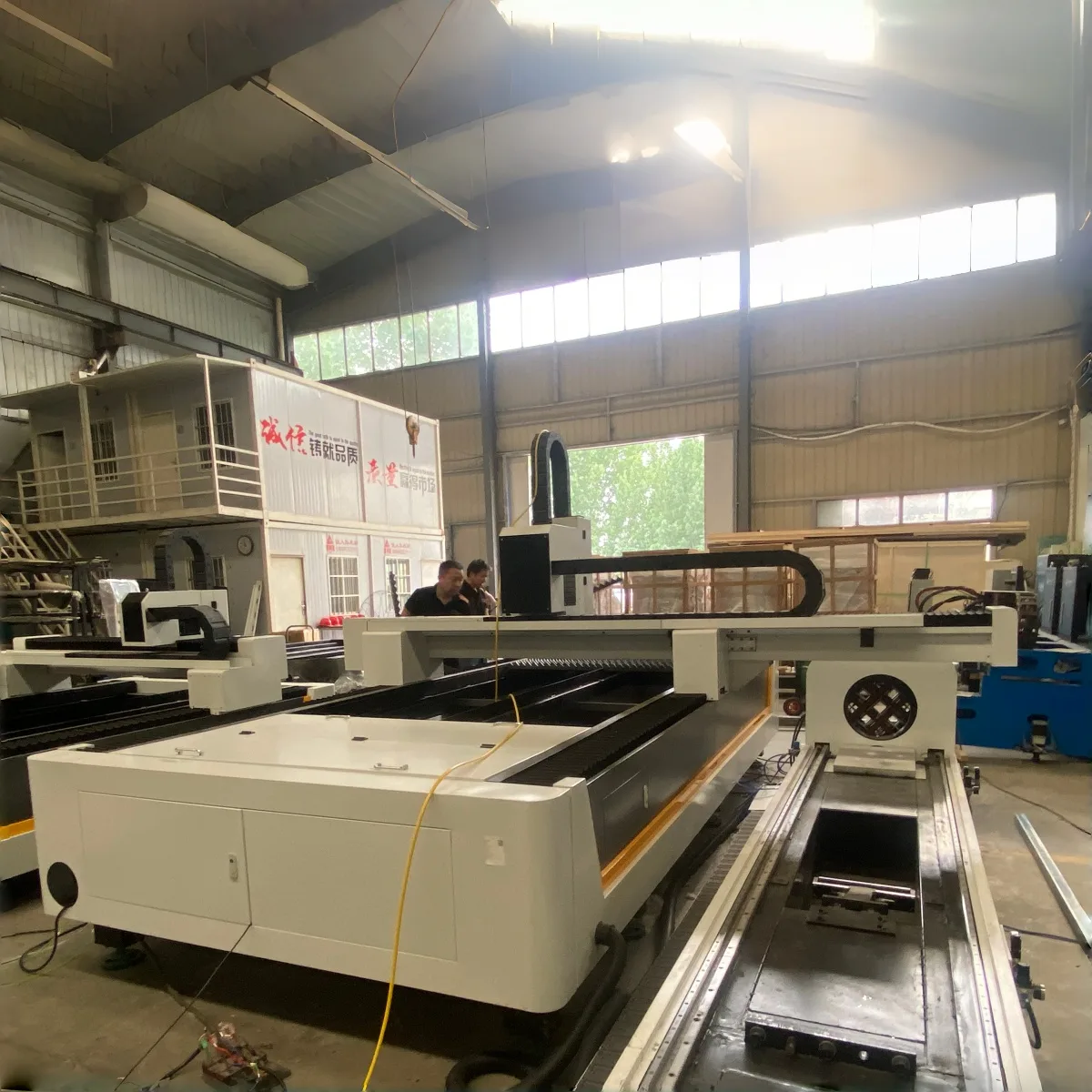

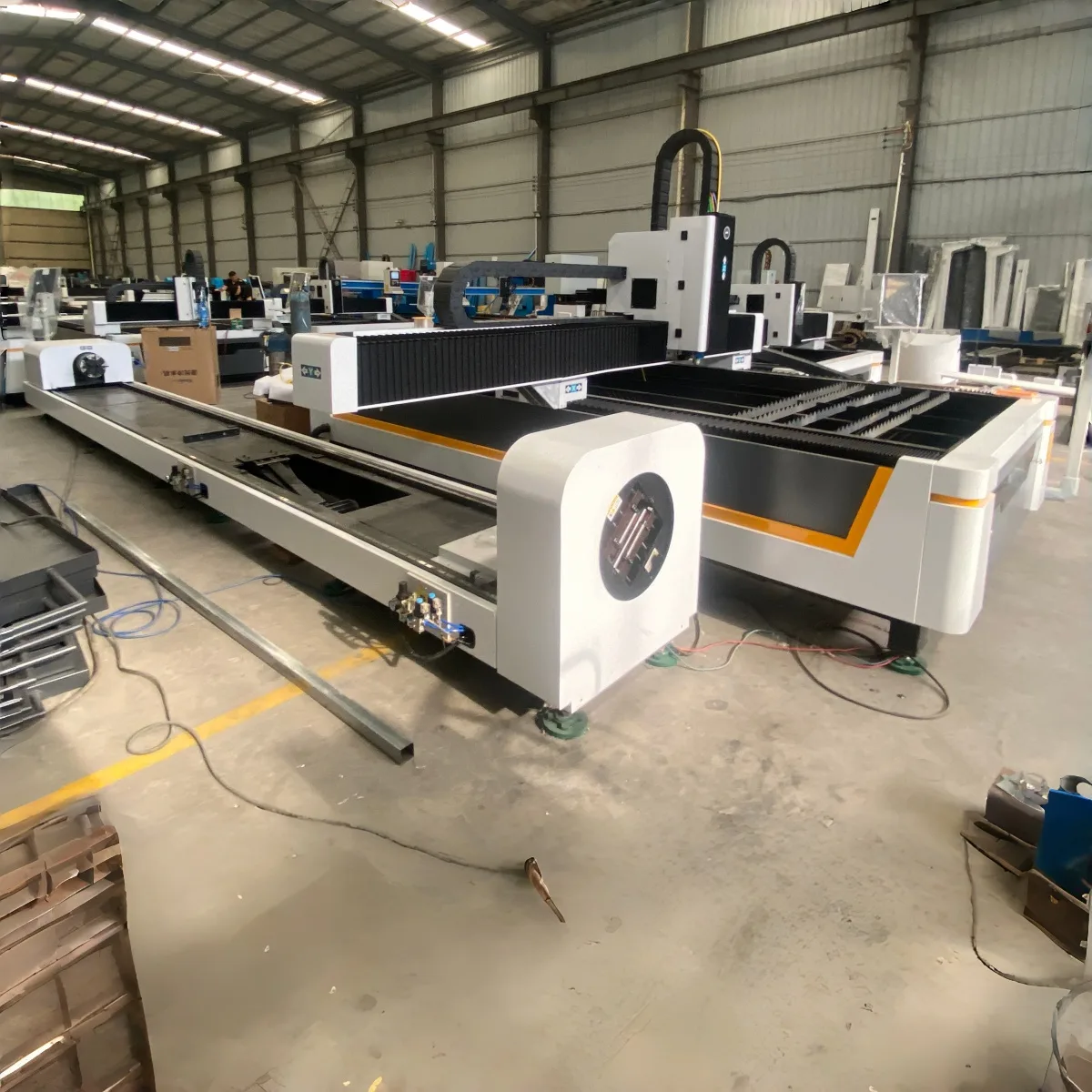

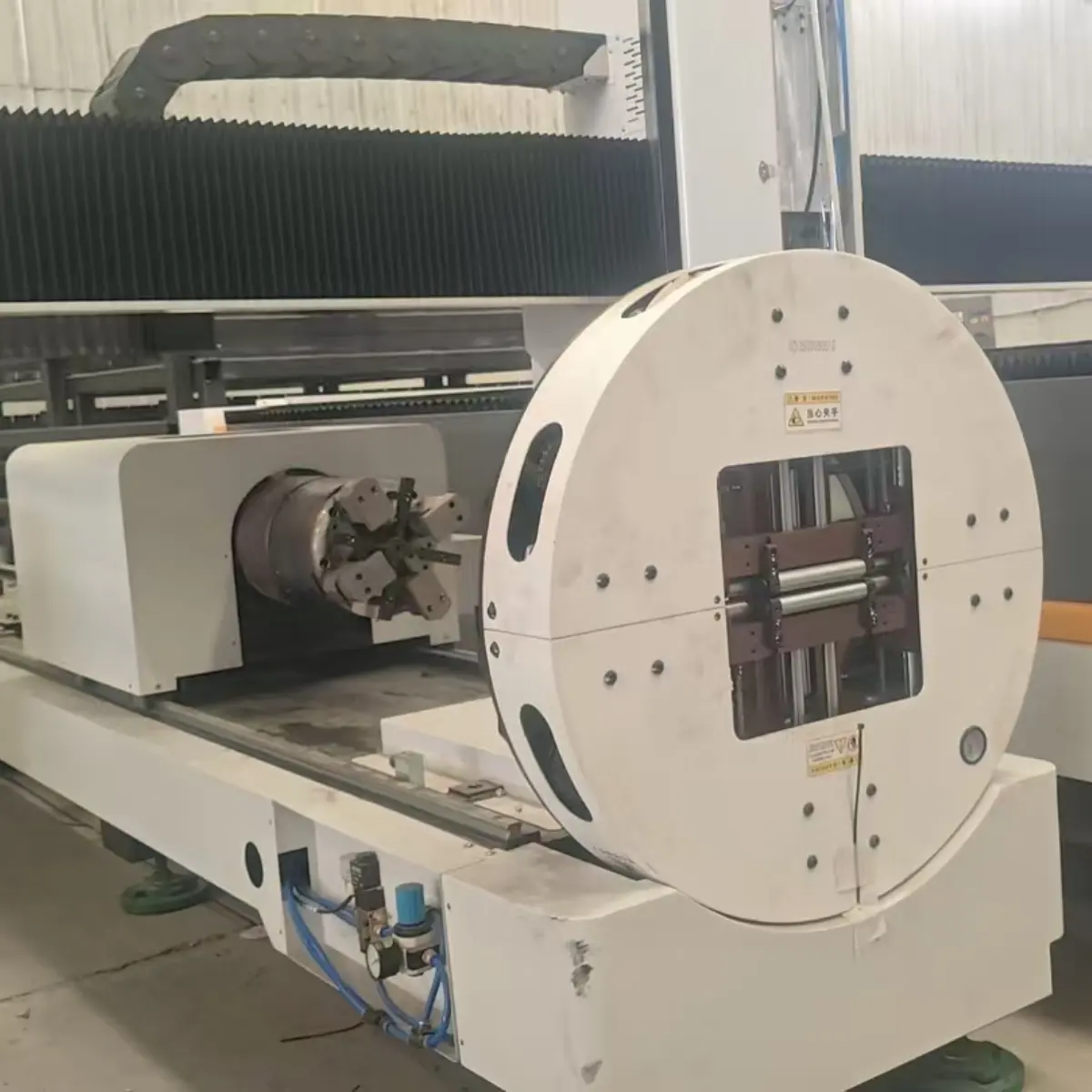

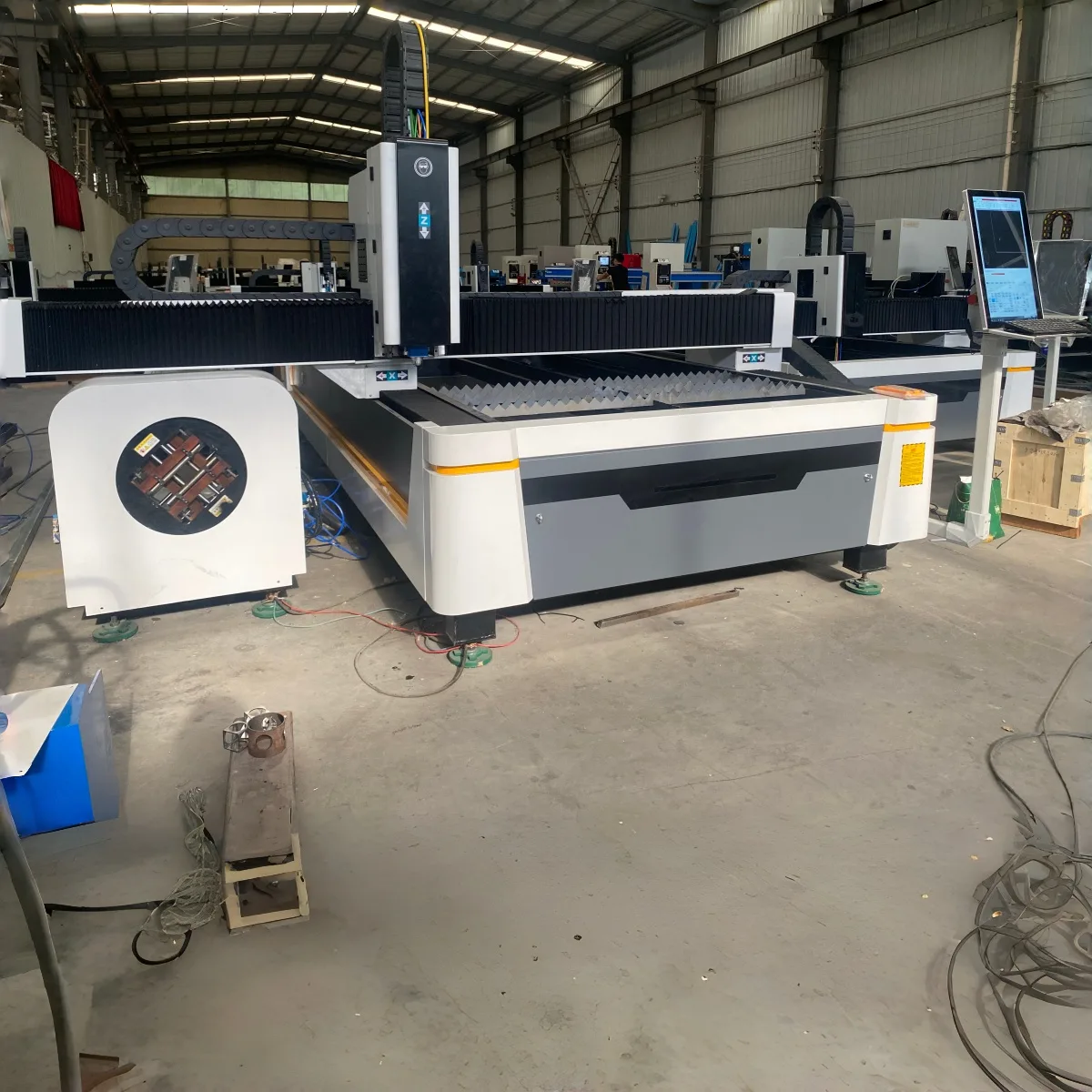

The LT3015 CNC Laser Cutting Machine is a multifunctional industrial powerhouse designed to handle steel plate cutting and metal tube processing within a single compact footprint. Featuring a heavy-duty 3000x1500mm working table and a specialized rotary axis for tubes up to 240mm diameter, this 2-in-1 system is equipped with a high-performance 3000W fiber laser source and a precision Raytools laser cutting head. Managed by an advanced Raytools controller, it ensures exceptional stability and clean, burr-free edges across carbon steel, stainless steel, and aluminum materials. This integrated design significantly reduces equipment investment costs and floor space requirements while delivering the production flexibility needed for modern metal fabrication and structural engineering workshops.
Product Features
￭Tube welding machine base.
￭Max 3000w laser source.
￭Raytools Laser head
￭Raytools controller.
Product Specification
| Name | Paramerers | Unit |
| Machine model | LT3015 | EOE |
| impulse stroke | 1500*3000 | mm |
| Laser Source | Max | 3000w |
| axis of rotation | EOE | 240*240*6000mm |
| Software | China | NC Studio |
| Guide | Taiwan | KOTEC |
| Rack | Germany | Vastun |
| Servo Motor | Leadshine | 750W |
| Reducer | Japan | shimpo |
| Minimum cutting width | 0.5-1 | mm |
| Maximum cutting thickness | 20Carbon steel
12 stainless steel |
mm |
| positioning accuracy | 0.02 | mm |
| Cutting accuracy | 0.2-0.6 | mm |
| Maximum moving speed | 70 | m/min |
| Electricity requirements | 380/50,60 | v/hz |
| Graphic Format Supported | PRO/E.UG, Solidworks | |
| Acceleration | 1 | G |
| Total power | 25 | kw |
| Presser of N2/O2/AIR | 15-20/6-8/15-30 | bar |
| Total Weight | 3.5 | t |
| Work per day | 10 | h |
| Oil Box | Auto Oil Injection System | |
| Delivery Time | 10 | Working days |
