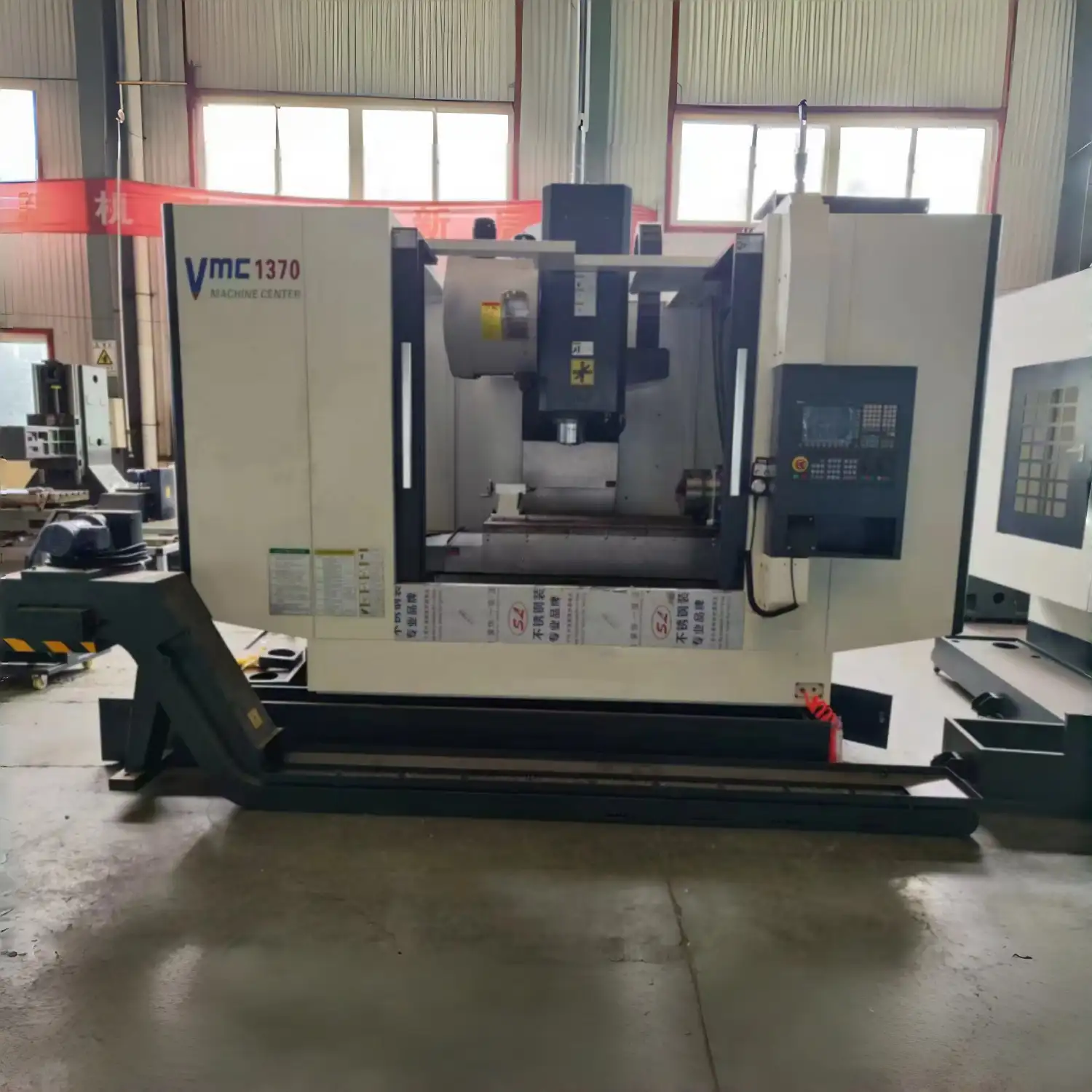

VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel
VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel

VMC1370 Vertical Machining Center | Heavy-Duty CNC Milling Center with 1300mm X-Axis Travel

  • Expansive Work Envelope:Features a large 1400 × 700mm table size with an X/Y/Z travel of 1300/700/700mm, ideal for oversized molds and structural components.
  • Superior Load Capacity:Robustly designed to support a maximum table load of 1000kg, ensuring stability for heavy industrial workpieces.

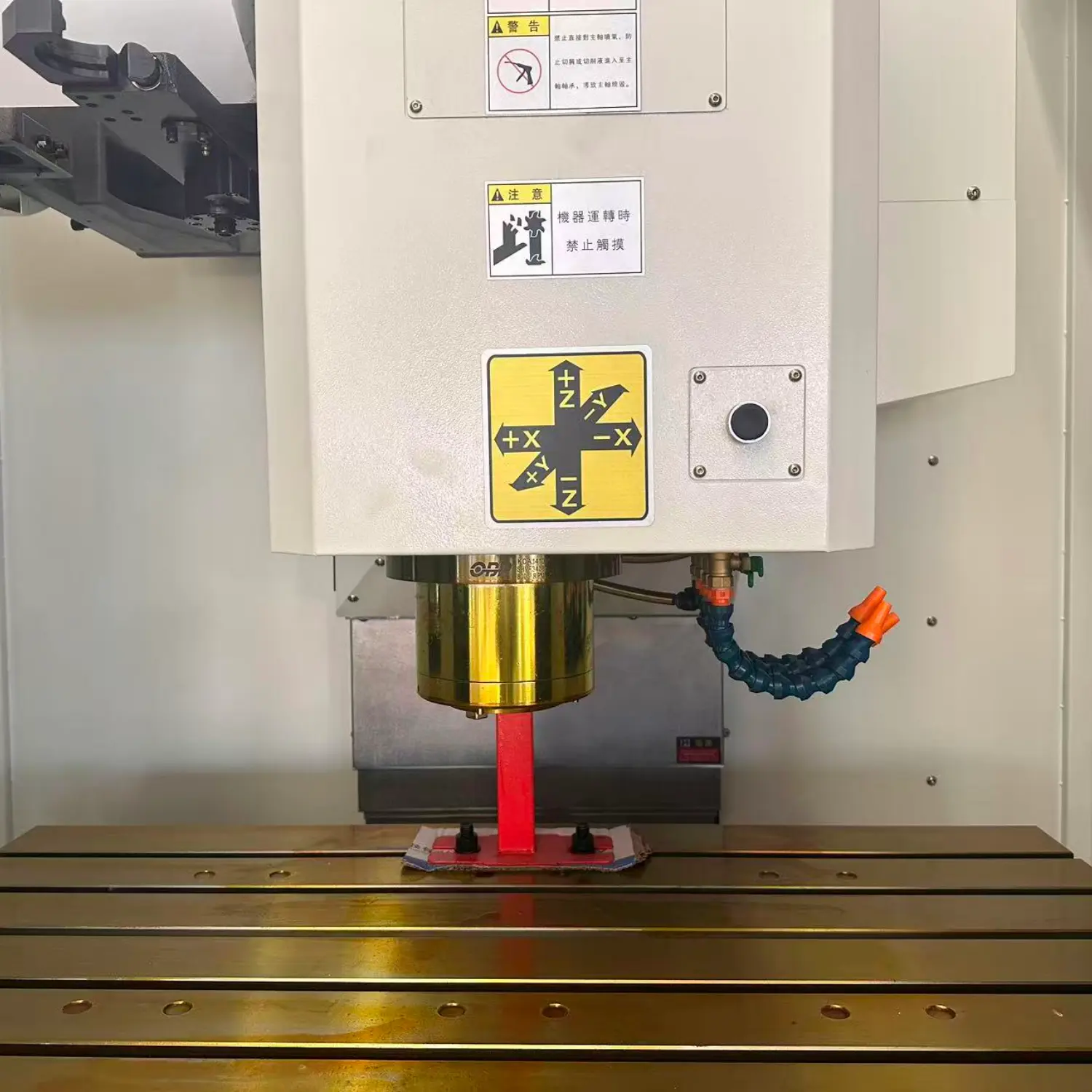

  • High-Performance Spindle:Standard BT40-150-8000 RPM belt-drive spindle (optional 10,000 RPM) provides high torque and precision for diverse materials.
  • Precision Standards:Achieves a positioning accuracy of 008mm and a repetitive positioning accuracy of 0.005mm.
Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    The Industrial Standard for Large-Scale Precision Machining

    The VMC1370 Vertical Machining Center is a high-rigidity powerhouse engineered for the most demanding 2026 manufacturing environments. Designed for manufacturers who need extra reach and weight capacity, its reinforced column and base structure provide the ultimate foundation for precision milling, drilling, and tapping. The machine excels in the production of large-scale molds, aerospace parts, and heavy-duty automotive components, maintaining a surface roughness of Ra 0.8 μm under rigorous conditions.







    Standard Accessory

    l Worktable size 1300×700mm

    • XYZ axis travel 1300/700/700mm

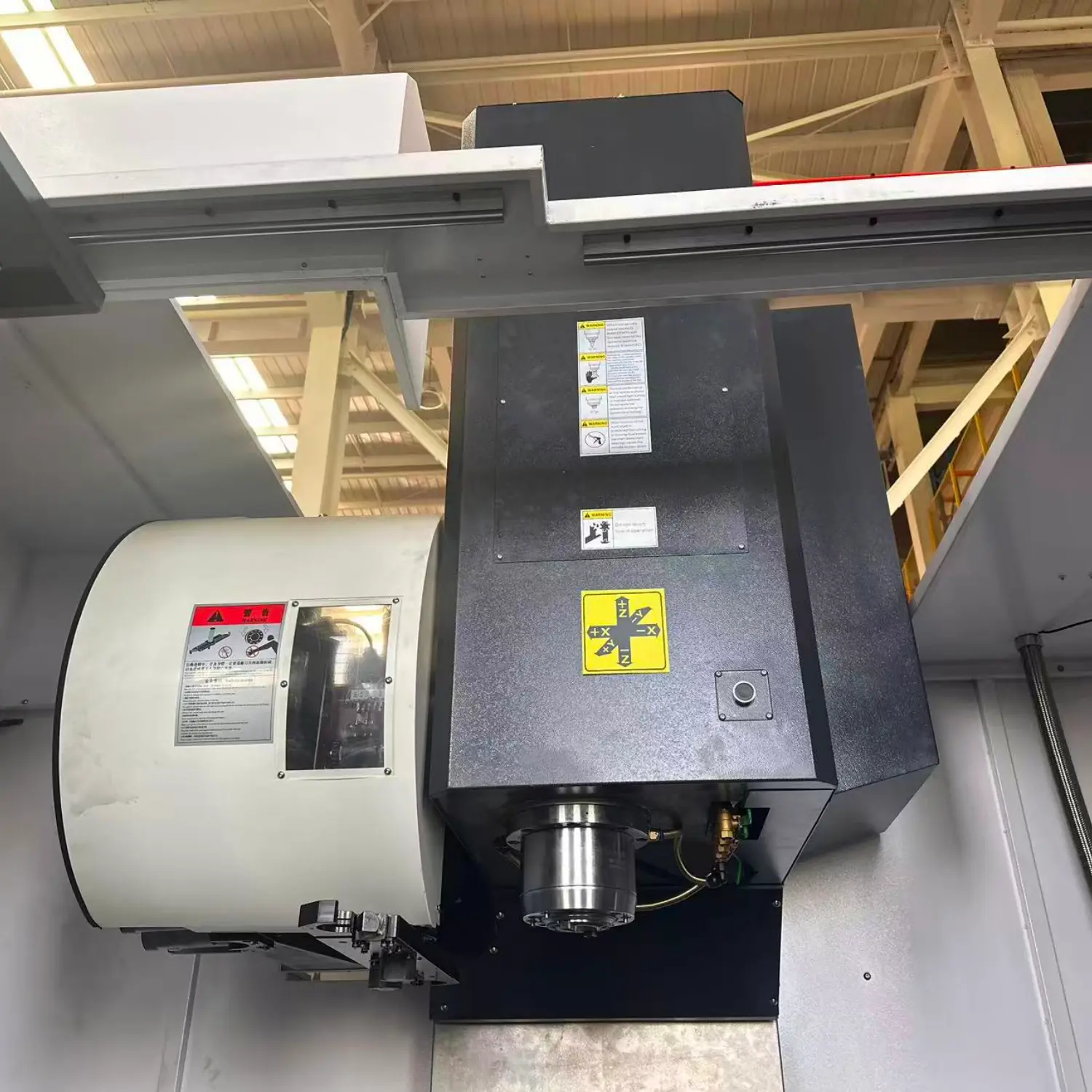

    • BT40- 24T tools from Taiwan

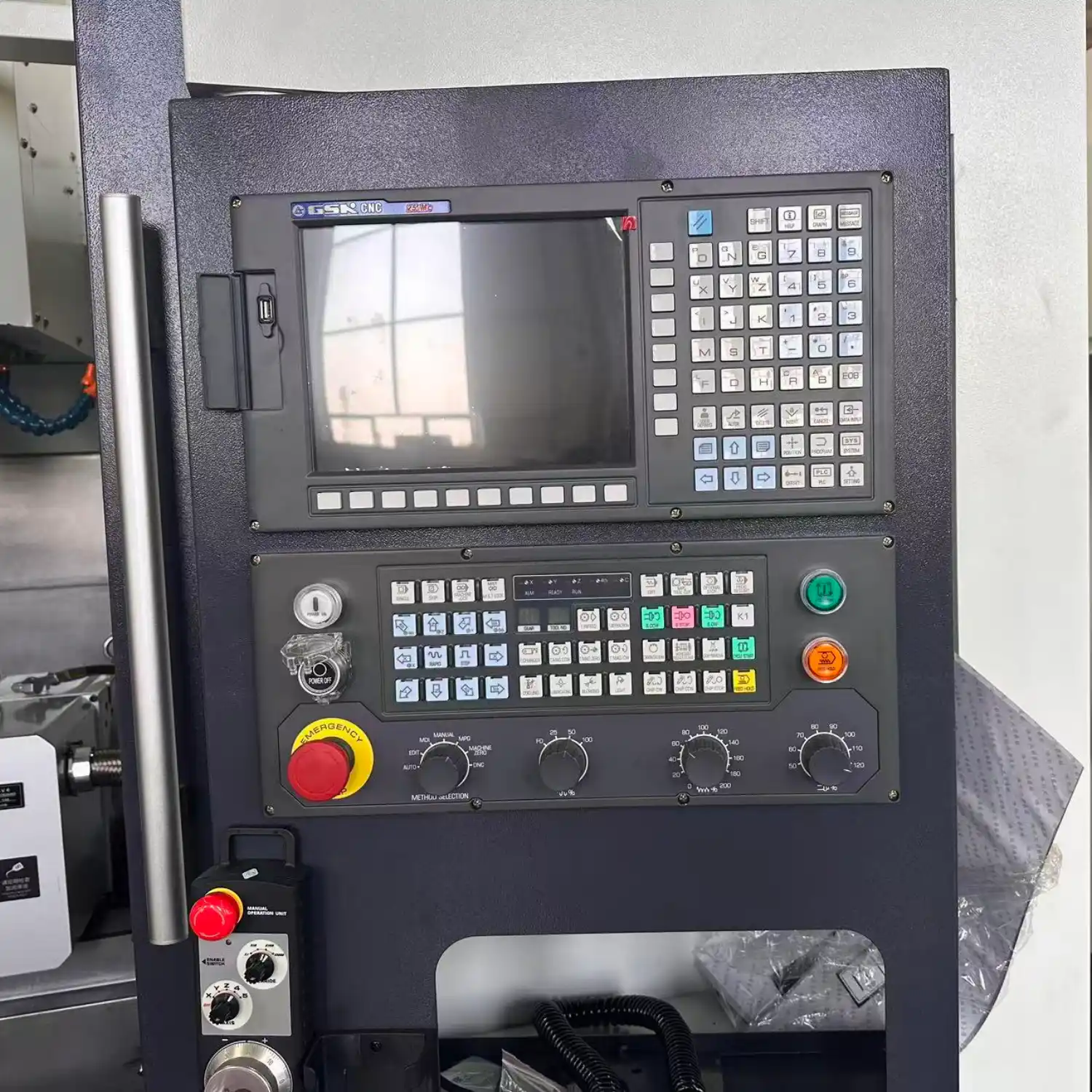

    • GSK/FANUC/SISMENS CNC SYSTEM
    • 3-axis Ball ScrewsSHAC



    Optional Accessory

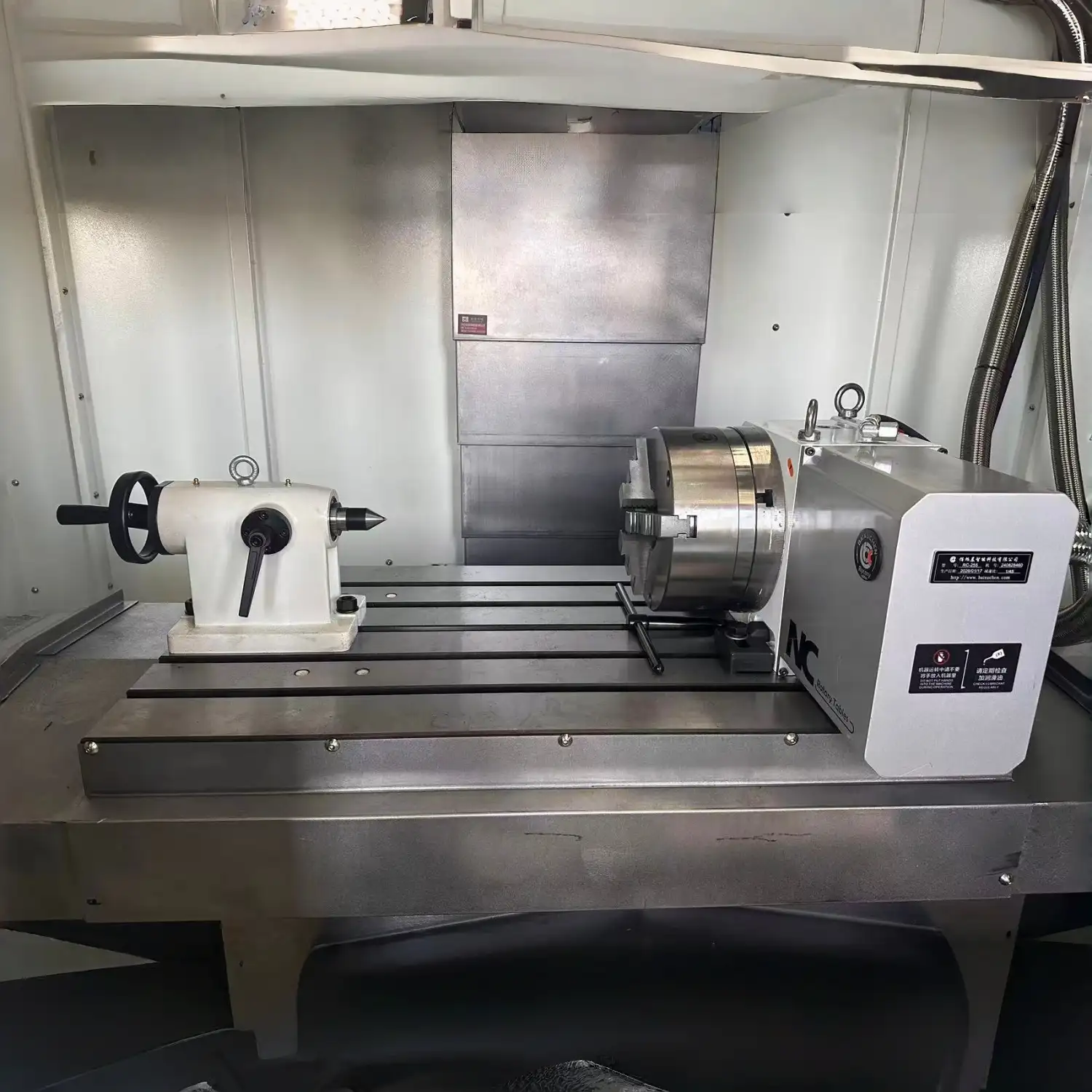

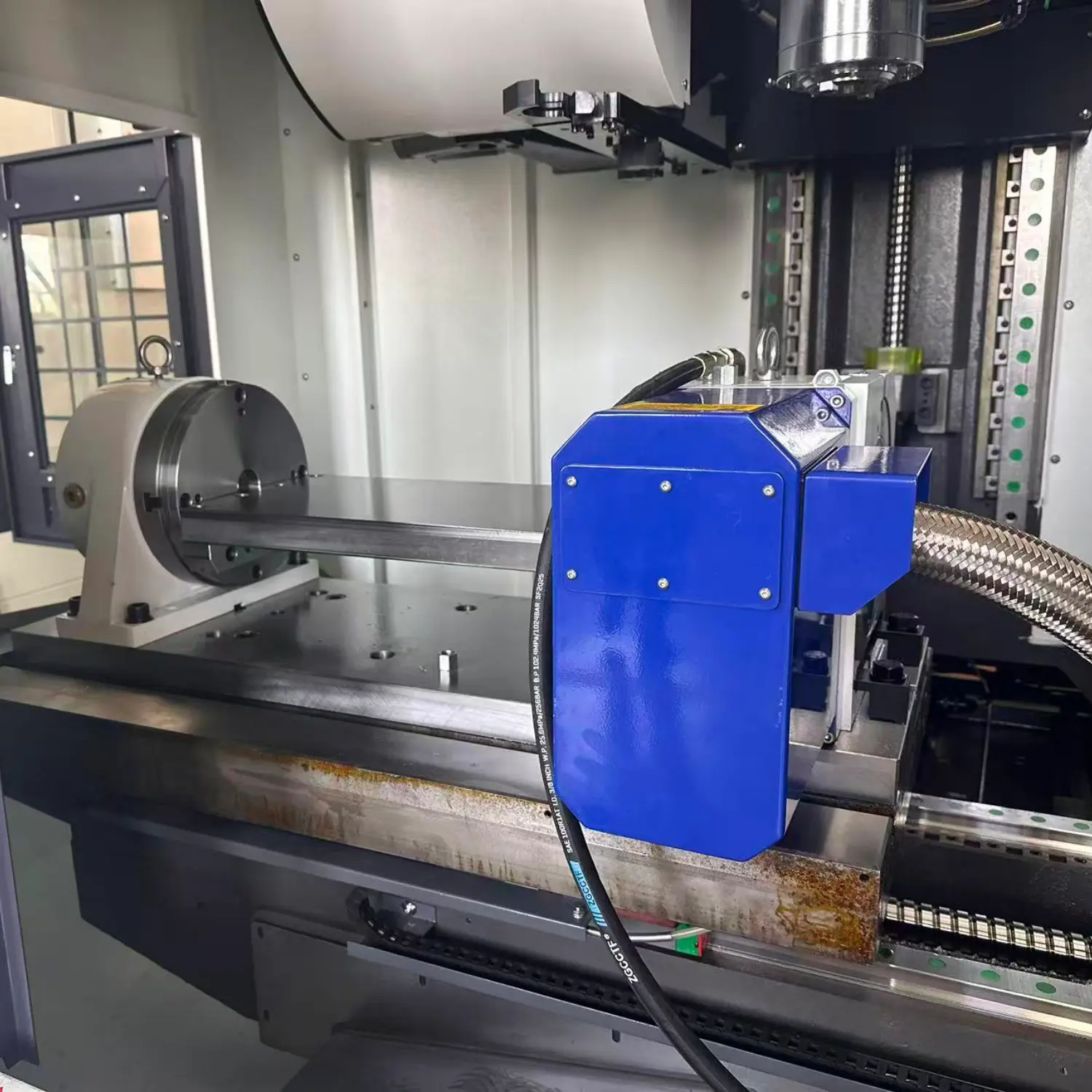

    • 4thaxis

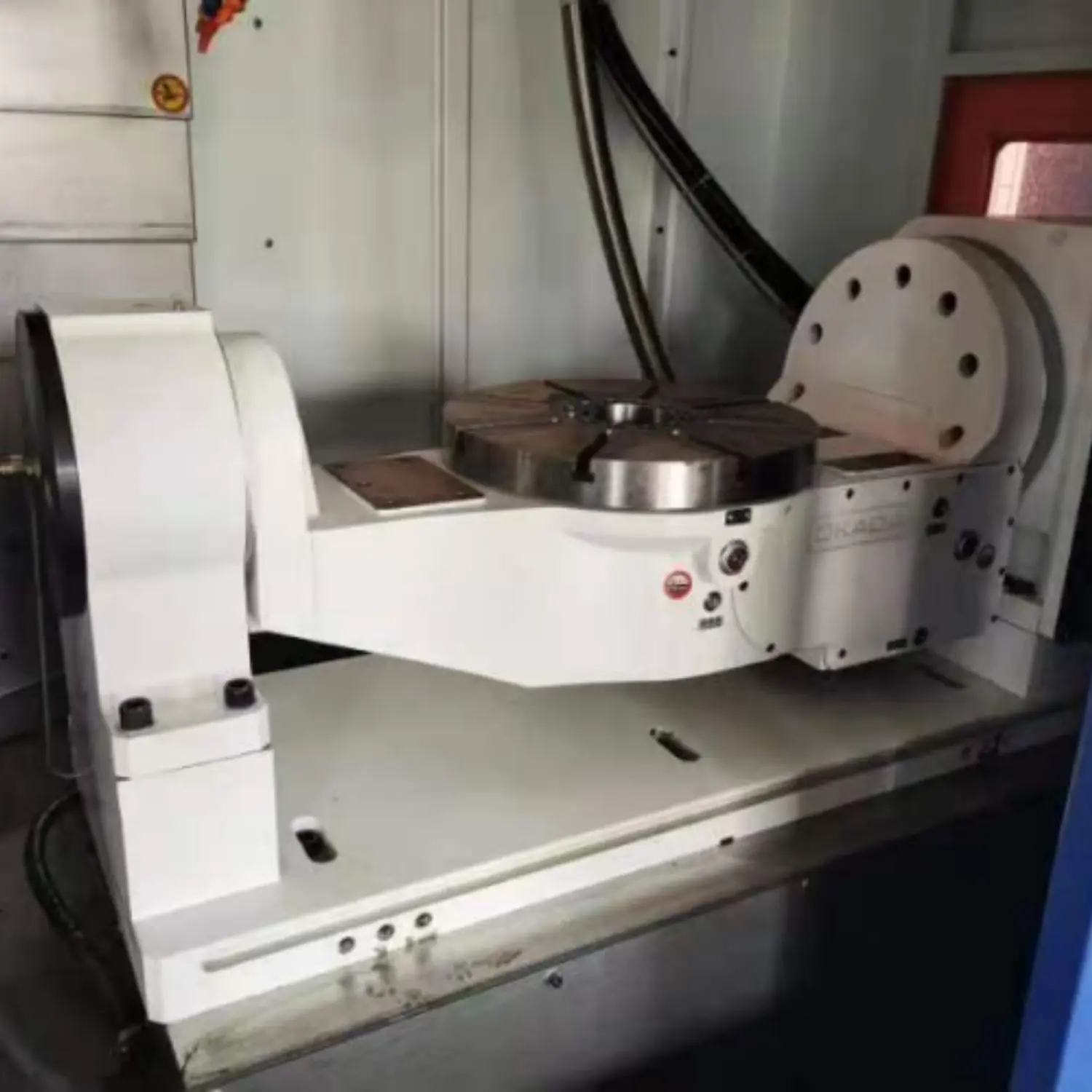

    • 5  axis



    Specification

    Travel
    X axis 1300mm
    Y  axis 700mm
    Z  axis 700mm
    Spindle end face to worktable 130-830mm
    Spindle center to column guide rail 767mm
    Move
    Fast X-axis movement 24m/min
    Fast Y-axis movement 24m/min
    Z-axis rapid movement 24m/min
    Cutting feed 1-10m/min
    Three axis servo motor torque 22/22/28N.m
    Worktable
    Workbench area 1300×700mm
    Max capacity 700Kg
    The height of the workbench from the ground About 1000mm
    T-shaped groove 5×18×115mm
    Spindle
    Standard configuration Belt
    speed 8000 rpm
    Spindle taper hole BT50
    Main motor power 11KW
    Accuracy
    Positioning accuracy (JIS standard) ±0.005/300mm
    Repetitive positioning accuracy (JIS standard) ±0.003mm
    Others
    Overall 3200×2500×2700mm


      Custom Containers FAQs

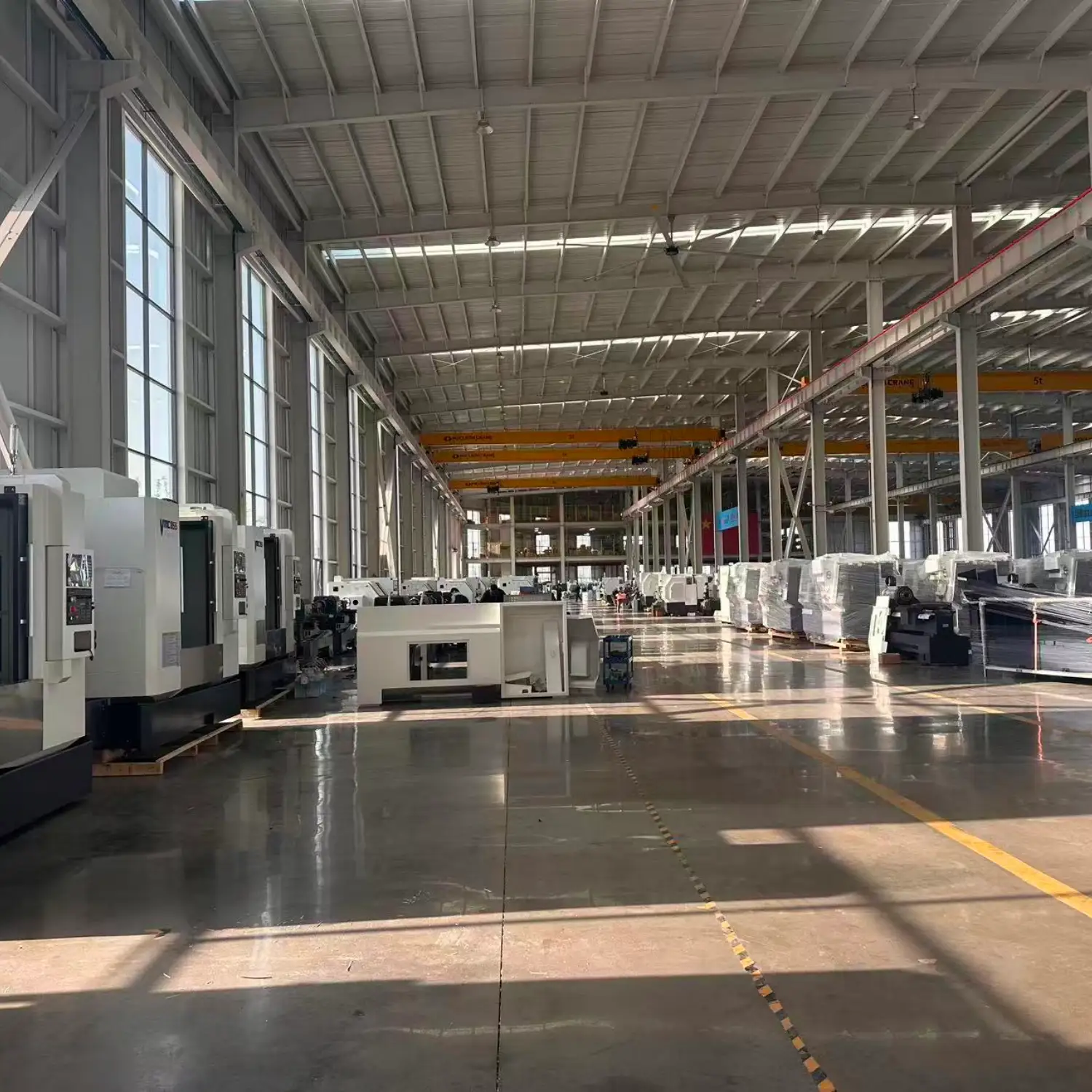

      Founded in 2010, Runlongjia Machinery boasts over 15 years of manufacturing and export experience. We are a professional manufacturer dedicated to CNC lathes, CNC machining centers, fiber laser cutting machines, plasma cutting machines, portable laser welders, conventional lathes and milling machines, delivering stable, trustworthy CNC machining solutions to customers worldwide.

      Choosing the right machine depends on your workpiece size, material, machining accuracy, production capacity and budget. Our engineers can recommend the most suitable CNC lathe, machining center or laser cutting machine based on your drawings or machining requirements.

      We offer mid-to-high quality machines at competitive prices. Instead of paying for expensive brand premiums, you receive reliable performance, stable quality and excellent value for your investment.

      Yes. Our machines are manufactured under the ISO 9001 quality management system. For specific markets, we can also provide certifications such as CE, SONCAP and GOST to meet local import requirements and facilitate customs clearance.

      Telegraphic Transfer (T/T) is our standard payment method. Other payment options may also be discussed depending on the order value and long-term cooperation.

      Yes. We support FOB, CIF and other international trade terms. If required, we can arrange sea freight and assist with shipping to your destination through our logistics partners.

      All of our machines come with a 12-month warranty from the ex-factory date. During the warranty period, we provide free online technical support and guidance whenever needed.
