TCK40 Slant Bed CNC Lathe Machine | High-Efficiency Automated Turning Center for Precision Parts
TCK40 Slant Bed CNC Lathe Machine | High-Efficiency Automated Turning Center for Precision Parts
TCK40 Slant Bed CNC Lathe Machine | High-Efficiency Automated Turning Center for Precision Parts

TCK40 Slant Bed CNC Lathe Machine | High-Efficiency Automated Turning Center for Precision Parts

  • Advanced Tooling:Equipped with an 8-station servo hydraulic turret for rapid tool changes and complex multi-process machining.
  • Precision Clamping:Features an 8-inch hydraulic chuck and a high-speed spindle range of 100-3000 RPM for consistent accuracy.
  • Superior Accuracy:Delivers an X/Z axis repeating positioning accuracy of 003mm.
Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    The Efficient Solution for Batch Automated Production

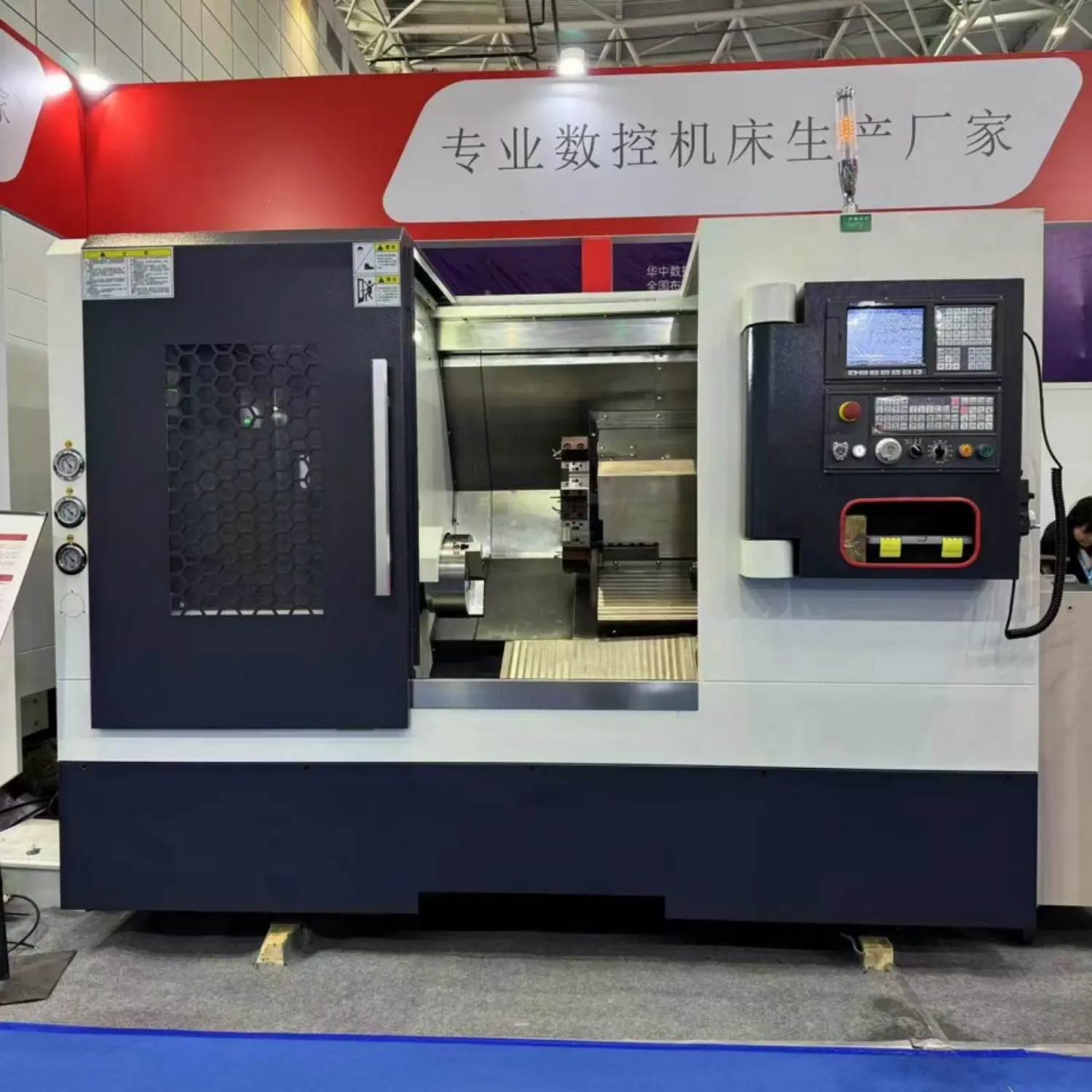

    The TCK40 Slant Bed CNC Lathe Machine is engineered as an ideal tool for achieving high-volume, automated production without compromising on precision. Its specialized slant bed design provides superior chip disposal and improved ergonomics compared to traditional flat-bed models. This configuration, paired with a robust A2-5 spindle nose, ensures the rigidity required for high-speed finishing in demanding manufacturing environments.

    Technical Excellence & Operational Flexibility

    Designed to meet 2026 industrial standards for small-to-medium part manufacturing, the TCK40 balances power with extreme precision:



    • Enhanced Feed System:With an X-axis travel of 200mm and Z-axis travel of 400mm, the machine handles a wide variety of shaft and disk components with a maximum swing diameter of 400mm.

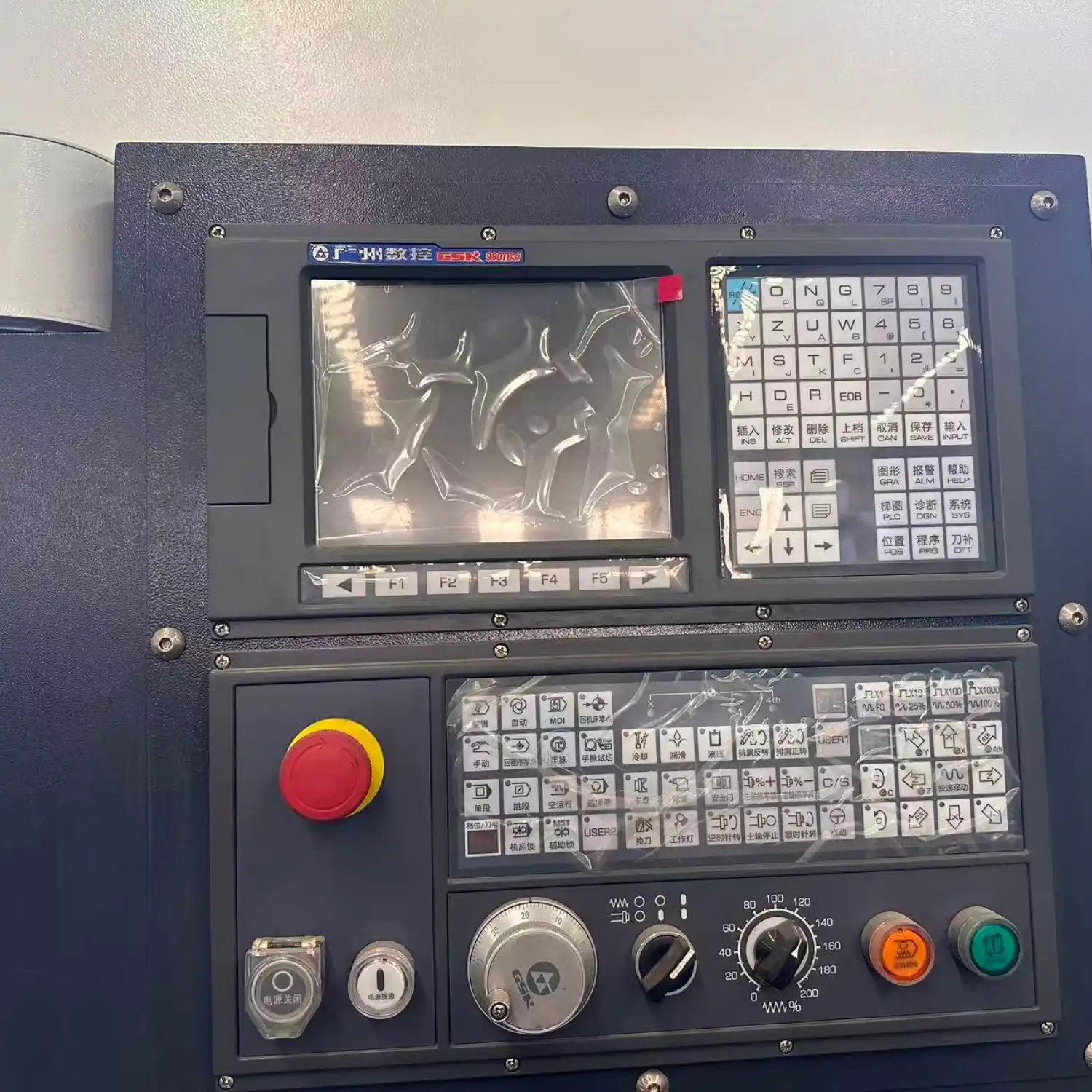

    • Reliable Control:Integrated with the Fanuc CNC System, providing a world-class interface for complex programming and reliable automated cycles.



    • Versatile Workholding:Utilizes a spring clip workpiece clamping method as standard, optimized for the fast processing of bar materials through its 40mm bar through-hole.



    • Industrial Build:Weighing approximately 1500kg, the machine’s mass is strategically distributed to dampen vibrations, maintaining accuracy even during continuous high-speed operations.

    Standard Accessory

    • Maximum turning diameter 400mm
    • Maximum processing length 400mm
    • The maximum bar through diameter 40mm
    • 8-inch hydraulic chuck

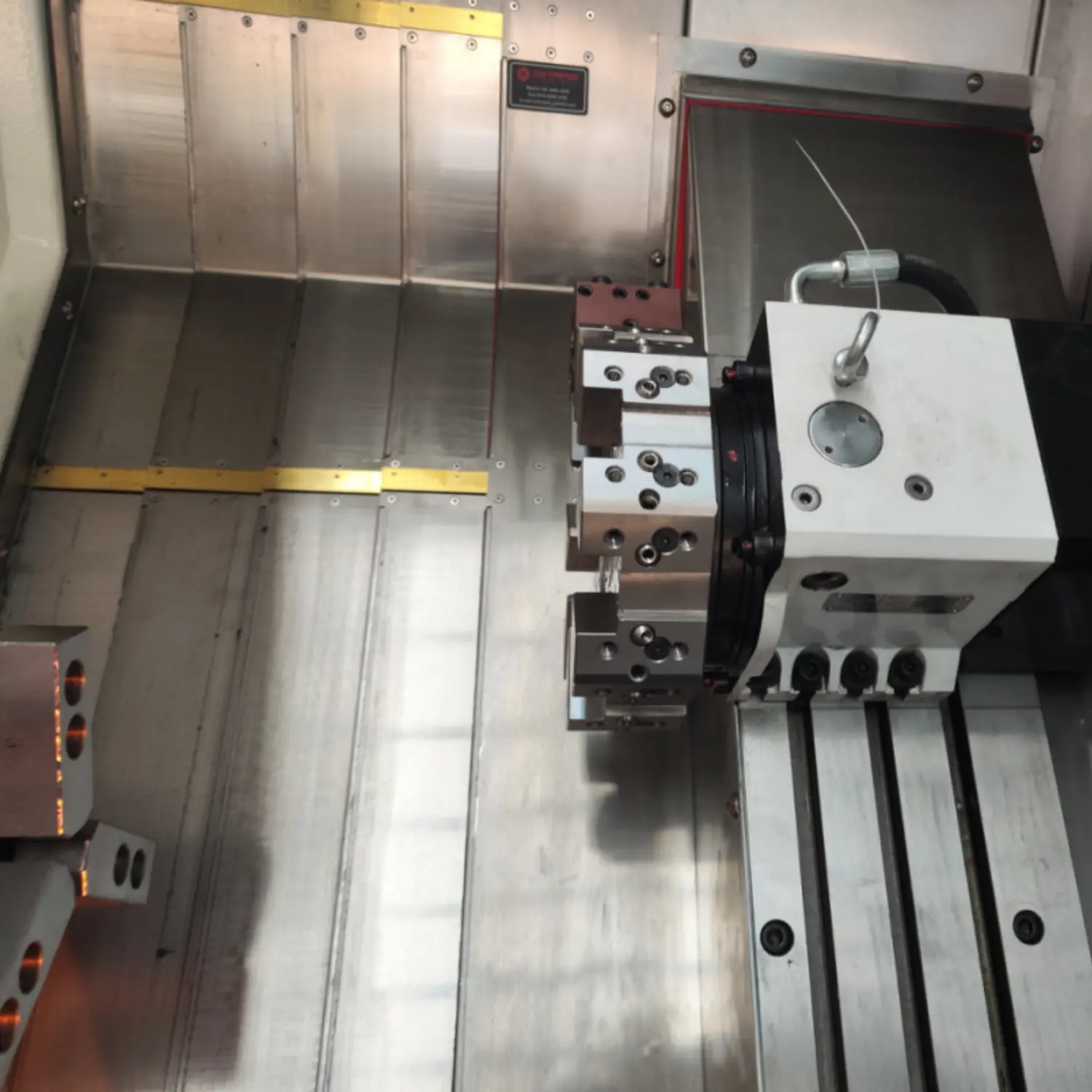

    • 8-station servo hydraulic turret
    • Fanuc/GSK/SIEMENSCNC System

    Specification

    Item Unit TCK40
    Max.swing diameter mm 400
    Swing over cross slide mm 120
    Max.turning length mm 400
    Max.bar through-hole mm 40
    Work piece clapping method N/A Spring clip
    Spindle speed range Rpm 100-3000
    Spindle nose size N/A A2-5
    X-axis rapid traverse m/min 24m（3210）
    Z-axis rapid traverse m/min 24m（3210）
    X-axis travel mm 200
    Z-axis travel mm 400
    X/Z axis repeating positioning accuracy mm 0.003
    Tool holder type N/A 8 station servo
    Overall size(L*W*H) mm 2100*1450*1850
    Height from bed bottom to center of spindle mm 990
    Net weight kg About 1500




      Custom Containers FAQs

      Founded in 2010, Runlongjia Machinery boasts over 15 years of manufacturing and export experience. We are a professional manufacturer dedicated to CNC lathes, CNC machining centers, fiber laser cutting machines, plasma cutting machines, portable laser welders, conventional lathes and milling machines, delivering stable, trustworthy CNC machining solutions to customers worldwide.

      Choosing the right machine depends on your workpiece size, material, machining accuracy, production capacity and budget. Our engineers can recommend the most suitable CNC lathe, machining center or laser cutting machine based on your drawings or machining requirements.

      We offer mid-to-high quality machines at competitive prices. Instead of paying for expensive brand premiums, you receive reliable performance, stable quality and excellent value for your investment.

      Yes. Our machines are manufactured under the ISO 9001 quality management system. For specific markets, we can also provide certifications such as CE, SONCAP and GOST to meet local import requirements and facilitate customs clearance.

      Telegraphic Transfer (T/T) is our standard payment method. Other payment options may also be discussed depending on the order value and long-term cooperation.

      Yes. We support FOB, CIF and other international trade terms. If required, we can arrange sea freight and assist with shipping to your destination through our logistics partners.

      All of our machines come with a 12-month warranty from the ex-factory date. During the warranty period, we provide free online technical support and guidance whenever needed.
