Portable 3-in-1 Handheld Fiber Laser Welder | Laser Cleaning, Rust Removal & Cutting System
Portable 3-in-1 Handheld Fiber Laser Welder | Laser Cleaning, Rust Removal & Cutting System
Portable 3-in-1 Handheld Fiber Laser Welder | Laser Cleaning, Rust Removal & Cutting System
Portable 3-in-1 Handheld Fiber Laser Welder | Laser Cleaning, Rust Removal & Cutting System

Portable 3-in-1 Handheld Fiber Laser Welder | Laser Cleaning, Rust Removal & Cutting System

  • Versatile 3-in-1 Functionality:Integrated system supports high-efficiency laser welding, deep laser cleaning (rust/oil removal), and precise thin-metal laser cutting.
  • Compact & Portable Design:Ergonomic handheld laser gun with a lightweight fiber cable, allowing for flexible operation in complex workshop environments.
  • Superior Welding Performance:Delivers smooth, high-strength welds with minimal thermal deformation, significantly reducing the need for post-weld grinding.
  • Non-Destructive Cleaning:Eco-friendly laser cleaning technology removes rust, paint, and oxides without damaging the base material or using chemicals.
  • Smart Touchscreen Control:User-friendly interface with pre-set parameters for different materials (stainless steel, carbon steel, aluminum) for easy operation.
  • Enhanced Safety Features:Includes multiple safety alarms, a dual-action trigger, and emergency stop protection to ensure operator safety.
Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    Integrated Laser Solution for Modern Manufacturing

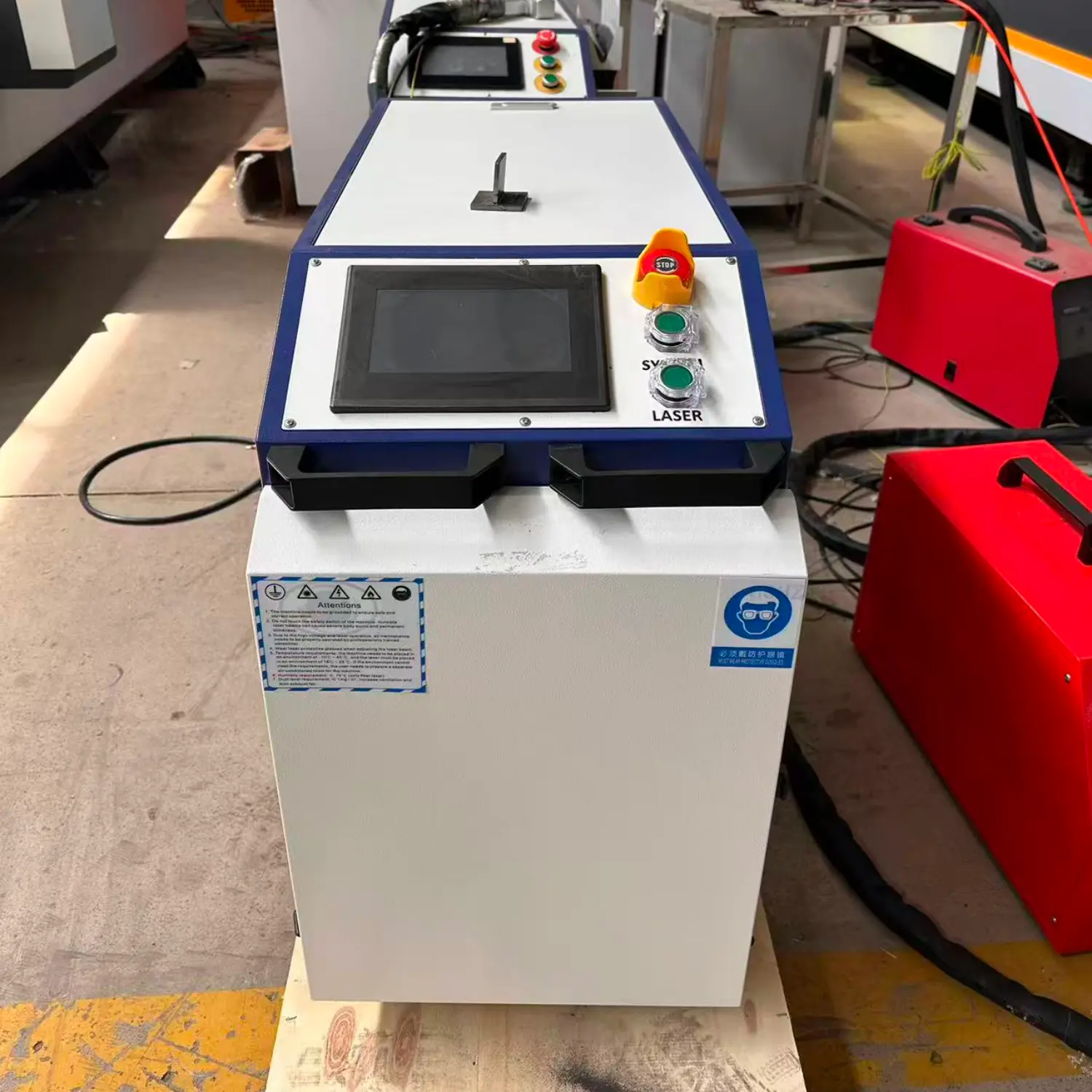

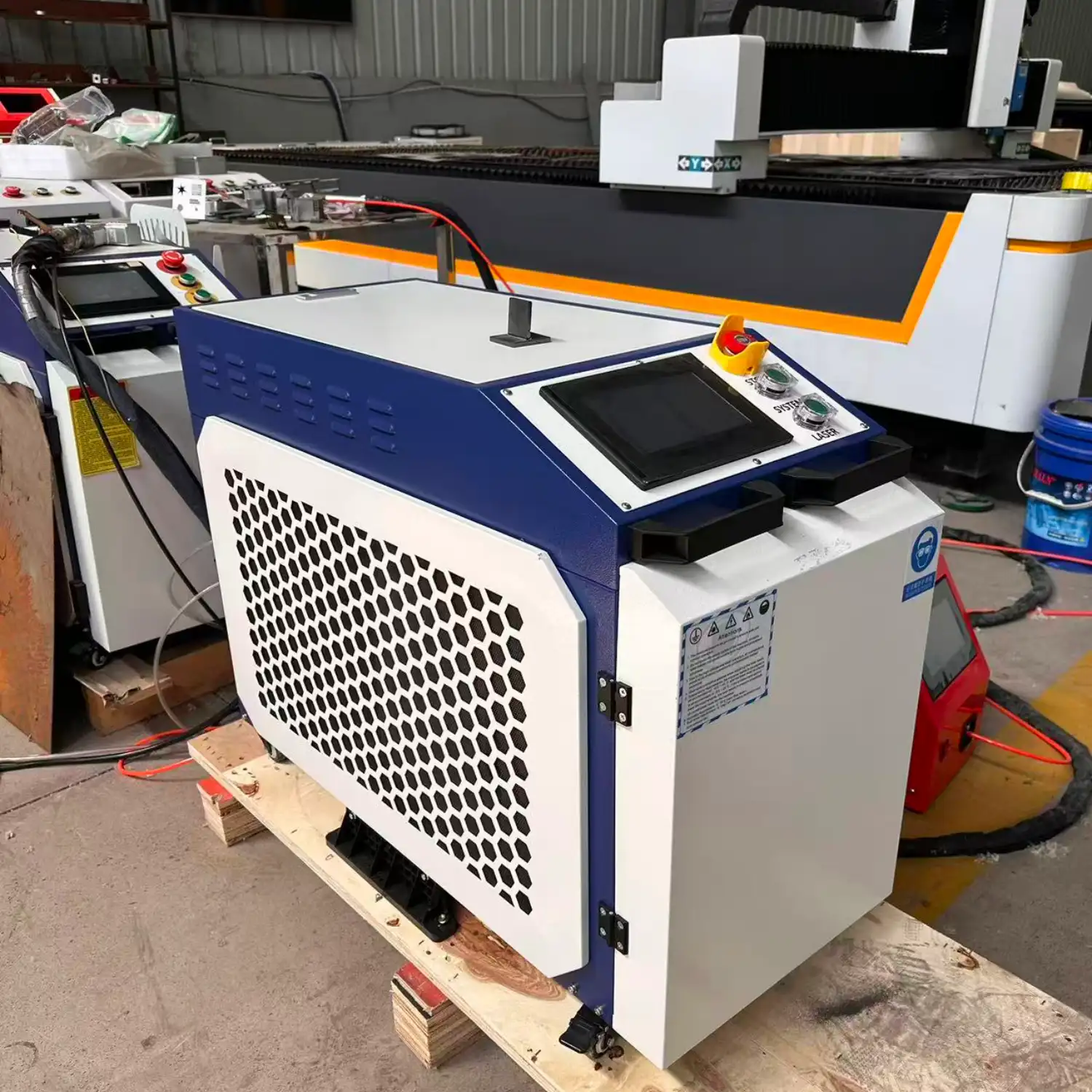

    The Portable 3-in-1 Handheld Fiber Laser Machine is a revolutionary tool designed to replace traditional TIG/MIG welding and manual grinding processes. By combining welding, cleaning, and cutting into a single portable unit, it offers unmatched versatility for maintenance, repair, and small-to-medium scale production. Whether you are removing heavy rust from an old component or performing precision welding on stainless steel, this 2026-gen laser system provides the power and control needed for professional results.

    Efficiency Meets Precision

    Designed for the diverse needs of modern workshops, this system focuses on reducing labor costs and increasing throughput:



    • High-Speed Processing:Welding speeds are up to 4–10 times faster than traditional methods, with a deep penetration and a clean, narrow weld bead.
    • Eco-Friendly Rust Removal:The laser cleaning mode efficiently vaporizes surface contaminants, making it an ideal solution for pre-welding preparation and post-welding cleanup.
    • Low Operational Cost:Featuring a long-life fiber laser source with minimal maintenance requirements and low power consumption.
    • Flexible Application:Suitable for a wide range of metals, including stainless steel, aluminum alloys, galvanized sheets, and carbon steel.

    Standard Accessory

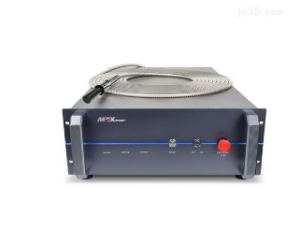

    • Laser source

    International famous brand:

    It has higher photoelectric conversion efficiency (>30%), better and more stable beam quality, and more powerful anti-reverse ability.

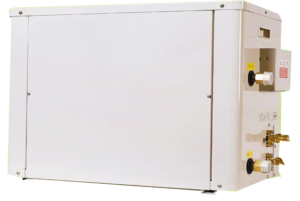

    • Chiller

    High quality chiller, stable performance, energy saving and environmental protection. Small size and flexible application to the production process.

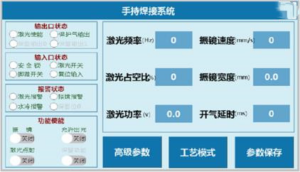

    • EOE control system

    A new generation of control systems, a good interactive control system, better control of the laser light.

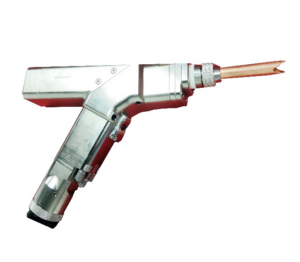

    • Laser head

    Hand-held oscillating laser head, light in shape, advanced in structure, reliable in performance, comfortable in grip, easy to grasp in one hand, easy to use and easy to use.



    • Process manual

    Based on years of industry application experience and data accumulation, the company provides users with relatively accurate and detailed process solutions.

    Specification

    NO. Description  Specifications
    1 Model 3 in 1 handheld laser welding machine
    2 Laser source EOE 3000W
    3 The laser wavelength 1080nm
    4 Optical fiber core diameter 50um
    5 Fiber length 10m
    6 Width of galvanometer 0.5-5mm
    7 Scanning speed of galvanometer ≤8000mm/s
    8 Welding speed 0-120mm/s
    9 Cooling methods Intelligent double temperature water cooling machine
    10 Operating ambient temperature range 15-35℃
    11 Chiller EOE
    12 Control system EOE
    13 Welding head/ cutting head EOE
    14 Cleaning head EOE
    15 Welding thickness Max 10mm carbon steel and stainless steel
    16 Cleaning thickness 0.2mm
    17 Operating environment humidity range ＜70% no lon
    18 Welding cracks ≤0.5mm
    19 Voltage 380V ±10%
    20 Total Power ≤7.5kw
    21 Machine Size 900*430*720mm
    22 Packing size 1030*650*1260mm
    23 Weight 250KGS
    24 Warranty 2.5 years




      Custom Containers FAQs

      Founded in 2010, Runlongjia Machinery boasts over 15 years of manufacturing and export experience. We are a professional manufacturer dedicated to CNC lathes, CNC machining centers, fiber laser cutting machines, plasma cutting machines, portable laser welders, conventional lathes and milling machines, delivering stable, trustworthy CNC machining solutions to customers worldwide.

      Choosing the right machine depends on your workpiece size, material, machining accuracy, production capacity and budget. Our engineers can recommend the most suitable CNC lathe, machining center or laser cutting machine based on your drawings or machining requirements.

      We offer mid-to-high quality machines at competitive prices. Instead of paying for expensive brand premiums, you receive reliable performance, stable quality and excellent value for your investment.

      Yes. Our machines are manufactured under the ISO 9001 quality management system. For specific markets, we can also provide certifications such as CE, SONCAP and GOST to meet local import requirements and facilitate customs clearance.

      Telegraphic Transfer (T/T) is our standard payment method. Other payment options may also be discussed depending on the order value and long-term cooperation.

      Yes. We support FOB, CIF and other international trade terms. If required, we can arrange sea freight and assist with shipping to your destination through our logistics partners.

      All of our machines come with a 12-month warranty from the ex-factory date. During the warranty period, we provide free online technical support and guidance whenever needed.
