PG3060 Gantry Type CNC Plasma Cutting Machine – Industrial Large-Format Heavy Duty Metal Cutter with 2-Year Warranty

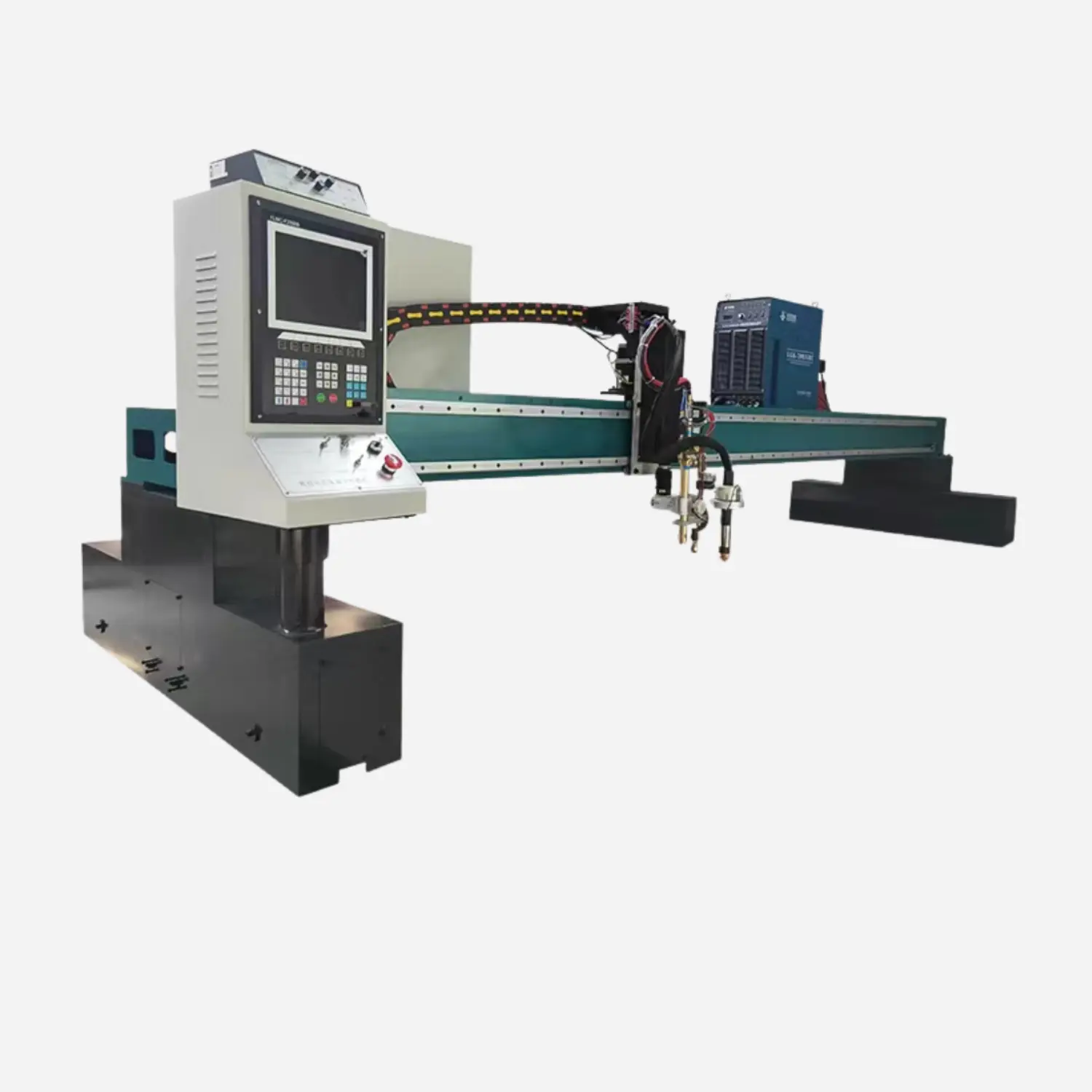

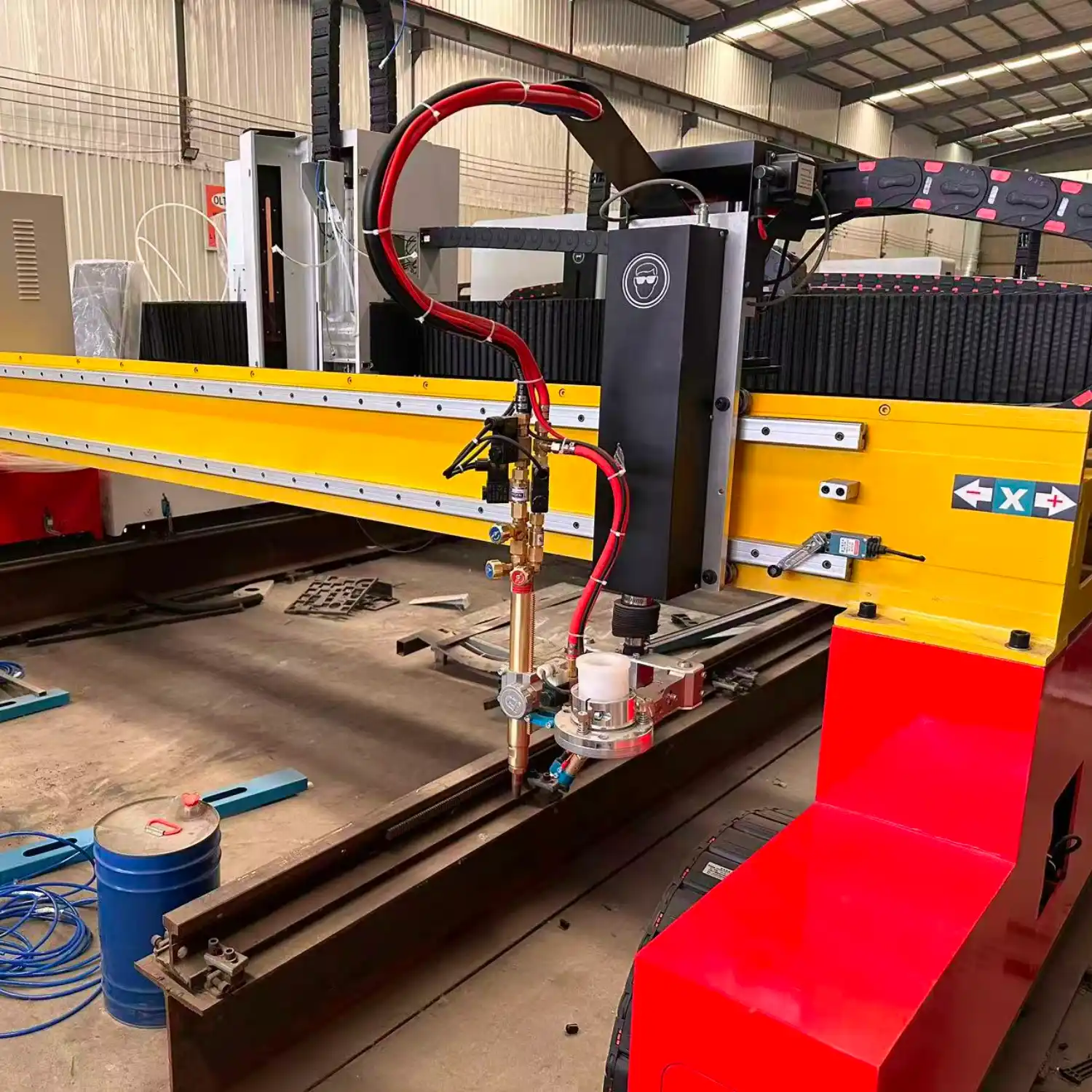

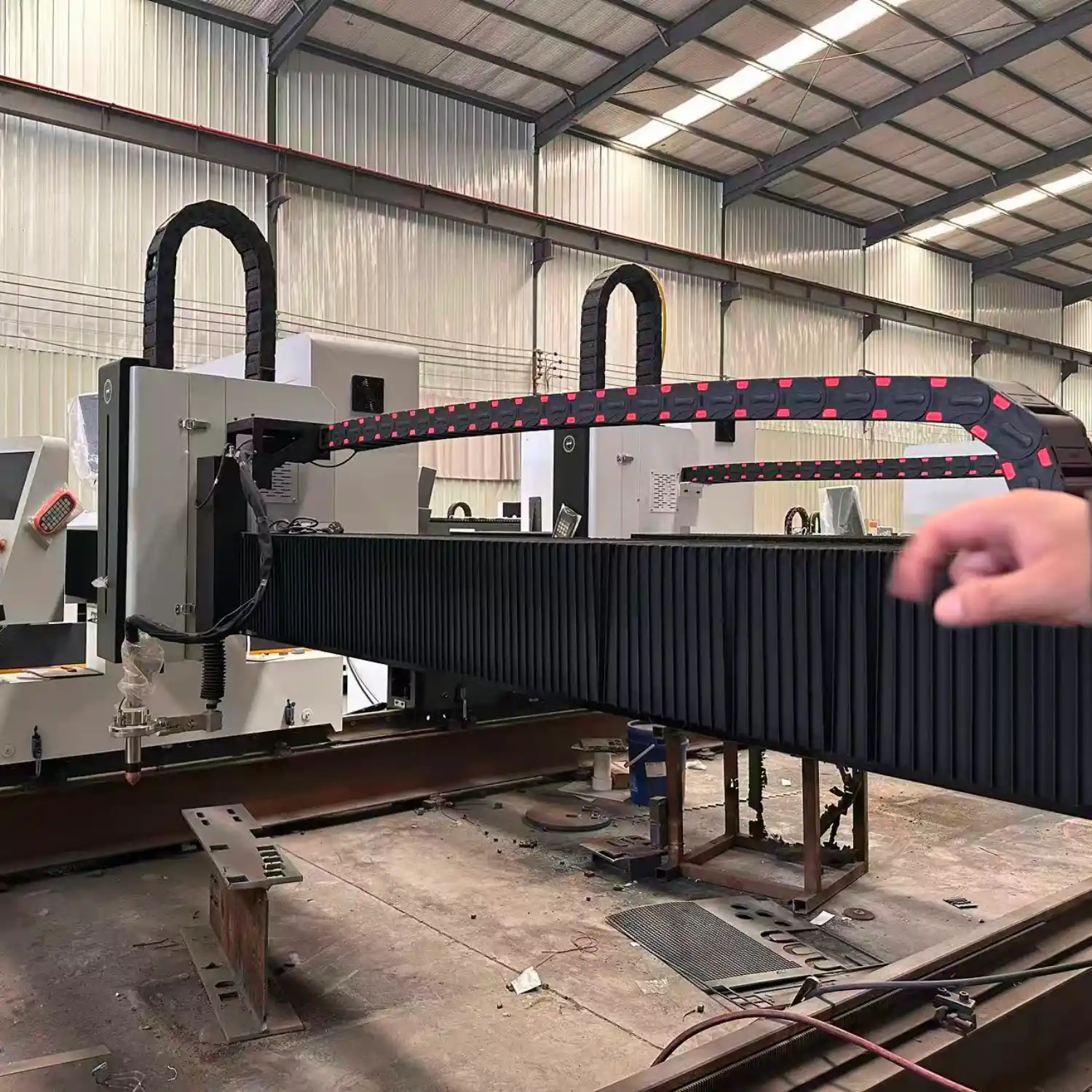

The PG3060 is a high-performance gantry-style CNC plasma cutting system featuring a massive 3000x6000mm effective cutting area, advanced self-aligning software, and a dual-layer anti-rust protected frame designed for high-intensity industrial fabrication.

Get a Quote Now

GET INSTANT QUOTE


    FEATURES

    Product Details

    Description

    The PG3060 Gantry Type CNC Plasma Cutting Machine is engineered for large-scale industrial precision, featuring a robust frame treated with dual-layer professional anti-rust coating for maximum longevity. This system stands out with its intelligent self-adjusting software, which automatically aligns the cutting path to the metal sheet’s orientation, drastically reducing material waste on expensive large-format plates. Optimized for global operations, it supports multi-language interfaces and includes automatic nesting to minimize cycle times. Built with super-soft shielded cabling to eliminate signal interference, the PG3060 is so reliable it comes with an industry-leading 2-year warranty. Every machine includes a 2GB library of 1,000+ ready-to-cut designs and comprehensive “step-by-step” video tutorials, ensuring even beginners can achieve professional results and rapid ROI.

    Product Feature

    • Mechanical design heavy fuselage
    • 3000*6000mm work area
    • China LGK 200A plasma source
    • Professional chillers

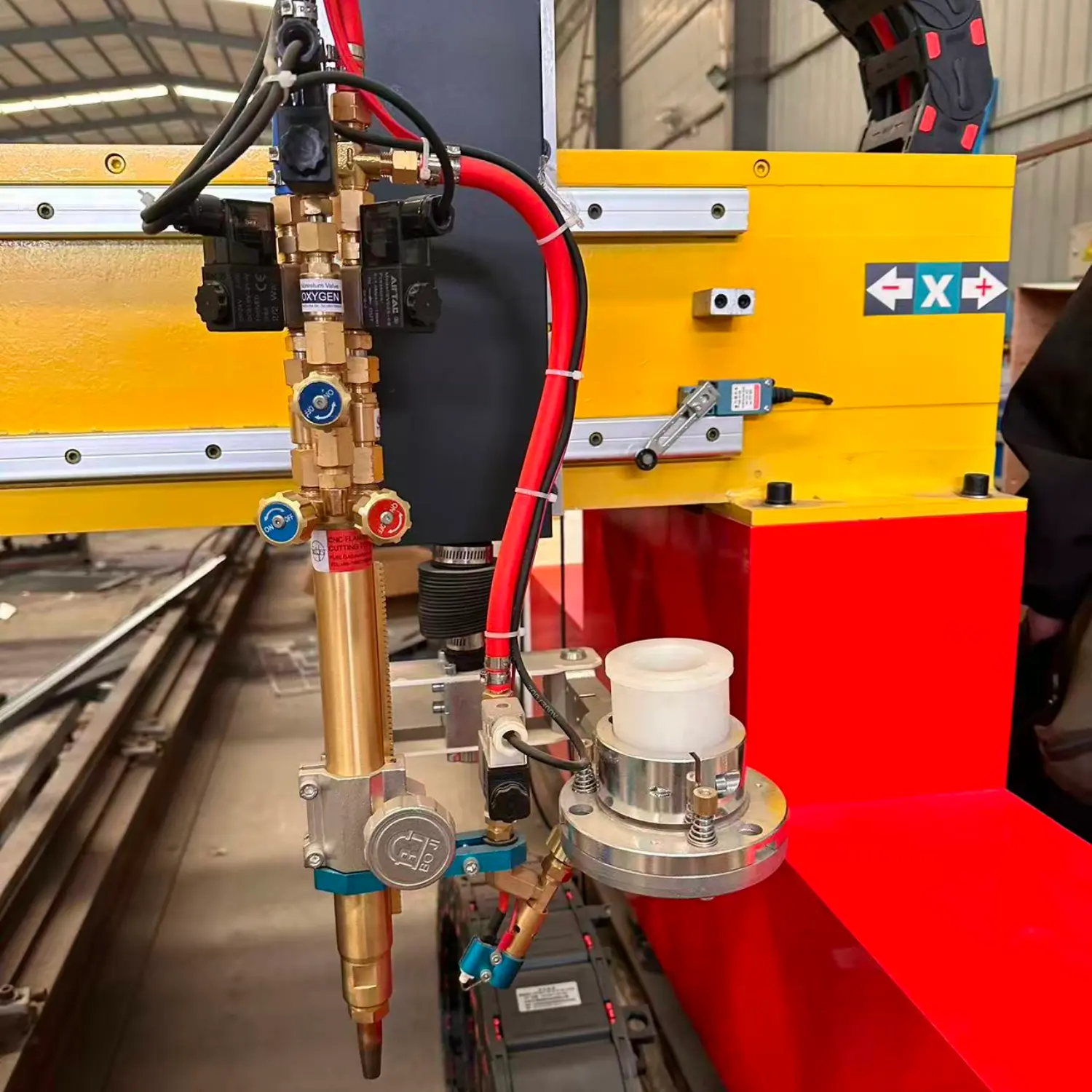

    • Flame cutting system
    • SJTU-CNC control system

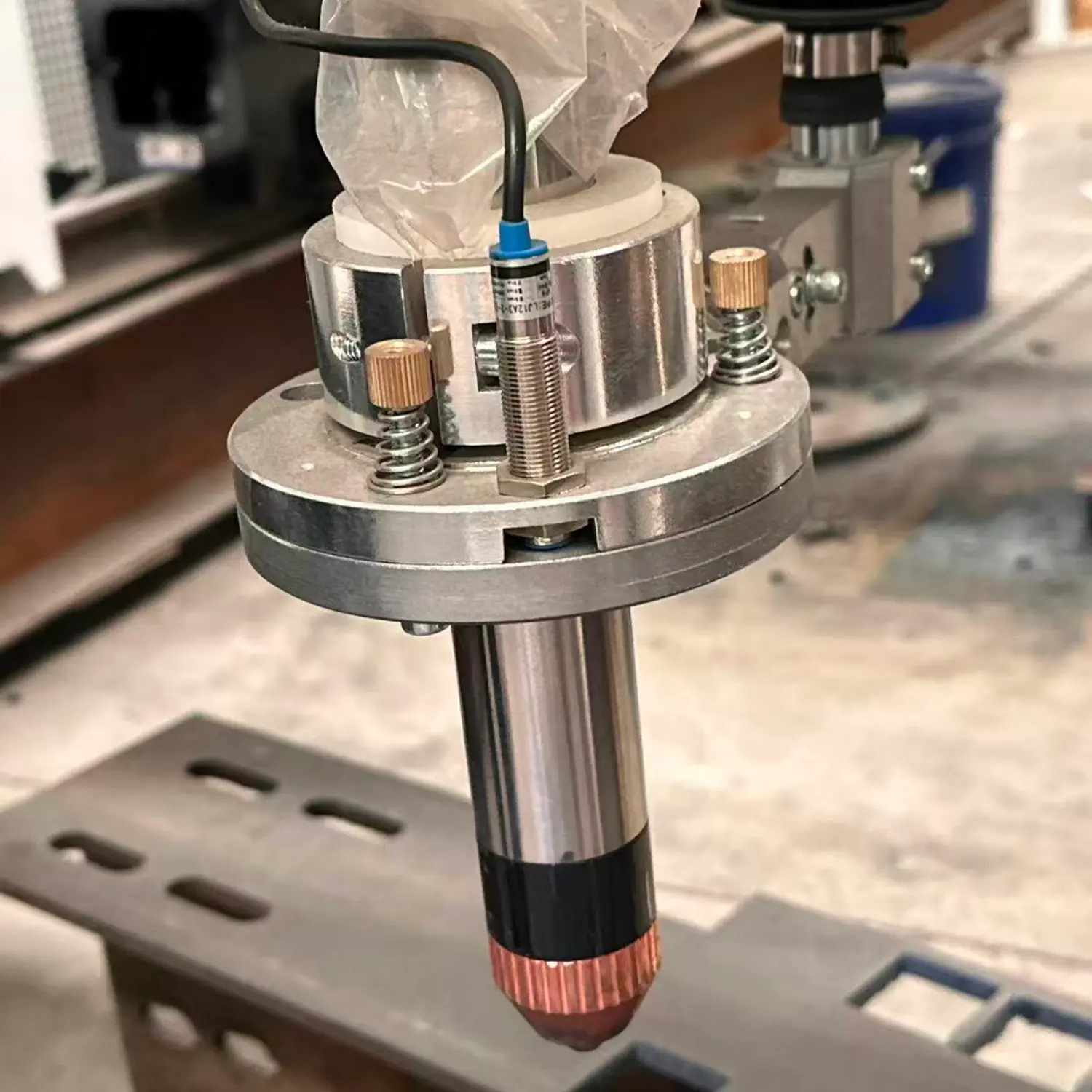

    • Automatic torch height control
    • Starcamsoftware
    • High precisionSquare guide rail
    • Rack and Gear transport system
    • China High Precision Stepping Motor
    • 10sets of nozzle electrodes
    • Planetary reducer
    • 2GBready program
    • Detailed teaching video
    • Multi-function tool box
    • All the necessary parts for machine working
    • 2 years warranty



    Product Specification

    Model 3060
    X,Y working area 3000*6000mm
    Z working area 250mm
    Lathe bed Very thick steel structure
    Machine Power 8.5kw
    Working voltage 380V/50HZ three phase
    Reposition precision 0.02mm
    Processing precision 0.1mm
    Maximum cutting speed 12000mm/min
    Torch Height control mode Automatic high sensitive THC
    Plasma power supply China  LGK200A
    Cutting thickness Max40mm carbon steel for plasma, max 300mm carbon steel for flame
    Control system SJTU-CNC control system
    Motors China brand stepper motor
    Software fastcam
    Weight 1400 KGS
    Plasma Air Pressure Max.0.8Mpa
    Working Temperature -10°C-60°C. Relative Humidity, 0-95%.
    flame cutting 300mm


      Custom Containers FAQs

      Founded in 2010, Runlongjia Machinery boasts over 15 years of manufacturing and export experience. We are a professional manufacturer dedicated to CNC lathes, CNC machining centers, fiber laser cutting machines, plasma cutting machines, portable laser welders, conventional lathes and milling machines, delivering stable, trustworthy CNC machining solutions to customers worldwide.

      Choosing the right machine depends on your workpiece size, material, machining accuracy, production capacity and budget. Our engineers can recommend the most suitable CNC lathe, machining center or laser cutting machine based on your drawings or machining requirements.

      We offer mid-to-high quality machines at competitive prices. Instead of paying for expensive brand premiums, you receive reliable performance, stable quality and excellent value for your investment.

      Yes. Our machines are manufactured under the ISO 9001 quality management system. For specific markets, we can also provide certifications such as CE, SONCAP and GOST to meet local import requirements and facilitate customs clearance.

      Telegraphic Transfer (T/T) is our standard payment method. Other payment options may also be discussed depending on the order value and long-term cooperation.

      Yes. We support FOB, CIF and other international trade terms. If required, we can arrange sea freight and assist with shipping to your destination through our logistics partners.

      All of our machines come with a 12-month warranty from the ex-factory date. During the warranty period, we provide free online technical support and guidance whenever needed.
